Haas VR-8 CNC High Speed 5-Axis Vertical Machining Center
Model:
VR-8 5-Axis
Age:
2022
Ref#:
45028
Prestige Equipment is the world's leading provider of Haas VR-8 CNC High Speed 5-Axis Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Product Specifications
TRAVELS:
X-Axis Travel
1626 MM
Y-Axis Travel
1016 MM
Z-Axis Travel
1067 MM
SPINDLE HEAD:
Spindle Motor
22 KW
Max. Spindle Speed
20,000 RPM
Max Torque
20 ft-lbf @ 7500 RPM
Drive System
Integral Spindle/Motor
Spindle Taper
HSK-A63
B-AXIS SPINDLE TILT:
Travel
+120/-120 Degrees
Max Tilt Speed
120 Degrees Per Second
Torque (Continuous)
470 ft-lbf
Brake Torque
454 ft-lbf
C-AXIS SPINDLE ROTATION:
Travel +/-
+245/-245 Degrees
Max Rotational Speed
208 Degrees Per Second
Torque (Continuous)
285 ft-lbf
Brake Torque
442 ft-lbf

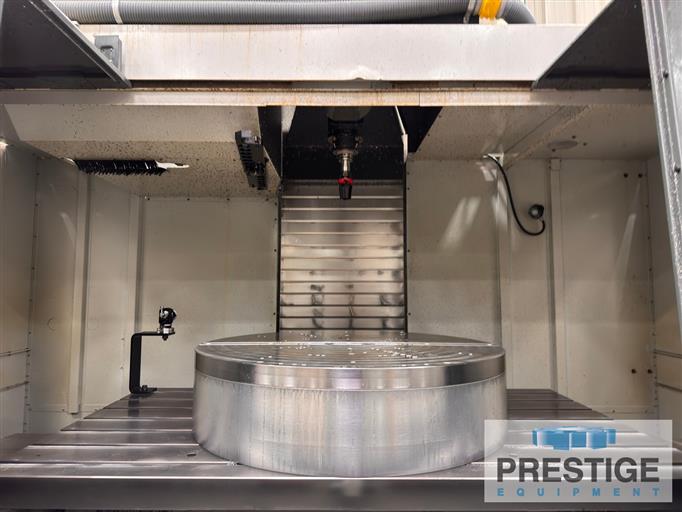

TABLE:
Table Size
1626 MM x 914 MM
T-Slot Width
16 MM -16 MM
T-Slot Center Distance
125 MM
Number of Standard T-Slots
7
Max Weight on Table
1814 KG .
FEEDRATES:
Max Cutting
12700 MM/MIN
Rapids, X/Y/Z Axes
TOOL CHANGER:
Tool Changer Capacity
50+1
Max Tool Dia, Adjacent Full
64 MM
Max Tool Dia, Adjacent Empty
127 MM
Max Tool Length From Gage Line
305 MM
Max Tool Weight
5 KG .
DIMENSIONS & WEIGHTS:
Domestic Pallet
4953 MM x 3048 MM x 3607 MM
Weight
11249 KG .
Equipped With:

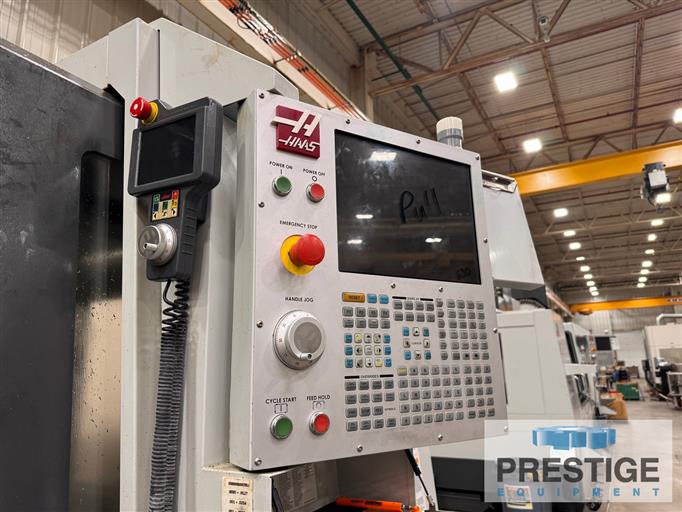

Haas 5-Axis CNC Control

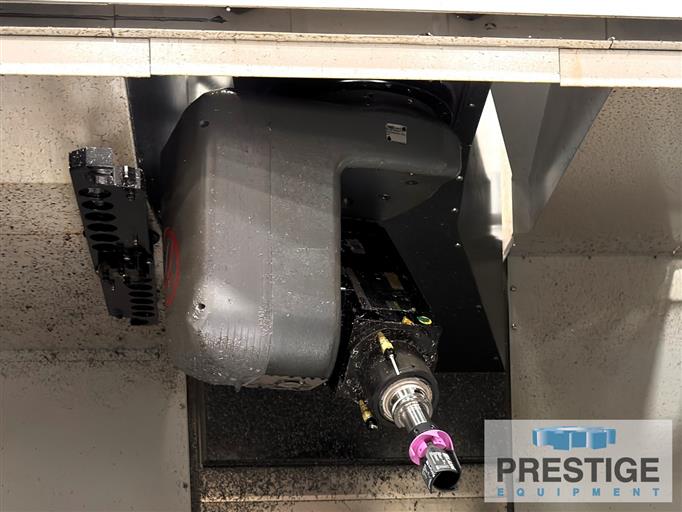

2-Axis Milling Head
20,000 RPM Max. Spindle Speed

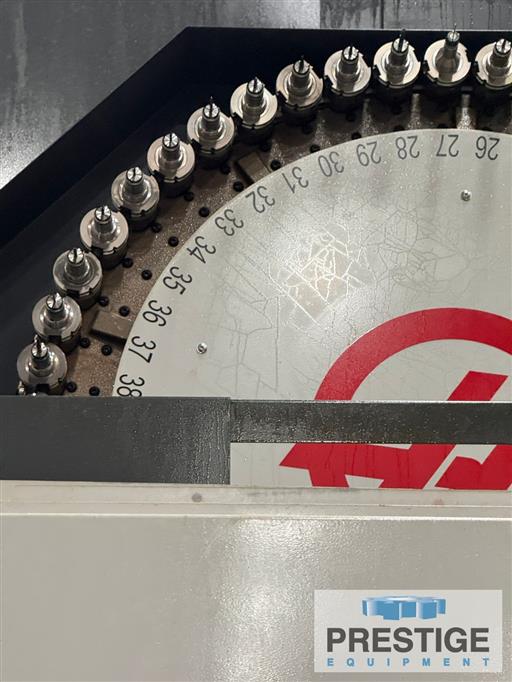

50-Position Automatic Tool Changer
Renishaw Probe System
Chip Auger
LOCATION:
Ohio CNC Manufacturing Facility
Auction Message:
Offered At Our Upcoming August 25th Auction Sale: "Complete Late Model CNC Mold Facility." Pre-Auction Offers Will Be Considered. Please Click The Link Below To See The Entire Offering.
