**ACCEPTING PRE-AUCTION OFFERS ON MAJOR MACHINES**

CNC HORIZONTAL BORING MILL

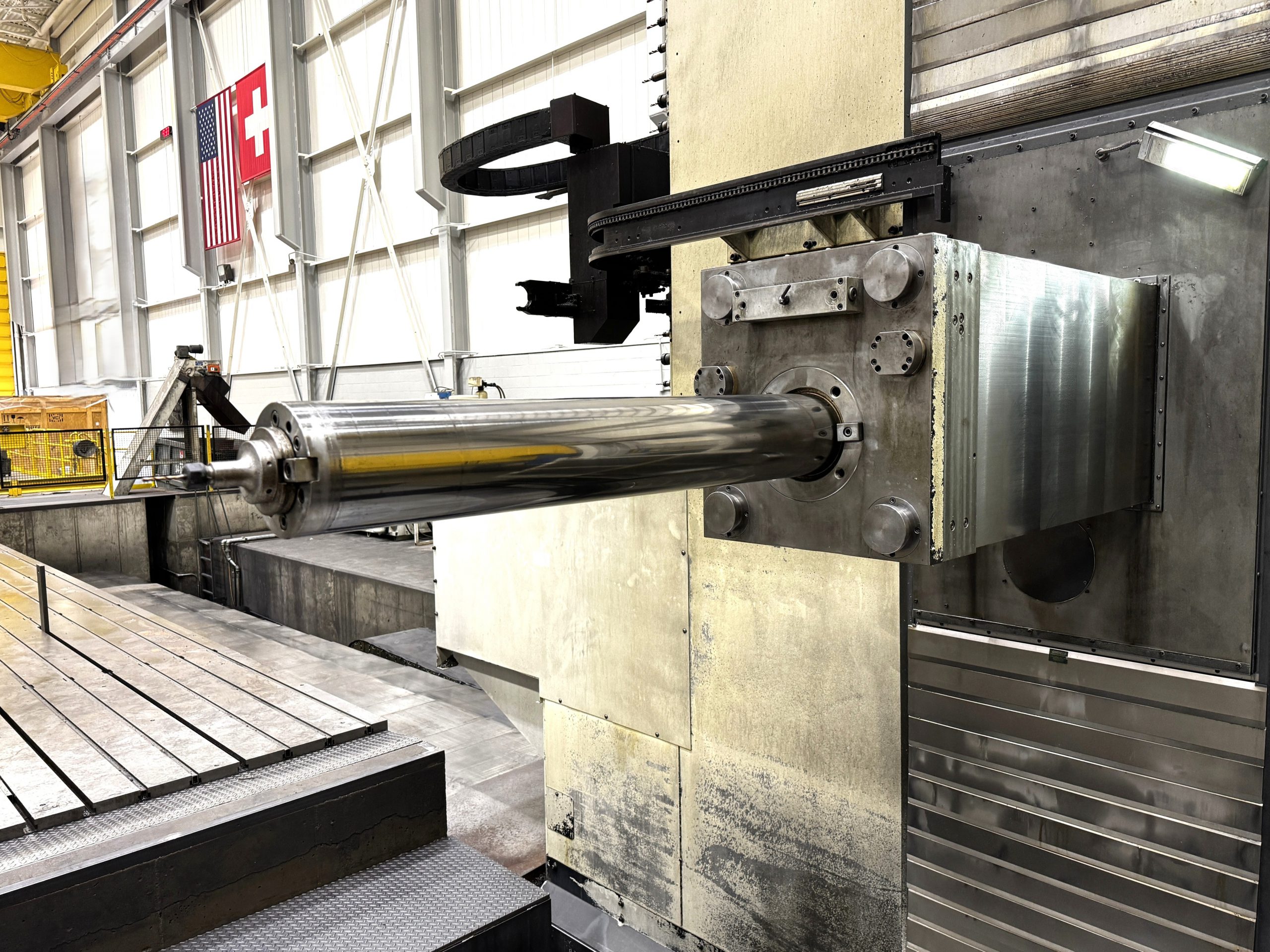

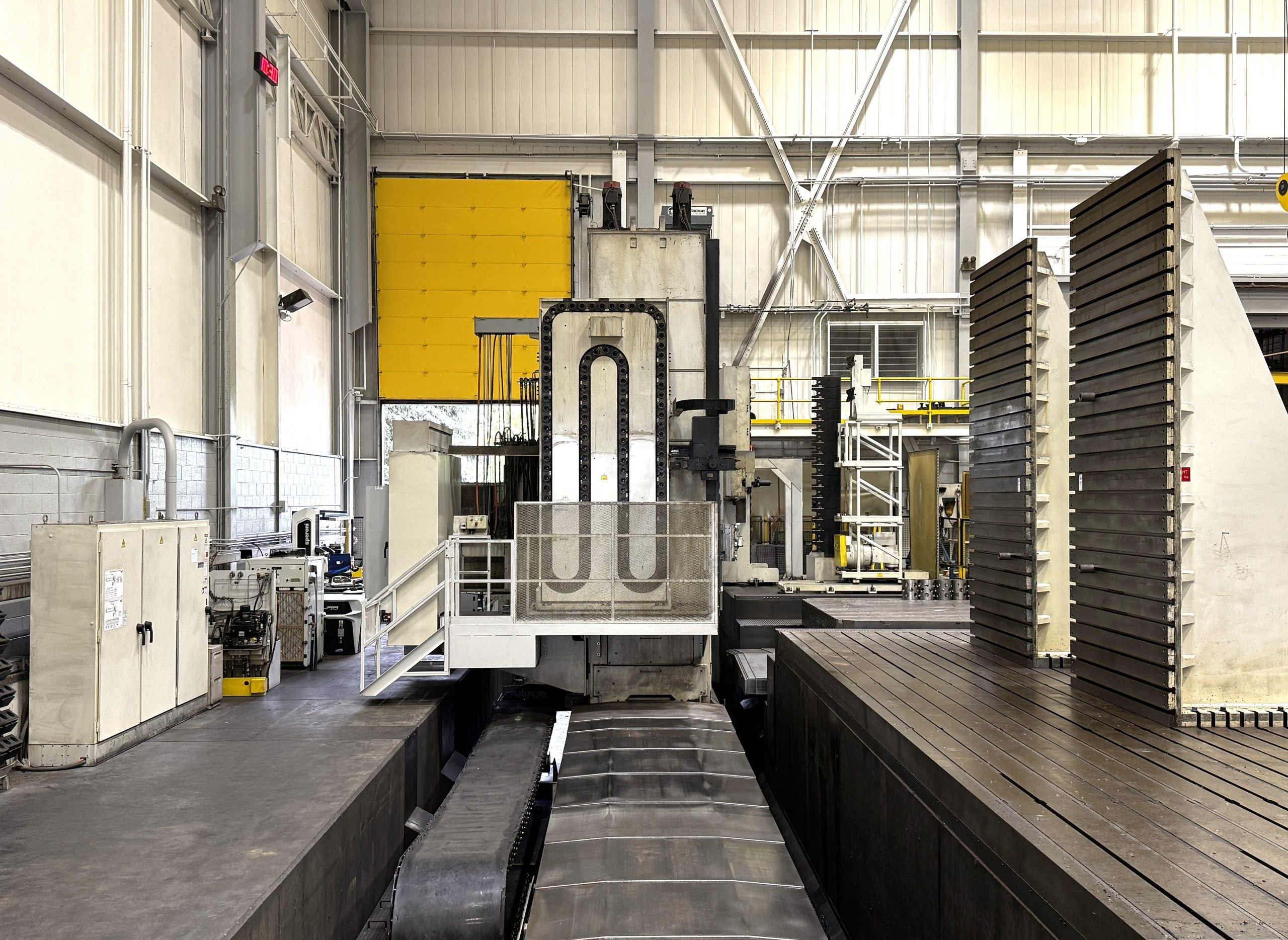

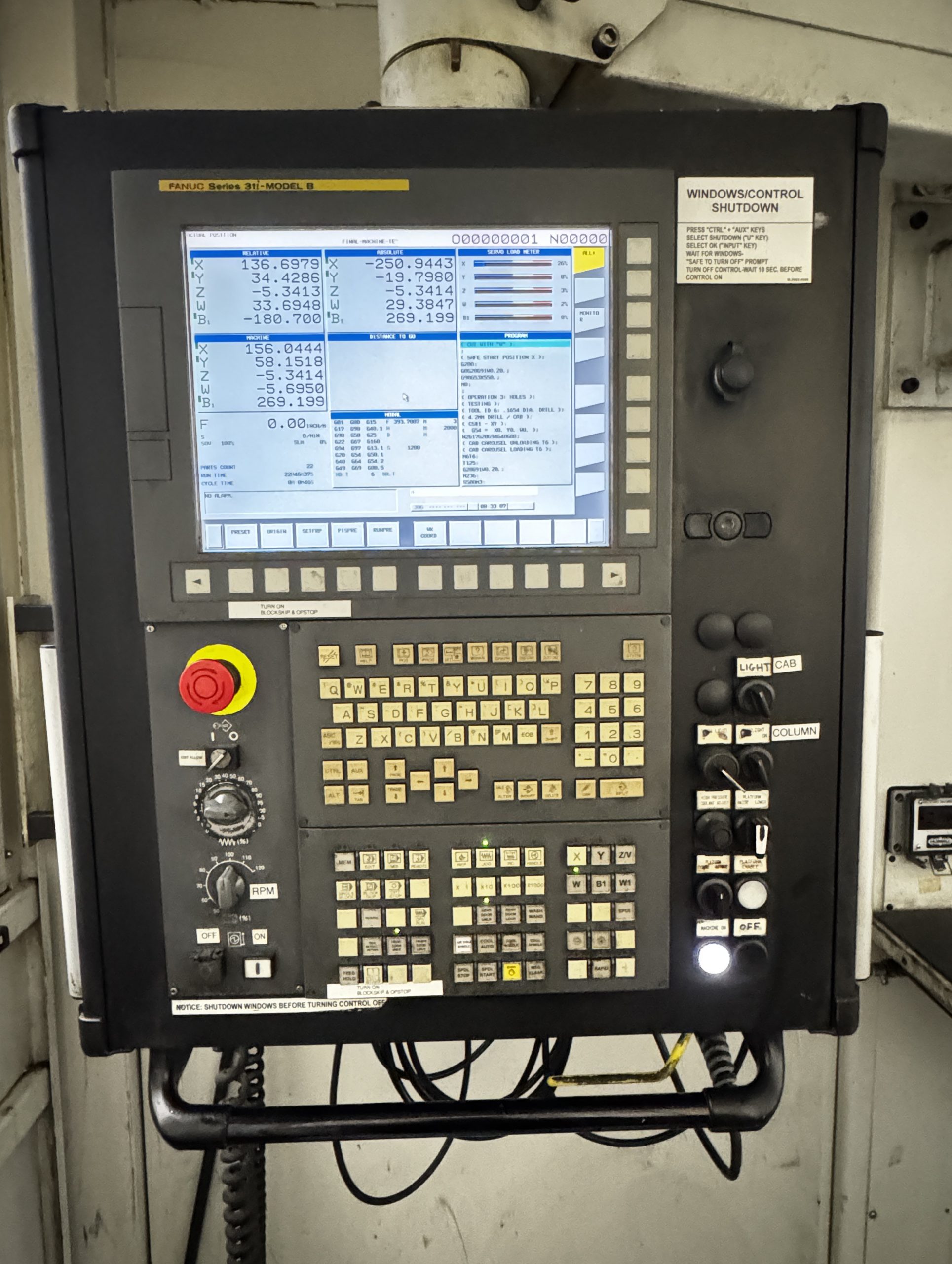

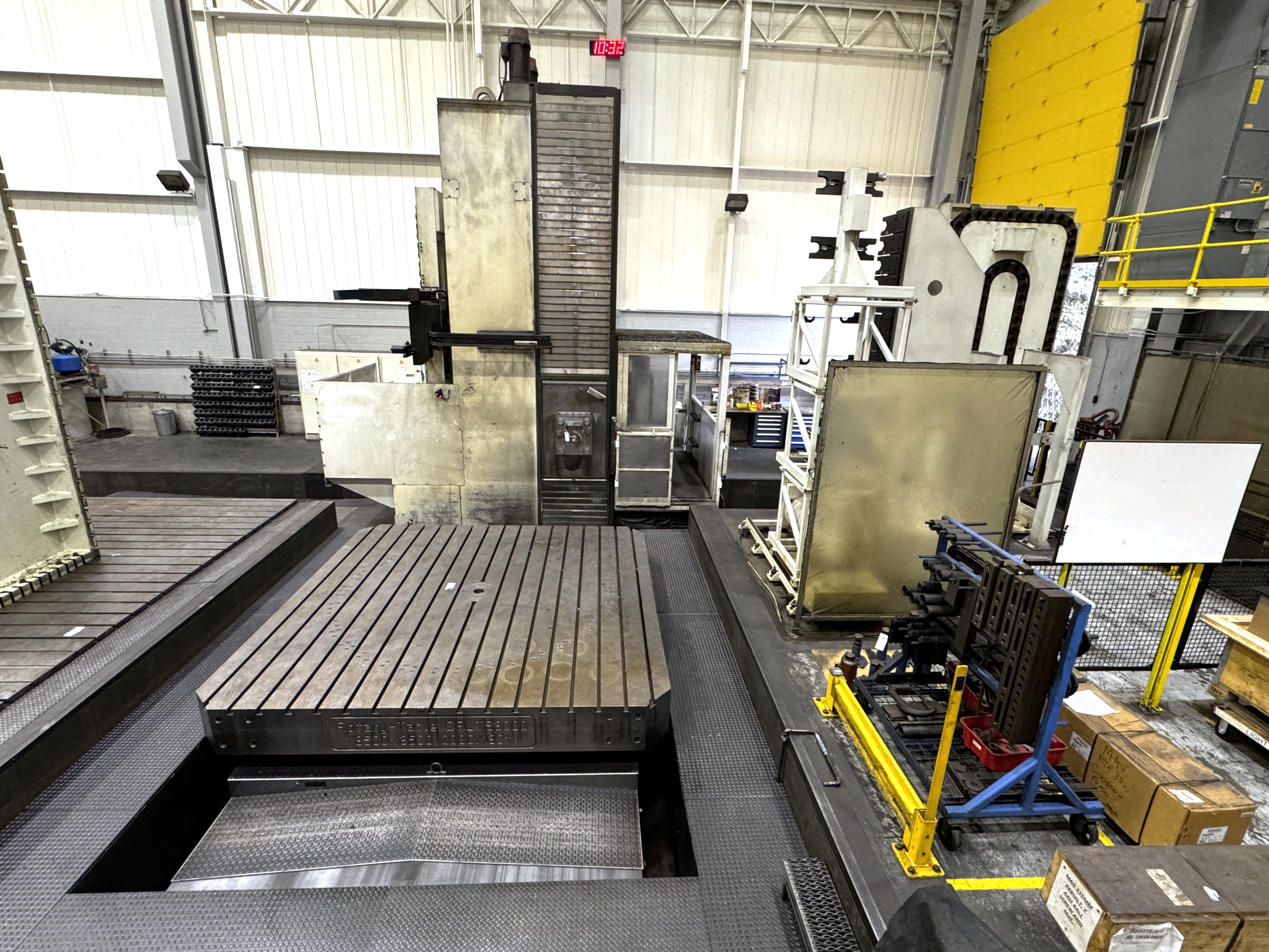

• 2013 Giddings & Lewis MAG FTR 3500 Travelling Column Ram Type Horizontal Boring Mill, Fanuc 31i CNC Control, 6.1” Spindle Diameter, 18.7” x 21.6” Ram Cross Section, Travels: X-629.92”, Y-157.48”, Z-39.4” (Ram), Z- 39.4” (Spindle), Speeds (4) Ranges 1-3500 RPM, Rapid Traverse 787 IPM, 240 Station ATC, Thru-Spindle Coolant, Rigid Tapping, Threading, 75 HP Spindle Motor, INCLUDING: Right Angle Milling Attachment 1:1 with 2.5 Degree Auto-Indexing, 137.8” x 137.8” Demmeler Infeeding B-Axis Rotary Table w/ 130 Ton Weight Capacity, 94.4” W-Axis Infeed, 197” x 394” Floor Plates, S/N 484-008-13 VIEW LOT #99

CNC HORIZONTAL MACHINING CENTER

• 2012 Mazak Nexus HCN 10800-II CNC 4-Axis Horizontal Machining Center with 12-Station Palletech Flexible Manufacturing System (FMS), Mazatrol Matrix Nexus CNC Control w/ Pendant, Travels: X-66.9″, Y-55.1″, Z-60″, 12-Station Mazak Palletech Automatic Pallet System with 39.4″ x 39.4″ Pallets, Full B-Axis Contouring, 8,800 Lbs. Pallet Load, 506-Station Mazak Tool Hive ATC, CAT 50 Taper, Spindle Speeds to 8000 RPM, Mazak Superflow V80/1000nt High Pressure Thru-Spindle Coolant System, Flood Coolant, Renishaw Probe, Chip Conveyor, 75 HP Spindle Motor, S/N 233652 [2012] VIEW LOT #18


ANGLE PLATES

• (2) 72” W x 151” H Angle Plates, 20,000 Lb. Each VIEW LOT #99A


TOOL PRESETTERS

• 2015 Speroni Futura STP 88 High Precision Tool Presetter, 800mm Dia. Capacity [2015] VIEW LOT #139

• Parlec Parsetter TMM Series 1550 Tool Presetter, Model 1850-PGC, S/N- P1267316-0312 VIEW LOT #85

• Rego-Fix PowRgrip 9000 Hydraulic Toolsetting Unit VIEW LOT #84

WELDING DEPARTMENT

• 2014 Yaskawa Motoman TSG-YXZ-SD Robotic Welding Cell, S/N 3788631-1 [2014], w/ Yaskawa Motoman Robot Control Unit w/ Pendant, Fronius TPS 500i Pulse Welding Source, Neweld Control Panel for Heating Elements, Esab Marathon 1.2mm Wire Supply VIEW LOT #11

• Fronius Transplus Synergic 4000 MV Mig Welder, S/N 26033509 VIEW LOT #7

• Thermal Dynamics Corp. Thermal Arc Pak 3XR Plasma Cutting System, up to 1/2″ Cutting Capacity, 1 Phase, 60 HZ. VIEW LOT #8

• Miller Millermatic 250 CV/DC Arc Welder VIEW LOT #6
• (4) Esab Marathon Pac Wire Packages, 1.2mm, 550 Lbs. Each VIEW WIRE PACKAGES


DUST COLLECTOR

• Donaldson Torit DFO4-80 Dust Collector System, 80 Cartridge Filters, Delta P Plus Control Panel, Johnson VS3 Variable Speed Control Panel, Industrial Air Products Blower, Model# 490 B CL III, 107 BHP, 50,000 CFM, 1114 RPM VIEW LOT #13

TOOLING, MISCELLANEOUS MACHINERY, & SUPPORT ITEMS

• 1,000+ CAT 50 Tool Holders with Milling Cutters, Drills, New & Unused Spade Drills, Boring Bar Holders, Hertle Drills, Shanks, Tappers, Collets, Inserts, Etc.

• Rigid 1224 Pipe Threader, 120 Volt, 15.5 Amps, 1 Phase, S/N- 102090 VIEW LOT #9

• Clausing 2277 Variable Speed Drill Press, 21″ Swing, 2 HP, S/N-525196 VIEW LOT #10

• Tombstones, Angle Plates, Sub Plates, Fixtures, Risers, Etc.
• Vidmar Work Benches, Tooling Cabinets, Workstations, Etc.


MATERIAL & PART HANDLING EQUIPMENT

• 29′ Jib Crane w/ Radio Remote Pendant, 500 Lb. Capacity 8′ Arm Approx. 29′ Clearance, Hoist and Chain, (Used with Welding Cell) VIEW LOT #12

• FX Lift Model FX-HV 3000kg 6600 Lb. Horizontal / Vertical Magnetic Handling System, S/N 0218 VT3000 0100 VIEW LOT #89

• Walker NEO 1000, 2200 Lb. Capacity Magnetic Handling System, S/N- 7283 VIEW LOT #90

• Walker NEO 500, 1100 Lb. Capacity Magnetic Handling System VIEW LOT #91
• Beebe Bros. Telemotive Series 9000 Winch, 6000 Lb. Capacity VIEW LOT #92

• Tecnomagnete 2200 Lb. & 4400 Lb. Lifting Magnets VIEW MAGNETS

• Star Crane & Hoists 115 Ton Spread Bar, 16′ Over All Length VIEW LOT #141

• Kelly Sales & Engineering 75 Ton Spreader Bar, 14′ Over All Length VIEW LOT #142


INSPECTION ITEMS

• Large Quantity of Calipers, Micrometers, Gage Blocks, Depth Gages, Bore Gages, Ring Gages, Thread Plugs, Height Master Gages, Etc.
