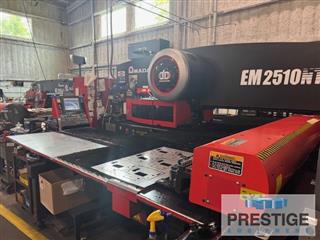

22 Ton Amada EM2510NT AC Servo Electric CNC Turret Punch Press
Model:
EM2510NT
Age:
2007
Ref#:
44260
Prestige Equipment is the world's leading provider of 22 Ton Amada EM2510NT AC Servo Electric CNC Turret Punch Press & machine tools & fabricating equipment. Take a look at our wide selection of new and used Punch Laser Combination Turret Punches for sale.
Product Specifications
Features:
✓
AMNC PC Based Control
✓
45 Station Thick Turret
✓
Brush Table Design
Product Specifications
CAPACITY:
Tonnage Capacity
22 Tons
Table Travel
1270 MM x 2540 MM
Throat Depth
1321 MM
Maximum Material Thickness
3 MM
Maximum Punch Diameter
114 MM
Hit Rate 25 MM Pitch,5 MM Stroke
373 KW M (X-Axis)
Hit Rate 25 MM Pitch,5 MM Stroke
246 KW M (Y-Axis)
Hit Rate1 MM Pitch,5 MM Stroke
582 KW M (X-Axis)
Hit Rate1 MM Pitch,5 MM Stroke
384 KW M (Y-Axis)
X-Axis Positioning Speed
100330 MM/MIN
Y-Axis Positioning Speed
80010 MM/MIN
Stroke Length
42 MM
Machine Weight
19958 KG
Equipped With:
Fanuc AMNC-PC CNC Control
AC Servo Driven Punch Ram
Brush Table Design
45 Station Thick Turret (No Holders or tooling)
(2) 32 MM Auto Index Stations
(2) 51 MM Auto Index Stations
Auto Sheet Repositioning
NOTE:
Inspect Under Power in Plant
Features:
✓
AMNC PC Based Control
✓
45 Station Thick Turret
✓
Brush Table Design
