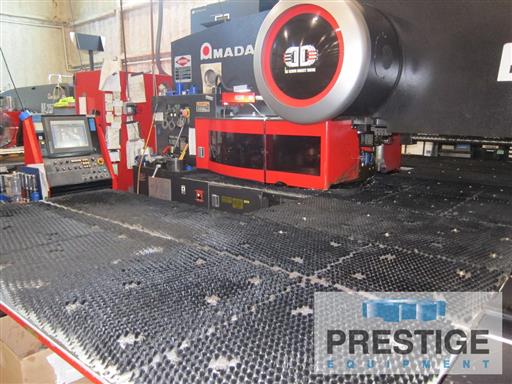

22 Ton Amada EM2510NT AC Servo Electric CNC Turret Punch Press
Model:
EM2510NT
Age:
2007
Ref#:
44260
Prestige Equipment is the world's leading provider of 22 Ton Amada EM2510NT AC Servo Electric CNC Turret Punch Press & machine tools & fabricating equipment. Take a look at our wide selection of new and used Punch Laser Combination Turret Punches for sale.
Product Specifications
Features:
✓
AMNC PC Based Control
✓
45 Station Thick Turret
✓

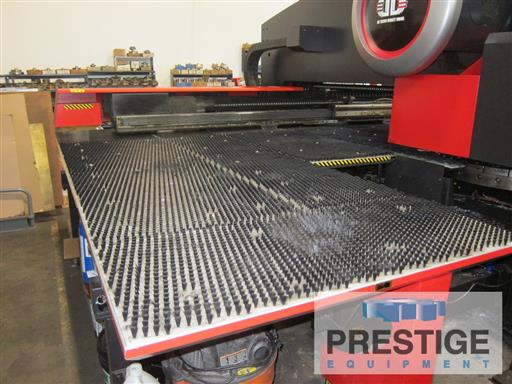

Brush Table Design
Product Specifications
CAPACITY:
Tonnage Capacity
22 Tons
Table Travel
50" x 100"
Throat Depth
52"
Maximum Material Thickness
1/8"
Maximum Punch Diameter
4-1/2"
Hit Rate 1" Pitch, .197" Stroke
500 HPM (X-Axis)
Hit Rate 1" Pitch, .197" Stroke
330 HPM (Y-Axis)
Hit Rate .040" Pitch, .197" Stroke
780 HPM (X-Axis)
Hit Rate .040" Pitch, .197" Stroke
515 HPM (Y-Axis)
X-Axis Positioning Speed
3,950 IPM
Y-Axis Positioning Speed
3,150 IPM
Stroke Length
1.65"
Machine Weight
44,000 Lbs
Equipped With:
Fanuc AMNC-PC CNC Control

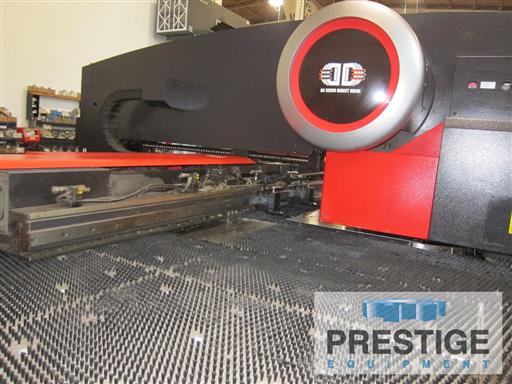

AC Servo Driven Punch Ram
Brush Table Design

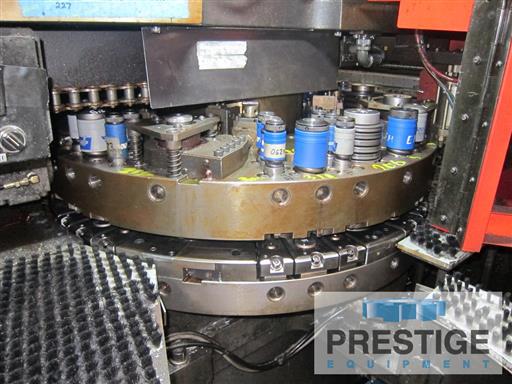

45 Station Thick Turret (No Holders or tooling)
(2) 1-1/4" Auto Index Stations
(2) 2" Auto Index Stations
Auto Sheet Repositioning
NOTE:
Inspect Under Power in Plant
Features:
✓
AMNC PC Based Control
✓
45 Station Thick Turret
✓
Brush Table Design
