POWDER COAT PAINT LINE

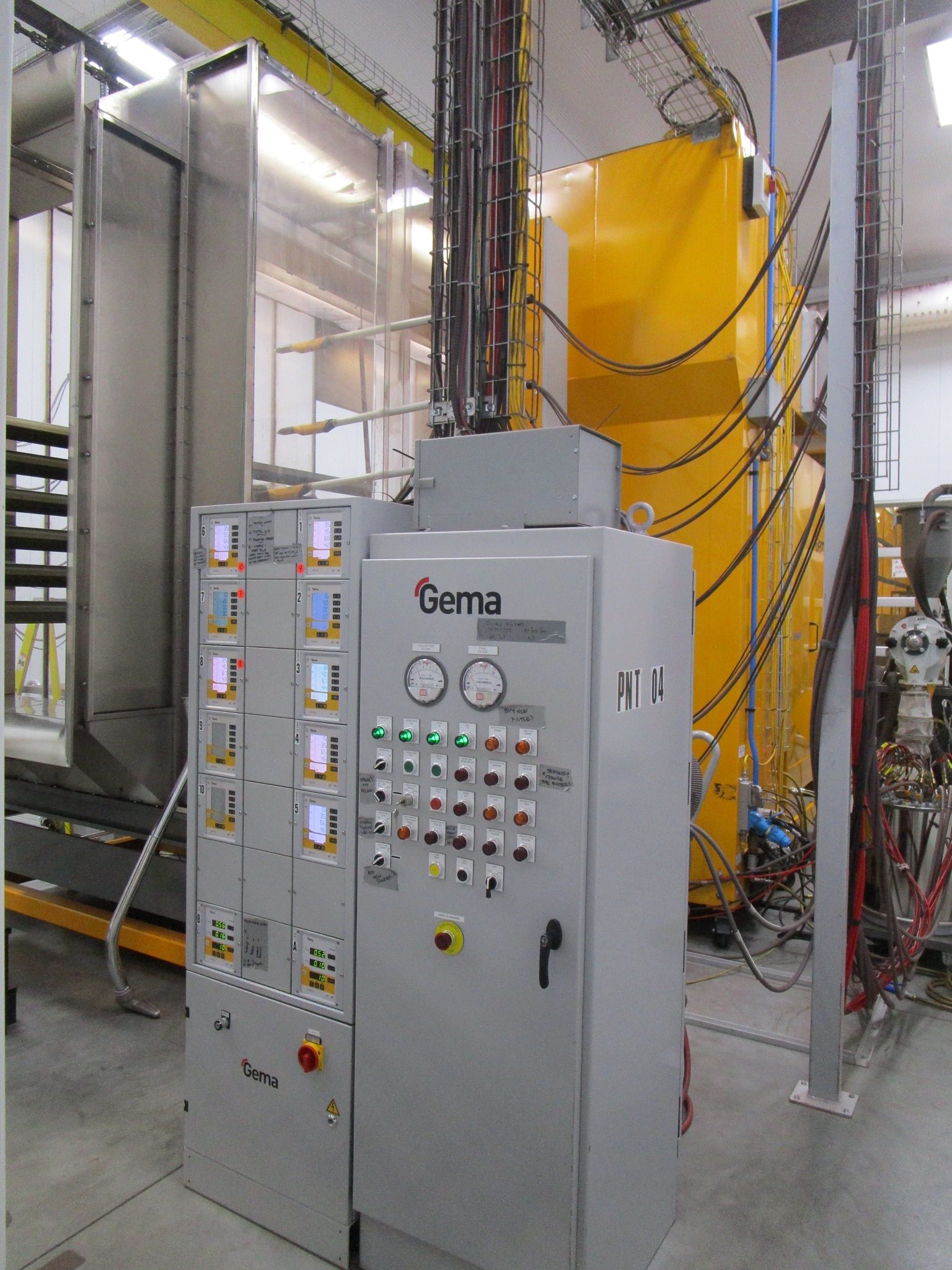

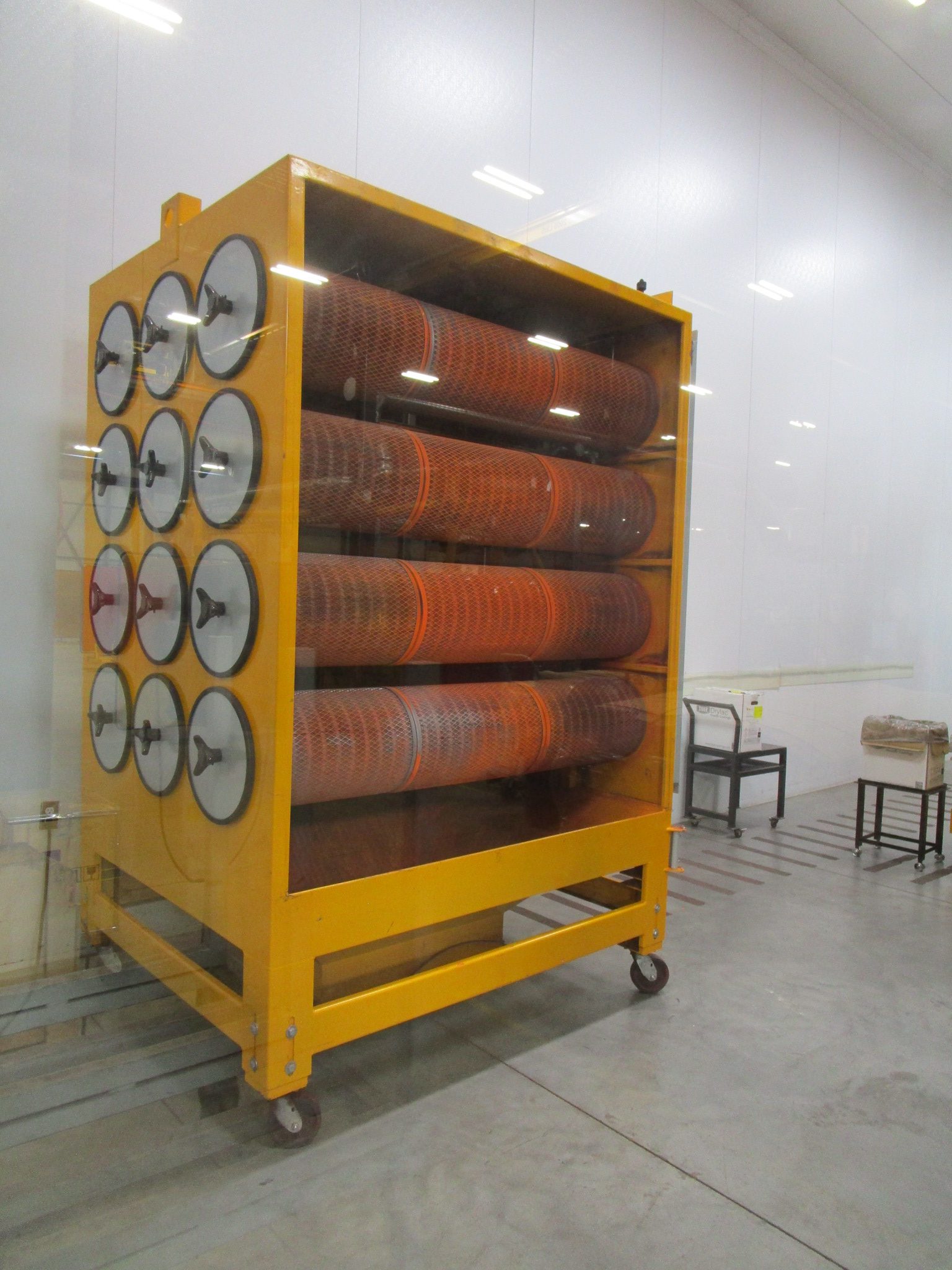

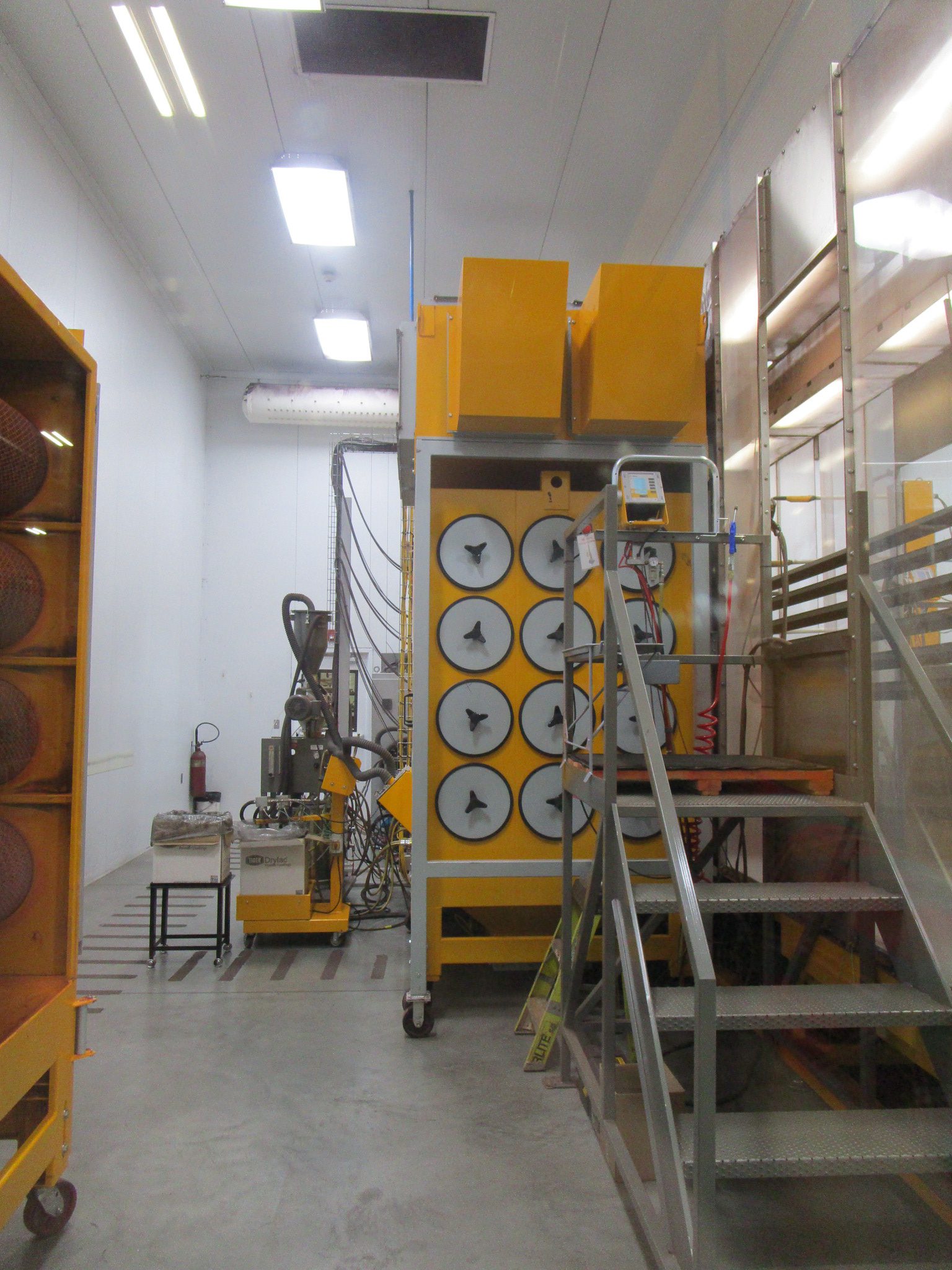

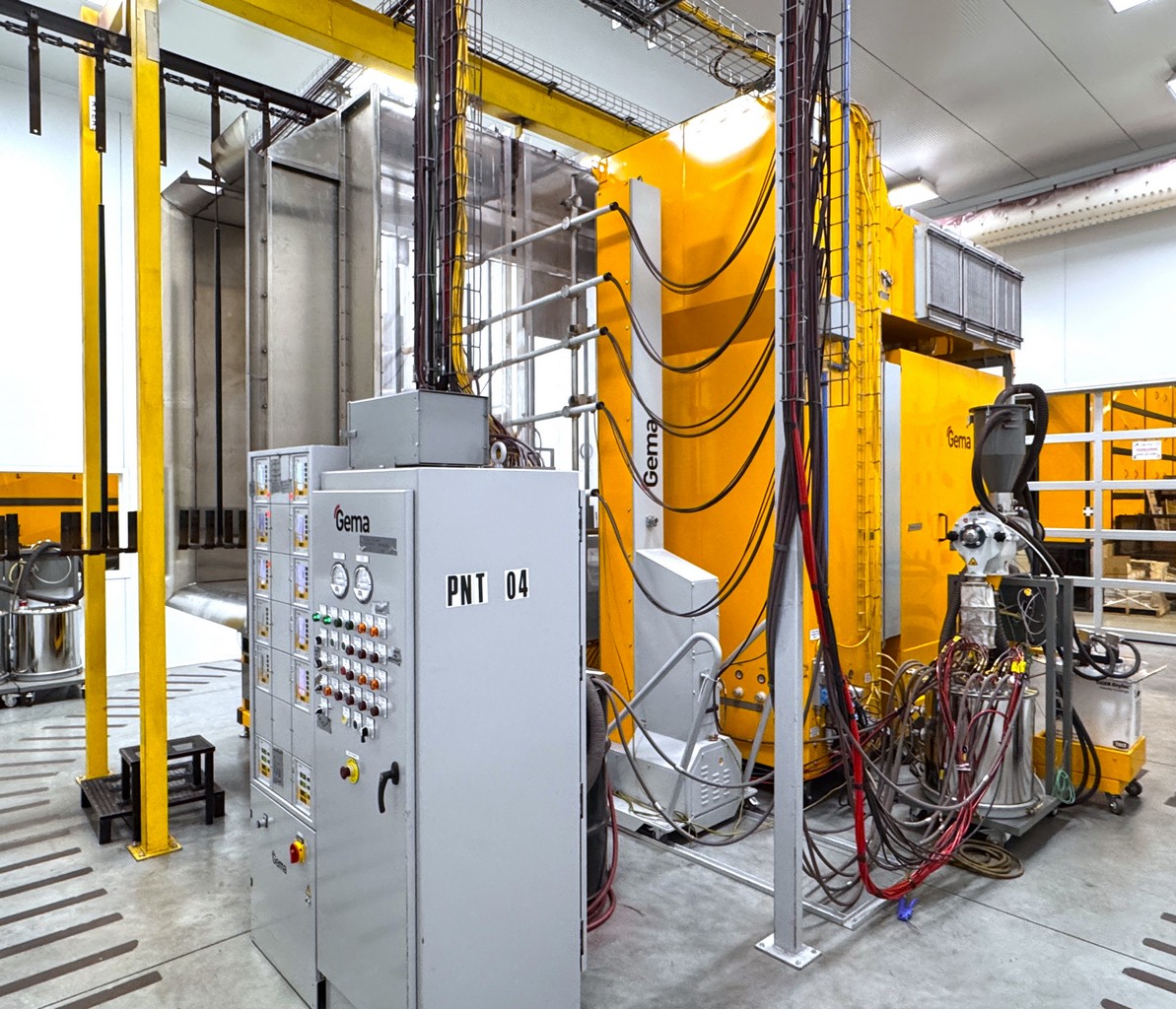

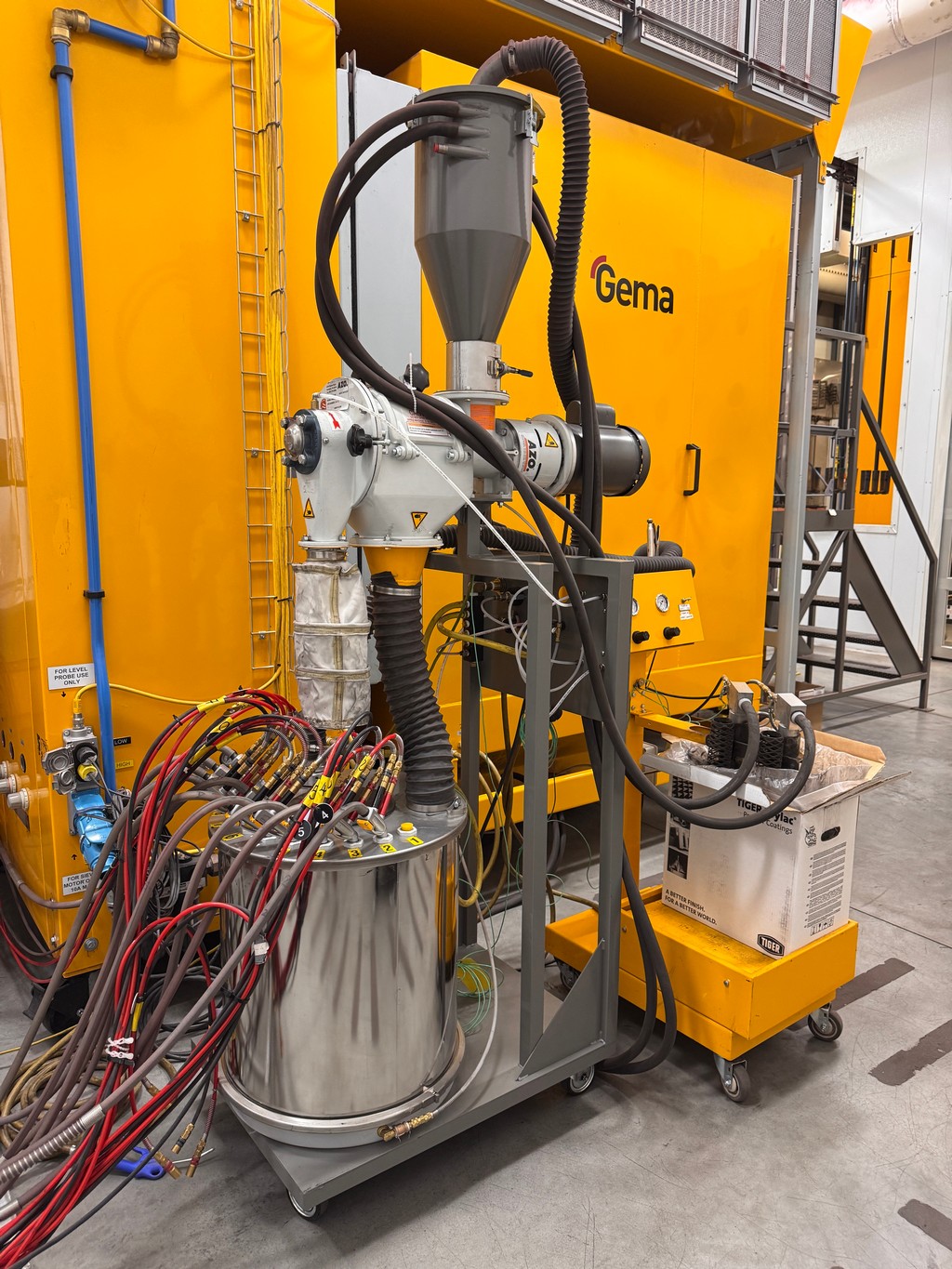

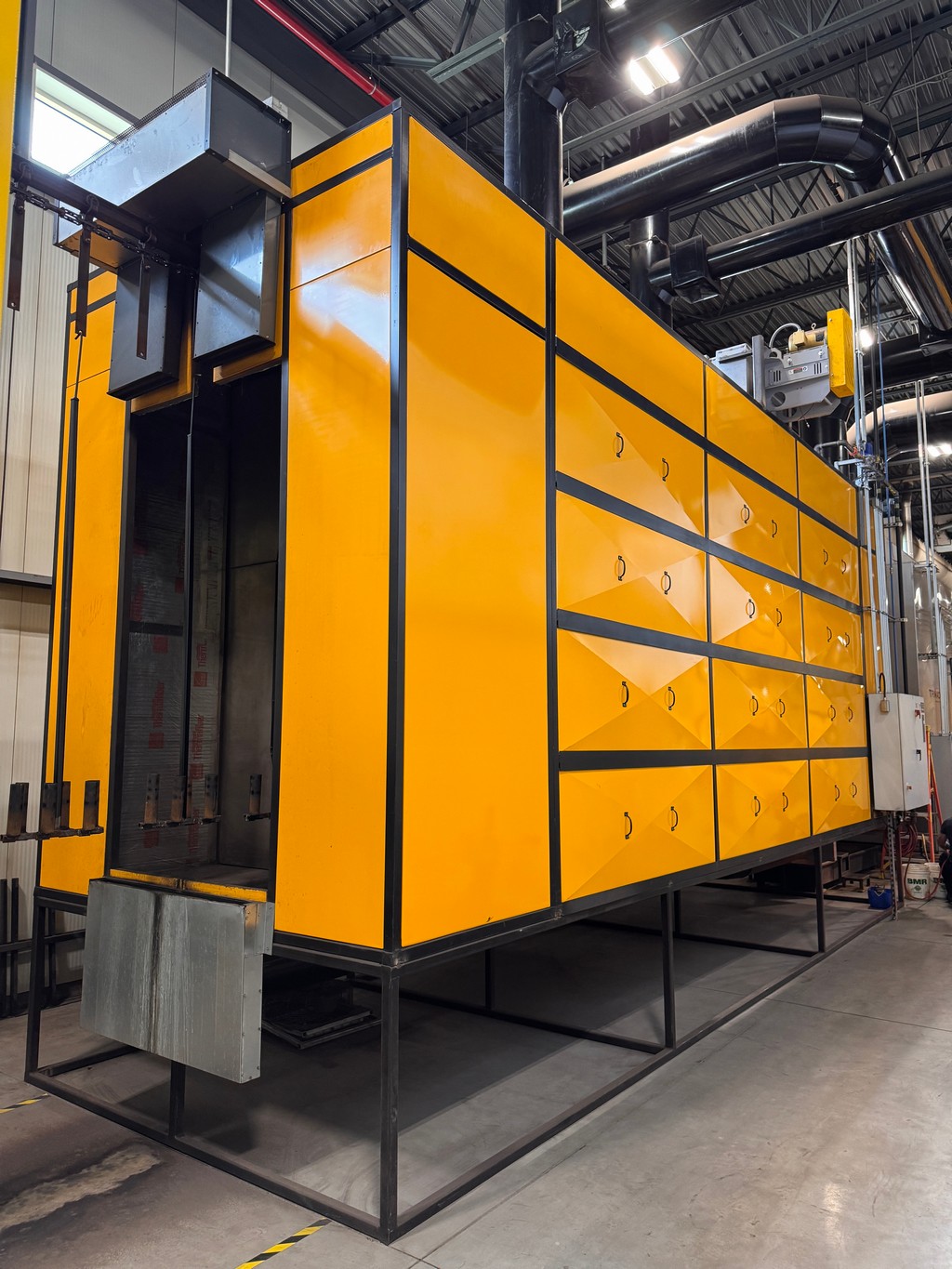

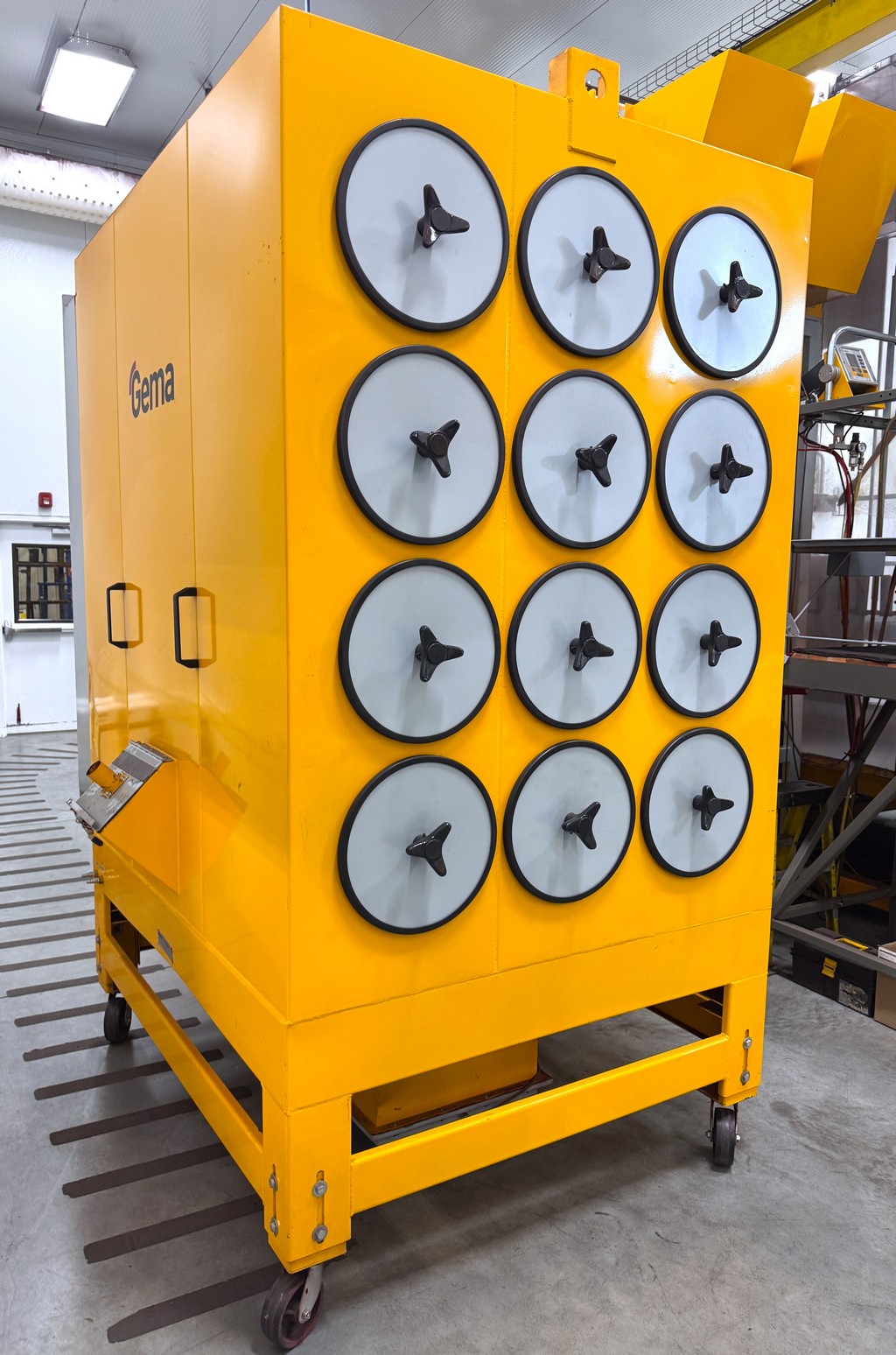

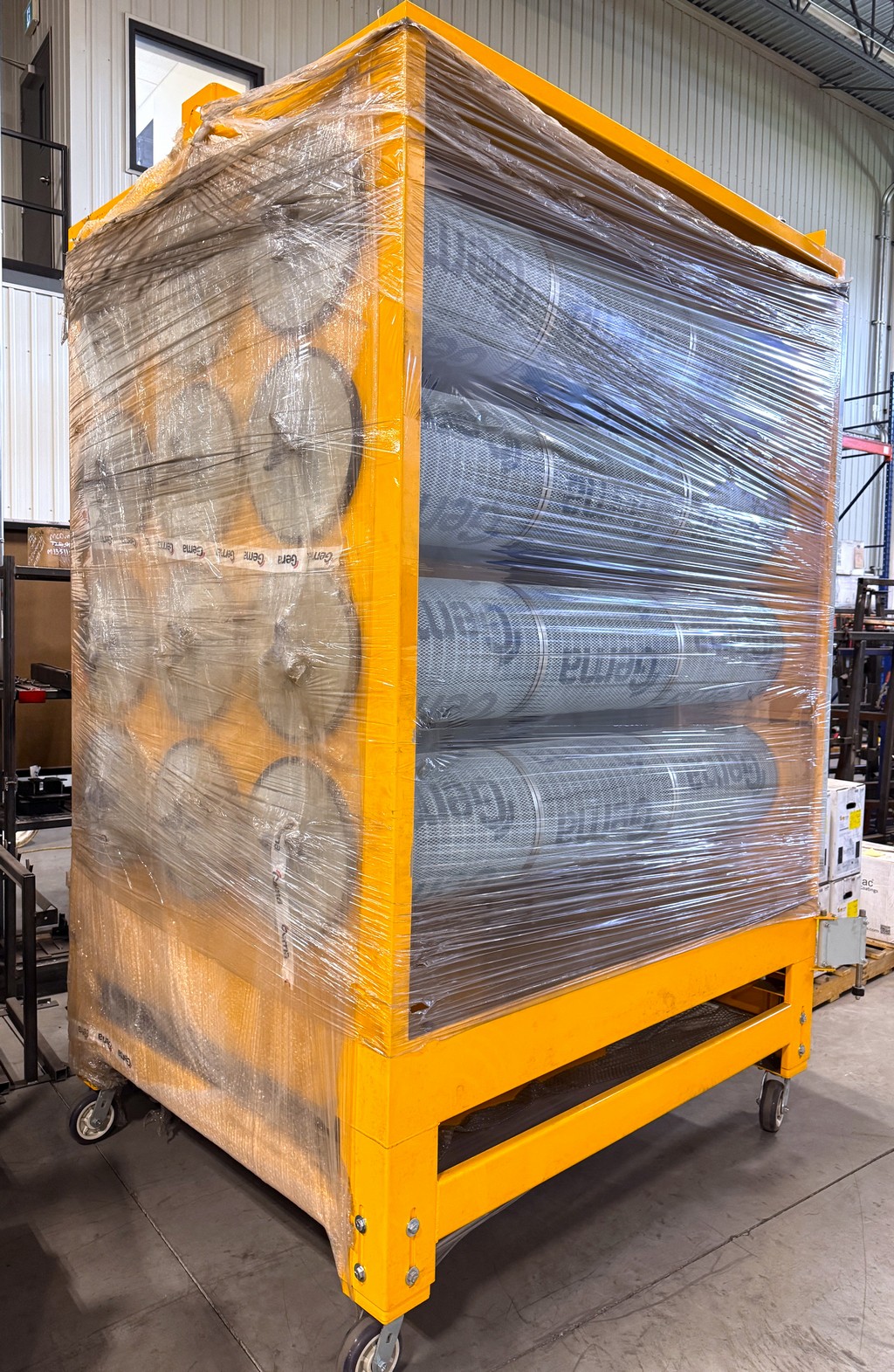

• 2021 GEMA (10) Gun Electrostatic Powder Coat Paint System, w/ (2) 2020 GEMA Reciprocator ZA08-23 5-Gun Automatic Spray Systems w/ Gema OptiStar Guns Controls and (2) GEMA OptiMove Axis Controls, (2) GEMA OptiFlex Manual Guns w/ OptiStar CG13 Gun Controls, Reclaim System w/ (2) 12-Cartridge Filters, Powder Hopper, Thermal Wrap System, New Never Used 12-Cartridge Filter Included

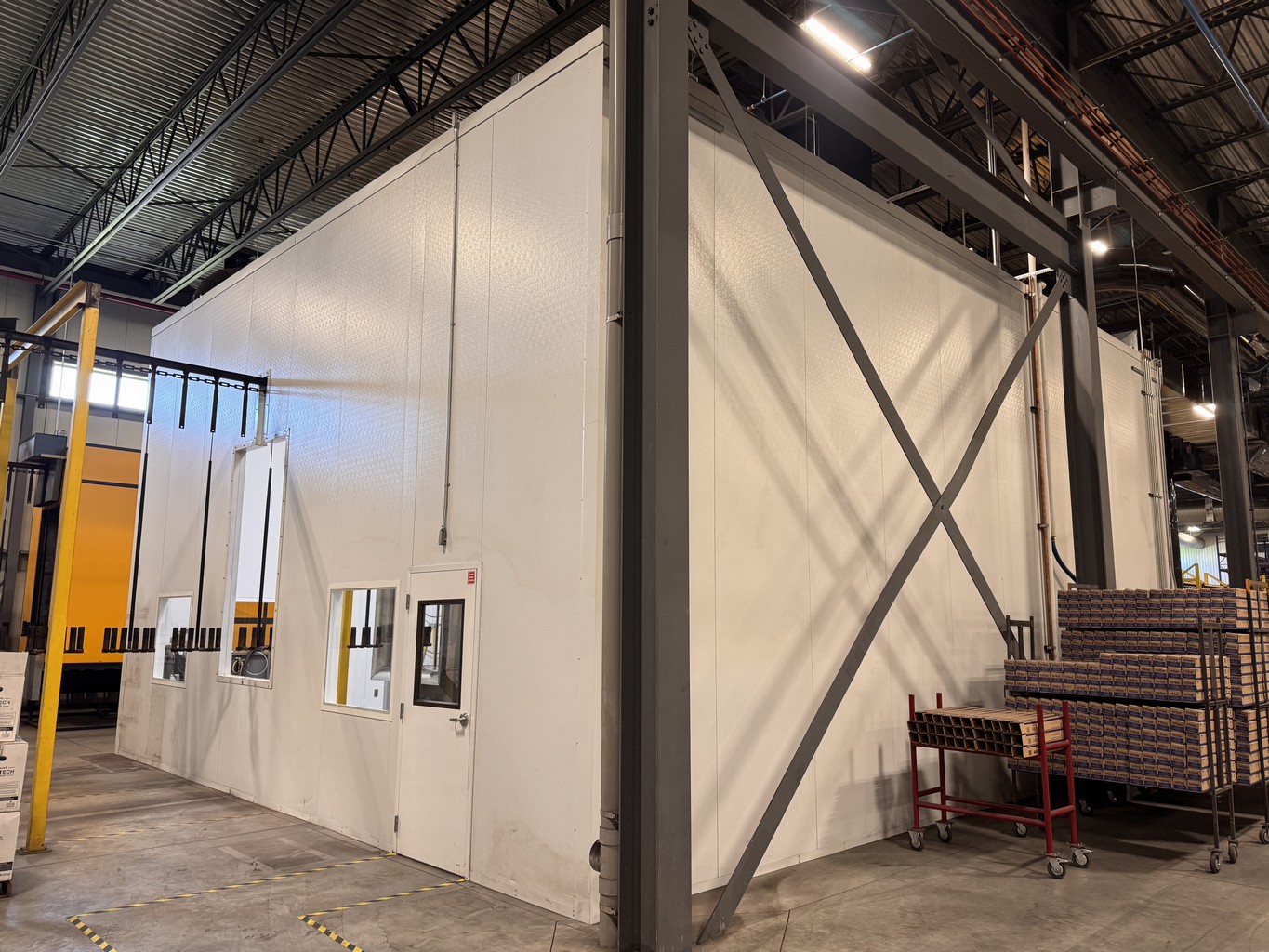

• Environmental Room- Approx. 30’8”W x 18’h x 30’8”L, Smooth White Steel/Foam/ Steel Tongue & Groove Panel, R-119 Encapsulated Insulation, Hi-Bay Lights, Man Door, 10’ x 10’ Garage Door, (2) Man Doors

• 2021 TRIMAC INDUSTRIAL SYSTEMS KEMAC Stainless Steel 5 Stage Wash, s/n QG-0720-6859-W, Stainless Steel Tanks and Tunnel, 8’ Drain Backs, 6’/Min. Line Speed, (2) Head Stages, Coalescer, Stage 1-Wash, 80 Sec., 8’ Length, 1476 Gallon Tank, 140 Degree F, 2.8 GPM Nozzles, (9) Risers, 172 Nozzles, 482 GPM Pump, 15 HP, Stage II- Rinse, 50 Sec., 5’ Length, 950 Gallon Tank, Ambient, Drain- 8’Length,, 80 Sec., Stage III= Phos, 5’ Length, 950 Gallon Tank, 50 Sec., 120 Degrees F, Stage IV-Rinse, 5’ Length, 950 Gallon Tank, 50 Sec., Stage V- Rinse, 5’Length, 950 Gallon Tank, 50 Sec., Ambient, Exit Drain- 8’ Length, 80 Sec. Stages 2-5-2.8 GPM Nozzles, (6) Risers Each Stage, (114) Nozzles Each Stage, 319 GPM Pumps, 10 HP Motors, (2) 30” 6600 CFM Exhaust Fans Toal Wash system Dimensions- 13’6” H x 9’6”W x 76’L

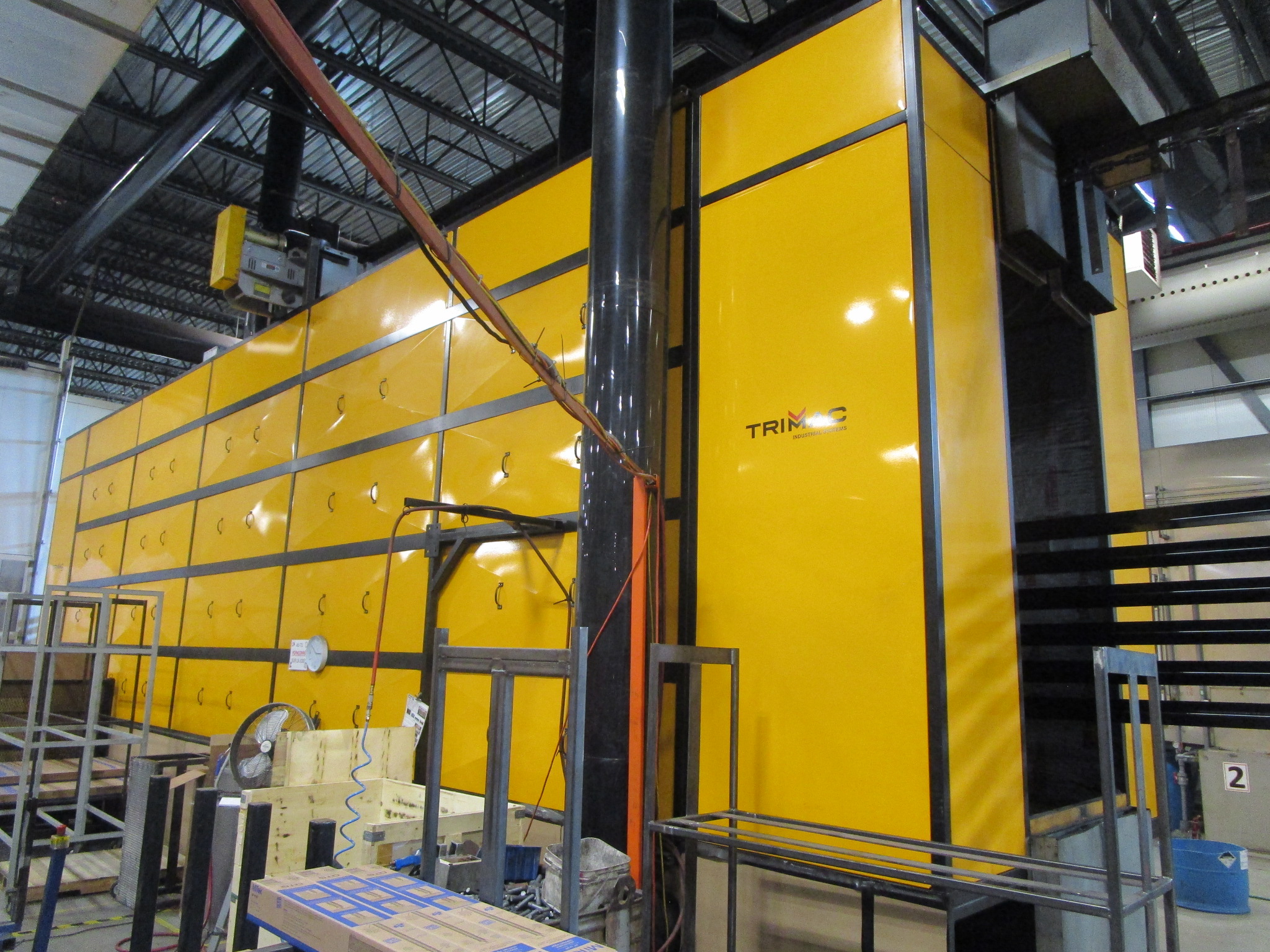

• 2021 TRIMAC INDUSTRIAL SYSTEMS GAS CAT DRY Infrared Dry-Off Oven, s/n QC-0720-6859-D, w/ Thermal Wrap System w/ 3500 CFM High Temp. Recirculation w/ Adjustable Controls, Variable Speed Motor Control for Air Volume, High Reflective Aluminum Insulated Panel Construction, (16) 24” x 72” Gas Cat Catalytic Heating Units @ 72,000 BTU/hr Each. 192 Sq/ Ft. Catalytic Surface Area- Total of 1,152,000 BTU/Hr, 12’H x 7’2”W x 27’L, 6’/Min Line Speed, 48” x 96” Opening, 8” x 18”H Hook Slot, 2.5 Min. Heated Process Time, (2) 1500 CFM Exhaust Fans, (2) 2500 CFM Recirculation Fans

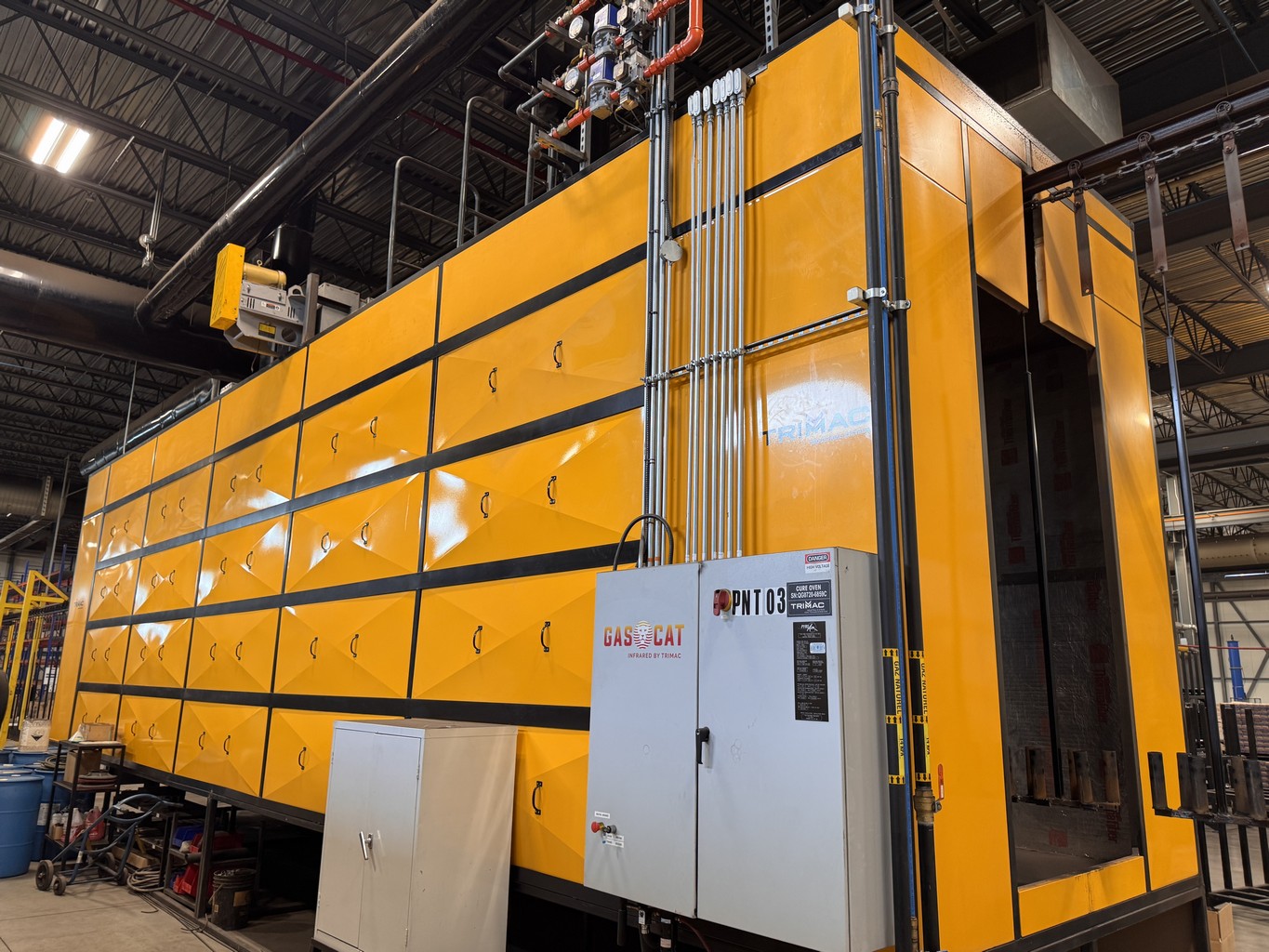

• 2021 TRIMAC INDUSTRIAL SYSTEMS GAS CAT CURE Infrared Cure/Bake Oven, s/n QC-0720-6859-C, Thermal Wrap System w/ 5000 CFM High temp. Recirculation w/ Adjustable Controls, Variable Speed Motor Control for Air Volume, (32) 24” x 72” Trimac Flamless Gas Cat Catalytic Heating Units @ 72,000 BTU/hr Each, 384 Sq. ft. Catalytic Surface Area- Total of 2,304,000 BTU/Hr. 4-Zone, 576,000 BTU/Hr Per Zone w/ (8) Emitters/Zone, 5 Min, Heated Process Time, 6’/Min Line Speed, (2) 1500 CFM Exhaust Fans, (2) 2500 CFM Recirculation Fans, High Reflective Aluminum Insulated Panel Construction, 12’H x 7’2”W x 42’L, 48” x 96” Opening, 8” x 18”H Hook slot,

• CONVEYOR SYSTEM- Enclosed Track Monorail, 8” Centers, 350’L, 125 Lbs. Max Weight/Hanger Point


TRUMPF TUBE LASER

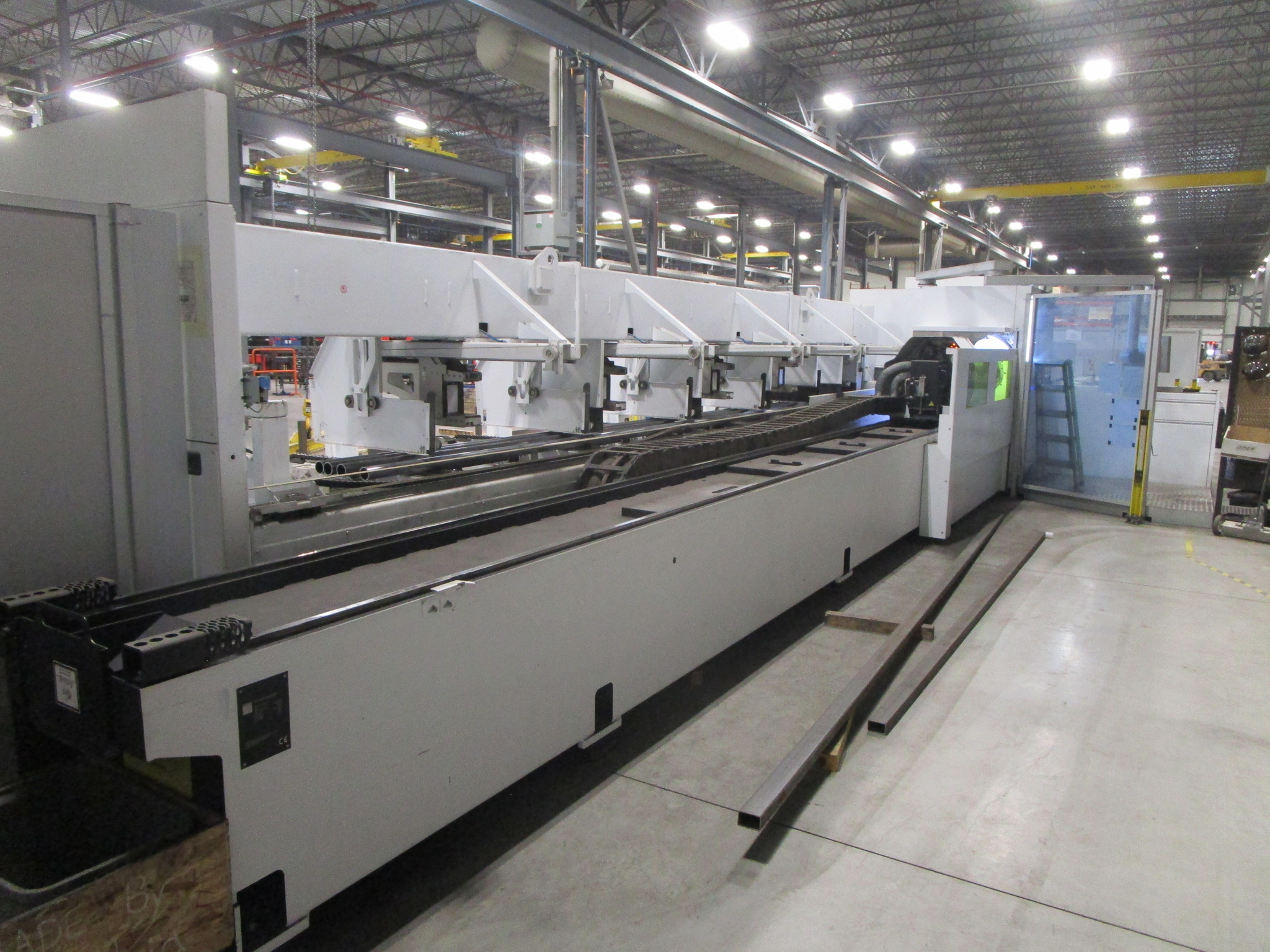

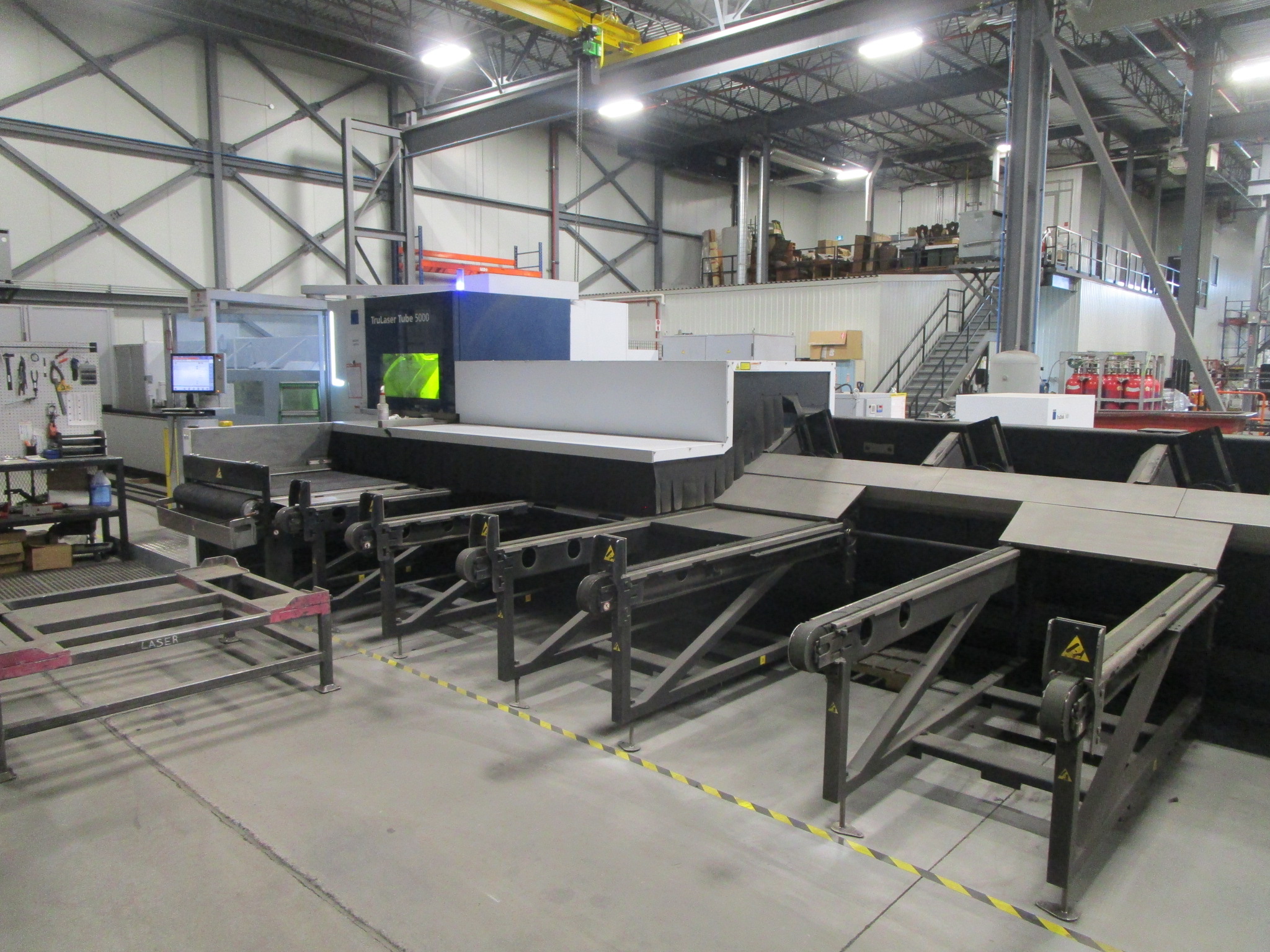

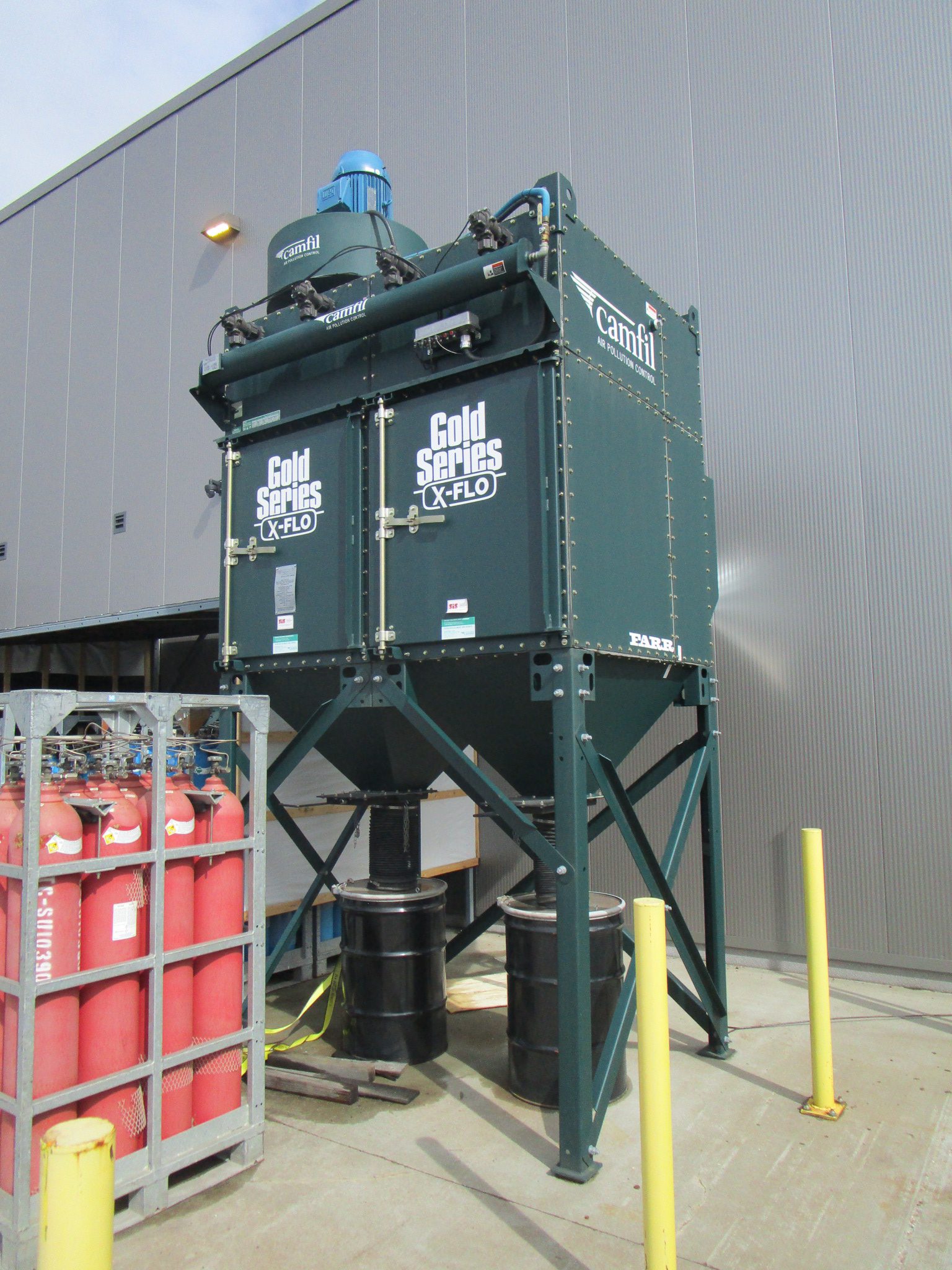

• 2020 Trumpf TruLaser Tube Fiber 5000 Laser, Trumpf TruDisc 3001 3KW Fiber Laser, Bevel Head, 152 mm Max. Outside Diameter, 6500 Maximum Raw Material Length for Auto Loading, 6500 mm Max. Part Length for Unloading, Siemens CNC Control, Dust Collector, Chiller

ELECTRIC TUBE BENDER

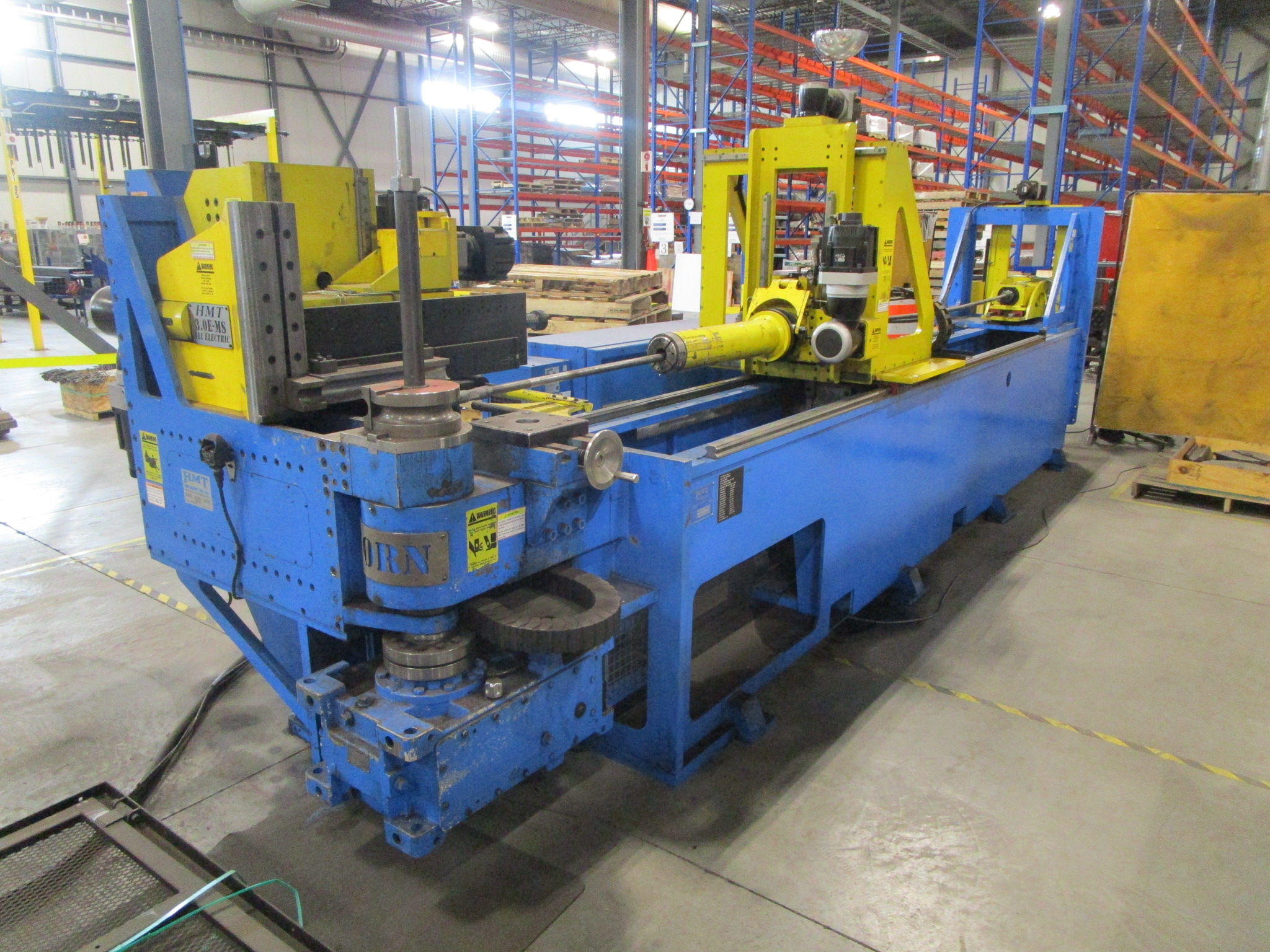

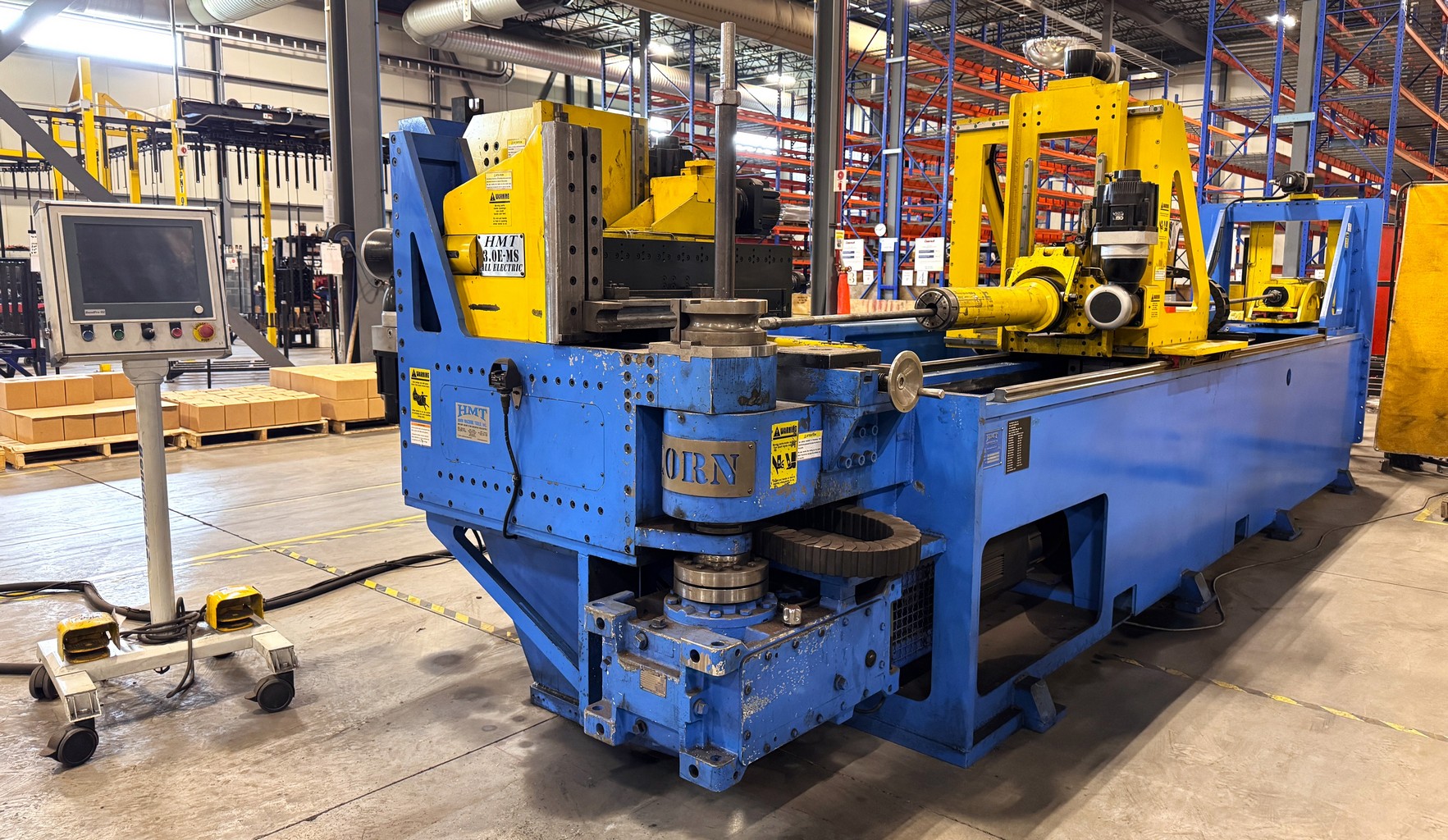

• 2021 HORN/HMT 3.0E-MS CNC Electric Servo Tube Bender, 3.00” x 0.188” Mild Steel Tube, 3.00” x 0.095 Stainless Tube, Multi-Stack Design

GAP FRAME PRESS

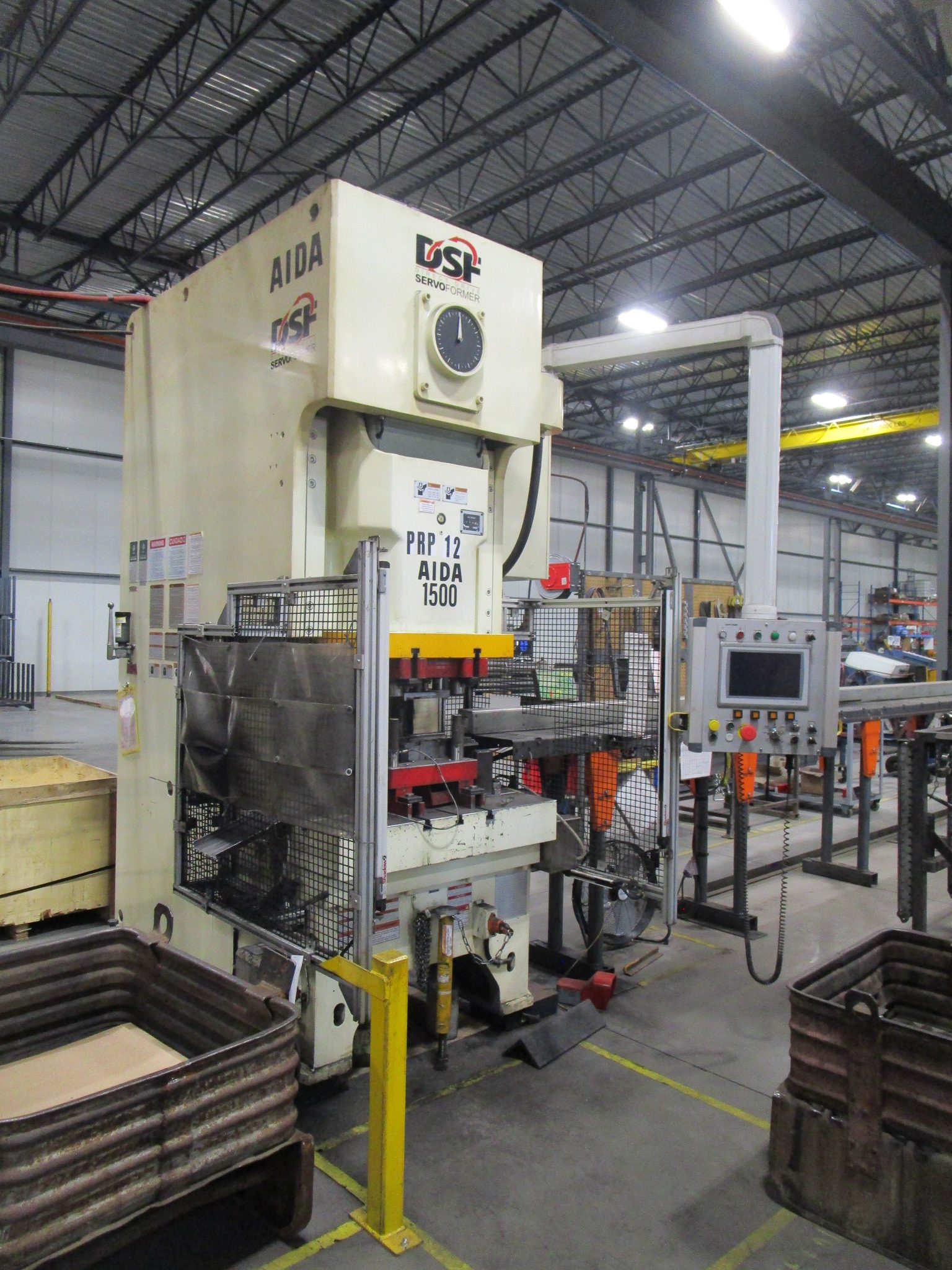

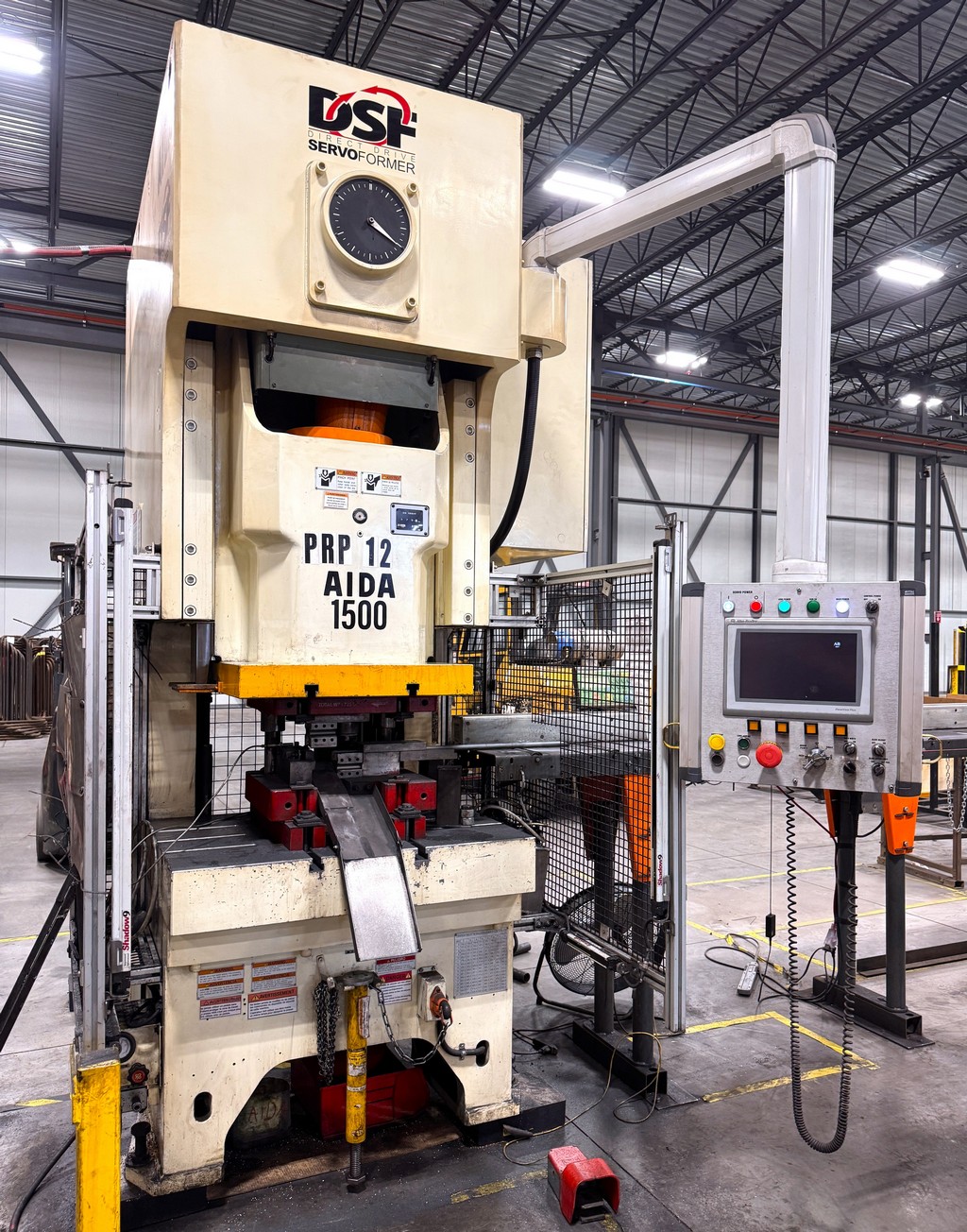

• 2021 AIDA DSF-C1-1500A, 165 Ton Servo Gap Frame Press, 46.1” x 29.9” Bed, 15.75” Shut Height, 7.9” Stroke, 3.9” Adjustment, Max., 1 – 60 SPM

ROBOTIC WELD CELL

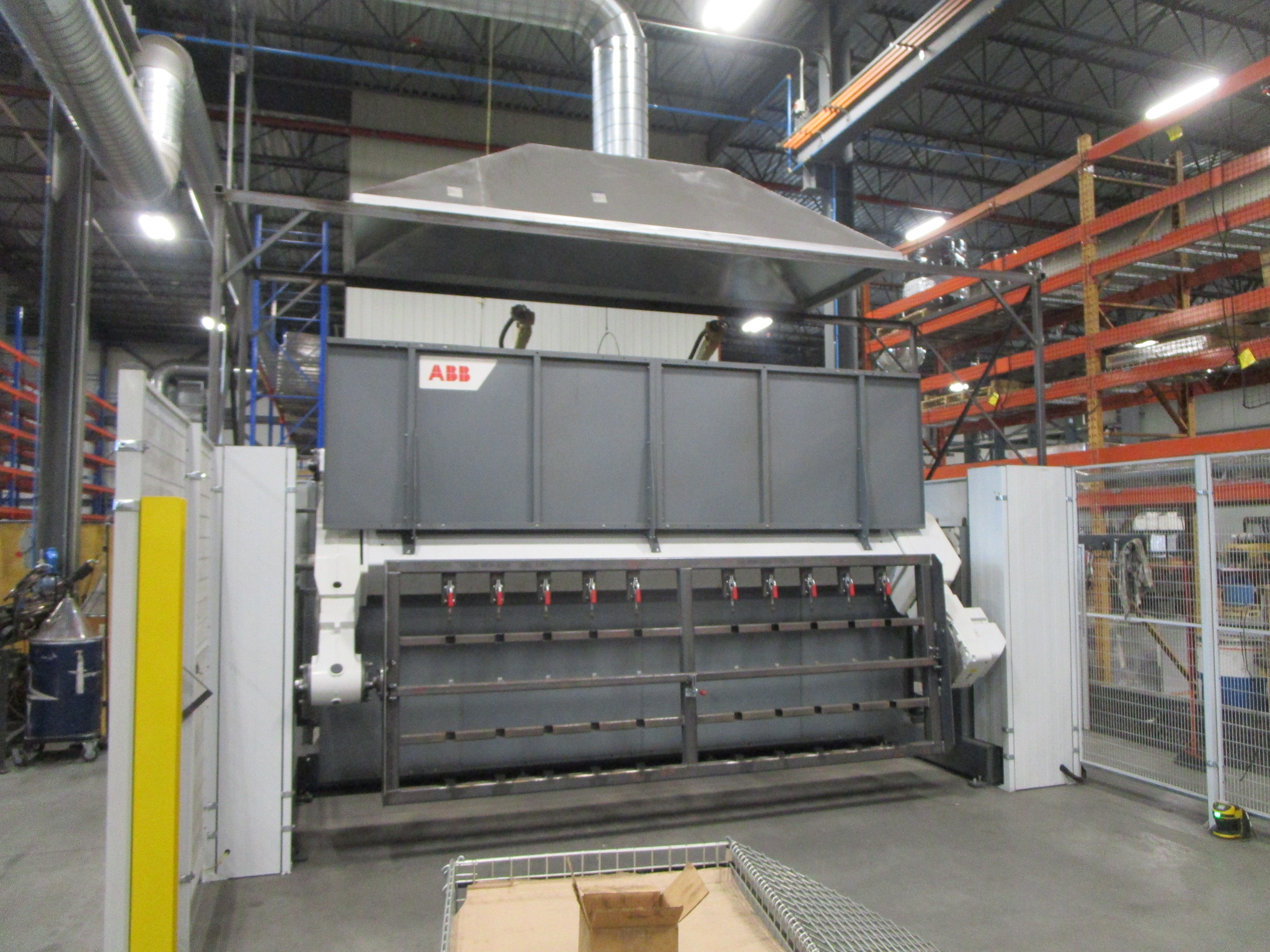

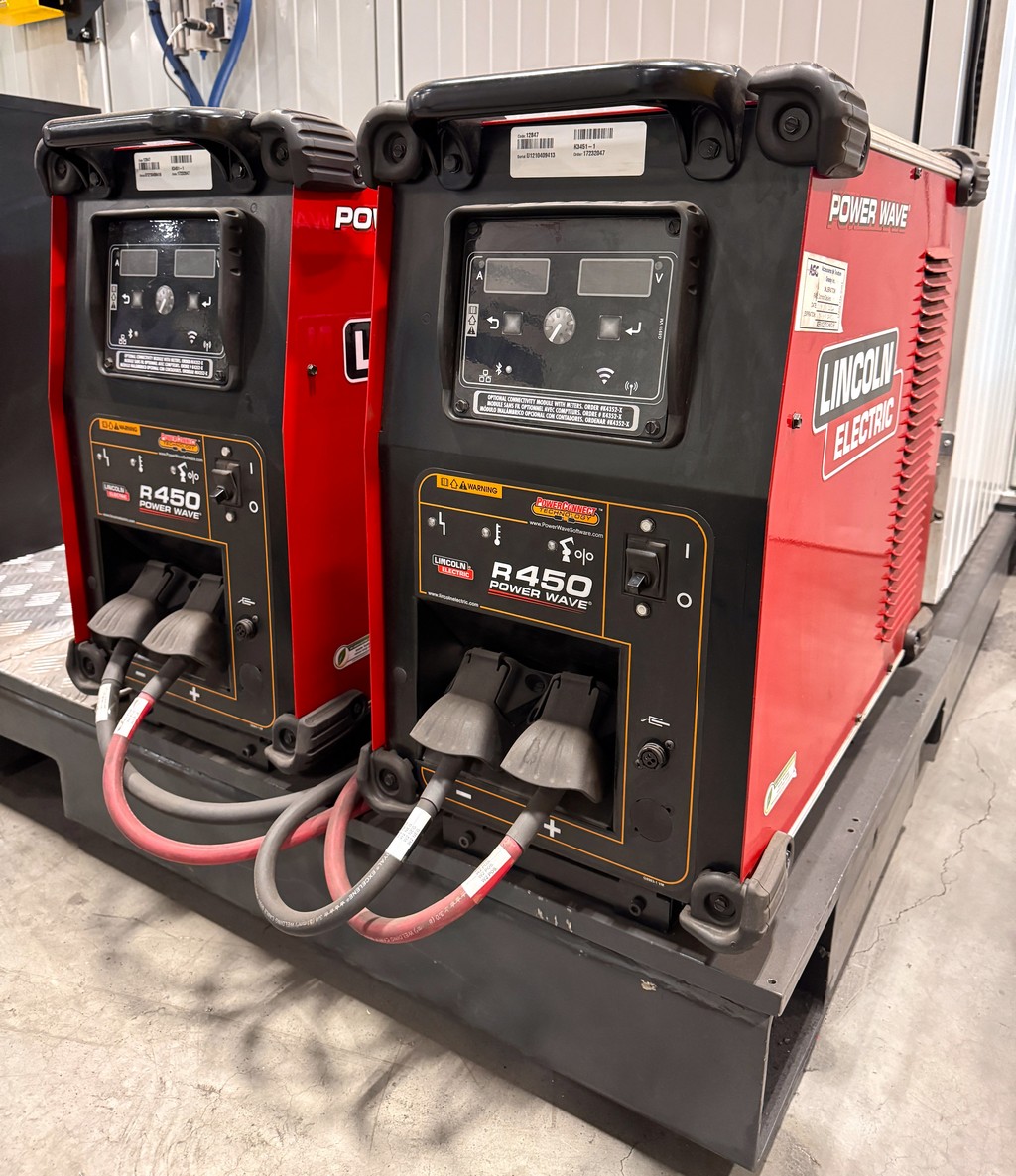

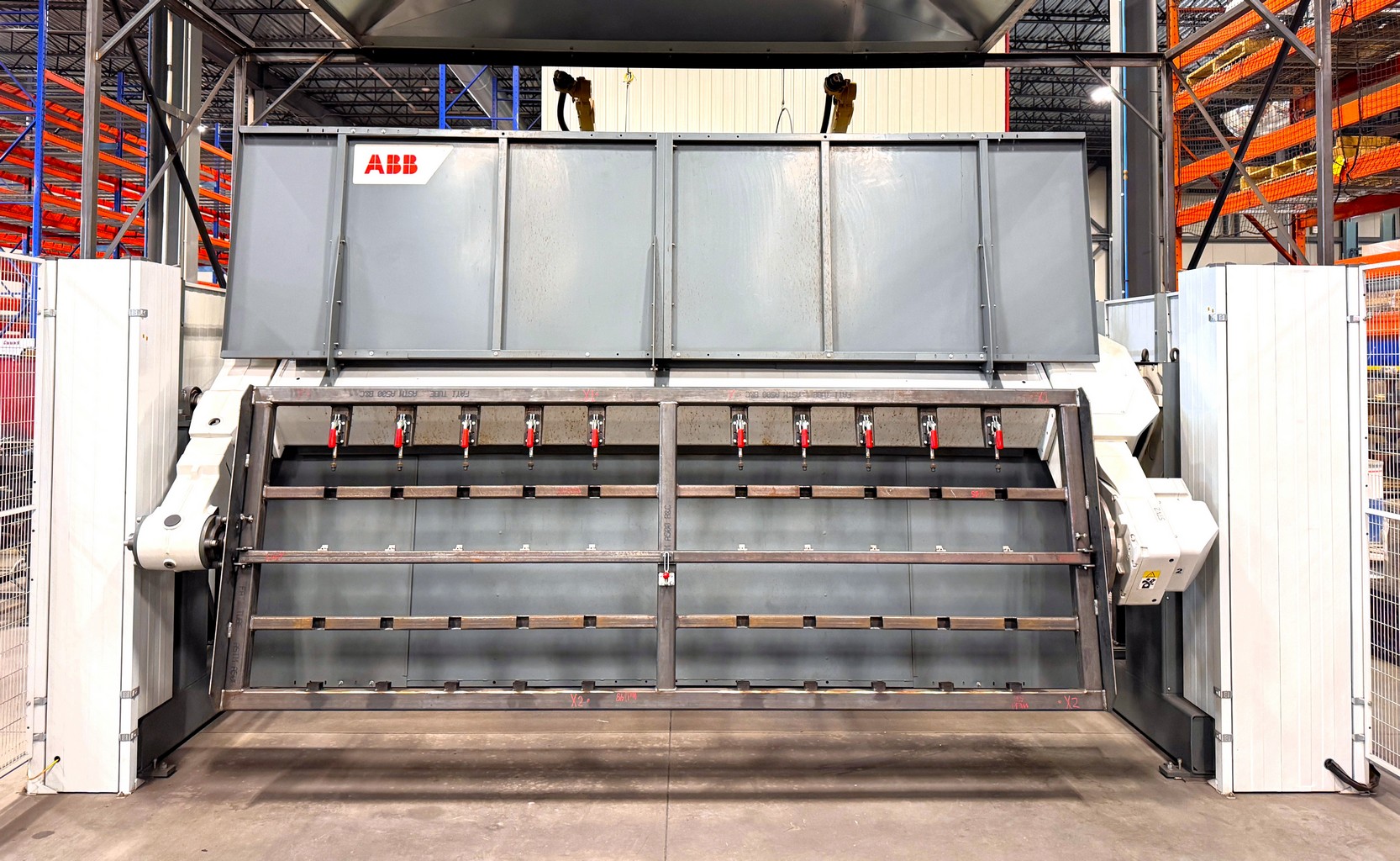

• 2021 ABB Twin Robot CNC Robotic Weld System, (2) Robots, Lincoln Power Wave R450 Welders W/ 4R-220 Wire Feeders, Dual ABB Trunnion Positioning Table

WELDING & PLANT SUPPORT

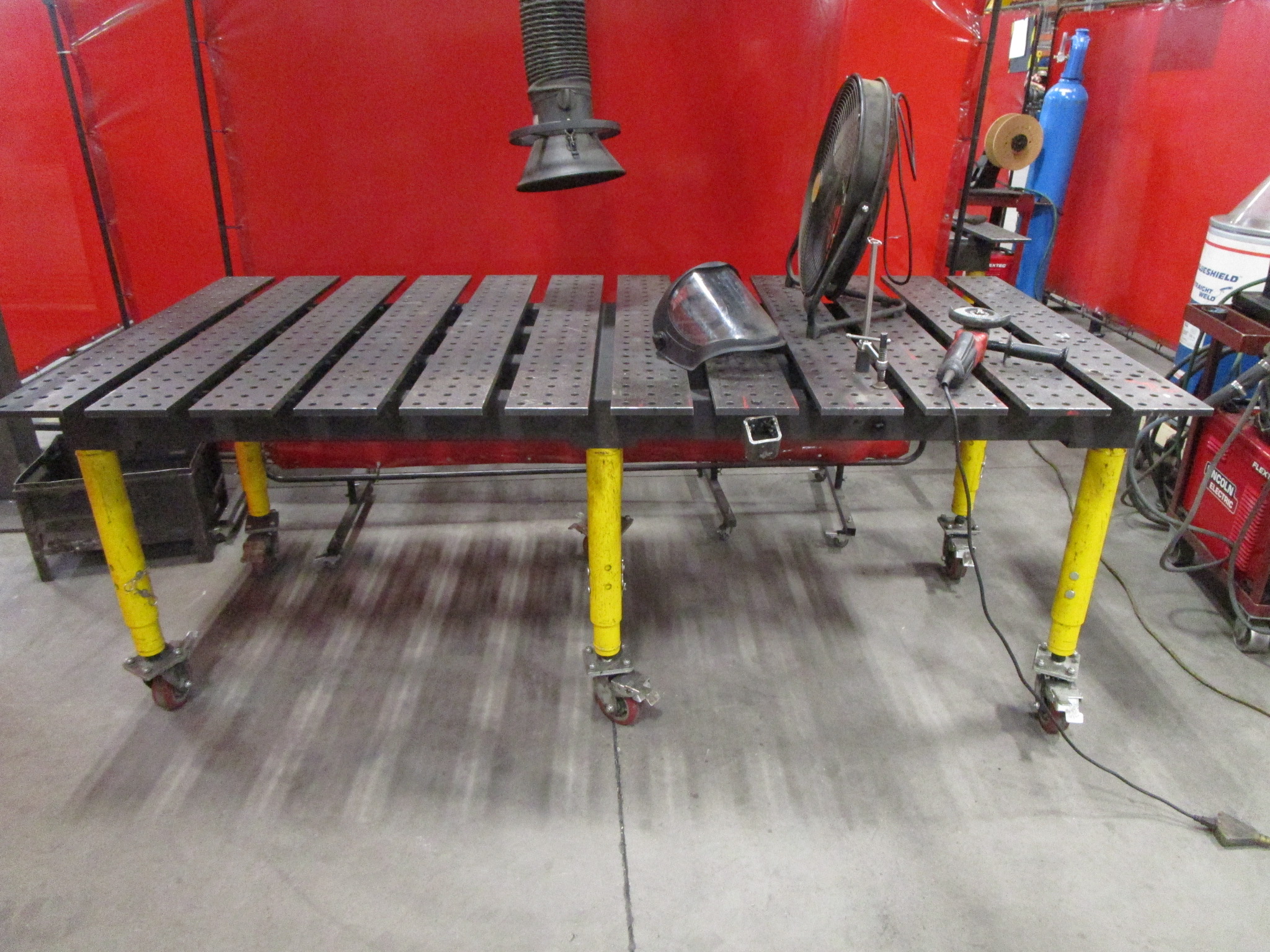

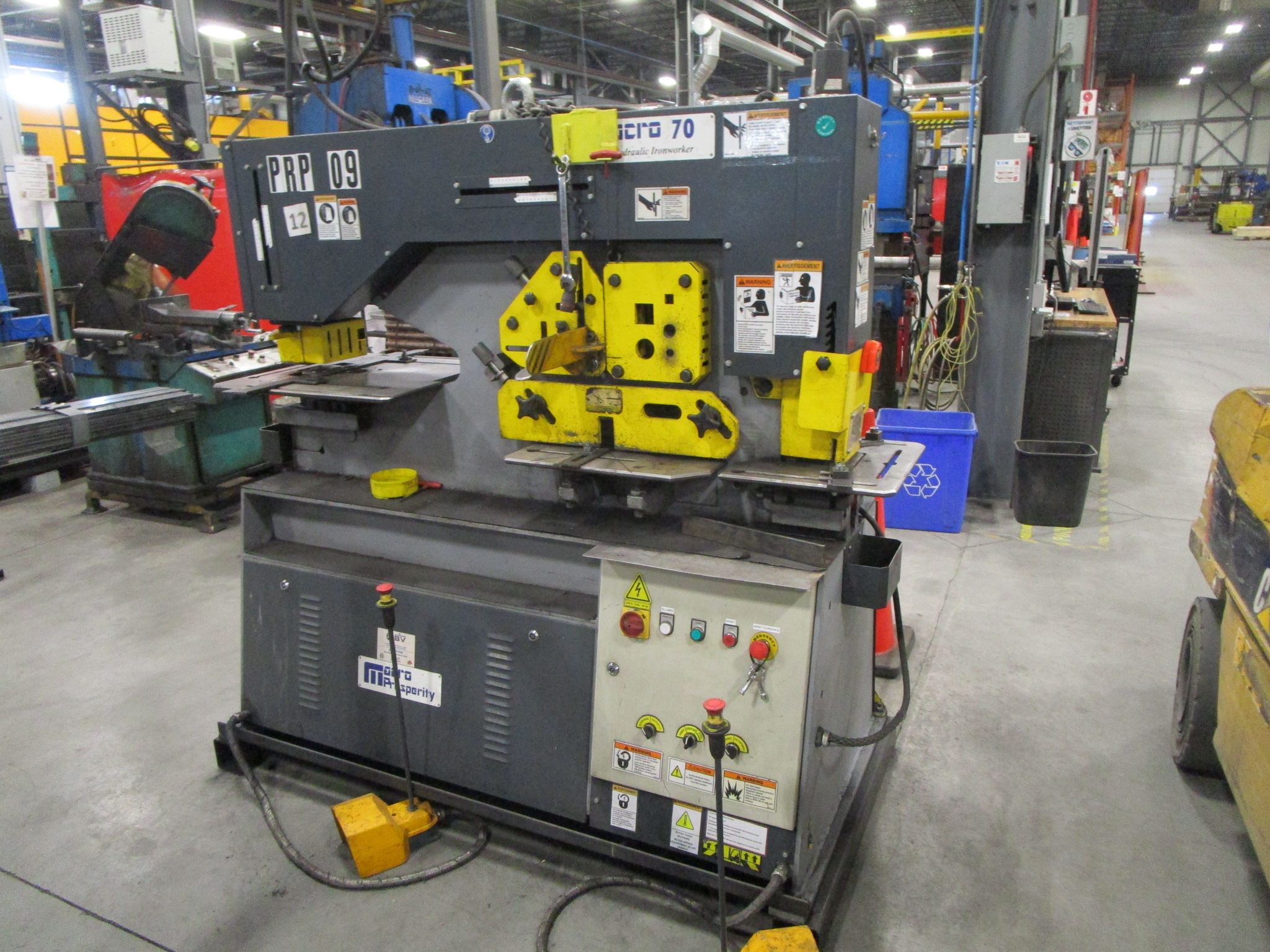

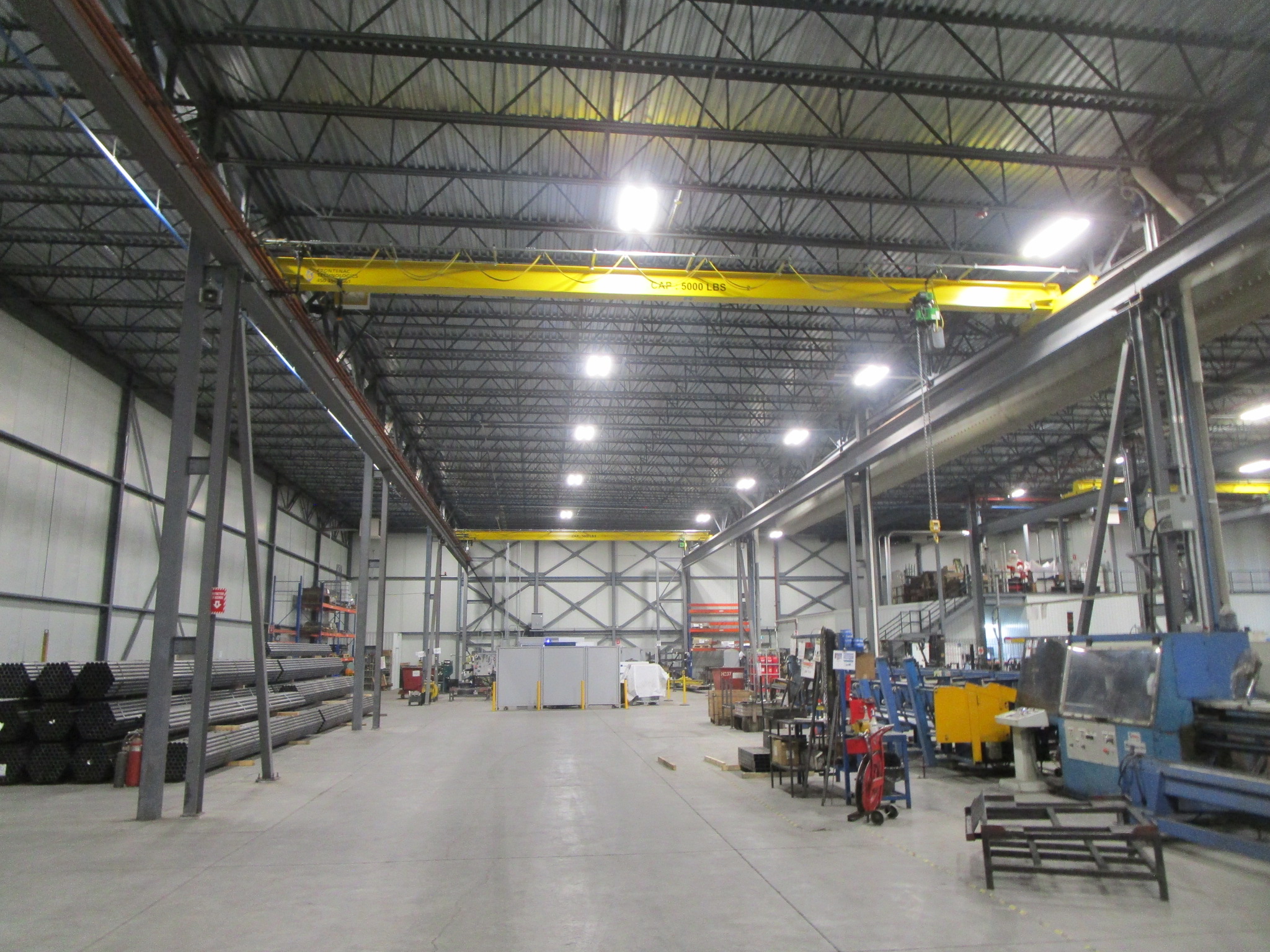

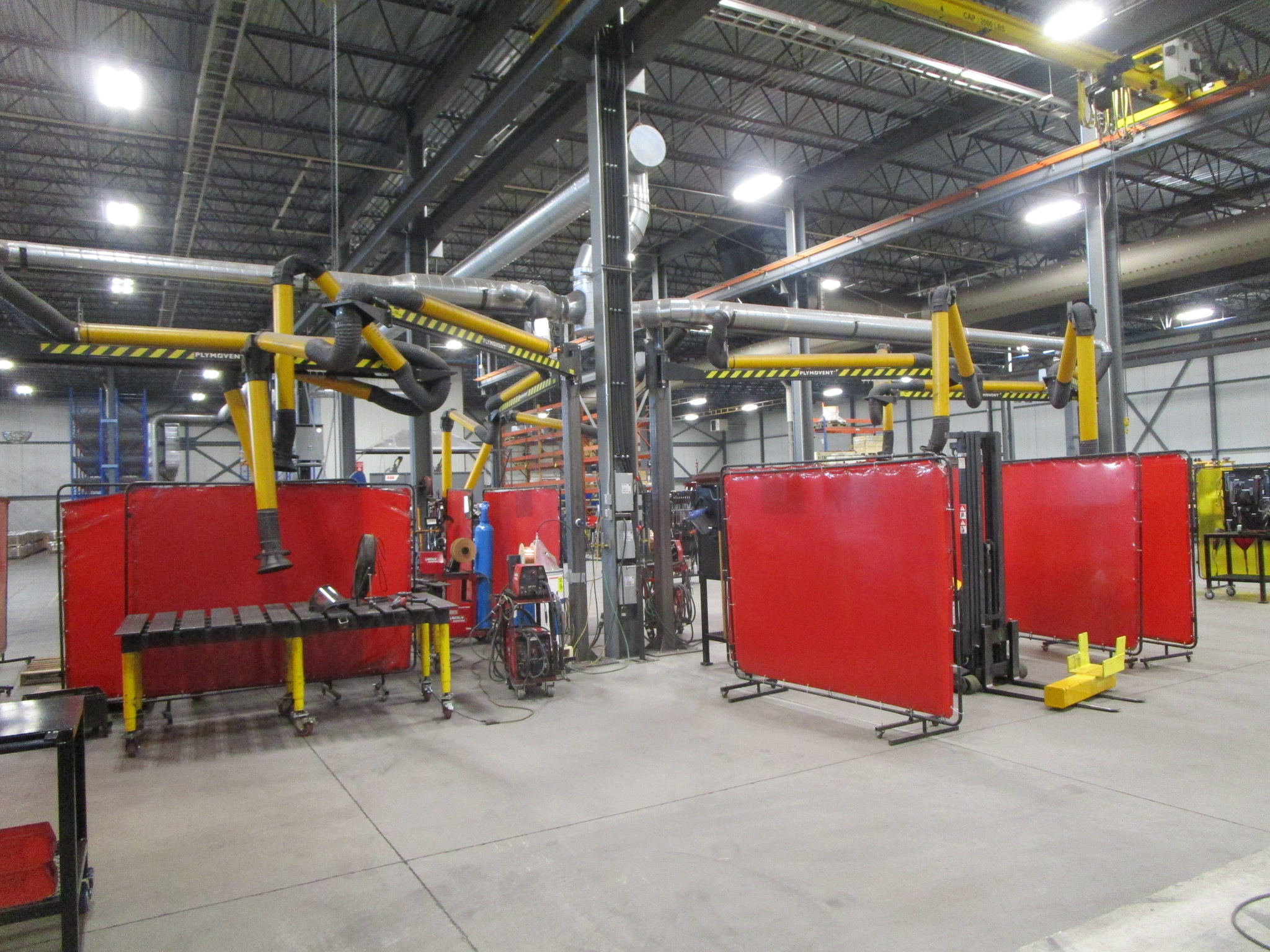

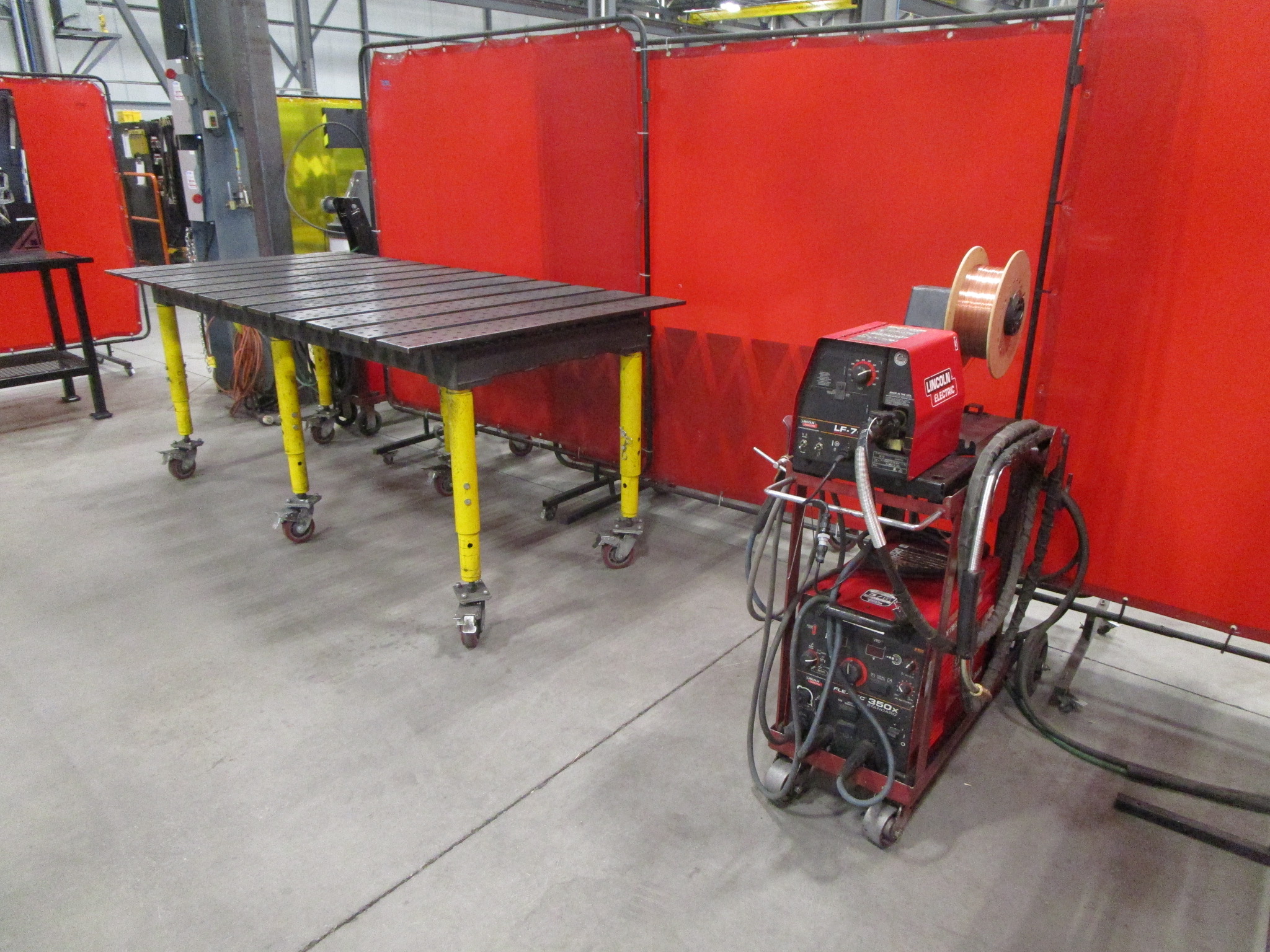

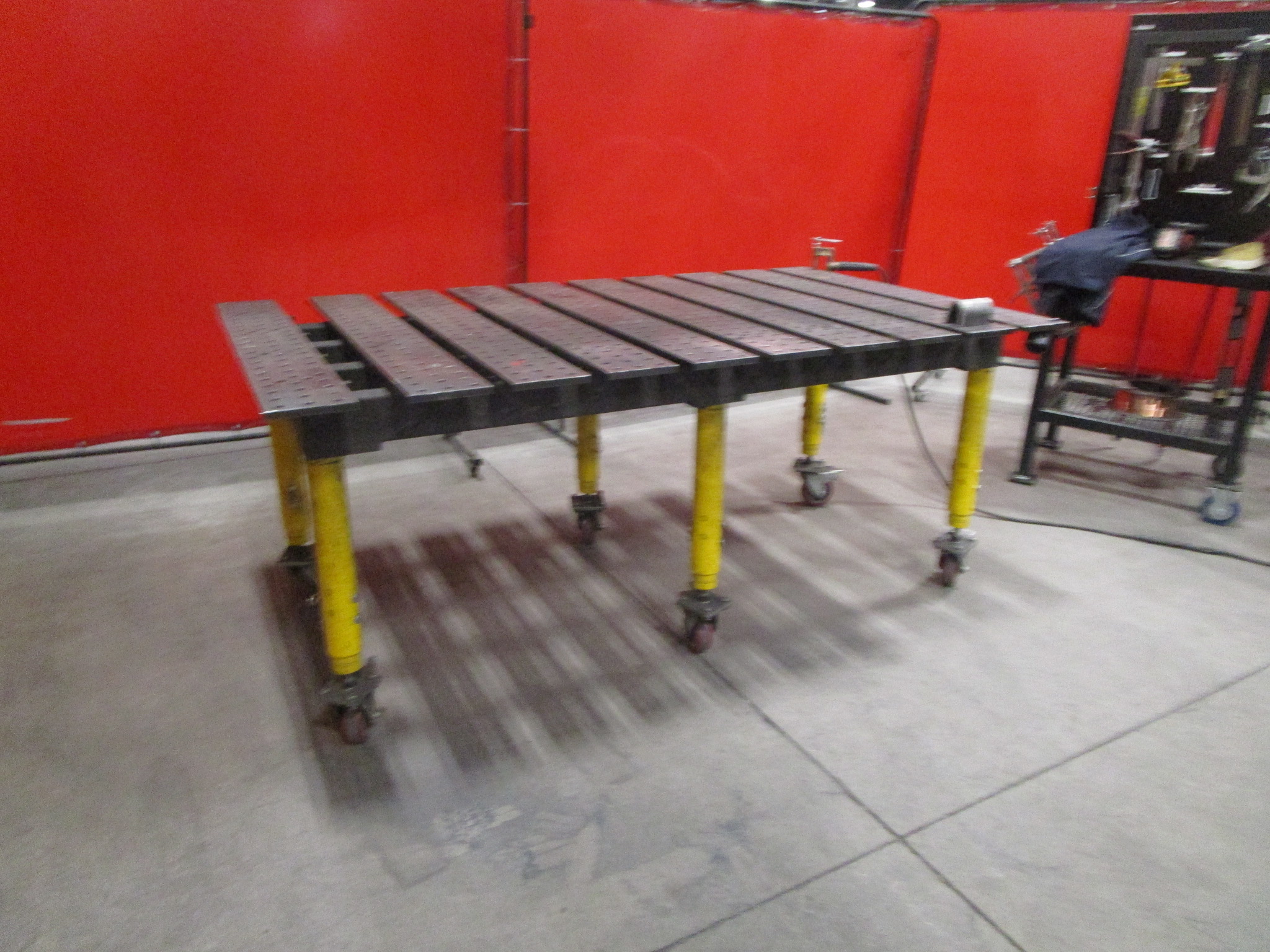

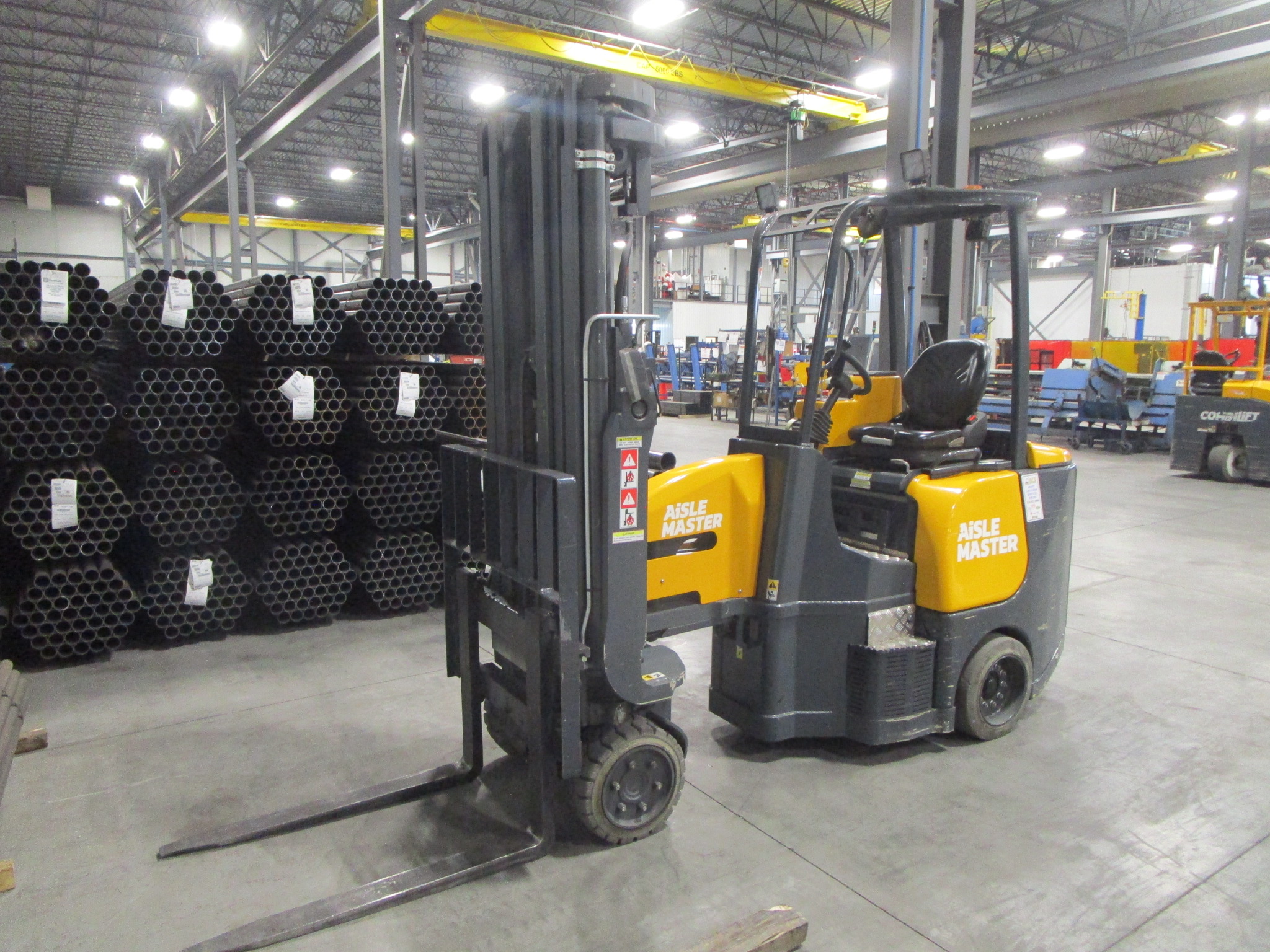

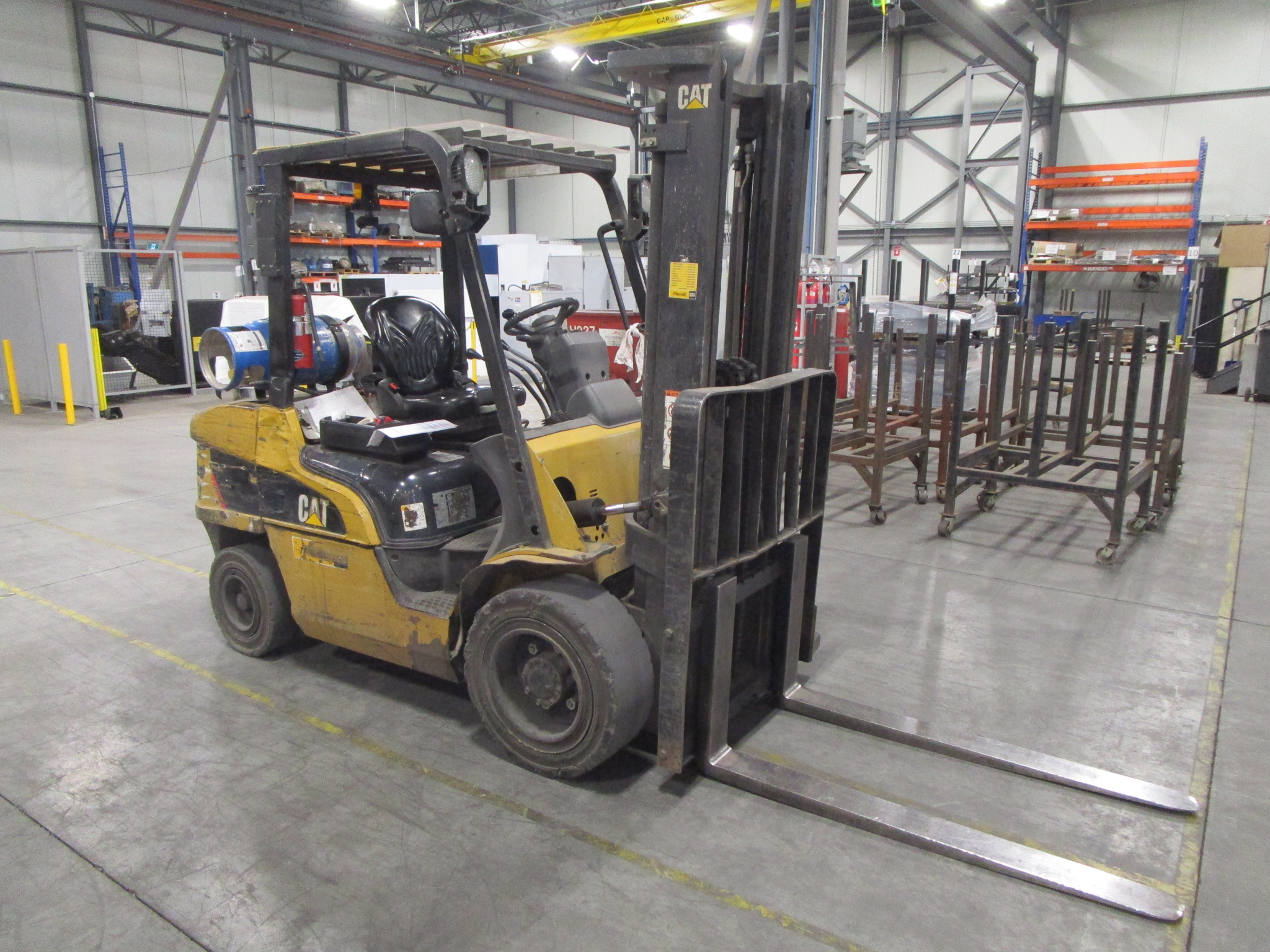

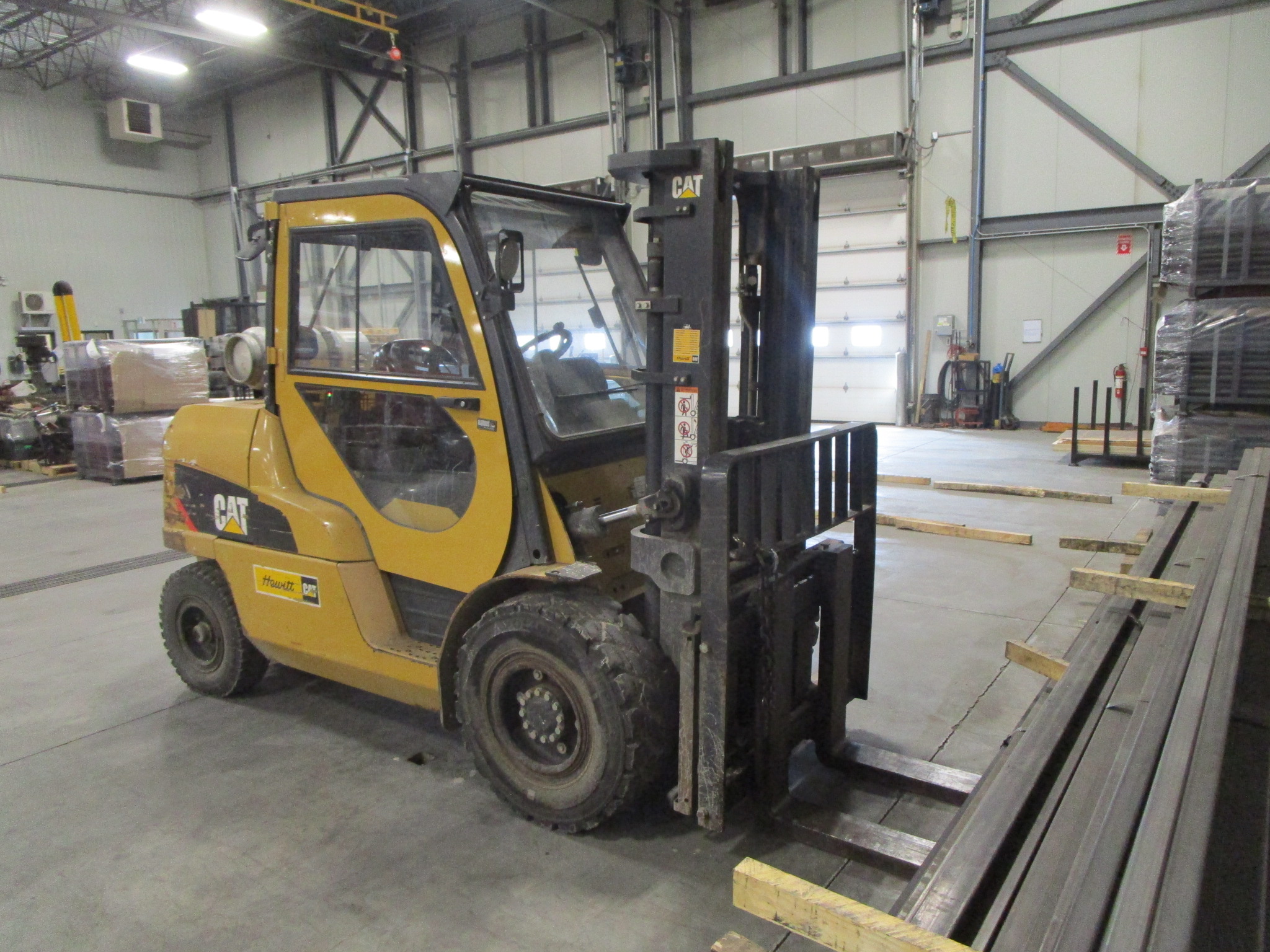

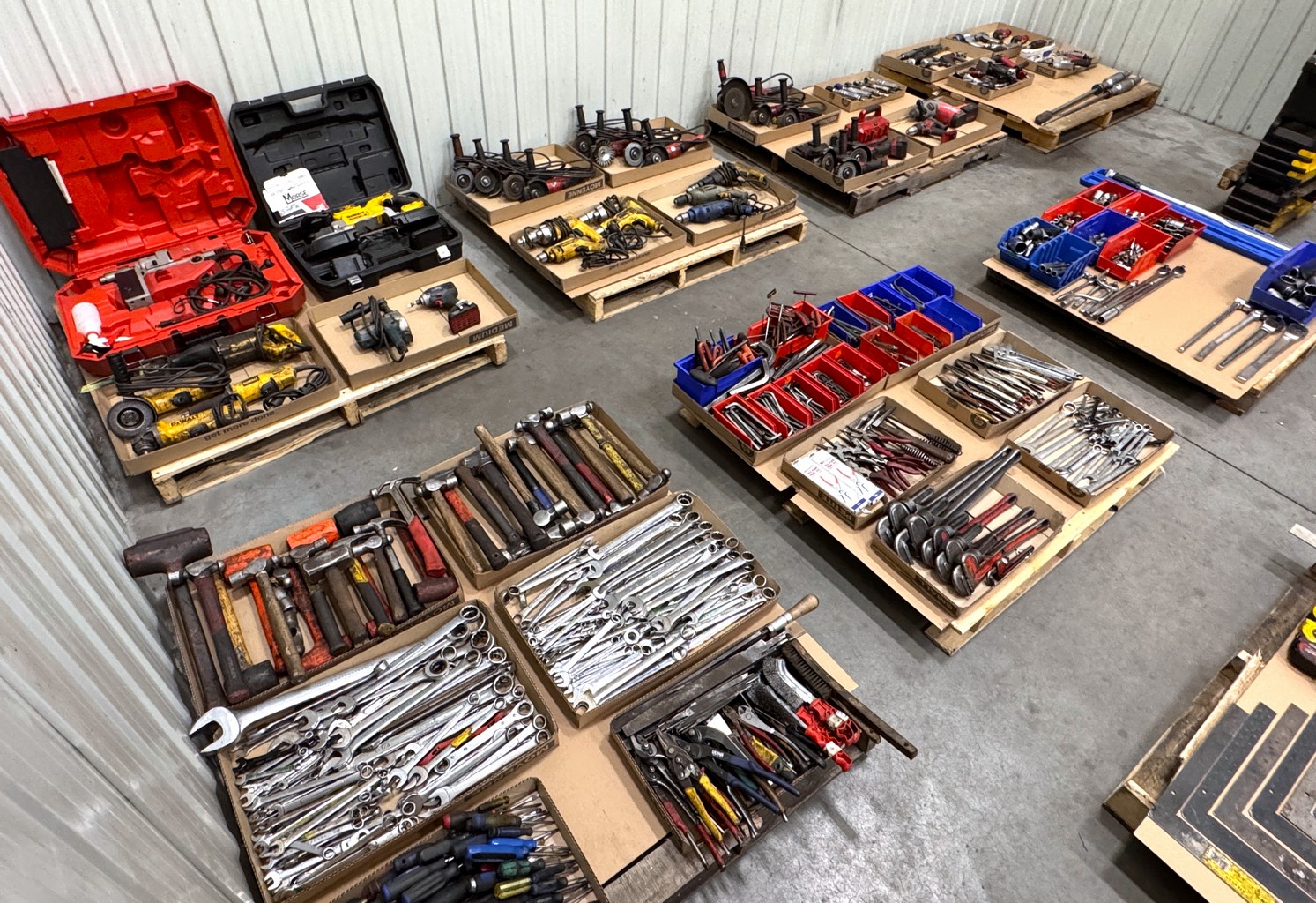

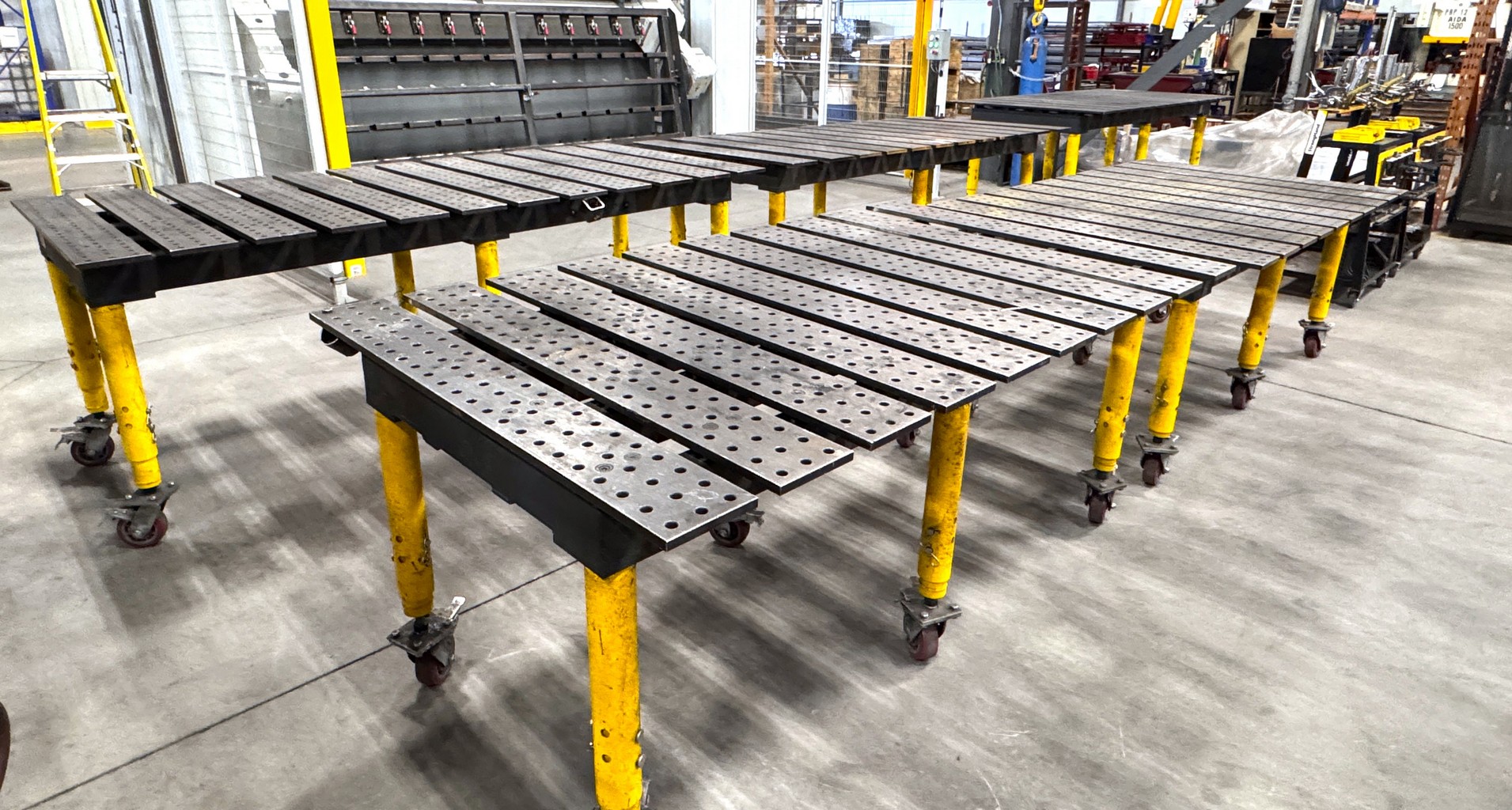

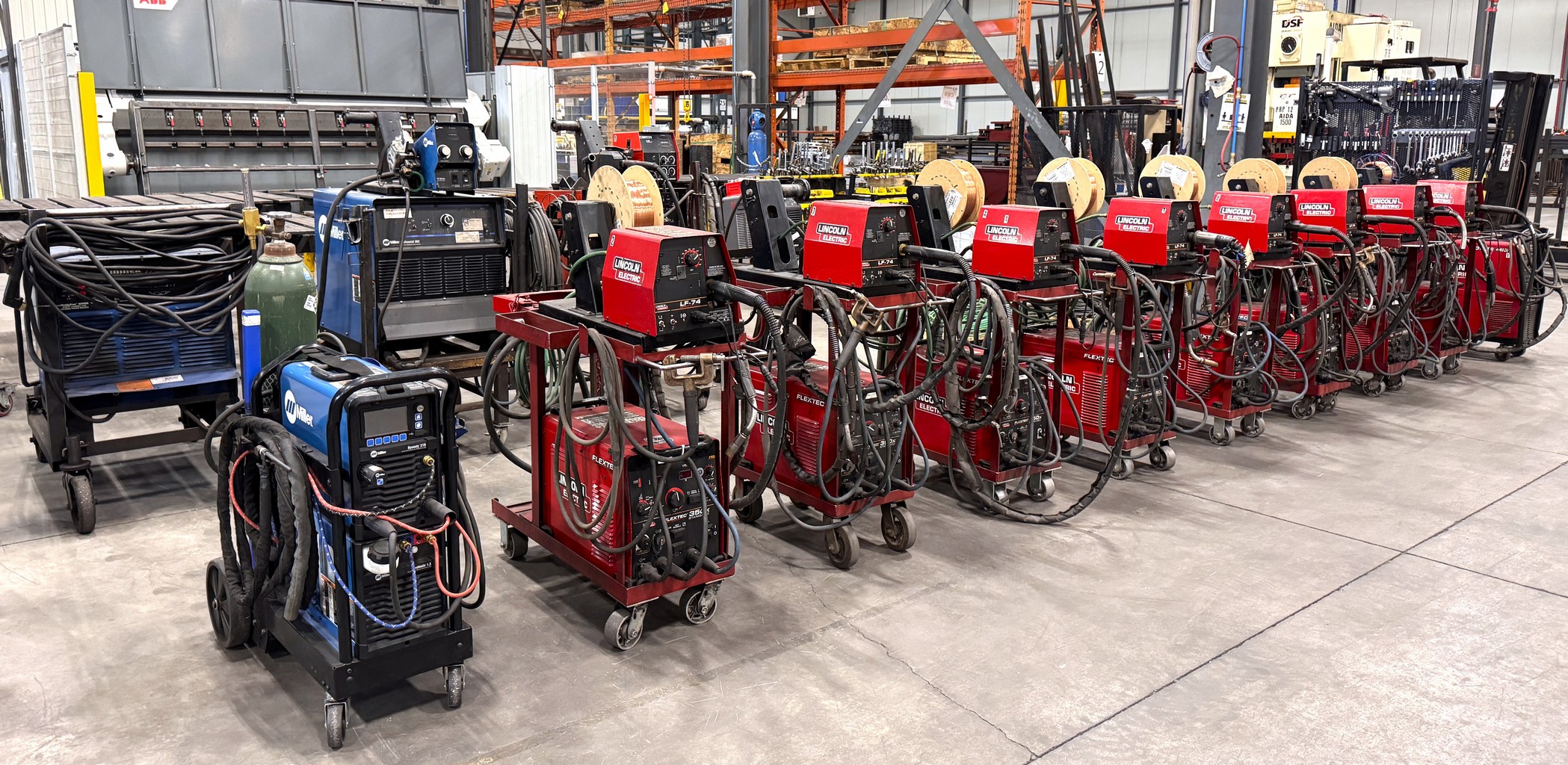

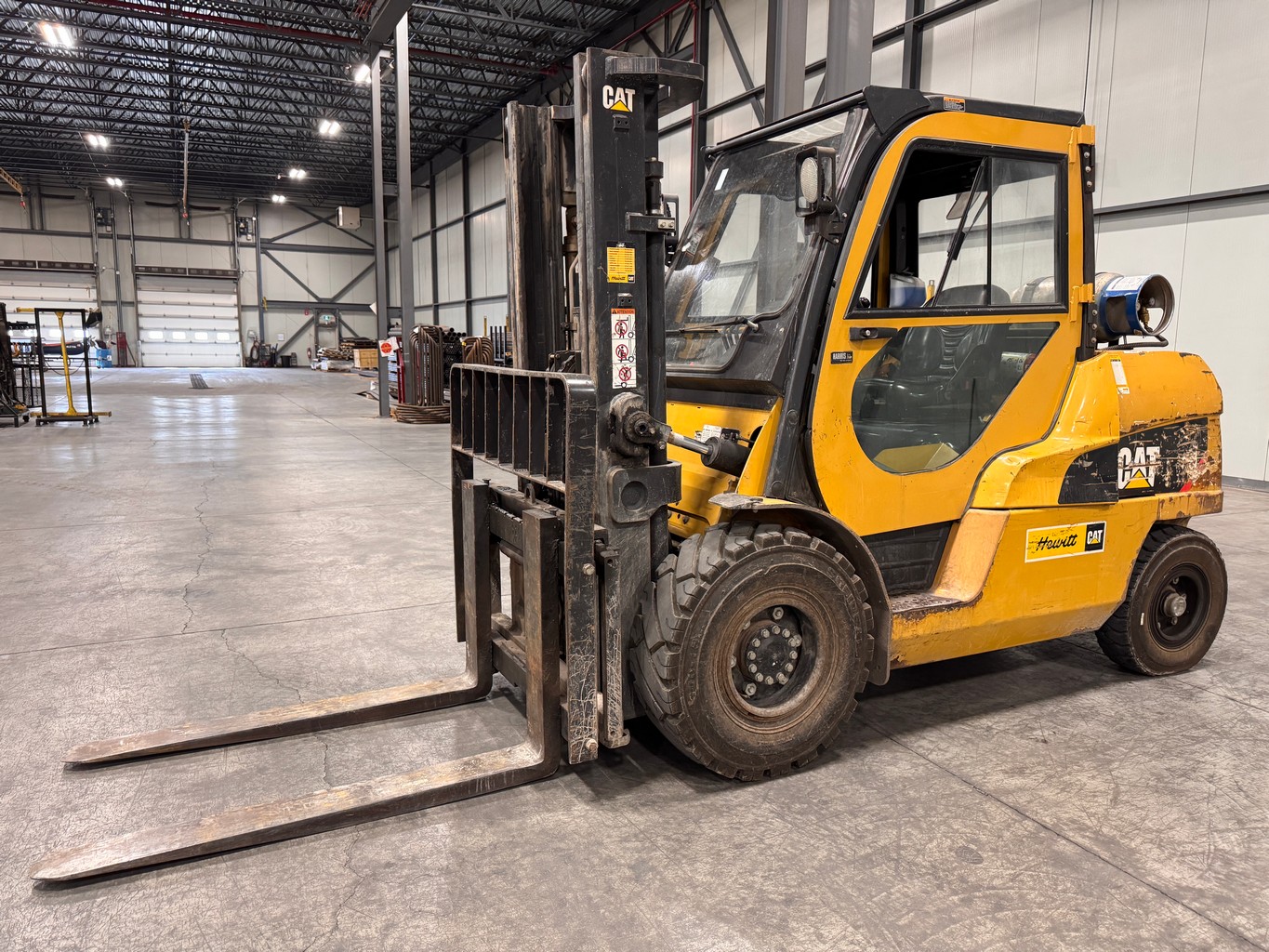

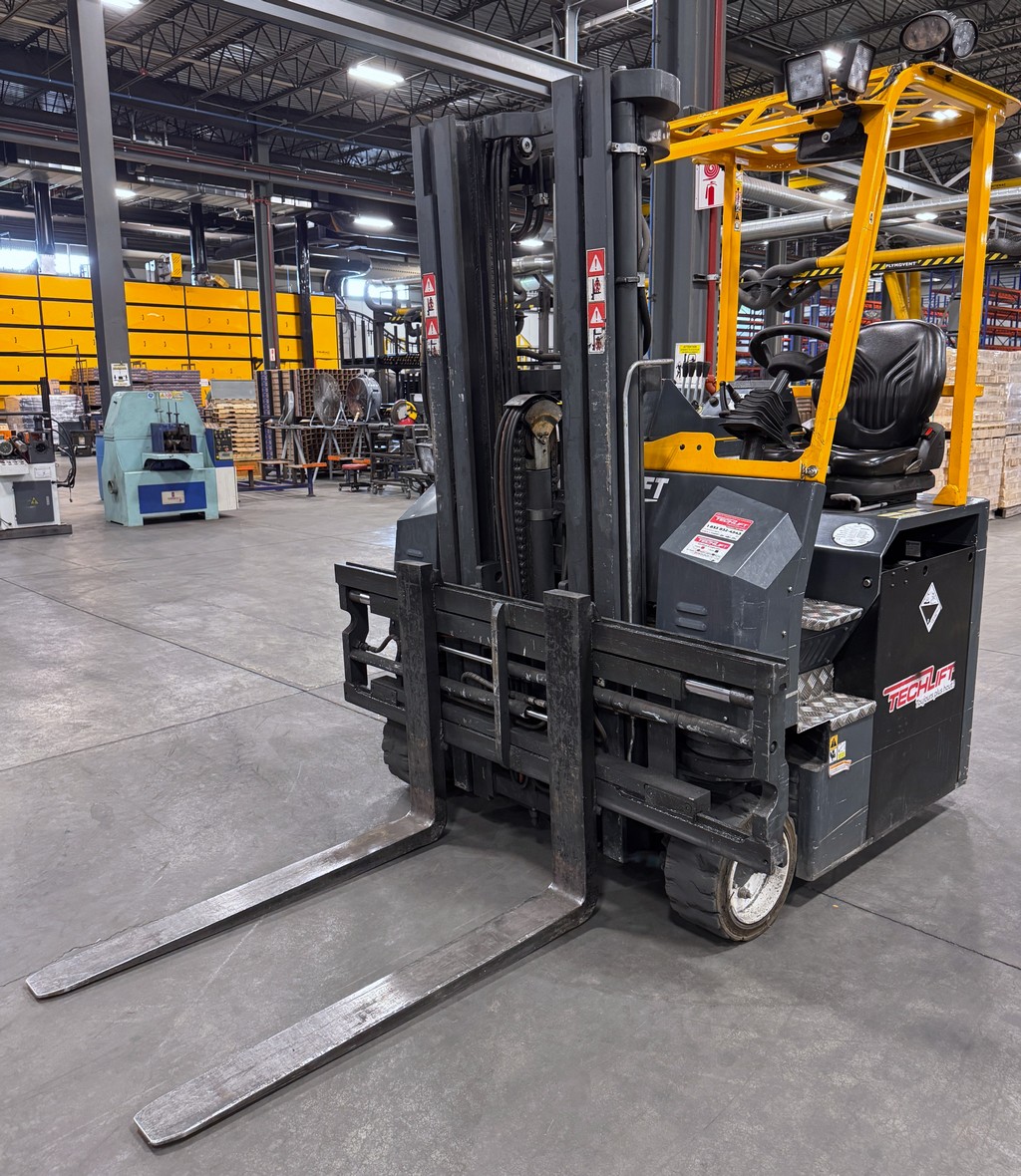

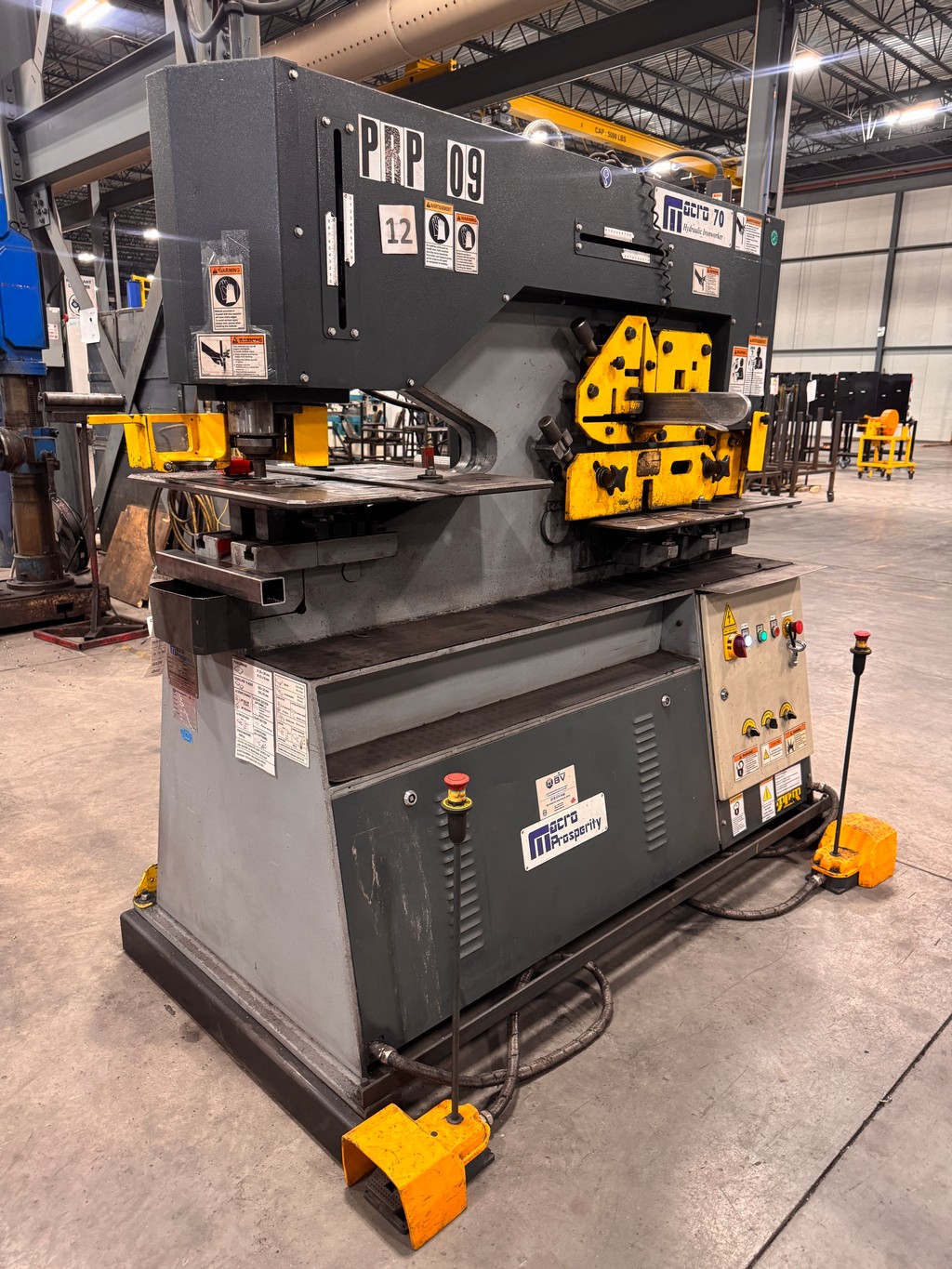

• Also, Late Model BUILDPRO Welding Fixture Tables & Accessories, Mig & Tig Welders, Iron Worker, Saws, Free Standing Bridge Cranes, Combi-lift CBE 6000 Lb. Multi-Directional Forklift, CaterForklift000 Lb. Forklift , Factory Support Equipment
