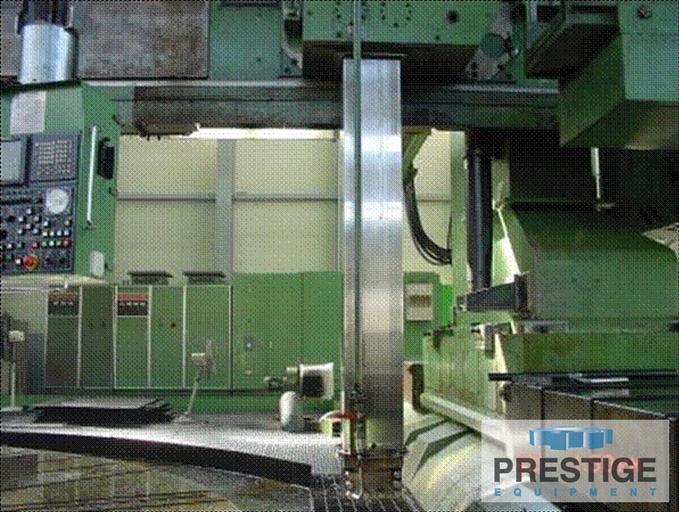

Toshiba TMG-10750S 314.96" CNC Vertical Turning & Boring Mill
Model:
TMG-10750S
Age:
2001 ®
Ref#:
32236
Prestige Equipment is the world's leading provider of Toshiba TMG-10750S 314.96" CNC Vertical Turning & Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
Fanuc 18i 7-Axis CNC Control(Retrofit 2001)
✓
Right Hand Ram - Turning Head
✓
Left Hand Ram - Milling Head W/Live Spindle
✓
Linear Inductosyn Scales
✓
C-Axis Table W/Rotary Inductosyn Scales
✓
Assorted Angular Milling Heads
Product Specifications
SPECIFICATION:
Table Diameter
314.96"
Maximum Turning Diameter
425.19"
Maximum Height
171.25"
Vertical Travel Of Right Ram
102.36"
Vertical Travel Of Left Ram
49.21"
Vertical Travel Of Cross Rail
78.74"
Maximum Swivel of Right Ram
+/- 30 Degrees **
Diameter of Milling Spindle Nose
11.41" **
Taper of Milling Spindle
ISO 50
Gantry Travel, Forward .
98.42"
Gantry Travel, Backward
98.42"
Approximate Floor Space
761" L-R x 669" F-B x 420" High
Net Machine Weight
486 Tons
OPERATING SPECIFICATION:
Maximum Load on Table
250 Tons
Maximum Cutting Torque of Table
138,600 LBS
SPEEDS and FEEDS:
Table Speeds, Stepless (3)
0.16-16 RPM
Milling Speeds, Stepless (3)
3.15-630 RPM
Cross Rail Elevating Speed
11.81 IPM
ELECTRICAL EQUIPMENT:
Table Drive Motor
100.5 HP
Milling Spindle Motor
73.75 HP
Rail Head Feed Motors, Each (4)
7.1 HP
Table Feed Motor
20.11 HP
Gantry Feed Motors, Each (2)
7.1 HP
Equipped With:
Fanuc 18i CNC Controls (Retrofit 2001)
Dual Pendant Controls
Chip Conveyors
Linear Inductosyn Scales
C-Axis Table W/Rotary Inductosyn Scales
Assorted Angular Milling Heads
Telescoping Steel Way Covers
Operators Platforms
Features:
✓
Fanuc 18i 7-Axis CNC Control(Retrofit 2001)
✓
Right Hand Ram - Turning Head
✓
Left Hand Ram - Milling Head W/Live Spindle
✓
Linear Inductosyn Scales
✓
C-Axis Table W/Rotary Inductosyn Scales
✓
Assorted Angular Milling Heads
