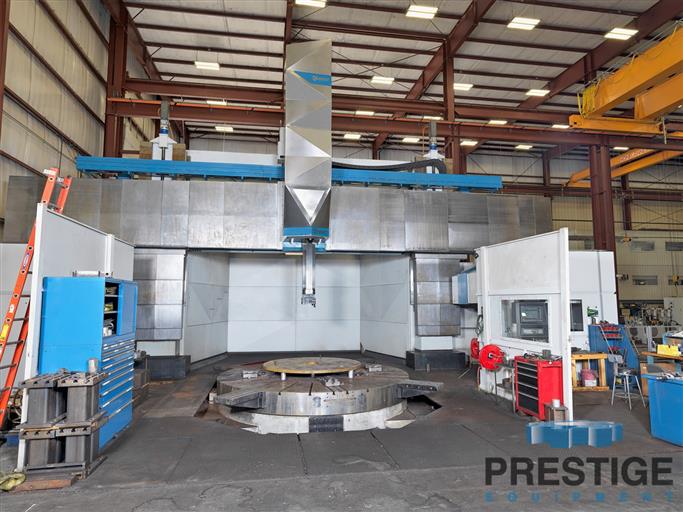

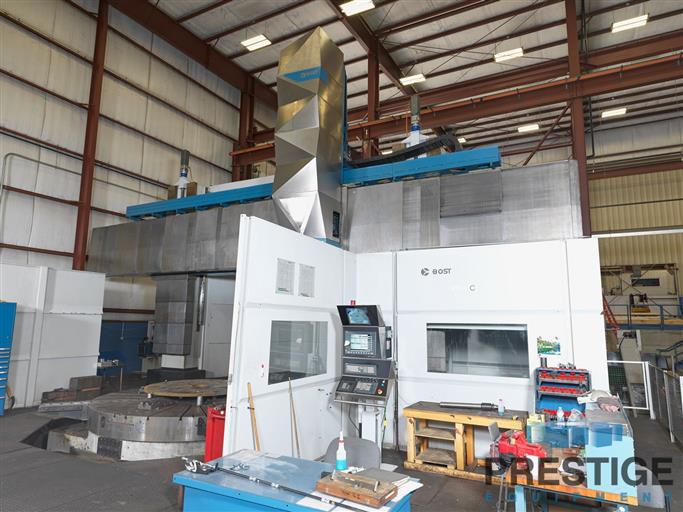

BOST VTL 60 CY 4000 MM /5997 MM CNC Vertical Turning Center w/Milling & Y-Axis
Model:
VTL 60 CY
Age:
2012
Ref#:
31678
Prestige Equipment is the world's leading provider of BOST VTL 60 CY 4000 MM /5997 MM CNC Vertical Turning Center w/Milling & Y-Axis & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
View Additional Specs
Features:
✓
Siemens 840D CNC Control
✓
4000 MM Table Diameter With Face Plate Jaws
✓
C-Axis Table For Milling & Drilling Operations
✓
Y-Axis Table Travel
Product Specifications
SPECIFICATIONS:
Table Diameter
4000 MM
Maximum Turning Diameter
6000 MM
Maximum Turning Height
3600 MM
Maximum Height Under ISO 50 Taper
3230 MM
Vertical Travel of Cross Rail
2600 MM
Vertical Travel of Ram Z-Axis
2000 MM
Ram Travel, Horizontal X-Axis
+/- 3000 MM
Ram Cross Section, Orthogonal
310 MM x 310 MM
Ram Minimum Bore Size
360 MM
TABLE:
Table Speeds
8-118 RPM
Table Weight Capacity
79832 KG
Table Motor Turning Power
102 KW
Table Extensions
5500 MM
Sub Table Diameter
6000 MM
C-Axis Positioning/Contouring Table
360,000
LIVE SPINDLE/C-AXIS:
Live Spindle Speeds
To 3000 RPM
Live Spindle Motor
37 KW
Live Milling Tools
ISO 50 Taper
Equipped With:

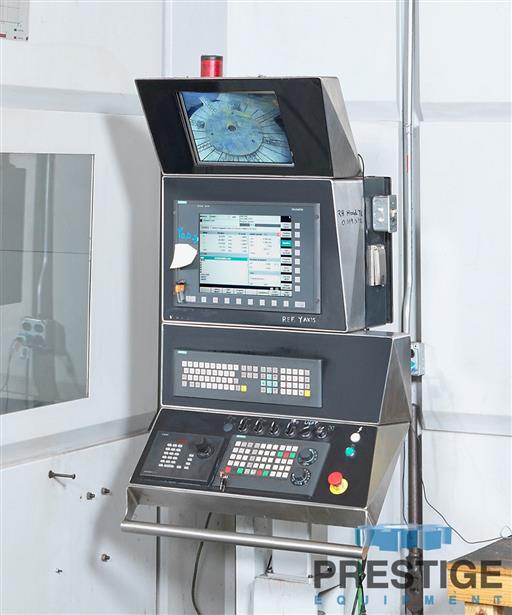

Siemens 840D CNC Control
Heidenhain Scales and Encoders
C-Axis Table For Milling & Drilling Operations
Y-Axis Table Travel

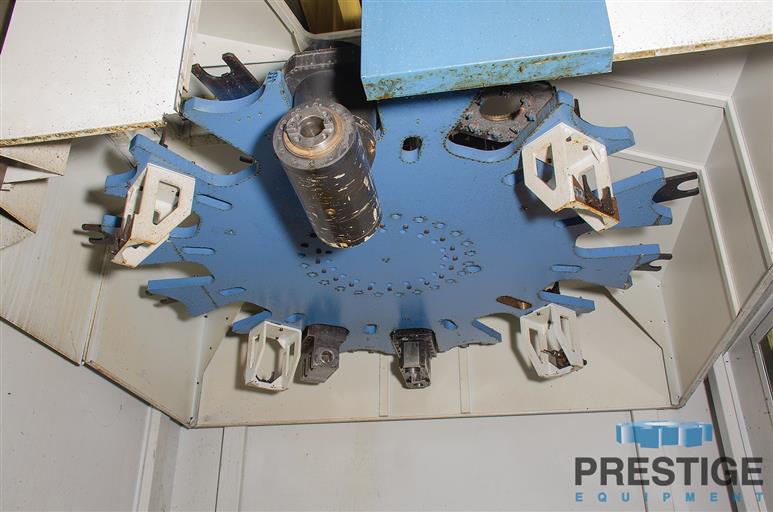

Vertical & Horizontal Automatic Tool Changers
(20) ISO 50 Tools in Vertical
(8) ISO 50 Tools in Horizontal
(12) Positions for Turning/Boring
Renishaw RMP Touch Probe
Hydrostatic X & Y Axes
Hydrostatic Base
Cast Iron Construction
Thru-Spindle Coolant
Telescopic Way Covers and Ram Guarding
Horizontal Right Angle Head
Camera and Display
Chip Conveyor

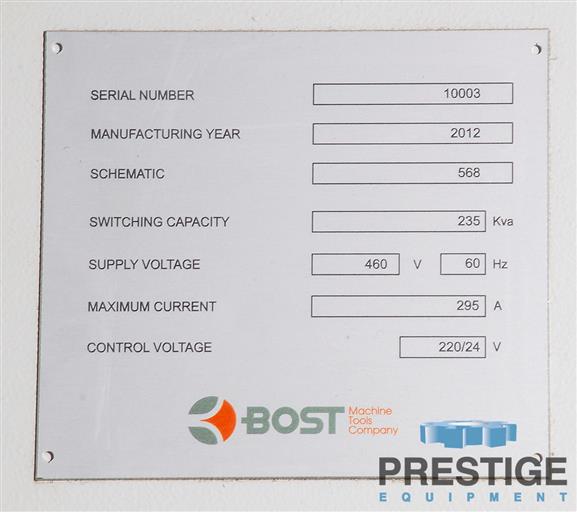

460V,60Hz Power Imput
130 KVA Total Installed Power
Features:
✓
Siemens 840D CNC Control
✓
4000 MM Table Diameter With Face Plate Jaws
✓
C-Axis Table For Milling & Drilling Operations
✓
Y-Axis Table Travel
