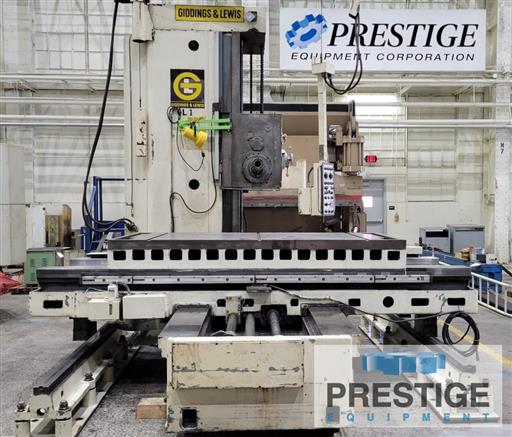

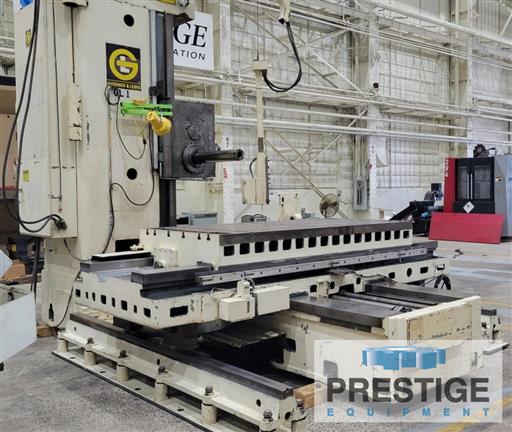

Prestige Equipment is the world's leading provider of Giddings & Lewis 65-H5-T 127 MM Table Type Horizontal Boring Mill with Tailstock & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

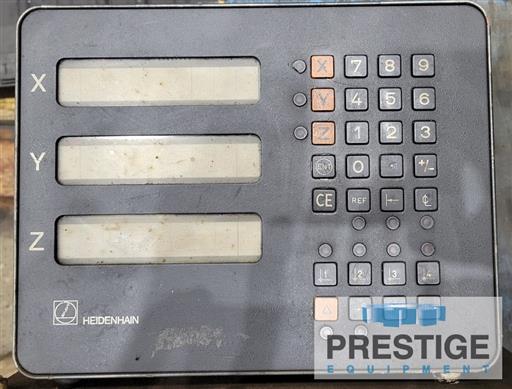

3-Axis Heidenhain Digital Readout System
✓

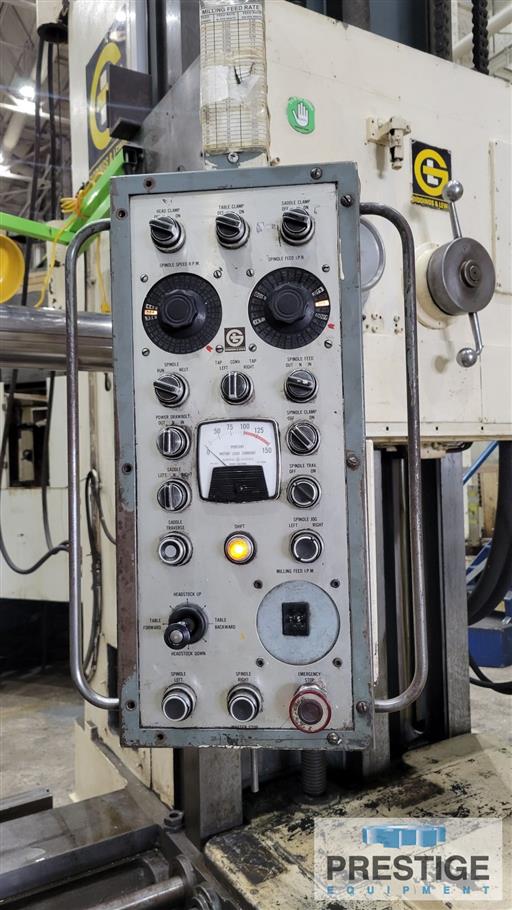

Full Pendant Control
✓
Hardened Ways On Bed and Saddle
✓
Power Draw Bar
✓

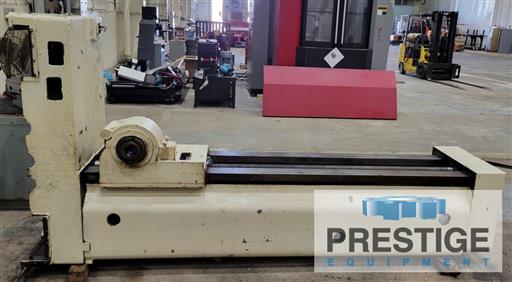

Outboard Support (Tailstock)
Product Specifications
SPECIFICATION:

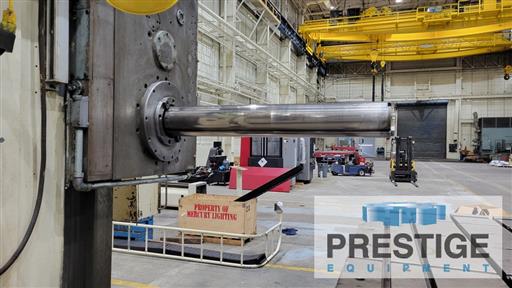

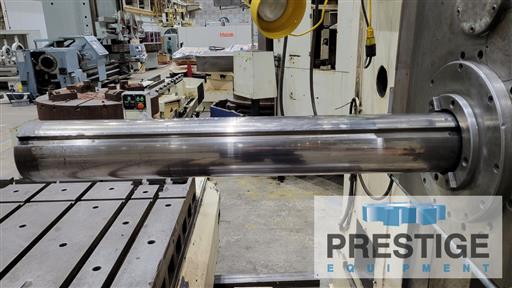

Spindle Diameter
127 MM
Spindle Taper
#50 Taper
Vertical Head Travel, Y-Axis
1524 MM
Cross Travel Of Table, X-Axis
2134 MM
Saddle Travel w/o T.S, W-Axis
2438 MM
Saddle Travel w/ T.S, W-Axis
1524 MM
Spindle Travel, Z-Axis
914 MM
Table Size
1219 MM x 2438 MM
Spindle Speeds
5 to 1050 RPM
Feeds
.002-.250 IPR
Equipped With:
3-Axis Heidenhain Digital Readout System
Full Pendant Control
Hardened Ways On Bed and Saddle
Power Draw Bar
3-Way Heavy Duty Column
4-Way Bed with Built-In Saddle Supports
Outboard Support (Tailstock)

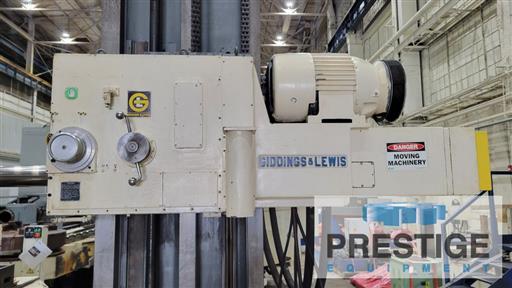

22 KW Spindle Motor
Features:
✓
3-Axis Heidenhain Digital Readout System
✓
Full Pendant Control
✓
Hardened Ways On Bed and Saddle
✓
Power Draw Bar
✓
Outboard Support (Tailstock)
