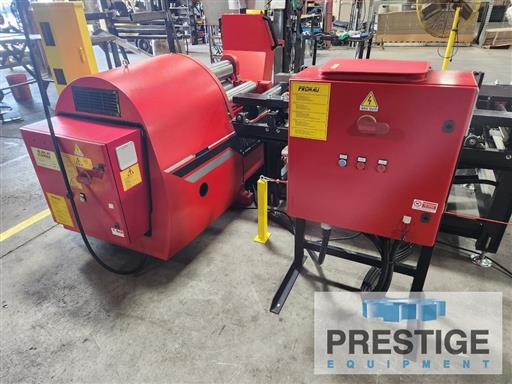

DAVI MCA 0615 5/16" x 24" 4-Roll Hydraulic Plate Roll
Model:
MCA 0615
Age:
2024
Ref#:
44212
Prestige Equipment is the world's leading provider of DAVI MCA 0615 5/16" x 24" 4-Roll Hydraulic Plate Roll & machine tools & fabricating equipment. Take a look at our wide selection of new and used Plate Bending Rolls for sale.
Product Specifications
Features:
✓

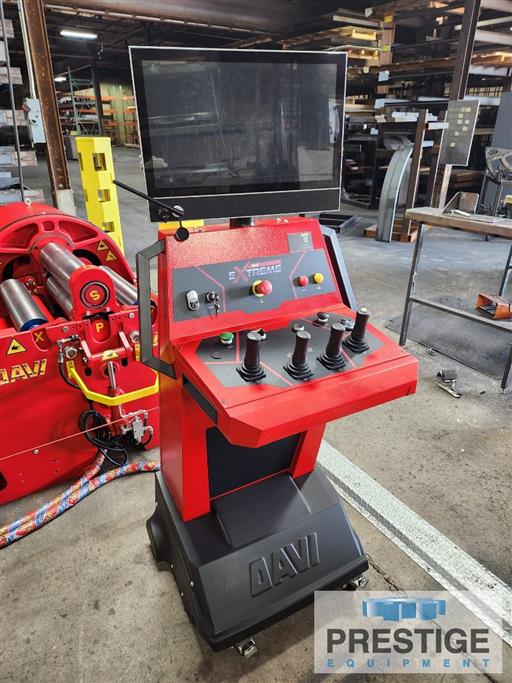

Davi CNC Control
✓

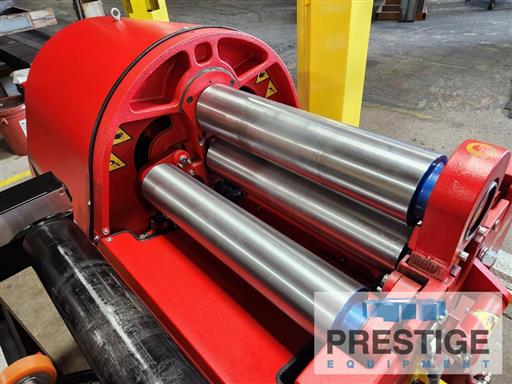

Top & Lower Rolls are Standard Crowned to Compensate Rolls Deflection
✓
Friction Free, Mill-Scale-Proof, Lubrication-Less Planetary Guides
✓
Linear Transducer with Accuracy of 0.004"
✓
Self-Aligning Heavy Duty Double Crown Spherical Roller Bearings
✓
Hardened Rolls
✓
Cone Rolling Package
✓
DG Gauge Small iD 6.7"<>78.9"
✓
Powered Infeed Conveyor 6' Long
✓
Powered Centering Device on Full Width Conveyor
✓
Body Protection Large Resolution Light Curtain Set
Product Specifications
CAPACITY:
Bending Capacity
5/16" Ga.
Pre-Bending Capacity
1/4"
Rolls Length/Free Access
26"
Top Roll Diameter
6"
Bottom Roll Diameter
5.5"
Side Rolls Diameter
5"
Smallest Possible Diameter
6.6"
Rolling Speed
20 Ft/Min
Power
6.6 HP
Equipped With:
Davi CNC Control
Top & Lower Rolls are Standard Crowned to Compensate Rolls Deflection
Friction Free, Mill-Scale-Proof, Lubrication-Less Planetary Guides
Linear Transducer with Accuracy of 0.004"
Self-Aligning Heavy Duty Double Crown Spherical Roller Bearings
Two Independent but Integrated Parallel Systems
Both Clamping Rolls are Driven in Rotation as Standard Feature
Stress-Less Transmission Drive System
Roll-by-Wire Digital Technology
High Quality Surface Finishing
Servo-Tronic Roll Parallelism
Permanent Lubrication Technology
Hardened Rolls
Cone Rolling Package
DG Gauge Small iD 6.7"<>78.9"

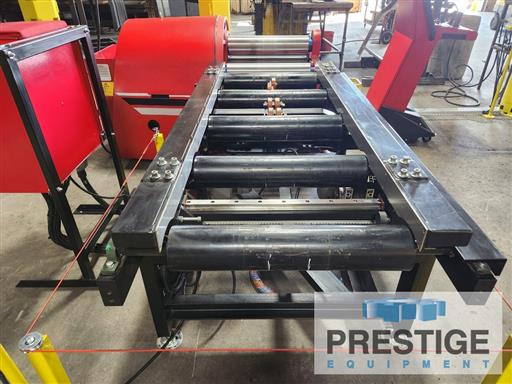

Powered Infeed Conveyor 6' Long
Powered Centering Device on Full Width Conveyor
Body Protection Large Resolution Light Curtain Set
NOTE:
Like New, Inspect In Plant Under Power
Features:
✓
Davi CNC Control
✓
Top & Lower Rolls are Standard Crowned to Compensate Rolls Deflection
✓
Friction Free, Mill-Scale-Proof, Lubrication-Less Planetary Guides
✓
Linear Transducer with Accuracy of 0.004"
✓
Self-Aligning Heavy Duty Double Crown Spherical Roller Bearings
✓
Hardened Rolls
✓
Cone Rolling Package
✓
DG Gauge Small iD 6.7"<>78.9"
✓
Powered Infeed Conveyor 6' Long
✓
Powered Centering Device on Full Width Conveyor
✓
Body Protection Large Resolution Light Curtain Set
