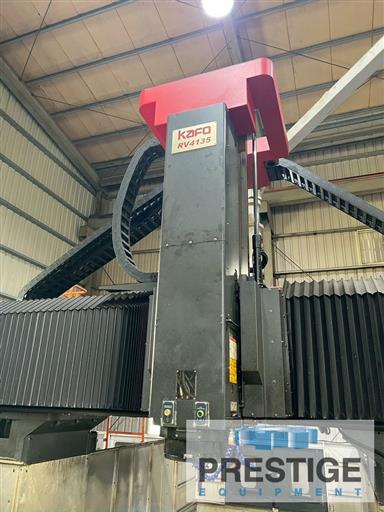

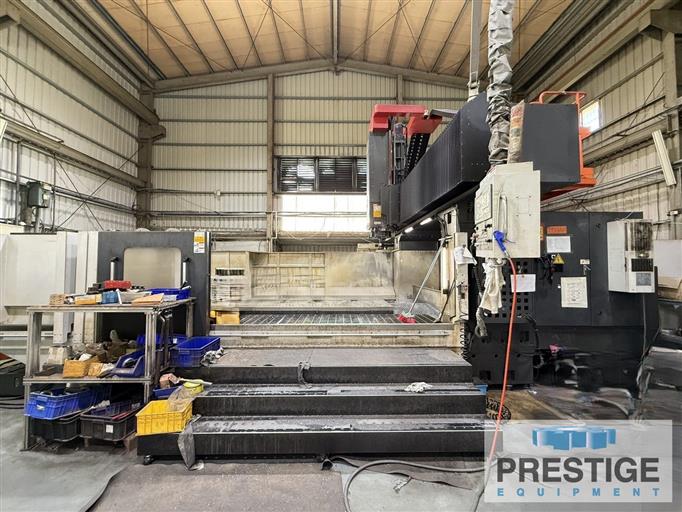

KAFO RV-4135 5-Face Double Column Machining Center
Model:
RV-4135 5-Face
Age:
2019
Ref#:
44464
Prestige Equipment is the world's leading provider of KAFO RV-4135 5-Face Double Column Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Bridge Type Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓

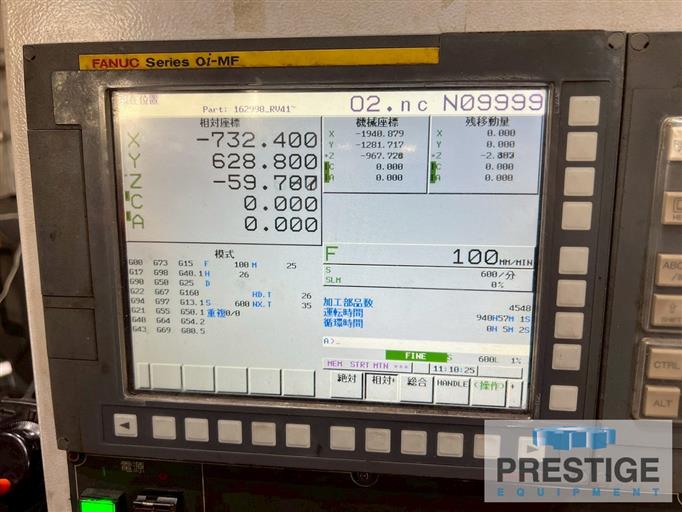

Fanuc Oi-MF CNC Control with 264 MM LCD
✓

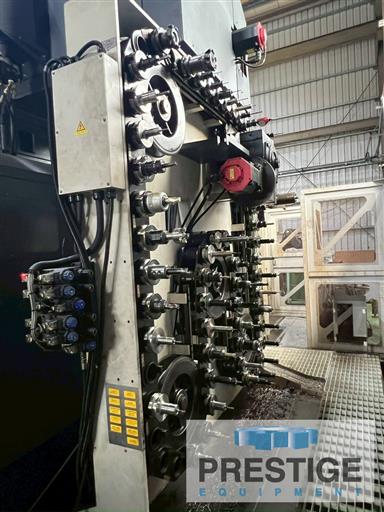

60-Station Automatic Tool Changer
✓
Auto Head Storage with 90 Degree Head
✓
Universal Head (3,500 RPM w/ 5 Deg. Indexing)
✓

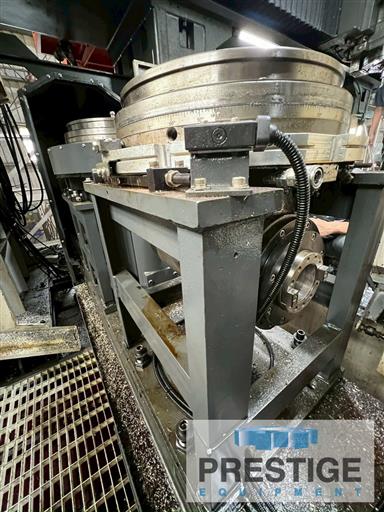

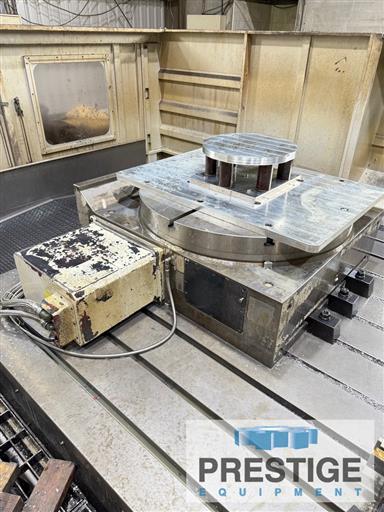

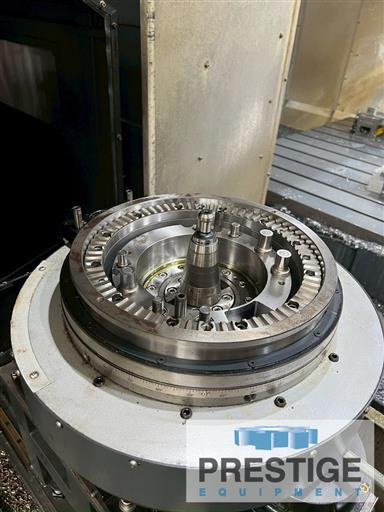

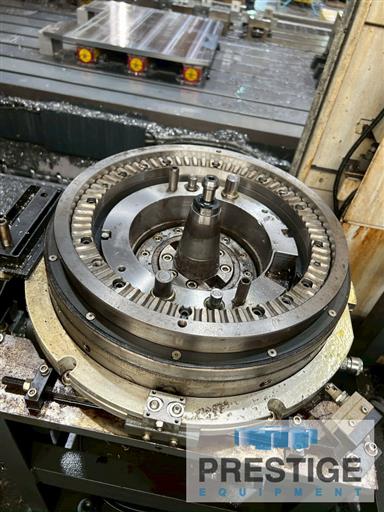

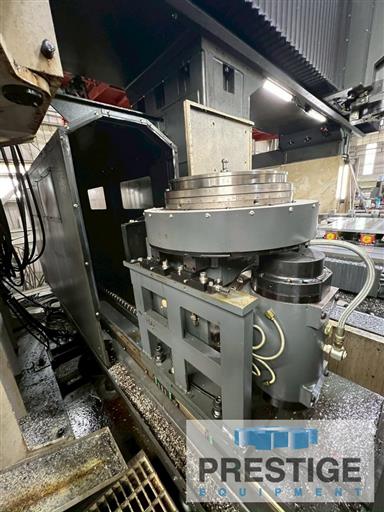

4th Axis Rotary Table (NCT-B-1000R)
✓
X/Y/Z Linear Scales
✓
Air Thru Spindle
✓
Chip Conveyor
Product Specifications
CAPACITY:
Table Size
4000 MM x 2100 MM
Table Capacity
16964 KG .
Distance Between Columns
2700 MM
X-Axis Travel (Table Longitudinal)
4100 MM
Y-Axis Travel (Head)
3500 MM
Z-Axis Travel (Spindle)
1100 MM
Distance From Spindle Nose to Table
200 MM -1300 MM
Spindle Speeds
10,000 RPM
Spindle Taper
BT-50
Spindle Drive Motor
45 KW /37 KW
Approximate Dimensions
10795 MM x 7798 MM x 5740 MM
Machine Weight
47400 KG .
Equipped With:
Fanuc Oi-MF CNC Control with 264 MM LCD
60-Station Automatic Tool Changer
Auto Head Storage with 90 Degree Head
Universal Head (3,500 RPM w/ 5 Deg. Indexing)
4th Axis Rotary Table (NCT-B-1000R)
X/Y/Z Linear Scales
Air Thru Spindle
Chip Conveyor
NOTE:
Inspect In Plant Under Power
Features:
✓
Fanuc Oi-MF CNC Control with 264 MM LCD
✓
60-Station Automatic Tool Changer
✓
Auto Head Storage with 90 Degree Head
✓
Universal Head (3,500 RPM w/ 5 Deg. Indexing)
✓
4th Axis Rotary Table (NCT-B-1000R)
✓
X/Y/Z Linear Scales
✓
Air Thru Spindle
✓
Chip Conveyor
