Giana GFP-24 129" x 531" Heavy Duty Manual Lathe
Model:
GFP-24
Age:
N/A
Ref#:
44391
Prestige Equipment is the world's leading provider of Giana GFP-24 129" x 531" Heavy Duty Manual Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
✓
78.74 Chuck Diameter w/4-Face Plate Type Jaws
✓
2-Carriages
✓

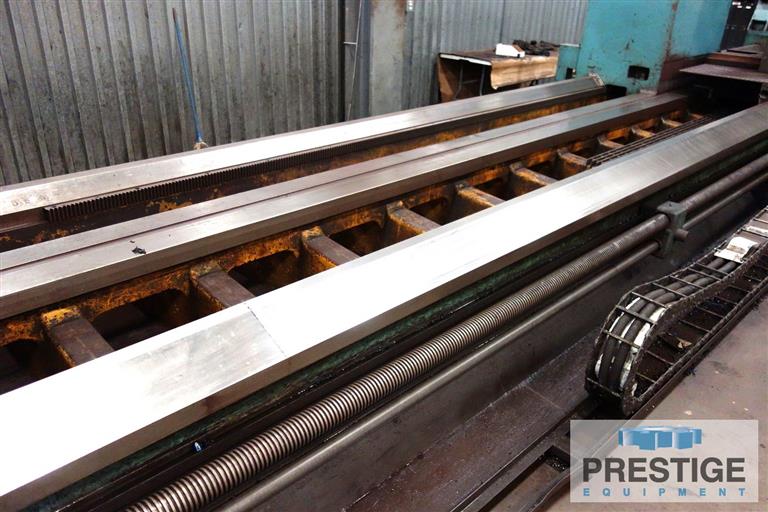

3-Way Bed Design
✓
Hardened Ways
✓

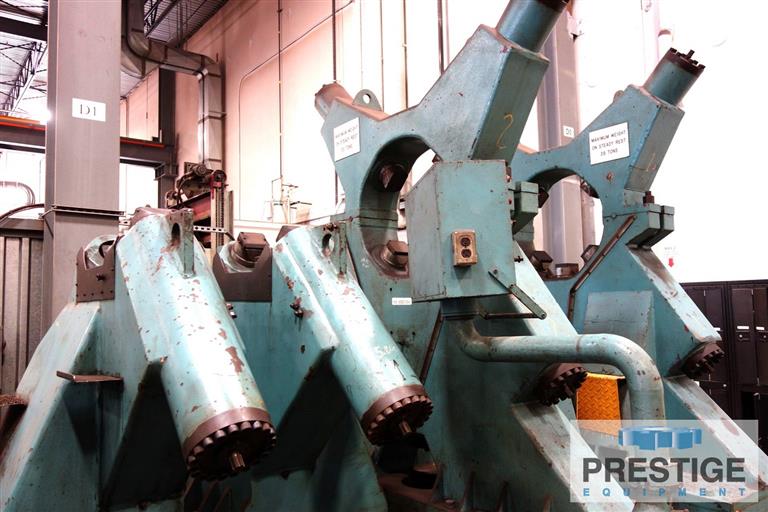

4-Steady Rests
✓
Thread Dial
✓
Threading
✓
Power Compound for Taper Cutting
Product Specifications
SPECIFICATIONS:
Swing Over Bed
129"
Swing Over Carriage
108"
Distance Between Centers
531"
Spindle Speeds
9.5 - 180 RPM
Chuck Diameter
78.74"
Spindle Hole
5.9"
Tailstock Quill Diameter
11.8"
Tailstock Quill Travel
7.87"
Bed Width
65"
Weight Capacity Between Centers
100,000 Lbs
Main Motor
75 HP
Equipped With:
2-Carriages
Operators Platform on Carriage

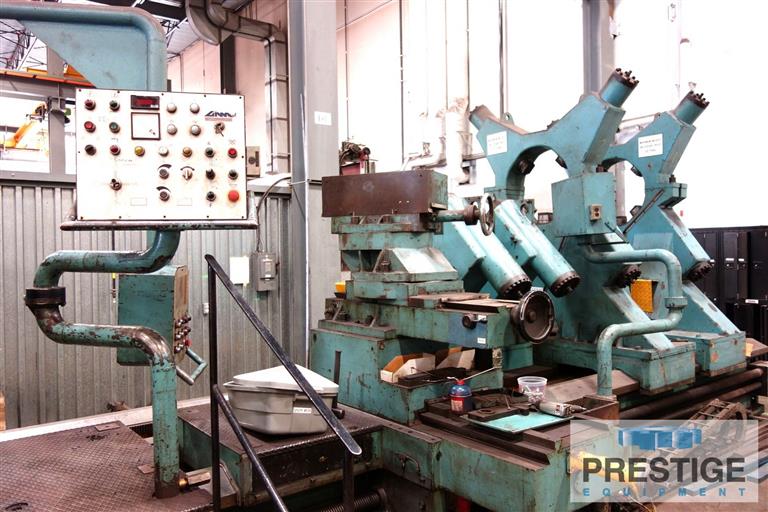

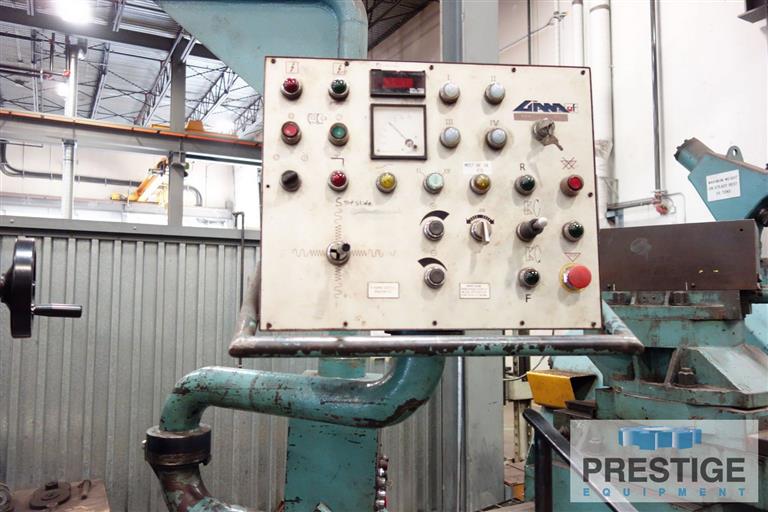

Full Pendant Controls From Carriage

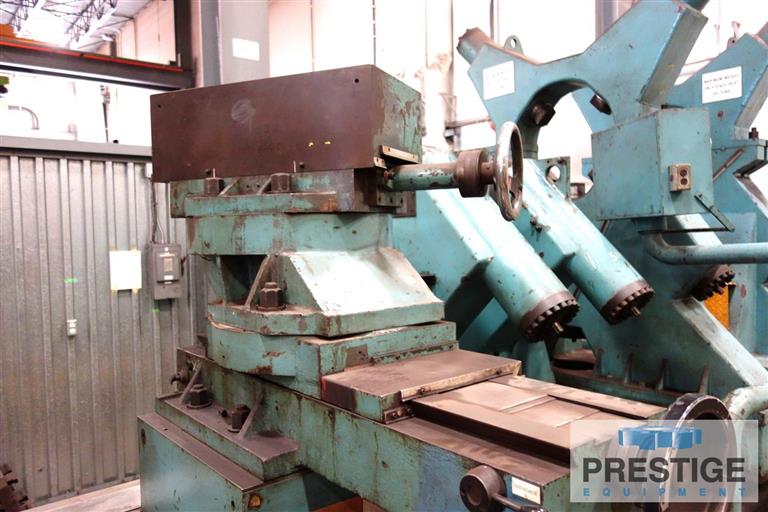

Power Feeding Triple Compounds

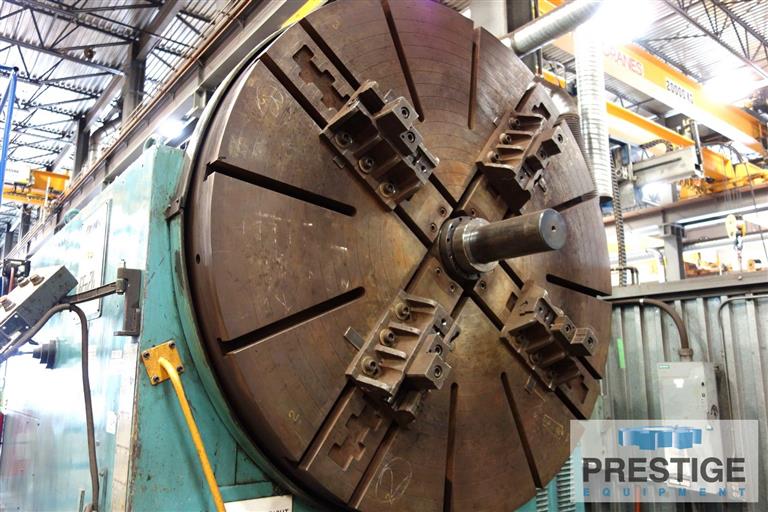

78.74" Chuck with 4-Face Plate Type Jaws
3-Way Bed Design
Hardened Ways

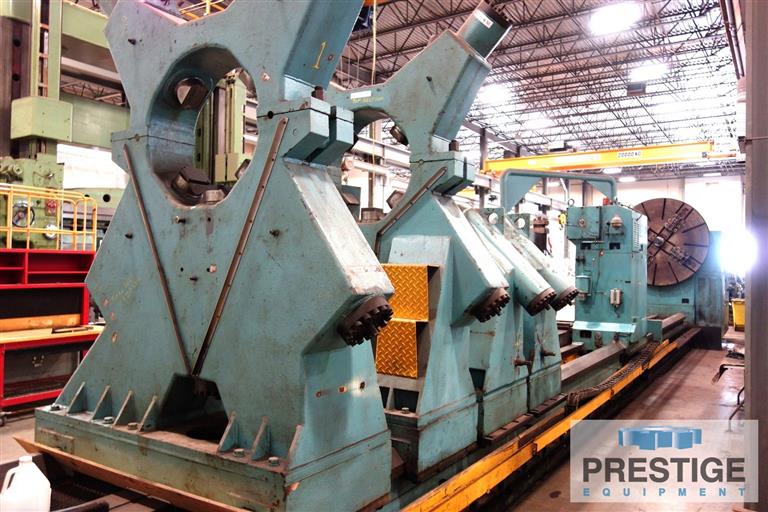

4-Steady Rests
Thread Dial
Inch, Metric, Diametral, Module Threading
Taper Cutting By Power Compound on Carriage
NOTE:
3-Way Bed Design to Allow Carriages to Pass Steady Rests and Tailstock.
Must Be Moved! Inspect Under Power For Limited Time!
