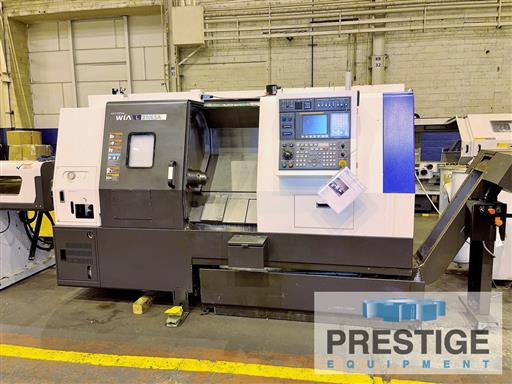

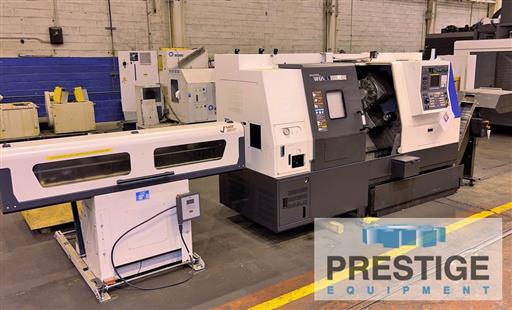

Hyundai Wia L210-LSA CNC Turning Center With Sub-Spindle

Model:
L210-LSA
Age:
2013
Ref#:
32280
View Video
Prestige Equipment is the world's leading provider of Hyundai Wia L210-LSA CNC Turning Center With Sub-Spindle & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Features:
Fanuc i-Series CNC Control
Main & Sub Spindle
12-Position Turret
LNS Servo QLS-80 S2 Bar Feed
Chip Conveyor
Chip Blaster
Product Specifications
SPECIFICATIONS:
Swing Over Bed
21.7"
Swing Over Carriage
13.8"
Maximum Turn Diameter
13.8"
Maximum Turning Length
20.9
MAIN SPINDLE:
Bar Capacity
2.6"
Spindle Bore
3.07"
Spindle Speed
4000 RPM
Spindle Motor
20 HP / 15 HP
Spindle Nose
A2-6

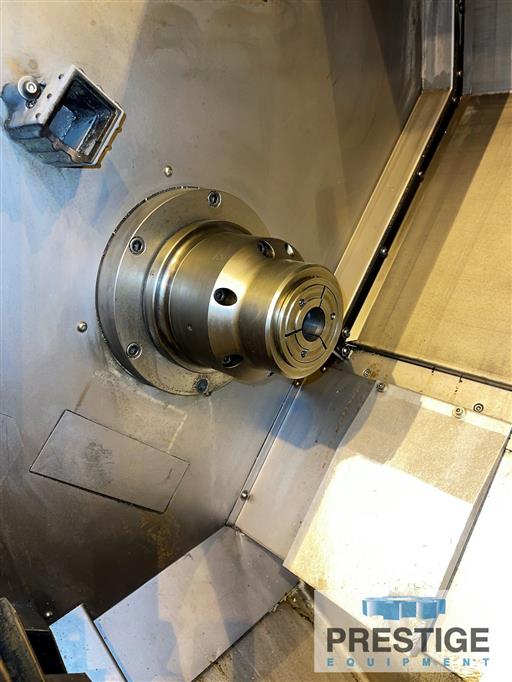

SUB-SPINDLE:
Bar Capacity
1.3"
Spindle Bore
1.7"
Spindle Speed
6000 RPM
Spindle Motor
5 HP / 3 HP
Spindle Nose
Flat 4.33"
TRAVELS:
X-Axis Travel
8.3"
Z-Axis Travel
21.7"
B-Axis Travel
29.5"

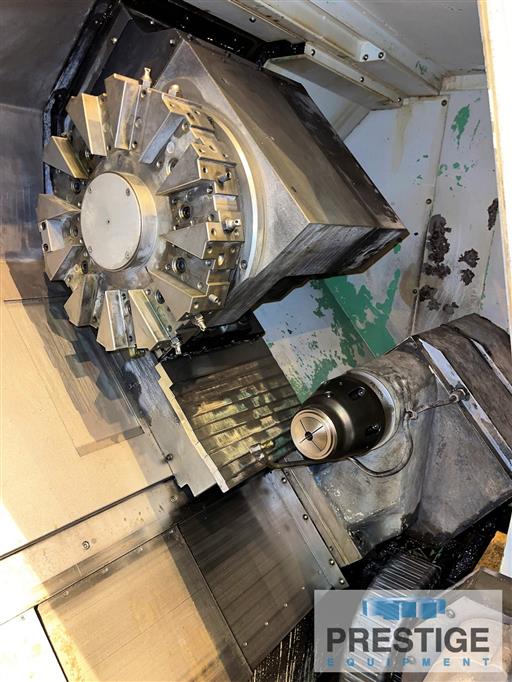

TURRET:
Number of Stations
12
0.D. Tool Size
1" x 1"
I.D. Tool Size
1.6"
DIMENSIONS & WEIGHTS:
Floor Space, Machine Only
114.2" x 65"
Machine Height
73.6"
Machine Weight
9,480 Lbs.
Equipped With:
Fanuc i-Series CNC Control
Main Spindle
Sub-Spindle
12-Position Auto Indexing Turret
LNS Servo QLS-80 S2 Bar Feed

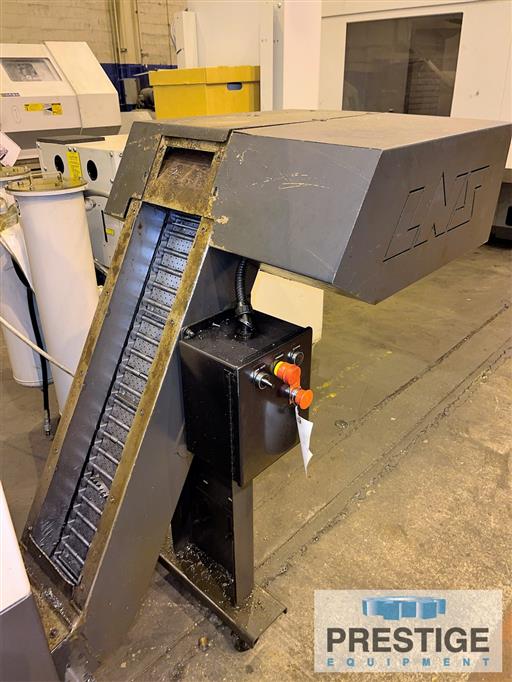

Chip Conveyor

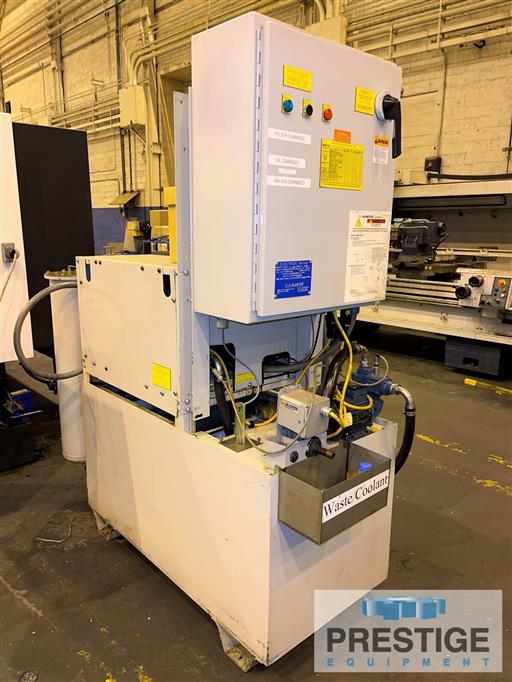

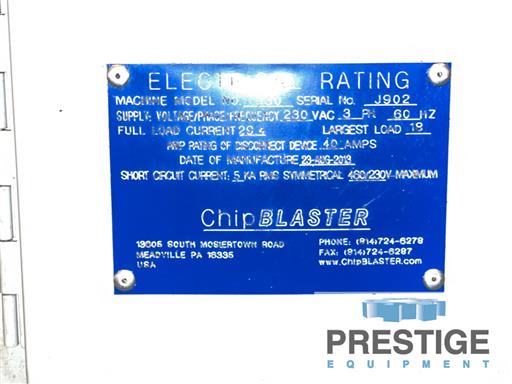

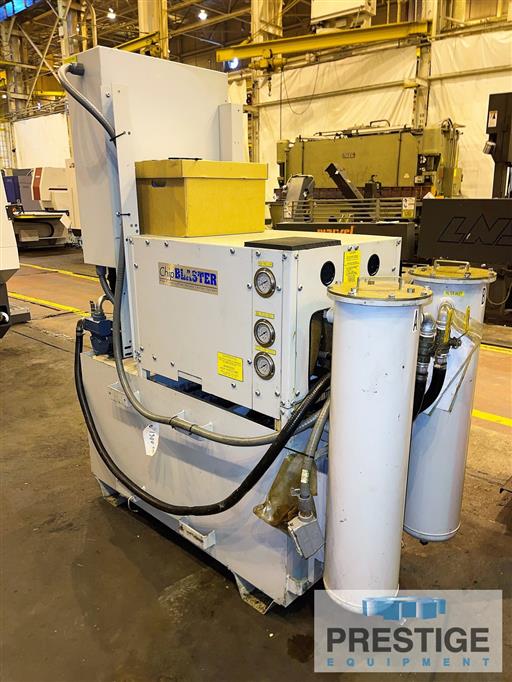

Chip Blaster High Pressure Coolant System
Tooling
NOTE:
Under Power In Philadelphia, PA
Features:
Fanuc i-Series CNC Control
Main & Sub Spindle
12-Position Turret
LNS Servo QLS-80 S2 Bar Feed
Chip Conveyor
Chip Blaster
