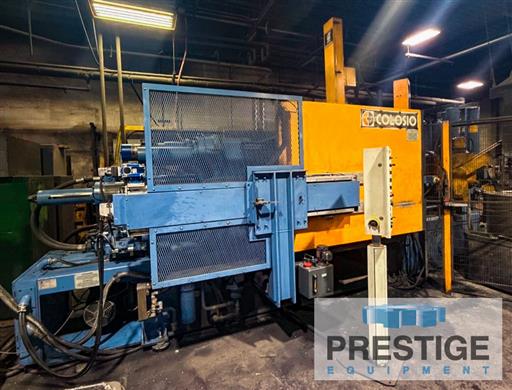

Colosio PFO 400 Horizontal Cold Chamber Die Cast Machine
Model:
PFO 400
Age:
2022
Ref#:
44229
Prestige Equipment is the world's leading provider of Colosio PFO 400 Horizontal Cold Chamber Die Cast Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used Die Casting Machines for sale.
Product Specifications
Product Specifications
CAPACITY:
Locking Force
463 Ton
Max. Injection Force
49 Ton
Ejection Force
19 Ton
Min. Die Height
9.84"
Max. Die Height
29.52"
Moving Platen Stroke
23.62"
Ejection Stroke
5.11"
Platen Dimensions
38.5" x 38.5"
Distance Between Tie-Bars
24.40"
Tie-Bars Diameter
4.92"
Max. Shot Weight
10.34 Lbs
Casting Cycles
10
Approximate Machine Dimensions
91" x 266" x 122"
Approximate Machine Weight
44,600 Lbs
Equipped With:
Colosio Full Control System
Integrated Colosio Rotofast Automatic Ladle
Relbo Rapid 75 Automatic Die Sprayer
