Hankook VTC 200E 1981 MM /2489 MM CNC Vertical Turning Center w/Milling
Model:
VTC 200E
Age:
2010
Ref#:
44595
Prestige Equipment is the world's leading provider of Hankook VTC 200E 1981 MM /2489 MM CNC Vertical Turning Center w/Milling & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

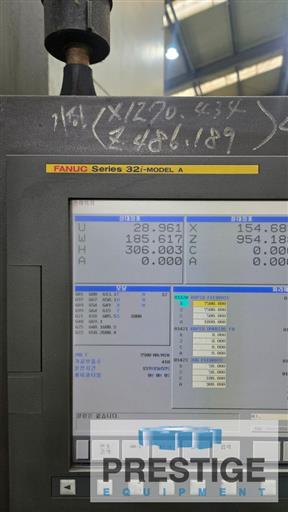

Fanuc 32i-A CNC Control
✓
24-Station Automatic Tool Changer
✓
Live Spindle for Milling & Drilling
✓
Linear Scales
✓
Chip Conveyor
Product Specifications
SPECIFICATIONS:

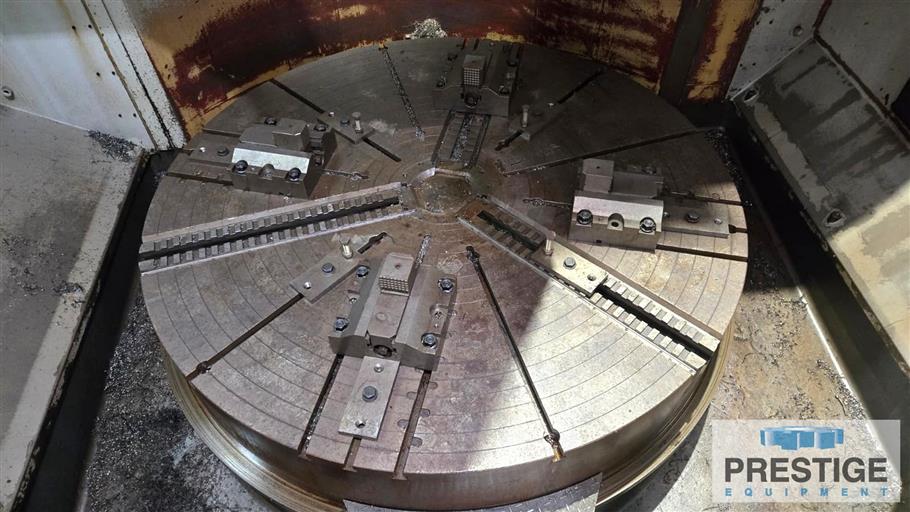

Table Diameter
2000 MM
Maximum Cutting Diameter
2500 MM
Maximum Swing
2700 MM
Maximum Turning Height
2000 MM
Z-Axis, Vertical Ram Travel
851 MM
Vertical Travel of Cross Rail
800 MM
Live Spindle Milling Speeds
0 to 3000 RPM
Live Spindle Milling Motor
19 KW /22 KW
Ram Cross Section...................... 240 MM x 240 MM
240 MM x 240 MM
Table Speeds
................... 1 to 200 RPM
Table Speed Ranges
2 Steps
Table Indexing
360,000 degrees
Table Weight Capacity
11975 KG
Table Motor
45 KW / 54 KW
Equipped With:

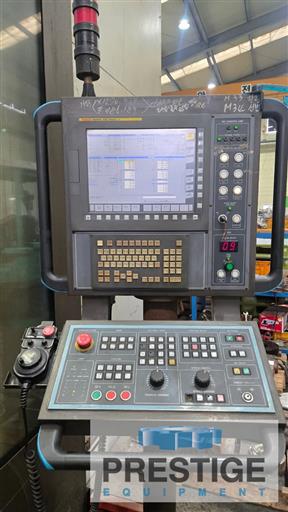

Fanuc System 32i-A CNC Control
Linear Scales
24-Station Automatic Tool Changer (12 Turning & 12 Milling)
C-Axis for Milling & Drilling Operations
Chip Conveyor
54 KW Main Table Drive Motor
Features:
✓
Fanuc 32i-A CNC Control
✓
24-Station Automatic Tool Changer
✓
Live Spindle for Milling & Drilling
✓
Linear Scales
✓
Chip Conveyor
