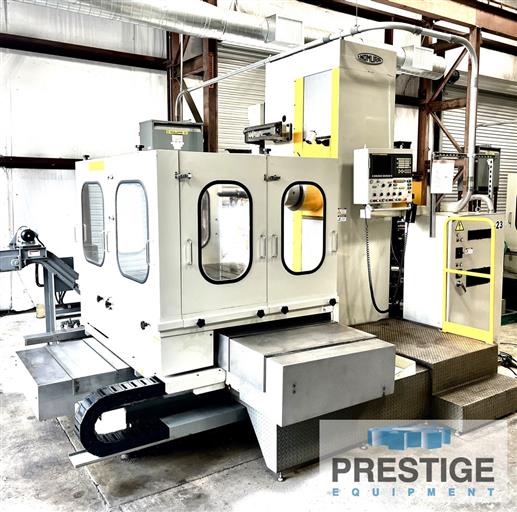

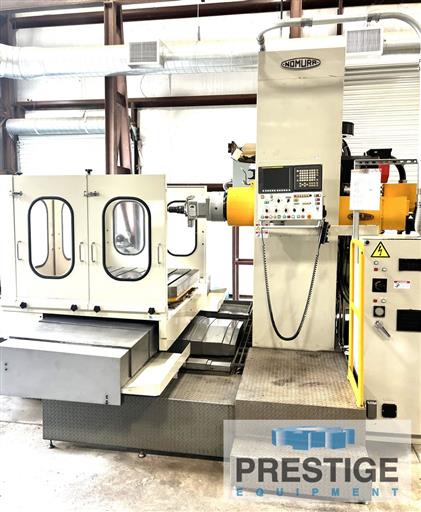

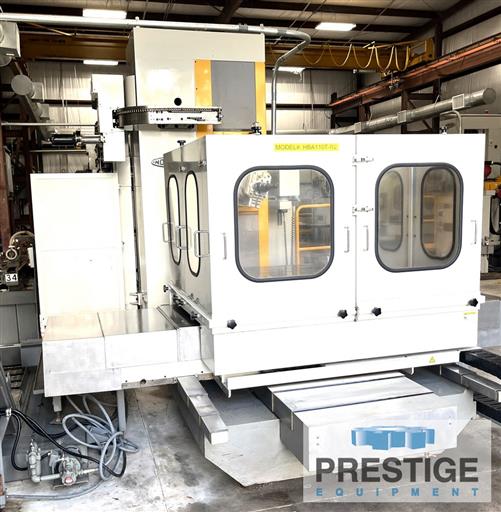

NOMURA 4.3" CNC TABLE-TYPE HORIZONTAL BORING MILL
Model:
HBA110-R2
Age:
2015
Ref#:
44530
Prestige Equipment is the world's leading provider of NOMURA 4.3" CNC TABLE-TYPE HORIZONTAL BORING MILL & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓
FANUC 0I-MD CNC CONTROL
✓
30 TOOL AUTOMATIC CHANGER
✓
COOLANT THROUGH SPINDLE
✓
RIGID TAPPING
✓
HELICAL INTERPOLATION
✓

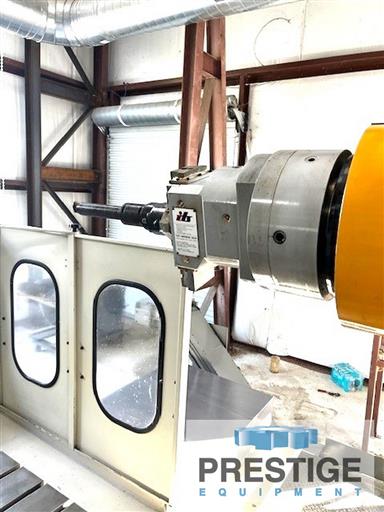

I.P.S MODEL CH-12 FACING AND CONTURING HEAD
✓
Used For Only One Project! Only 634 Hours!
Product Specifications
SPECIFICATIONS:
SPINDLE DIAMETER
4.33"
SPINDLE TAPER
#50
Table Cross Travel, X-AXIS
59.1"
Head Travel, Y-AXIS
46.3"
Saddle Travel, Z-AXIS
34.4"
Spindle Travel, W-AXIS
15.7"
MAX SPINDLE SPEEDS ,,,................. 3000 RPM
3000 RPM
SPINDLE MOTOR
30 HP

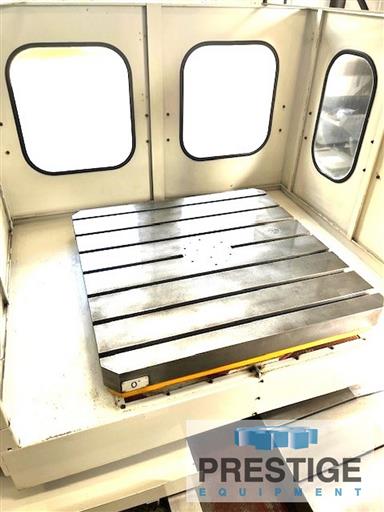

TABLE SIZE
45" X 45"
TABLE CAPACITY
6,600 LBS
ROTARY TABLE, C-Axis
0.001 Degrees
MAX. CUTTING FEEDRATE
236 IPM
RAPID TRAVERSE
472 IPM
TOOL CHANGER CAPACITY
30 TOOLS
FLOOR SPACE REQUIRED
145" X 223"
MACHINE HEIGHT
139"
APPROXIMATE MACHINE WEIGHT
31,000 LBS
Equipped With:
FANUC 0I-MD CNC CONTROL
30 TOOL AUTOMATIC CHANGER
COOLANT THROUGH SPINDLE
SPINDLE OIL COOLER
RIGID TAPPING
HELICAL INTERPOLATION
I.P.S MODEL CH-12 FACING AND CONTURING HEAD
CHIP CONVEYOR
NOTE:
Used for Only One Project! Only 634 Hours!
Features:
✓
FANUC 0I-MD CNC CONTROL
✓
30 TOOL AUTOMATIC CHANGER
✓
COOLANT THROUGH SPINDLE
✓
RIGID TAPPING
✓
HELICAL INTERPOLATION
✓
I.P.S MODEL CH-12 FACING AND CONTURING HEAD
✓
Used For Only One Project! Only 634 Hours!
