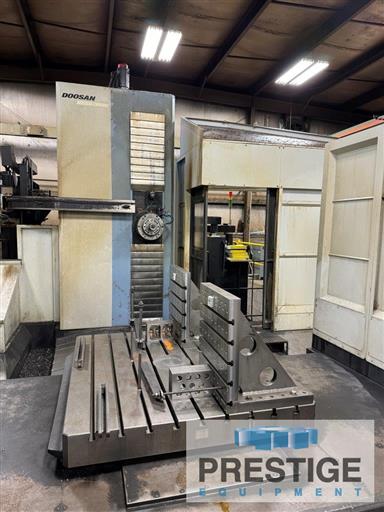

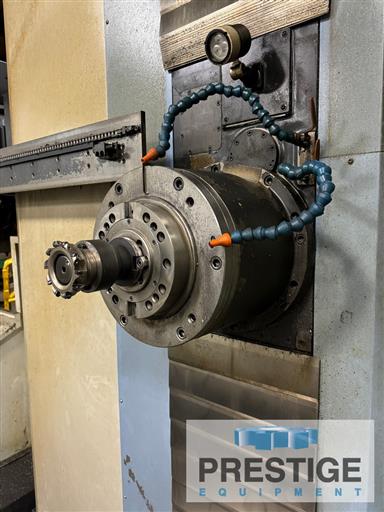

Doosan DBC-130 II 130 MM Table Type CNC Horizontal Boring MIll
Model:
DBC-130 II
Age:
2014
Ref#:
44434
Prestige Equipment is the world's leading provider of Doosan DBC-130 II 130 MM Table Type CNC Horizontal Boring MIll & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

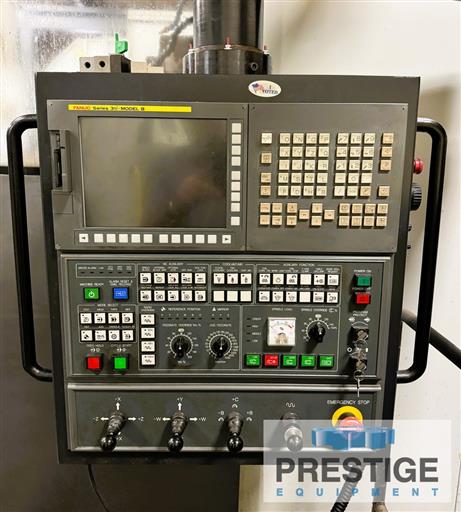

Fanuc 31i-B CNC Control
✓
Built-In B-Axis Rotary Table
✓

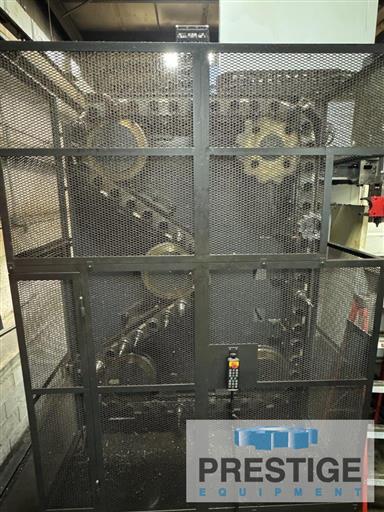

60-Station Automatic Tool Changer
✓
Coolant Through Spindle
✓
Chip Conveyor
Product Specifications
SPECIFICATIONS:
Spindle Diameter
130 MM
Spindle Taper
Cat 50
Y-Axis Head Vertical Travel
2000 MM
X-Axis Table Travel
3000 MM
W-Axis Spindle Travel
701 MM
Z-Axis Column Infeed Travel
1600 MM

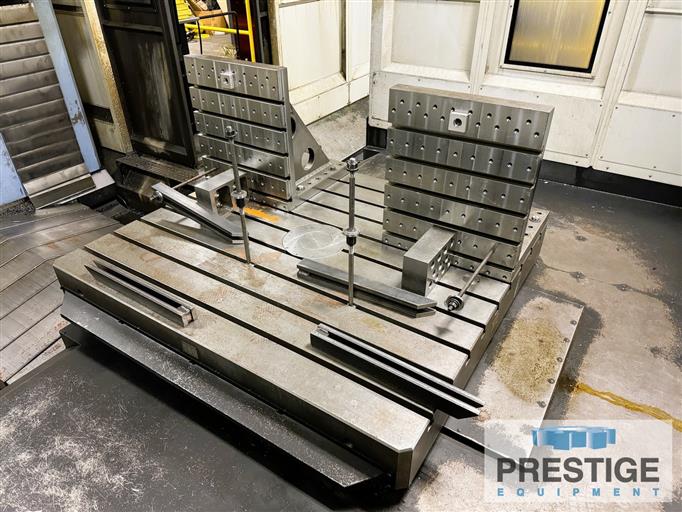

B-Axis Rotary Table
1600 MM x 1801 MM
B-Axis Table Rotation
.001 Degree
Rotary Table Weight Capacity
14999 KG
Maximum Spindle Speeds
5 to 2500 RPM
Rapid Traverse Rate (All Axes)
10000 MM/MIN
Cutting Feed Rate (X/Y/Z Axes)
4026 MM/MIN
Overall Height
5001 MM
Floor Space
7501 MM x 8199 MM
Estimated Machine Weight
42999 KG
Equipped With:
Fanuc 31i-B CNC Control
B-Axis Built In Rotary Table
60-Station Automatic Tool Changer
Coolant Thru Spindle
Flood Coolant
Chip Conveyor

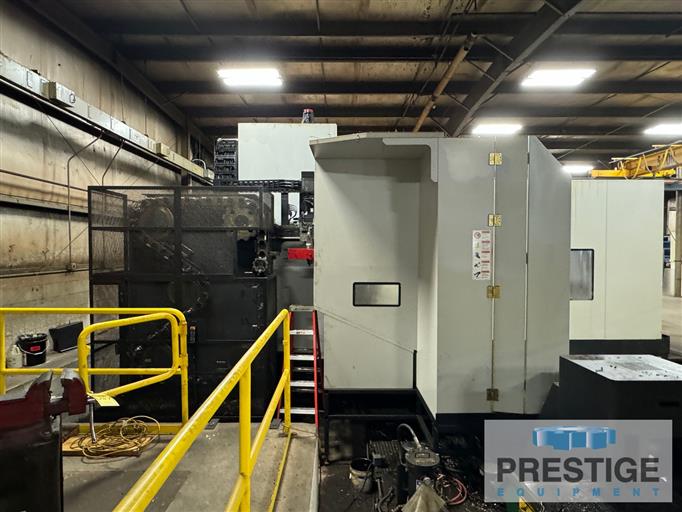

Full Enclosure
NOTES:
Video of the machine Under Power Available Upon Request!
Machine is Currently Disassembled and Ready to Load!
Call for Installation Cost from People who Disassembled it the 1st time.
Features:
✓
Fanuc 31i-B CNC Control
✓
Built-In B-Axis Rotary Table
✓
60-Station Automatic Tool Changer
✓
Coolant Through Spindle
✓
Chip Conveyor
