Worldwide Industrial Auctions & Liquidations

Online Auction

Late Model Peddinghaus Structural Steel Fabrication Facility – Surplus to the Ongoing Needs of Steel Fabrication and Erection Company

Featuring Peddinghaus BDL-1250/9-D High Speed Beam Drill Line, 2017 Peddinghaus Peddi-Writer PW-250 Plasma Layout Machine, 2017 Peddinghaus FPB-1800 Plate Processor, 2016 Peddinghaus Ocean Liberator 5-Axis Coper, Peddinghaus AFCPS 823-B and AFCPS 623-L Angle Master Lines, Hem WF190LM-DC Saw, Conveyors, Transfers, Welders, Blast Room and More!
April 14, 2021
11:00 AM ET
Bensalem, Pennsylvania
View Brochure Share Print
Contact for Sale
Frank DiSalvo
Email Me
631-249-5566
Inspection Date
By Appointment Only - Monday, April 12, 2021
9:00AM - 4:00PM ET
In Conjunction With
Prestige Auctions
Sale Information

FEATURED ASSETS:



PEDDINGHAUS ANGLE LINES:

  • Peddinghaus AFCPS 823-B Angle, Flat Punch and Shear Line, 8” x 8” x ¾” Angle Capacity, 12” x 1” Flat Bar Capacity, (2) 130 Ton Punches, 400 Ton Single Cut Shear, 42’ Infeed, (New Control & Drives 2017)
  • Peddinghaus AFCPS 623-L Angle, Flat, Channel Punch and Shear Line, 6” x 6” x ½” Angle Capacity, 6” x ½” Flat Bar Capacity, 250-Ton Single Cut Shear, Pinch Drive with 42’ Infeed conveyor, (New Control & Drives 2017)

PEDDINGHAUS PLATE PROCESSOR:

  • Peddinghaus FPB-1800 Plate Processing Center, 72” x 240” x 1-1/4” Maximum Plate, 177-Ton Triple Gag Punch, 1-3/4” Max. Punch Diameter, 850 IPM Feed Rate, Siemens 840D CNC Control, Hypertherm HPR260XD Plasma, Roller Feed Measurement System, 20’ Roller In-Feed Table, Dust Collector, Serial Number: B1705, Mfg. Date November 2017

PEDDINGHAUS PLASMA LAYOUT MACHINE:

  • Peddinghaus Peddi-Writer PW-1250 Plasma Layout Machine, 50” x 24” Max. Beam, Roller Feed Measurement, Handles Materials up to 730 lb/ft or 43,800 Lbs. Maximum Profile, (2) independent Plasma Torches, (2) Hypertherm Arc Writer Units, Serial Number: B1666, Mfg. Date: September 2017

CONVEYOR AND TRANSFERS FOR PEDDINGHAUS PEDDI-WRITER

  • 65’ Infeed and 65’ Outfeed Conveyor, 848 Lbs./Ft x 48” Wide Rollers

(5) 20’ Quiet Glide Left and Carry Transfers on Infeed

(5) 20’ Lift and Carry Transfers on Outfeed

Controls and Hydraulic Power Units

PEDDINGHAUS HIGH SPEED 9 SPINDLE BEAM DRILL LINE

  • Peddinghaus BDL-1250/9-D, 50” x 24” Max. Beam, (9) Spindle 25 HP, 145-1800 RPM Spindle Speeds, Carbide Tooling, 2” Max. Hole Size, Roller Feed Measurement, Handles Materials up to 730 lb/ft or 43,800 Lbs. Maximum Section Weight, Serial Number: 73781, Mfg. Date: 2008

CONVEYOR AND TRANSFERS FOR PEDDINGHAUS BDL BEAM DRILL:

  • 65’ Infeed and 65’ Outfeed Conveyor, 848 Lbs./Ft x 48” Wide Rollers
  • (5) 20’ Lift and Carry Transfers on Infeed
  • (5) 20’ Lift and Carry Transfers on Outfeed
  • Controls and Hydraulic Power Units

PEDDINGHAUS BEAM COPING MACHINE:

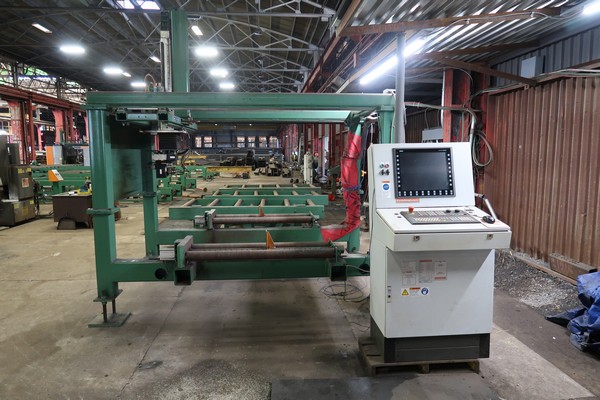

  • Peddinghaus Ocean Liberator SACM-1250A 5-Axis CNC Beam Coping Machine, 44” x 24” Max. Profile, 48” Max. Plate Width,5-Axis Oxy Acetylene Torch, 46” X-Axis Travel, 76” Y-Axis Travel, 30” Z-Axis Travel, 270 Degree B-Axis, Bevel Angle, 270 Degree C-Axis, Siemens CNC Control, Serial Number: A002637, Mfg. Date: October 2016

HORIZONTAL STRUCTURAL BAND SAW:

  • Hem WF190LM-DC Wide Flange, Heavy Duty, Metal Cutting Production Saw, 44” W x 25” H, 2” x 29’ x .063” Blade, 15 HP Motor, Full Stroking Bi-Directional Main Vise, Optional Full Capacity Top Clamp

CAMBERING MACHINE

  • CAMBCO Model 500A Hydraulic Cambering & Beam Straightening Machine

WELDERS/ FACILITY & SUPPORT / TRANSFERS:

  • (15) REA Lift and Carry Transfers
  • Controls and Hydraulic Power Units
  • (40) Miller Welders, Models Dimension 452 & Gold Star 452 & 652
  • (Qty 10) Miller Suitcase X-treme 12VS Wire Feeder Flux Core Mig Welder Digital Display
  • Miller Sub Arc Welders/ Wire Feeders
  • (Qty 3) Nelson TRW 6000 Model 201 Stud Welder
  • Complete Empire Blast System, 20′ W x 70′ Long Consisting of IR Air Compressors/ Dust Collectors
  • Hill Acme Ironworkers
  • Steel Inventory
  • Approx 40 Trailers
  • 50 Steel Horses

And Much More!

Complete Photos and Asset Listing Coming Soon!
