FEATURED ASSETS:

CNC VERTICAL TURNING CENTER

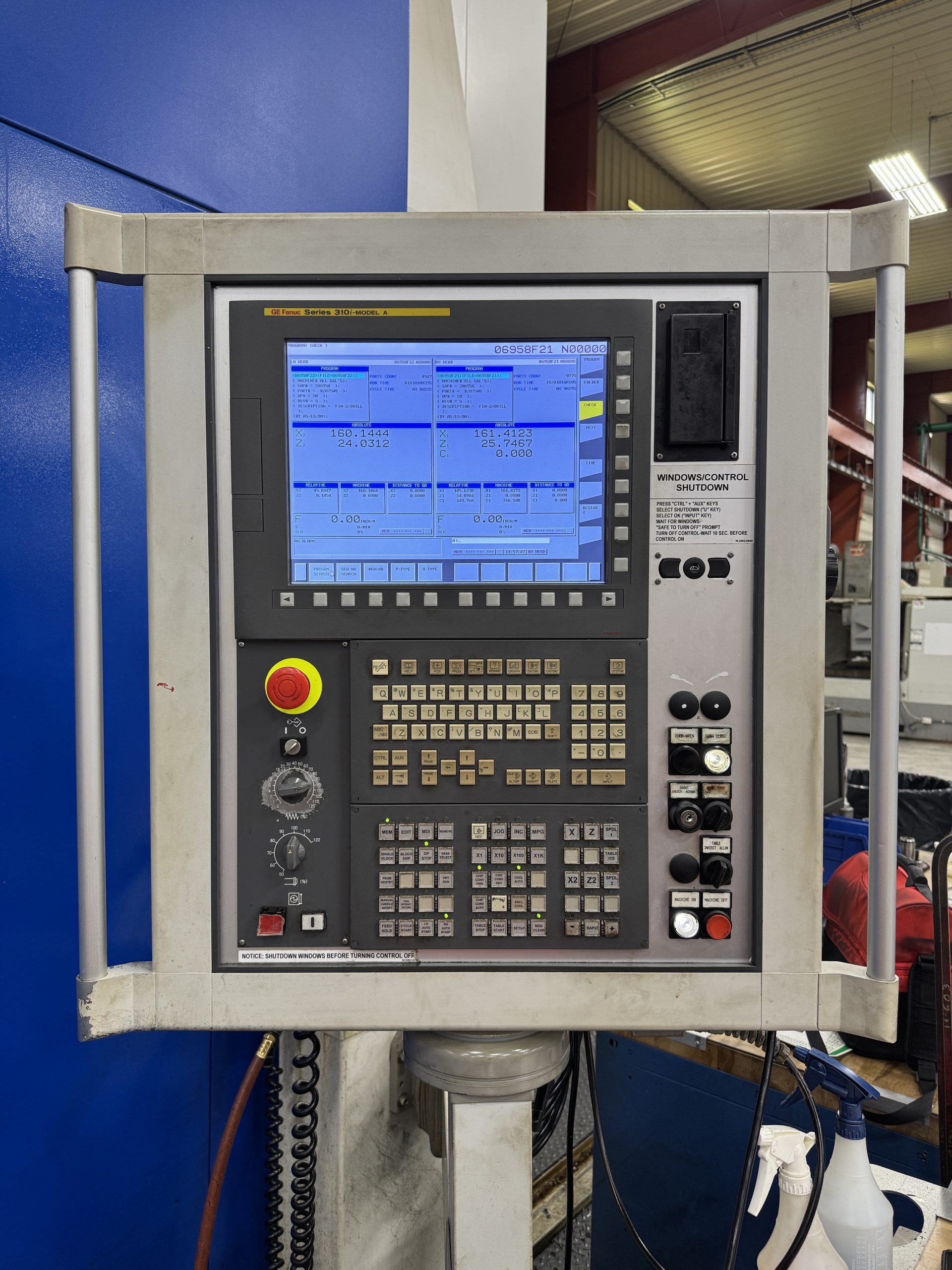

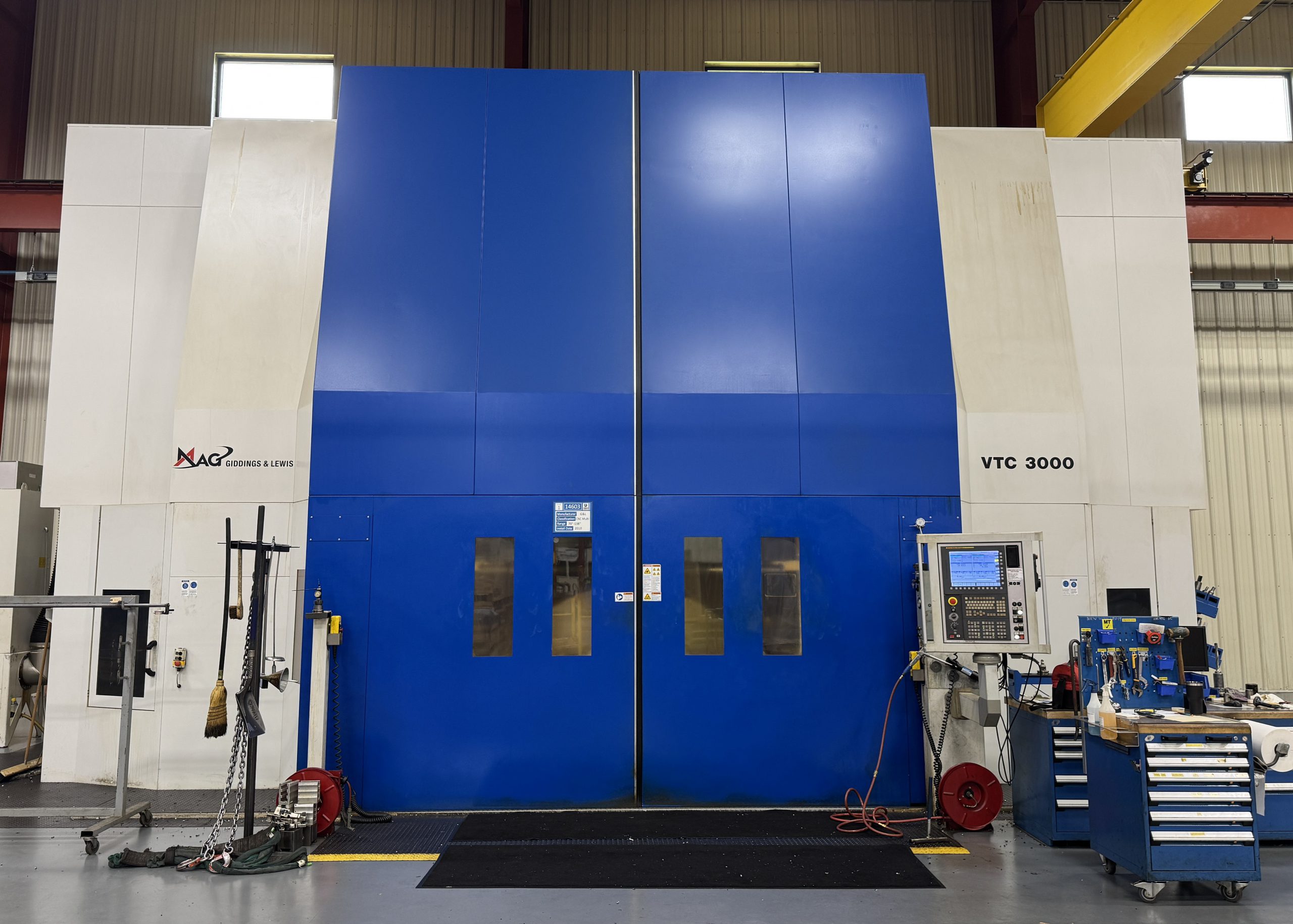

• 2009 Giddings & Lewis VTC 3000 CNC Vertical Turning Center, (2) Vertical Rams w/Live Spindles for Milling & Drilling, (2) 31-Station ATC’s, 124” Dia. 6-Jaw Rohm Power Chuck, 137.79” Max. Turning Diameter, 48.5” Under Rail, 29.52” Z-Axis Vertical Ram Stroke, Spindle Speeds to 4,000 RPM, Table Indexing C-Axis .001 Degrees, KM-80 Spindle Taper, Table Speeds to 120 RPM, Thru Spindle Coolant, Mist Collectors, Chip Conveyor, TCV50 Chip Blaster, Fanuc 31i CNC, S/N 326-0011-09 [NOTE: Machine Was Used for Milling, Drilling & Finish Turning. Can be Modified by FIVES/Giddings & Lewis, to Include Heavy Turning at Buyer’s Cost]  VIEW VIDEO / VIEW LOT #1

CNC VERTICAL BORING MILL

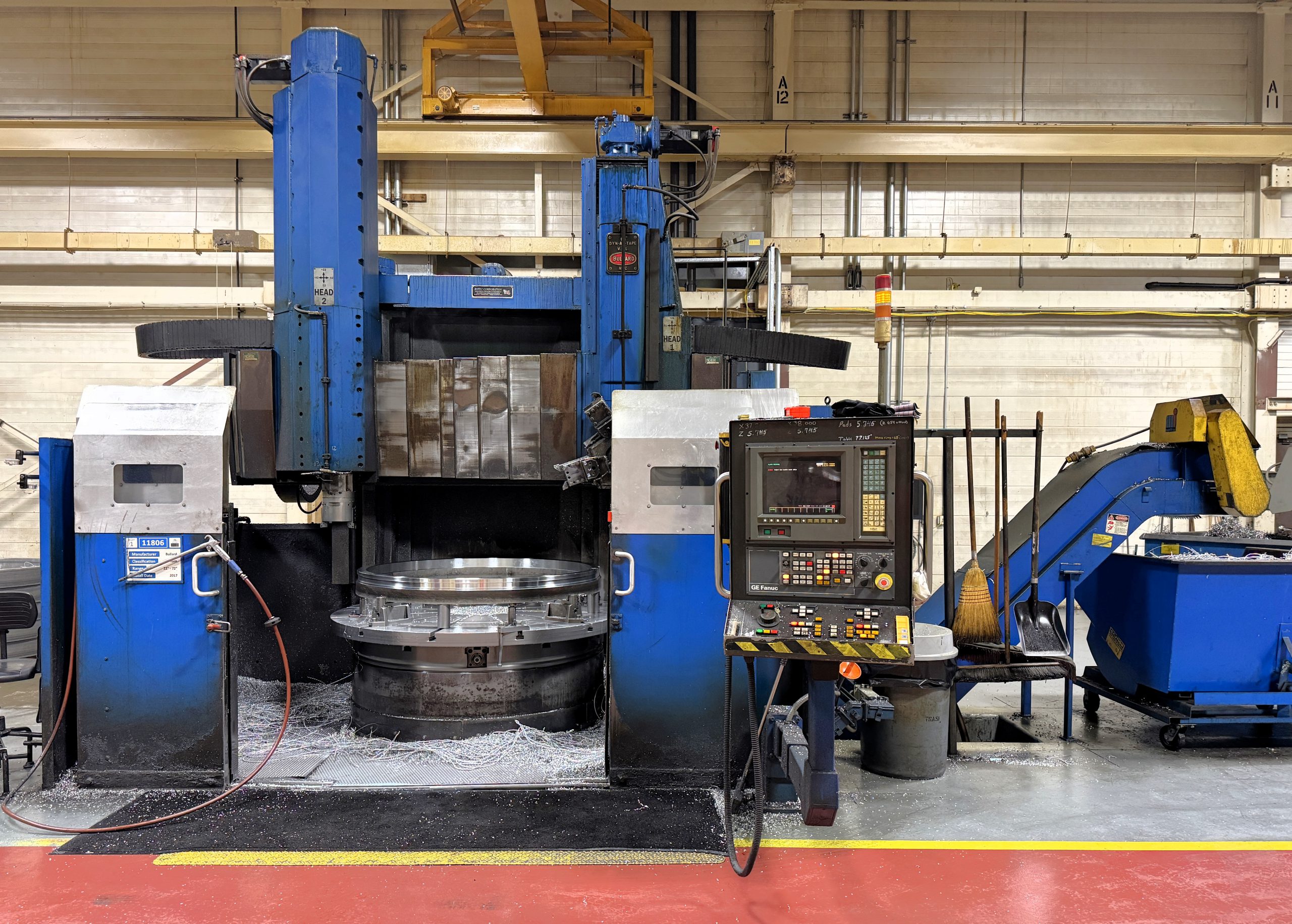

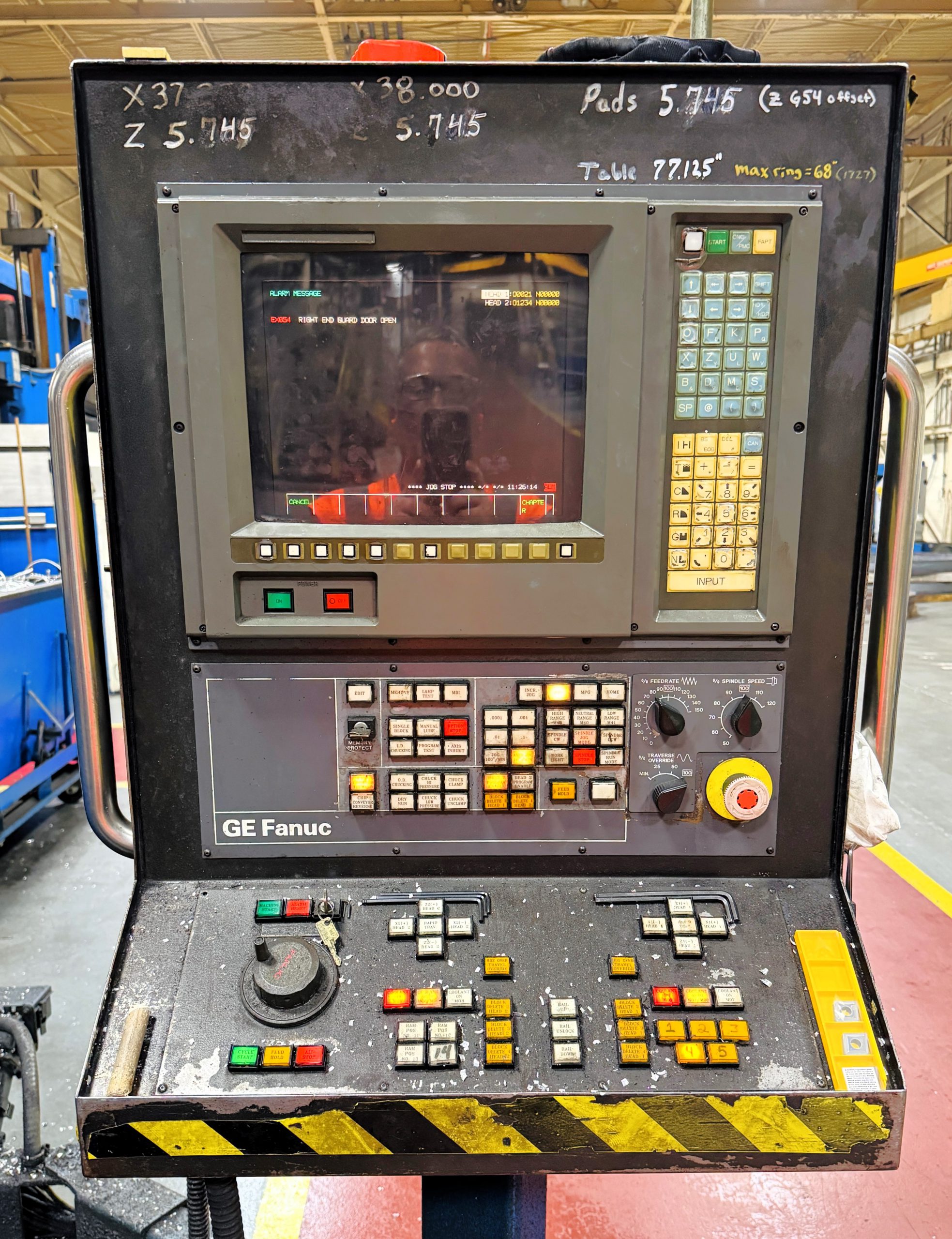

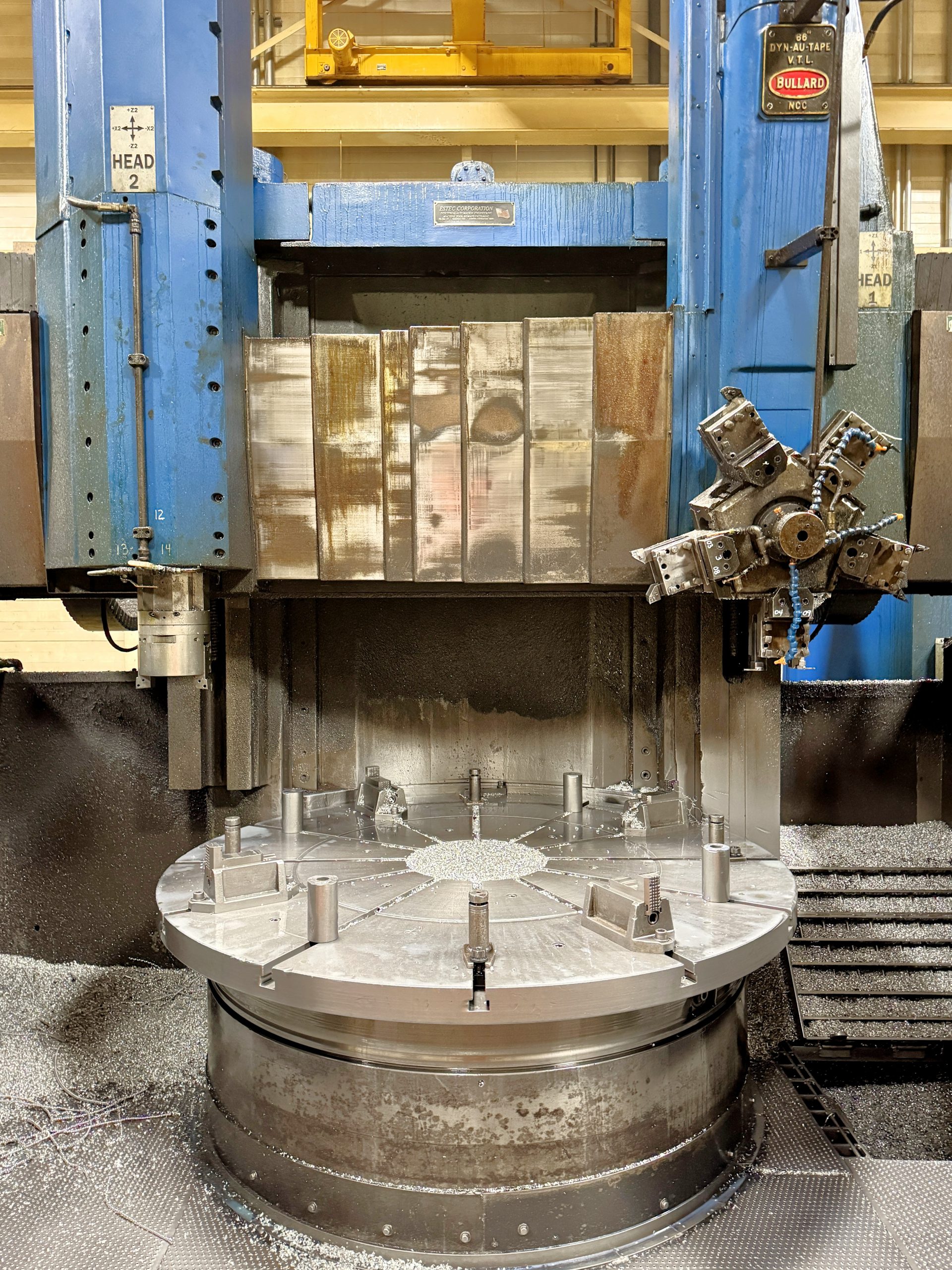

• Bullard Dyn-Au-Tape CNC Vertical Boring Mill, 6” 4-Jaw Power Chuck, 77” 4-Jaw Sub-Plate, 80” Swing, 48” Height Under Rail, 32” Vertical Turret Stoke, 56.5” Vertical Ram Stroke, Table Speeds 4.55-166 RPM, Coolant, Mayfran Chip Conveyor, 100 HP Table Drive, Fanuc 15T-TF CNC, S/N 32397 VIEW VIDEO / VIEW LOT #2

CNC GEAR GASHER

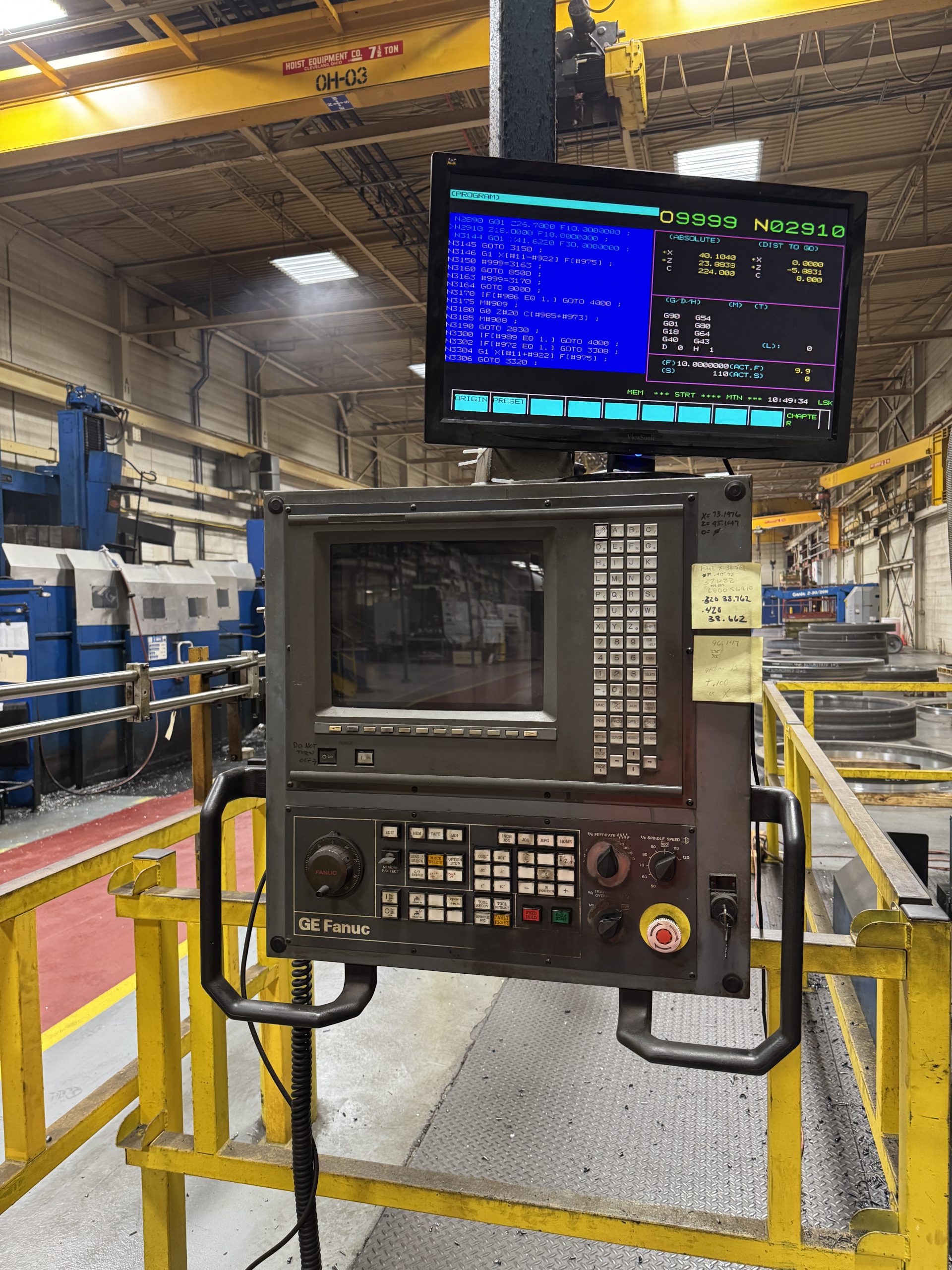

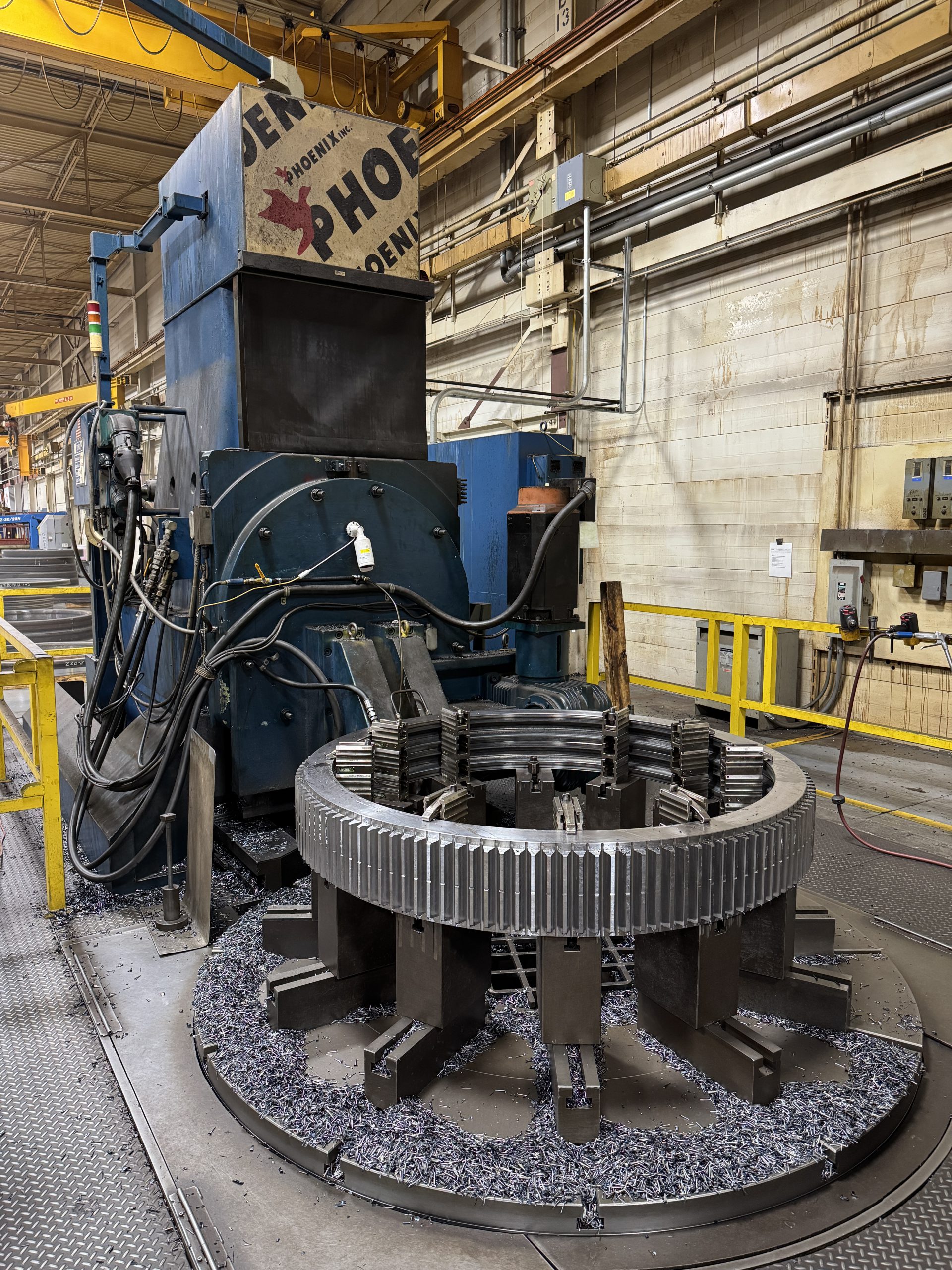

• Phoenix/Module CNC Gear Gasher, Model ZFWZ, 143” Max. Part Diameter, 26” O.D. Cutting Height, 24” ID Cutting Height, ID Head Attachment, 30-Ton Table Weight Capacity, 45 Degree Helical Angle, 19.68” Table Bore Diameter, Mayfran Chip Conveyor, Fanuc 15-MB CNC Control, S/N 9613, [Rebuilt & CNC Retrofit by Phoenix Inc.] VIEW VIDEO / VIEW LOT #3
