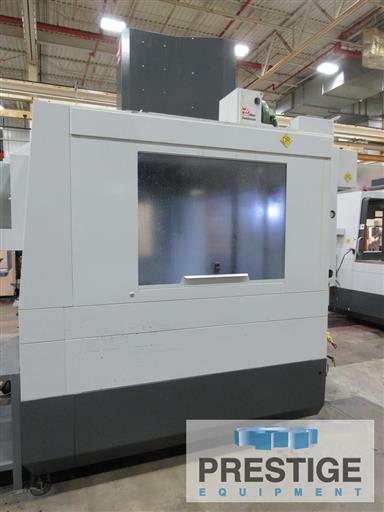

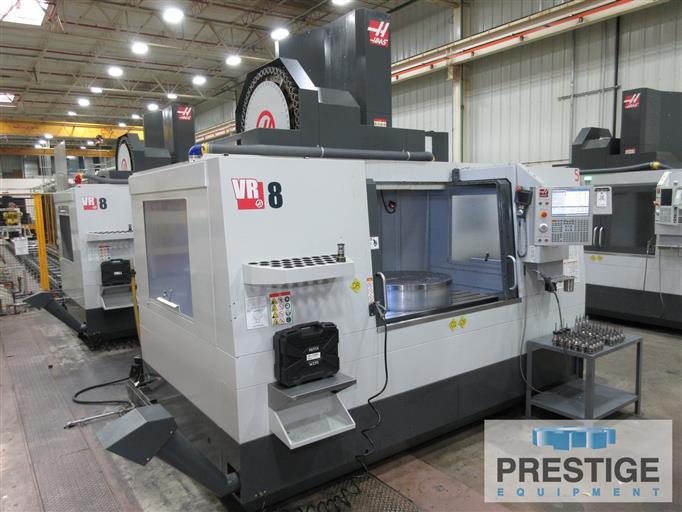

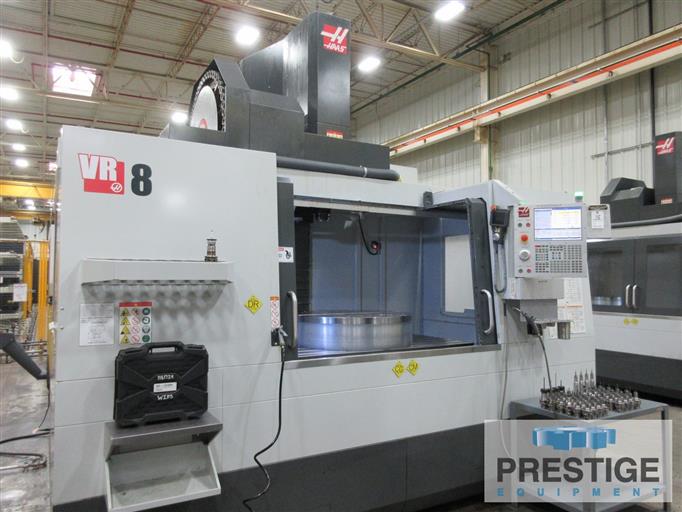

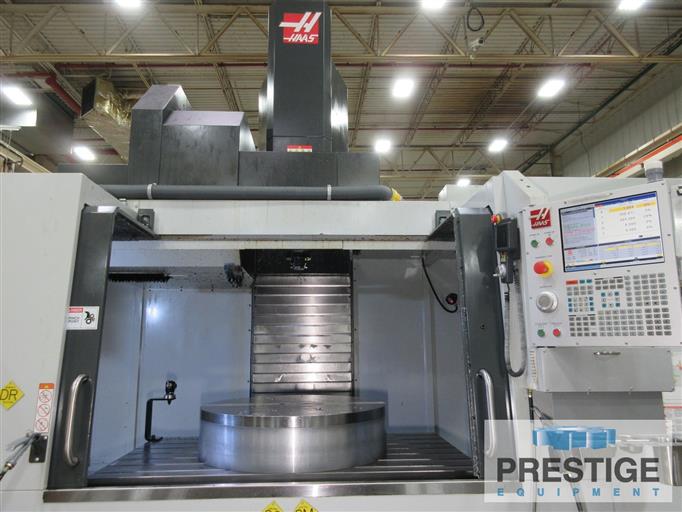

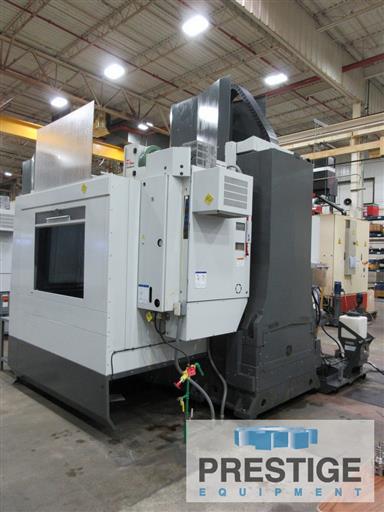

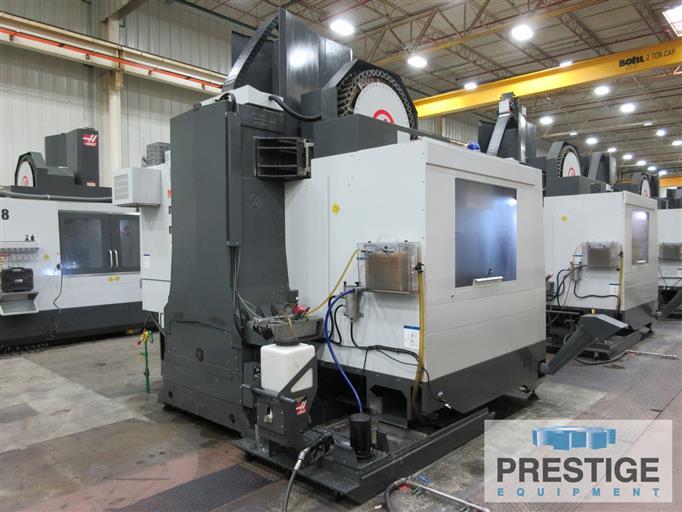

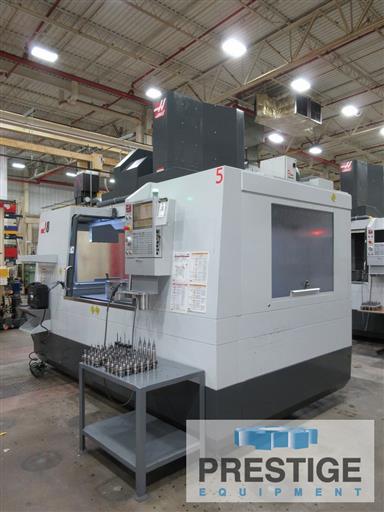

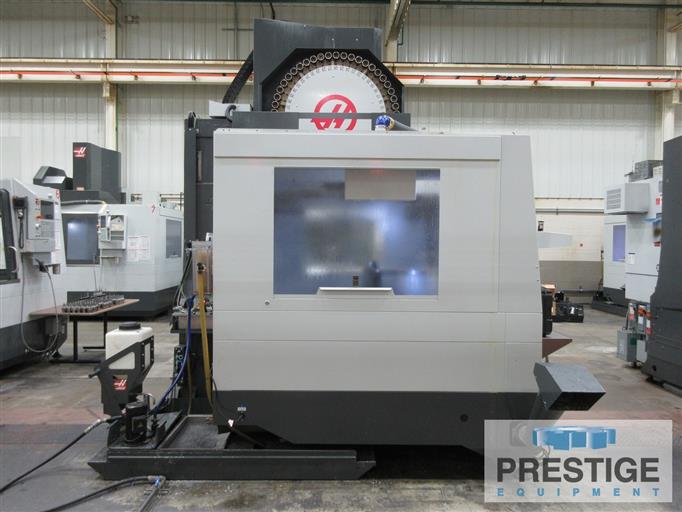

Haas VR-8 CNC 5-Axis High Speed Vertical Machining Center
Model:
VR-8 5-Axis
Age:
2022
Ref#:
45091
Prestige Equipment is the world's leading provider of Haas VR-8 CNC 5-Axis High Speed Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓

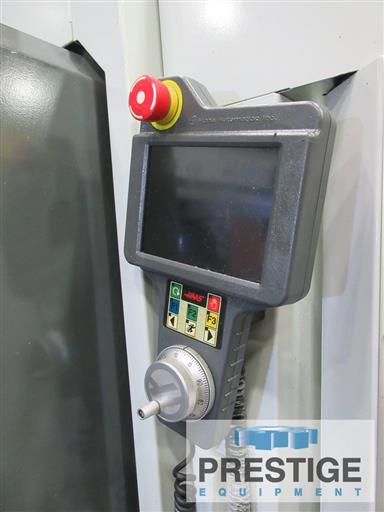

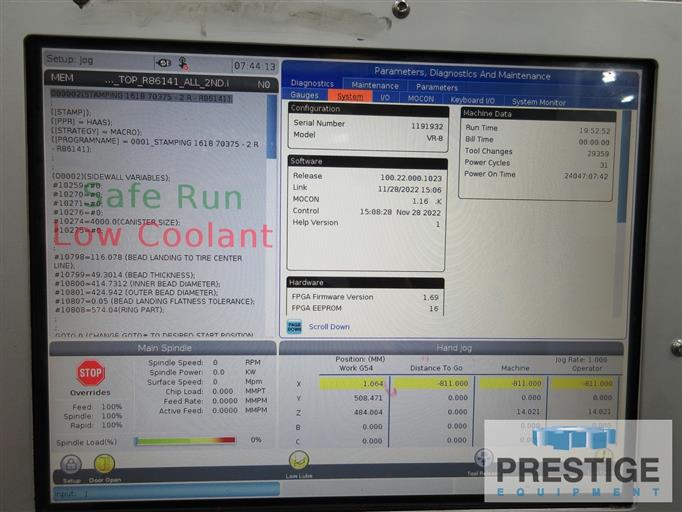

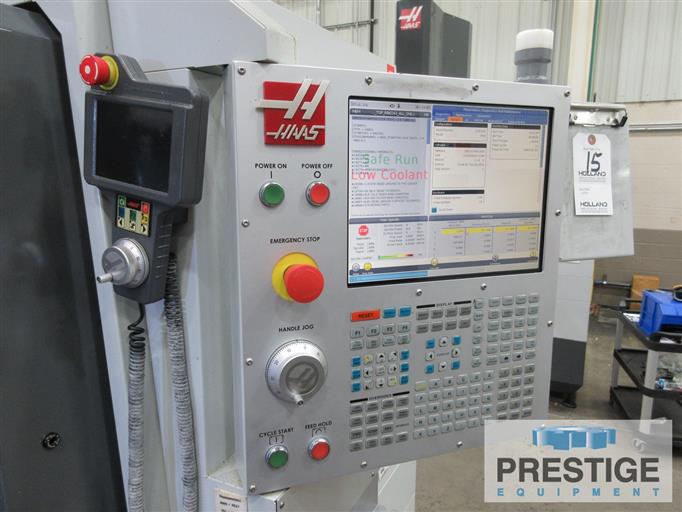

Haas 5-Axis CNC Control
✓
2-Axis Tilt/Swivel Milling Head
✓
50+1 Side-Mounted Automatic Tool Changer
✓
20,000 RPM Max. Spindle Speed
✓

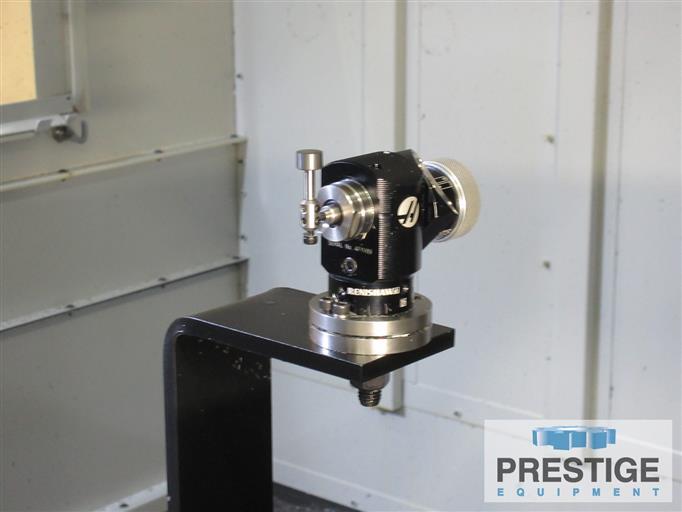

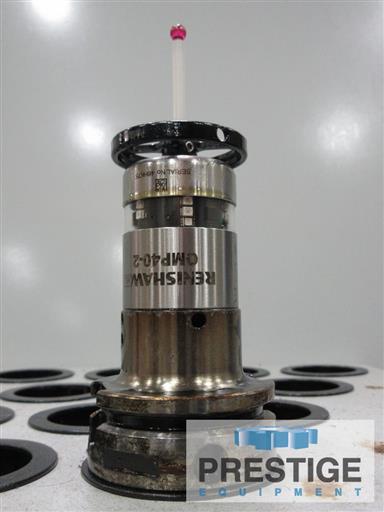

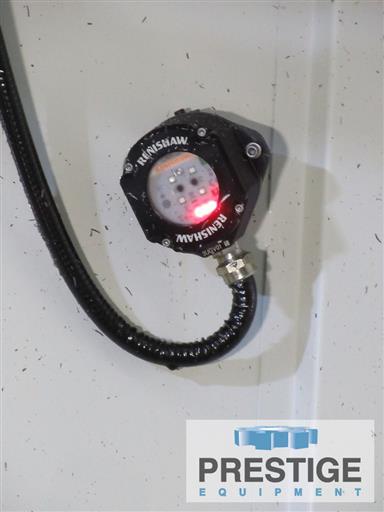

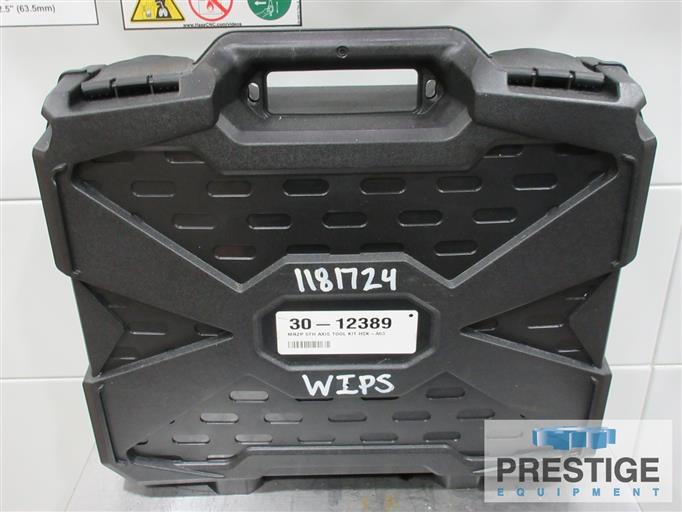

Renishaw Probe System
✓

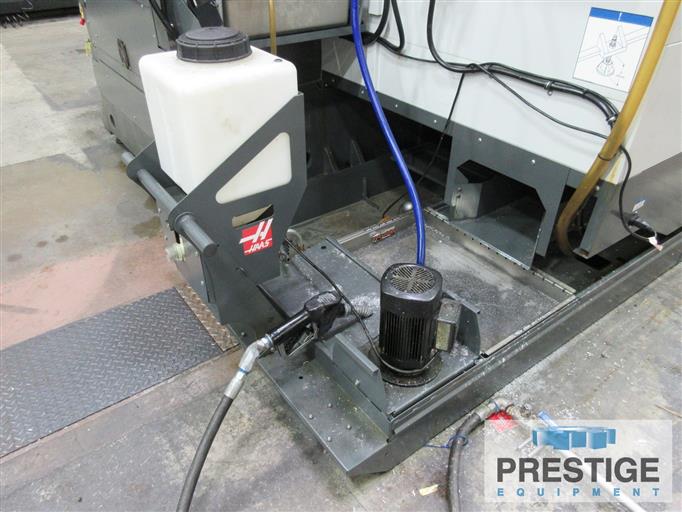

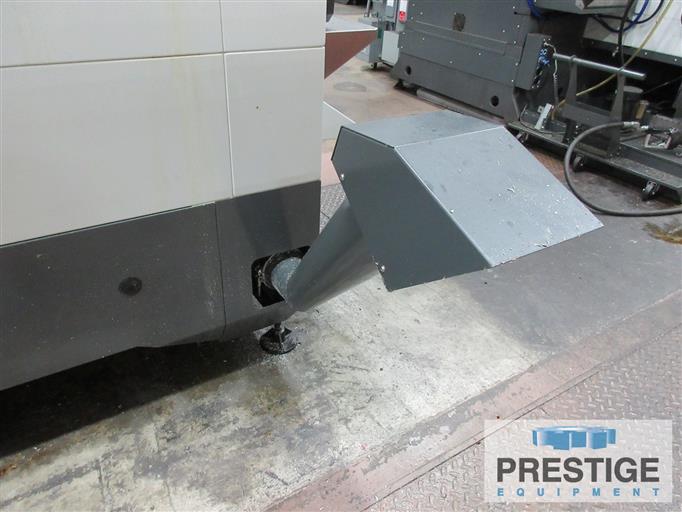

Chip Auger
Product Specifications

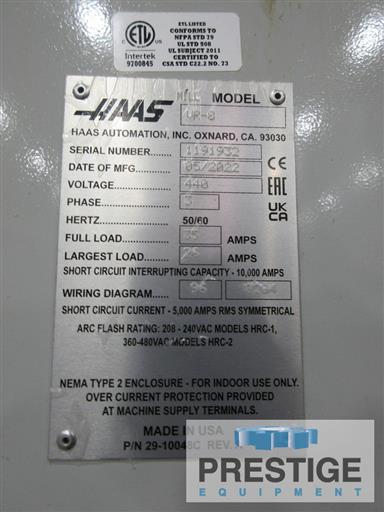

Serial Number
1191932
SPECIFICATIONS:
X-Axis Travel
1626 MM
Y-Axis Travel
1016 MM
Z-Axis Travel
1067 MM

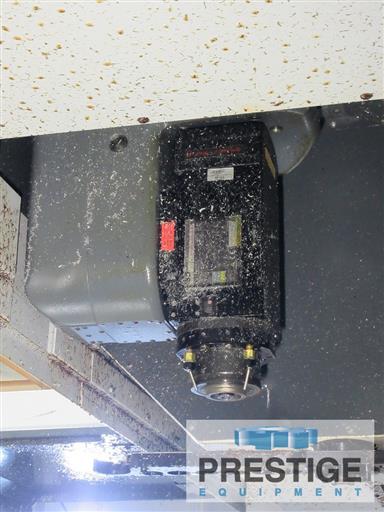

SPINDLE HEAD:
Spindle Motor
22 KW
Max. Spindle Speed
20,000 RPM
Max Torque
20 ft-lbf @ 7500 RPM
Drive System
Integral Spindle/Motor
Spindle Taper
HSK-A63

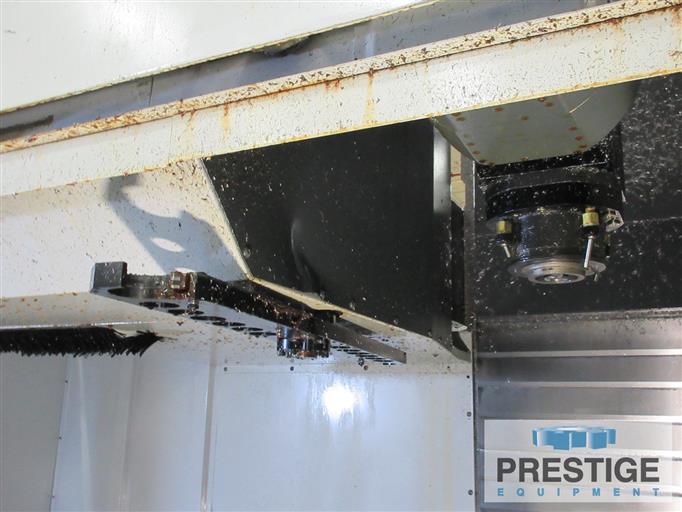

B-AXIS SPINDLE TILT:
Travel
+120/-120 Degrees
Max Tilt Speed
120 Degrees Per Second
Torque (Continuous)
470 ft-lbf
Brake Torque
454 ft-lbf
C-AXIS SPINDLE ROTATION:
Travel +/-
+245/-245 Degrees
Max Rotational Speed
208 Degrees Per Second
Torque (Continuous)
285 ft-lbf
Brake Torque
442 ft-lbf

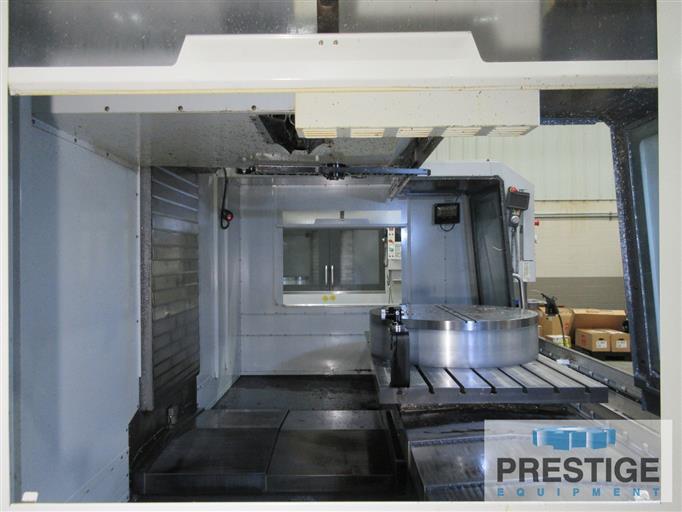

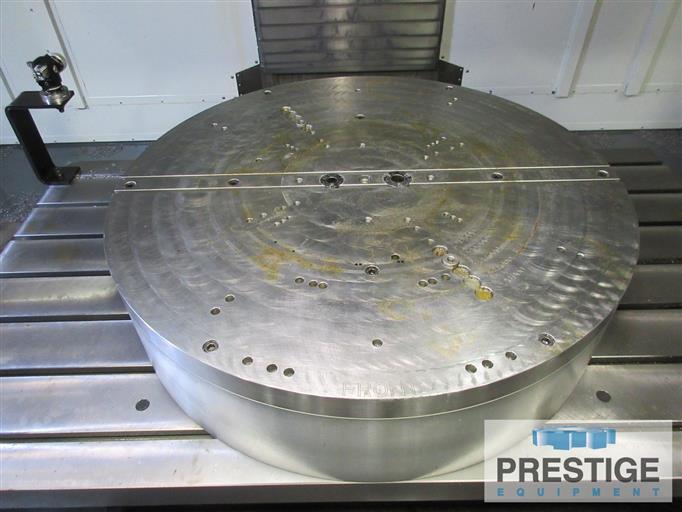

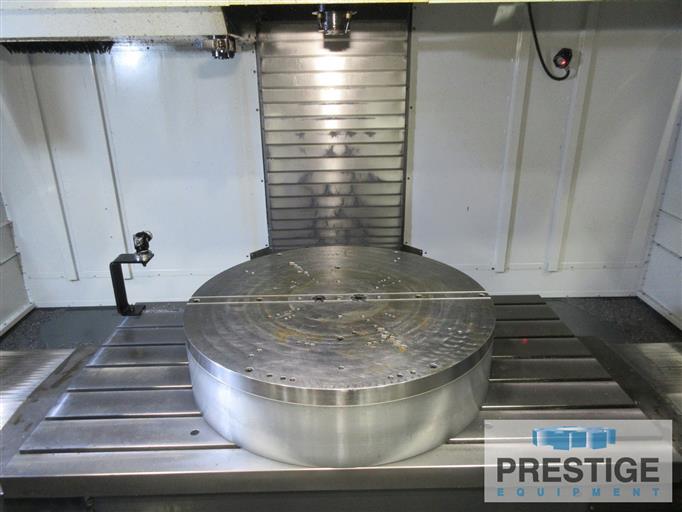

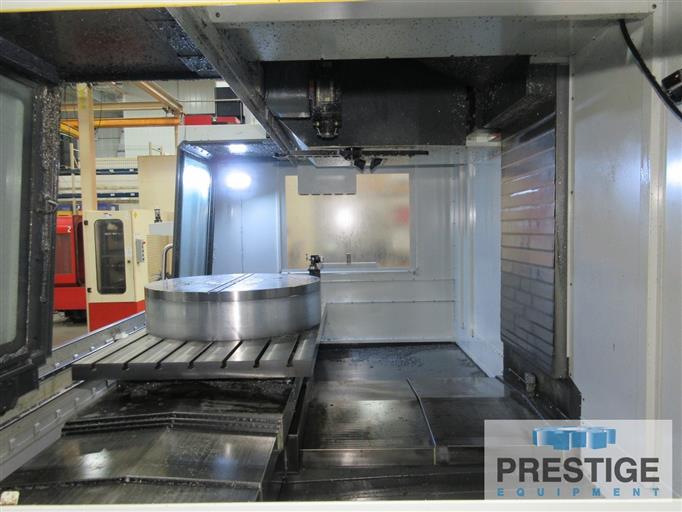

TABLE:
Table Size
1626 MM x 914 MM
T-Slot Width
16 MM -16 MM
T-Slot Center Distance
125 MM
Number of Standard T-Slots
7
Max Weight on Table
1814 KG .
FEEDRATES:
Max Cutting
12700 MM/MIN
Rapids, X/Y/Z Axes

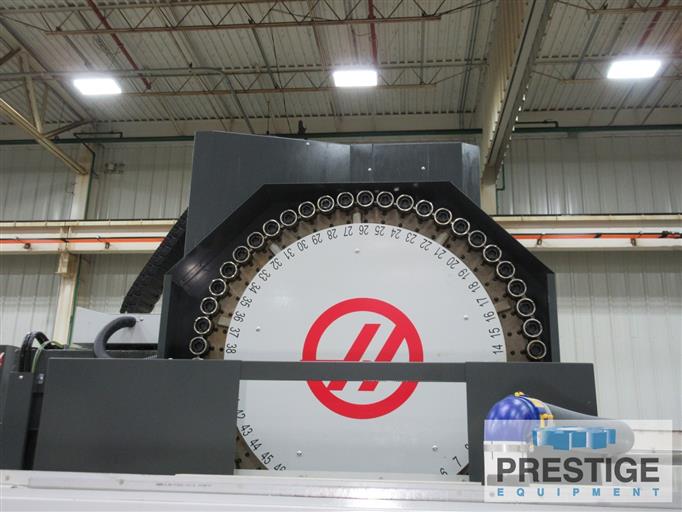

TOOL CHANGER:
Tool Changer Capacity
50+1
Max Tool Dia, Adjacent Full
64 MM
Max Tool Dia, Adjacent Empty
127 MM
Max Tool Length From Gage Line
305 MM
Max Tool Weight
5 KG .
DIMENSIONS & WEIGHTS:
Domestic Pallet
4953 MM x 3048 MM x 3607 MM
Weight
11249 KG .
Equipped With:

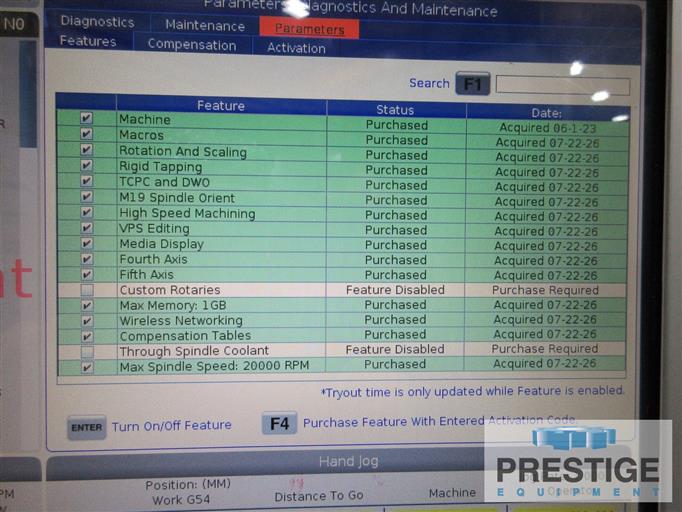

Haas 5-Axis CNC Control
2-Axis Milling Head
20,000 RPM Max. Spindle Speed
50-Position Automatic Tool Changer
Renishaw Probe System
Chip Auger
LOCATION:
Ohio CNC Mold Manufacturing Facility
Features:
✓
Haas 5-Axis CNC Control
✓
2-Axis Tilt/Swivel Milling Head
✓
50+1 Side-Mounted Automatic Tool Changer
✓
20,000 RPM Max. Spindle Speed
✓
Renishaw Probe System
✓
Chip Auger
