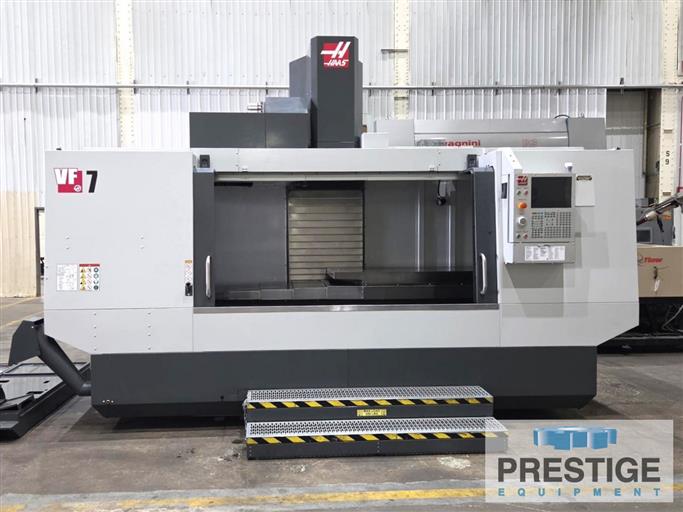

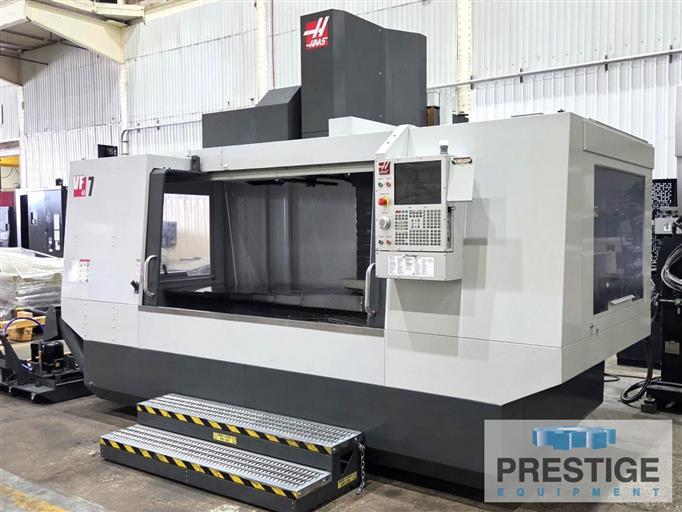

Haas VF-7/40 CNC 4-Axis Vertical Machining Center
Model:
VF-7/40 4-Axis
Age:
2021
Ref#:
44916
Prestige Equipment is the world's leading provider of Haas VF-7/40 CNC 4-Axis Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
Haas NextGen CNC Control with Remote Jog, Wifi
✓
10,000 RPM Spindle Speed Option
✓
15 KW Geared Head Spindle Option
✓
30-Position Side-Mounted ATC
✓
CAT 40 Spindle Taper
✓
Brushless 4th Axis Drive
✓
Thru-Spindle Coolant
✓
Renishaw Probe
✓
Chip Auger
Product Specifications
SPECIFICATIONS:
X-Axis Travel
2134 MM
Y-Axis Travel
813 MM
Z-Axis Travel
762 MM
Spindle Nose to Table
102 MM -864 MM
Max. Cutting Feeds
12700 MM/MIN
Rapids on X, Y, & Z Axis
15240 MM/MIN

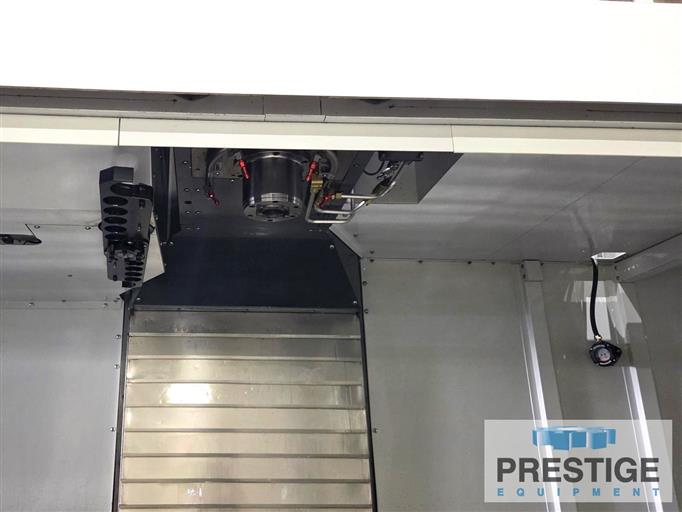

SPINDLE:
Spindle Motor, 2-Speed Gearbox
15 KW (Option)
Max. Spindle Speed
10,000 RPM (Option)
Max Torque w/opt Gearbox
250 ft-lbf @ 450 RPM
Drive System
Inline Direct-Drive
Spindle Taper
CT-40

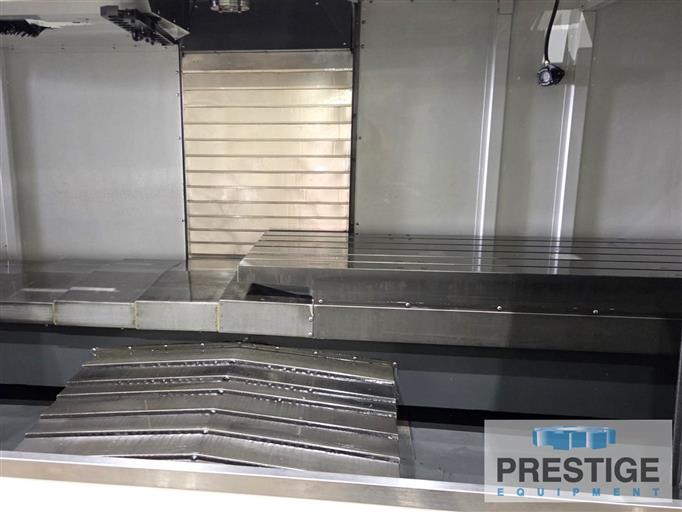

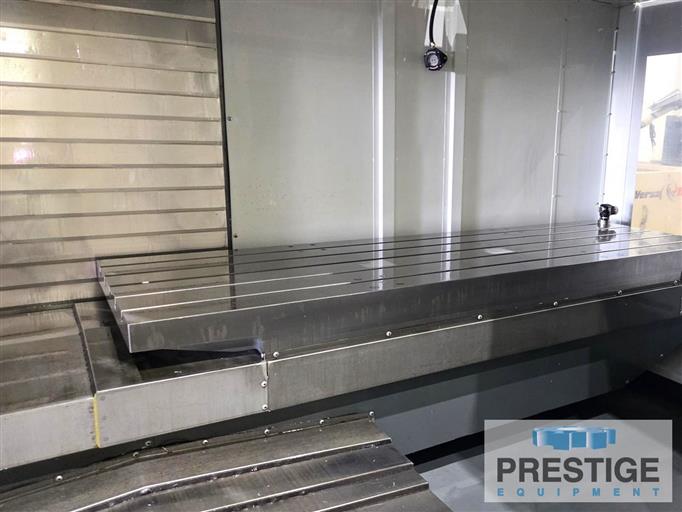

TABLE:
Table Size
2134 MM x 711 MM
Max Weight on Table
1814 KG .
Number of Standard T-Slots
5
T-Slot Width
16 MM x 16 MM
T-Slot Center Distance
125 MM
AUTOMATIC TOOL CHANGER:
Type
Side-Mounted
ATC Capacity
30 + 1
Max Tool Dia. Adjacent Full
64 MM
Max Tool Dia, Large, Adjacent Empty
127 MM
Max Tool Dia, Extra Large, Adj Empty
152 MM
Max Tool Length
406 MM
Max Tool Weight
5 KG .
SHIPPING DIMENSIONS:
Domestic Pallet
5436 MM x 2591 MM x 3264 MM
Approx. Weight
11612 KG .

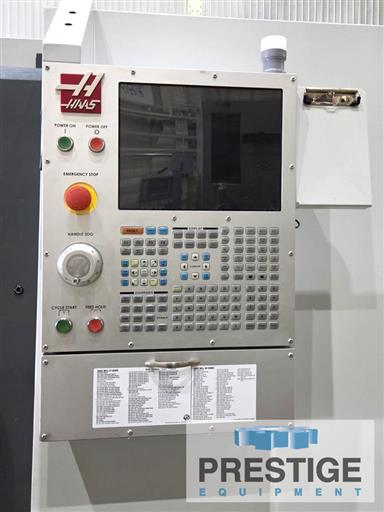

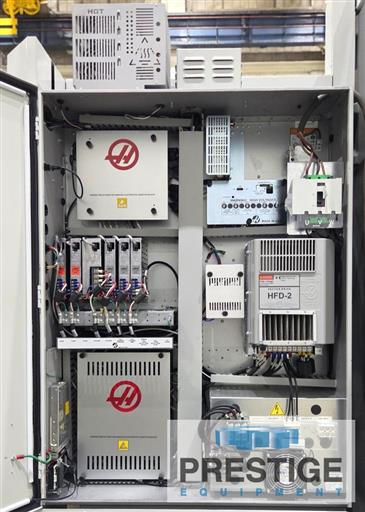

CNC CONTROL:
Haas NextGen CNC Control
Remote Jog Handle with Touch Screen
Wifi Connection
4th-Axis Ready
Equipped With:
10,000 RPM 15 KW 2-Speed Geared Head Spindle Options
30-Position Side-Mounted Automatic Tool Changer
CAT 40 Spindle Tape
Brushless 4th Axis Drive
Renishaw Probing System with Parts Probe and Tool Setter
High Speed Machining
Rigid Tapping
Chip Auger
Programmable Coolant
300 PSI Thru Spindle Coolant
Coolant Tank & Pumps
Haas Window Blast
Keys, Leveling Pads, & Manuals
LOCATION:
Under Power in Philadelphia

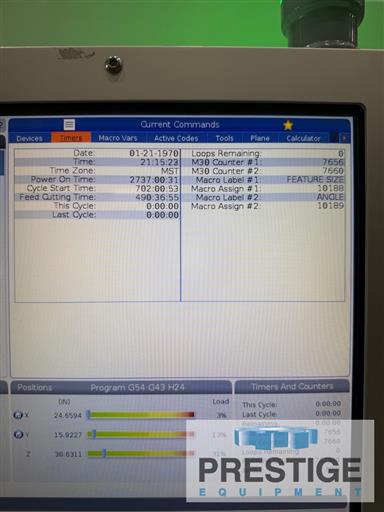

HOURS:
2,737 Power On Time
Features:
✓
Haas NextGen CNC Control with Remote Jog, Wifi
✓
10,000 RPM Spindle Speed Option
✓
15 KW Geared Head Spindle Option
✓
30-Position Side-Mounted ATC
✓
CAT 40 Spindle Taper
✓
Brushless 4th Axis Drive
✓
Thru-Spindle Coolant
✓
Renishaw Probe
✓
Chip Auger
