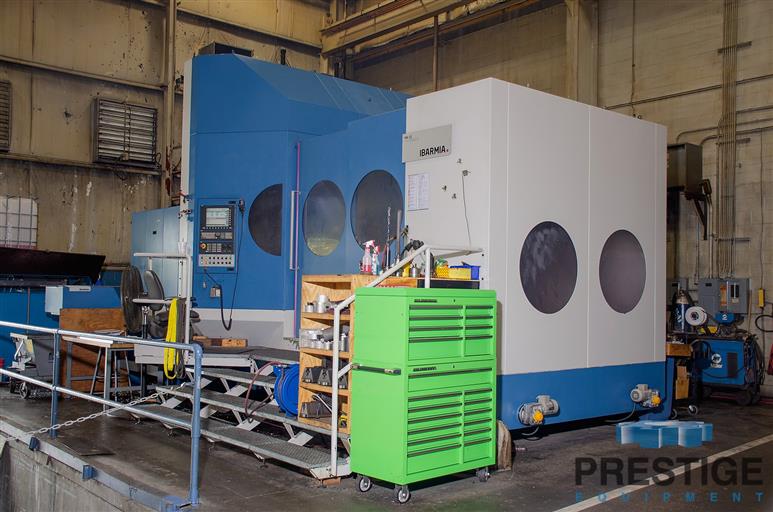

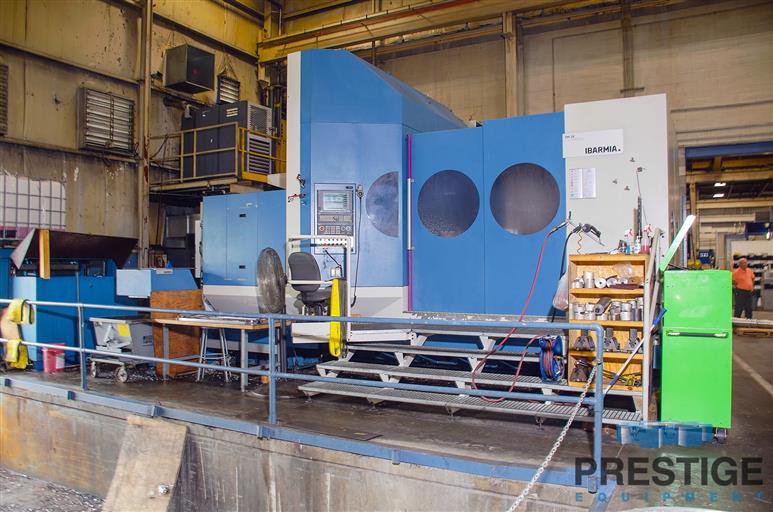

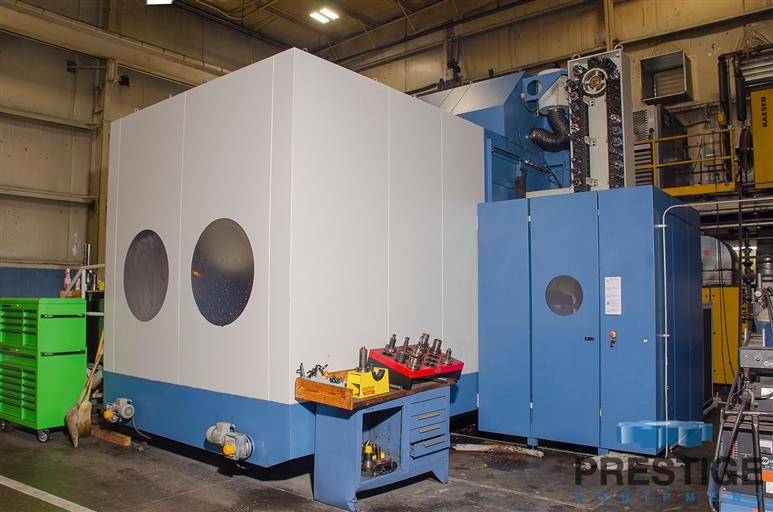

Ibarmia THC 22 CNC Universal 5-Axis Milling & Turning Center
Model:
THC 22
Age:
2013
Ref#:
30650
Prestige Equipment is the world's leading provider of Ibarmia THC 22 CNC Universal 5-Axis Milling & Turning Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
View Additional Specs
Features:
✓
B-Axis Angle Head with Milling
✓
High Pressure Through Spindle Coolant (580 PSI)
✓
1600 MM C-Axis Mill Turn Table with 300 RPM
✓
60-Position Automatic Tool Changer
Product Specifications
CAPACITY:
Table Diameter
1600 MM
X-Axis, Column
2000 MM
Y-Axis, Head
1499 MM
Z-Axis, Table
1499 MM
B-Axis, Head
-15/+195 degrees
C-Axis, Table
.001 degrees
Table Capacity
17,636
Table Speed
300 RPM
Spindle taper
HSK 100
Spindle Speed
7,000 RPM
Spindle Torque
240 NM
Spindle Motor
38 KW
Rapid Traverse
29997 MM/MIN
Automatic Tool Changer
60-Position
Equipped With:

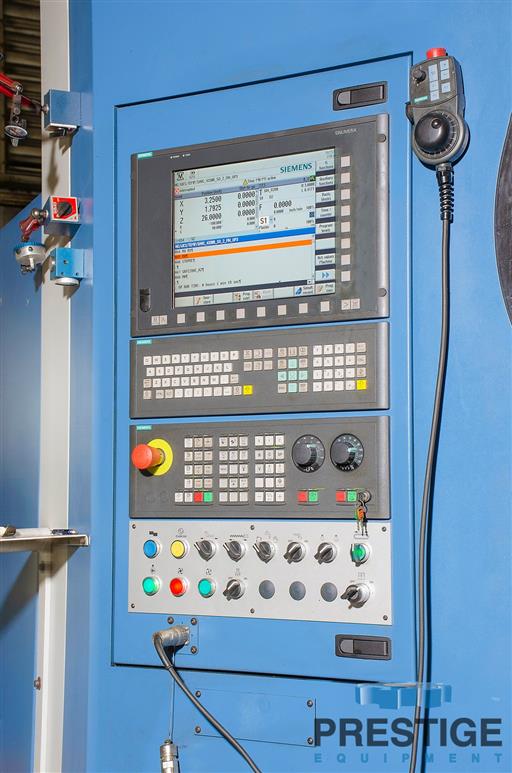

Siemens 840D CNC Control

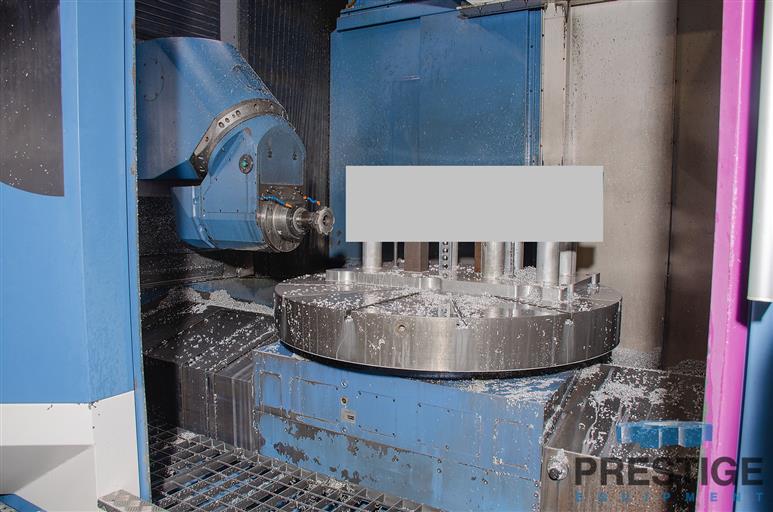

1600 MM C-Axis Mill Turn Table with 300 RPM
Live Milling

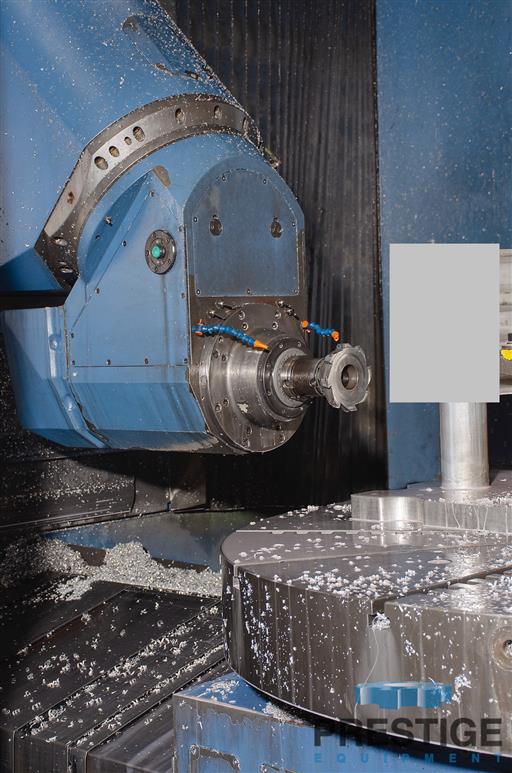

B-Axis Angle Head
Renishaw RMP-60 Auto Gauging

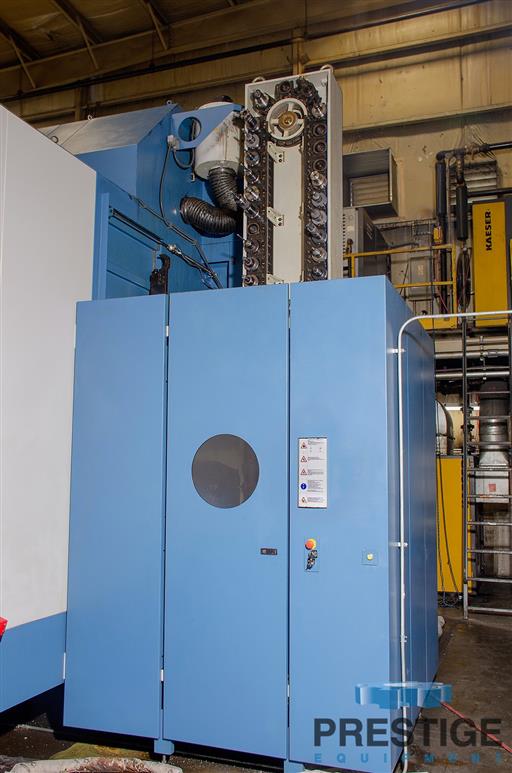

60-Position Automatic Tool Changer
High Pressure Through Spindle Coolant (580 PSI)
Paper Filtration System
Chip Conveyor
Note:
Ibarmia THC-22 5-axis combination lathe/machining center can perform turning, vertical, horizontal, and angled surface machining in one operation without reorienting the part in the chuck.
Features:
✓
B-Axis Angle Head with Milling
✓
High Pressure Through Spindle Coolant (580 PSI)
✓
1600 MM C-Axis Mill Turn Table with 300 RPM
✓
60-Position Automatic Tool Changer
