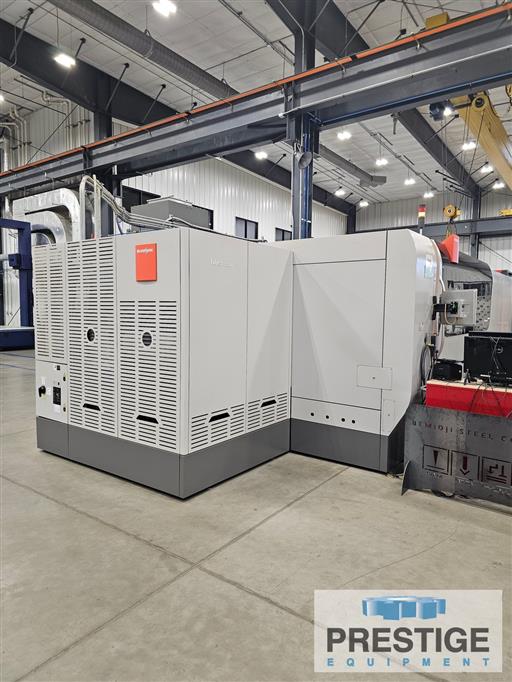

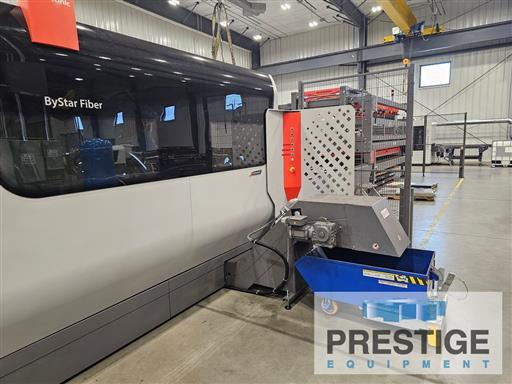

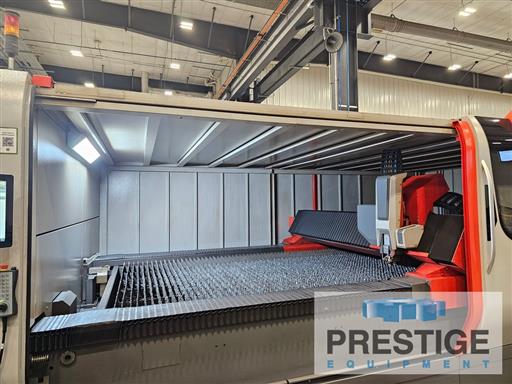

Bystronic Fiber 4020 Dynamic Edition 15KW Fiber Laser with ByTrans Extended Material Handling System
Model:
Bystar Fiber 4020 Dynamic Edition
Age:
2021
Ref#:
44272
Prestige Equipment is the world's leading provider of Bystronic Fiber 4020 Dynamic Edition 15KW Fiber Laser with ByTrans Extended Material Handling System & machine tools & fabricating equipment. Take a look at our wide selection of new and used Tube CO2 Fiber Lasers for sale.
Product Specifications
Features:
✓
Bystronic ByVision CNC Control with 21.5" Touch Screen
✓
IPG 15 KW Fiber Laser Source
✓
Automatic Nozzle Changer
✓
Position Electrical Cabinet: Rear Side
✓
Dust Extraction System
✓

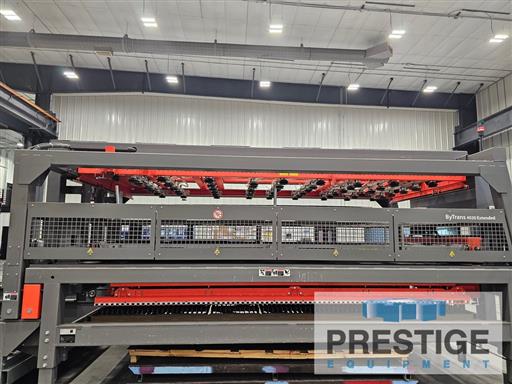

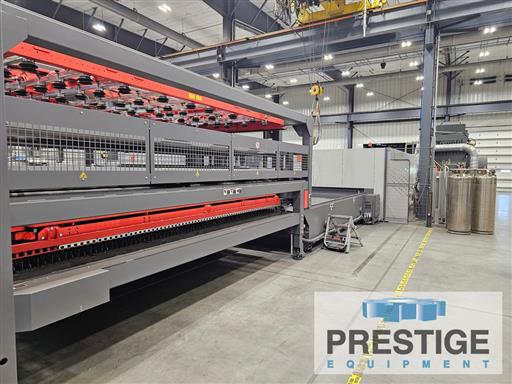

ByTrans Extended Material Load & Unload System
Product Specifications
CAPACITY:
Laser Output
15 KW
Nominal Sheet Size, X-Axis
160"
Nominal Sheet Size, Y-Axis
80"
Cutting Area, X-Axis
162"
Cutting Area, Y-Axis
83"
Cutting Area, Z-Axis
4"
Maximum Work Piece Weight
4,190 Lbs.
Positioning Speed Parallel Axis X/Y
4,724 IPM
Positioning Speed Simultaneous
6,681 IPM
Max. Material Thickness - Mild Steel
1"
Max. Material Thickness - Stainless
1.18"
Max. Material Thickness - Aluminum
1.18"
Max. Material Thickness - Copper
.47"
Max. Material Thickness - Brass
.59"
Approximate Dimensions
559" x 248" x 126"
Approximate Machine Weight
32,000 Lbs.
Equipped With:
Bystronic ByVision CNC Control with 21.5" Touch Screen
IPG 15 KW Fiber Laser Source
Automatic Nozzle Changer
Position Electrical Cabinet: Rear Side
Dust Extraction System
ByTrans Extended Material Load & Unload System
NOTE:
Very Clean, Low Hours
Features:
✓
Bystronic ByVision CNC Control with 21.5" Touch Screen
✓
IPG 15 KW Fiber Laser Source
✓
Automatic Nozzle Changer
✓
Position Electrical Cabinet: Rear Side
✓
Dust Extraction System
✓
ByTrans Extended Material Load & Unload System
