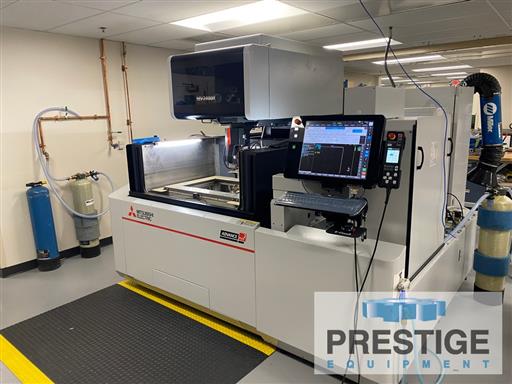

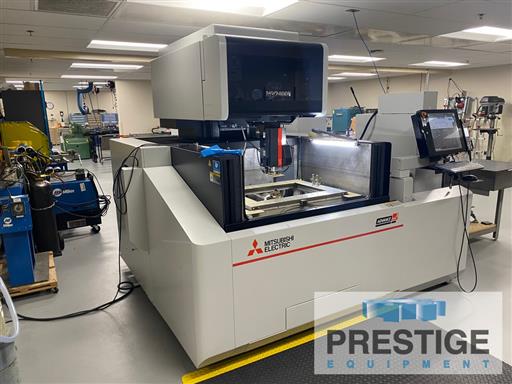

Mitsubishi MV2400R Advance Plus 2 CNC Wire EDM
Model:
MV2400R
Age:
2022
Ref#:
44262
Prestige Equipment is the world's leading provider of Mitsubishi MV2400R Advance Plus 2 CNC Wire EDM & machine tools & fabricating equipment. Take a look at our wide selection of new and used Wire Type EDM for sale.
Product Specifications
Features:
✓
M800 Advance Plus 2 CNC Control
✓

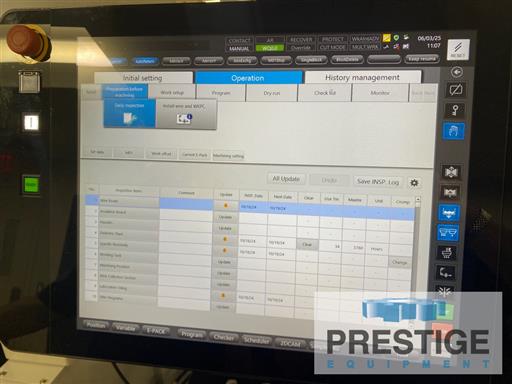

19" Ergonomic Touchscreen
✓

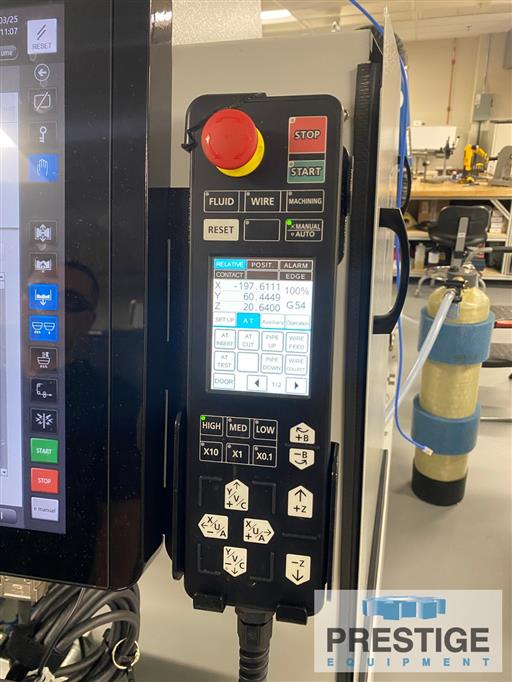

Hand Pendant Control with Screen
✓
Automatic Wire Threading
✓
Scrap Wire Processor/Chopper
✓
Dielectric Fluid Reservoir
Product Specifications
CAPACITY:
X-Axis Travel
23.6"
Y-Axis Travel
15.7"
Z-Axis Travel
12.2"
Maximum Workpiece Dimensions
41.3" x 32.3" x 12"
Max. Submerged Workpiece Weight
3,307 Lbs
Taper Angle
15 Deg. @ 10.2"
U/V Travels, From Center
+/-3" x +/-3"
Table Rapid Feed
51.2 IPM
Wire Diameter Range
.004"-.012"
Minimum Start Hole Diameter
.02"
Max. Wire Spool Size On Machine
22 Lbs
Max. Wire Spool Size On Cabinet
44 Lbs.
Power Supply
V350-V
Filter Tank Capacity
227 Gallons
Approx. Machine Footprint
106" x 120"
Approx. Machine Height
85"
Approx. Machine Weight
7,750 Lbs
Equipped With:
M800 Advance Plus 2 CNC Control
19" Ergonomic Touchscreen
Hand Pendant Control with Screen
Automatic Wire Threading
Scrap Wire Processor/Chopper

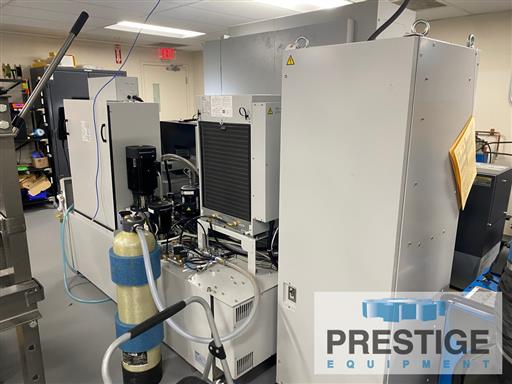

Mitsubishi TMC24R Dielectric Fluid Reservoir
Mitsubishi HE-SV50-W3-4 Unit Cooler
Auto-Oiler Lubrication System
Automatic Fluid Level Control
Automatic Vertical Machine Tank Door
Fully Automatic Rough Machining Control
Auction Message:
7/30/2025 - Online Auction Surplus to Siemens Healthineers – Complete R&D Machine Shop
View The Auction
Features:
✓
M800 Advance Plus 2 CNC Control
✓
19" Ergonomic Touchscreen
✓
Hand Pendant Control with Screen
✓
Automatic Wire Threading
✓
Scrap Wire Processor/Chopper
✓
Dielectric Fluid Reservoir
