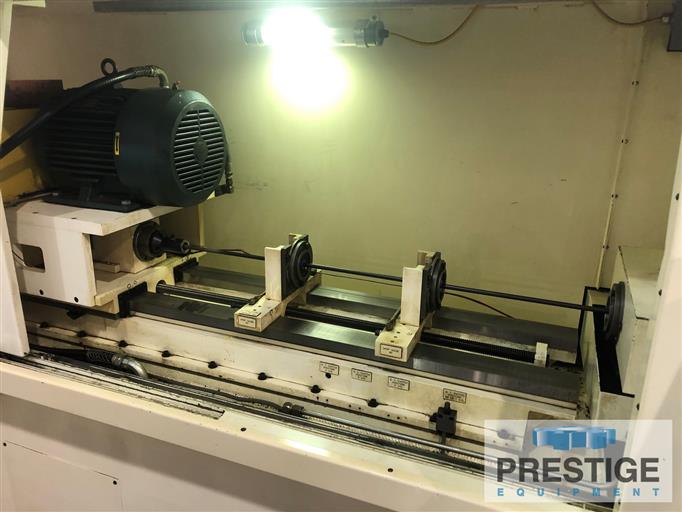

DeHOFF Model 2060 2" x 60" Gun Drilling Machine
Model:
2060
Age:
2002
Ref#:
44112
Prestige Equipment is the world's leading provider of DeHOFF Model 2060 2" x 60" Gun Drilling Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used Gun Drills for sale.
Product Specifications
Product Specifications
SPECIFICATIONS:
Number of Spindles
1
Number of Drill Heads
1
Maximum Diameter Drilling Capacity
2"
Maximum Drill Head Length of Stroke
60"
Spindle Motor
10 HP
Spindle Speeds
200 to 1500 RPM
Feed Rate
0.1 to 30 IPM
Rapid Retraction of Drill Head
150 IPM
Spindle Centerline Parallel To Slideway . 0.0005" Per Foot
Face Of Chip Box Perpendicular To Bed
0.0005" Per 6" Diameter
Spindle Runout
0.0002" Total Indicator Reading

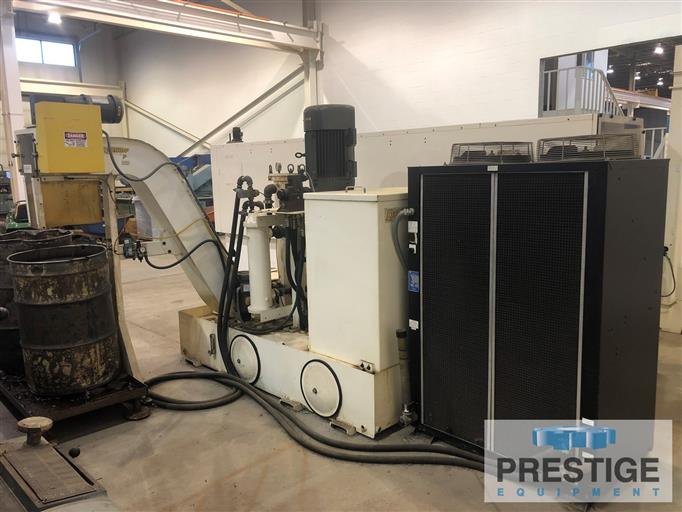

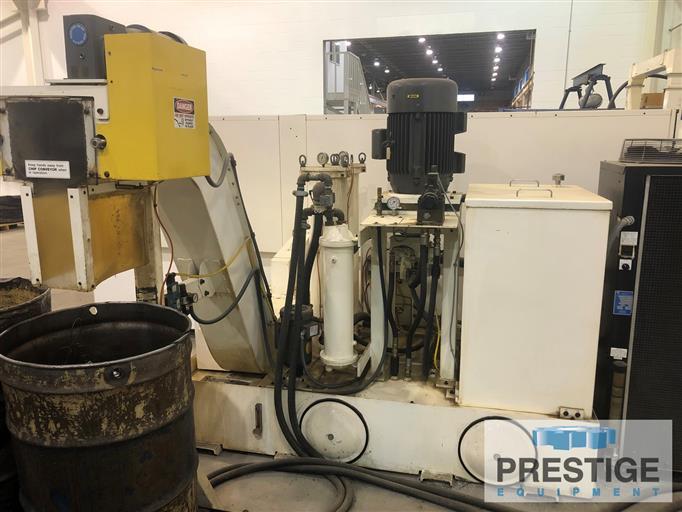

COOLANT SYSTEM SPECIFICATIONS:
Tank Capacity
300 Gallon
High Pump Pressure Output
1500 Maximum
Maximum Pressure
1500 PSI
High Pressure Pump Motor
30 HP
Transfer Pump Motor
3 HP

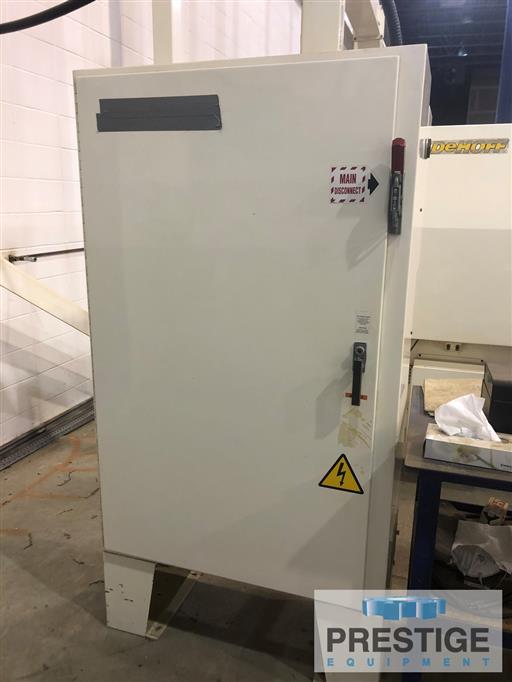

ELECTRICAL SPECIFICATIONS:
Machine Logic
Allen Bradley SLC 5/04-5/03
Main Voltage
460 Volts, 60 HZ,3-Phase
Operator Control Voltage
110 Volt
FLUID SPECIFICATIONS:
Viscosity
SUS @100F
Way Lubricant
Texaco Way Lube 220
Pneumatic Lubricant
Texaco Randol HD 30
Chip Filter Conveyor
TEXACO HAVOLINE GEAR OIL 80W90
Drive Lubricant
MOBIL SHC 634 SYNTHETIC
Metalworking Oil
TEXACO CLEATEX CF F HD
Equipped With:

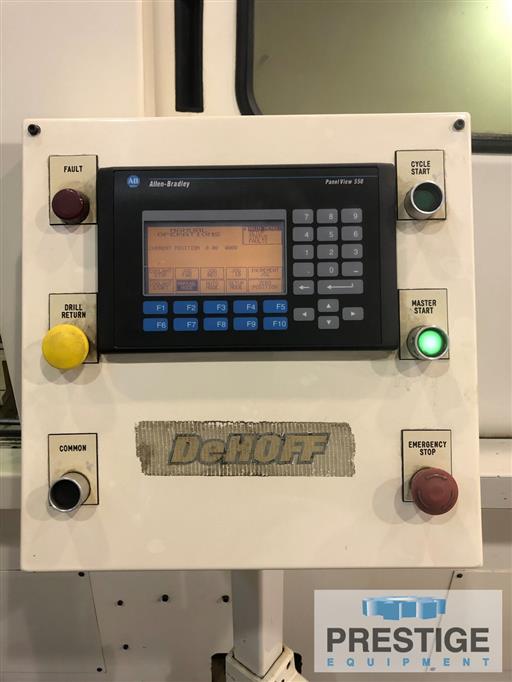

Allen Bradley Panel View 550
Pendant Operators Station

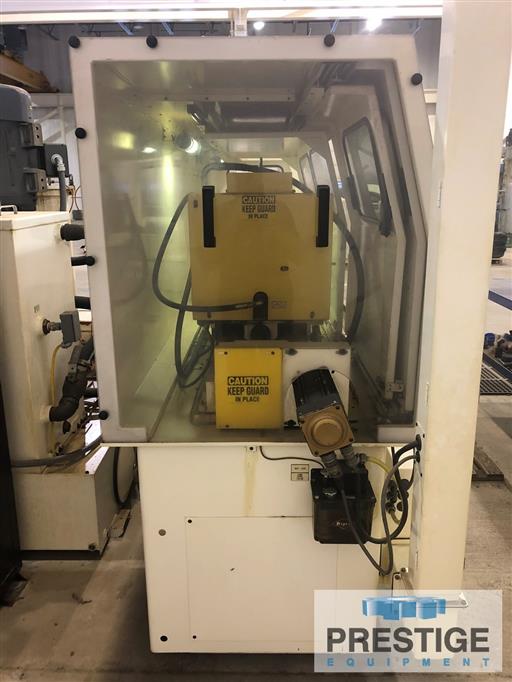

Full Guarding
Whip Guides

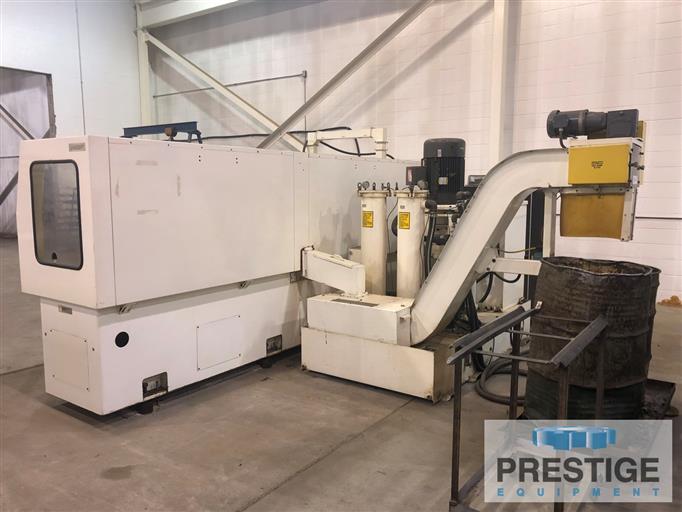

Chip Conveyor
Tooling & Accessories
