** PRE-AUCTION OFFERS ARE INVITED **

FEATURED ASSETS:

AMADA CNC PRESS BRAKES:

• 2018 Amada HG2204-RH Precision High Speed Bending Cell, 220 Ton x 14’ Bending Length, 20.5” Open Height, AMNC 3i CNC, CNC Hydraulic Crown Adjustment, Hydraulic Upper Ram Clamping, Yaskawa Model 165 6-Axis Robot with 19.7” Linear Travel, 364 Max. Part Weight, Mfg. Date: 2018 (Only 5,381 Total on Time Hours and 3,445 Run Hours) VIEW VIDEO

  • The Hybrid Drive HG2204 press brake is a Servo-Hydraulic precision press brake with fast approach, bending and return speeds. Equipped with a potentiometer back gauge system specifically designed to integrate in an automated bending system.
  • The six-axis robot, designed for bending operations, is mounted on a rail in front of the machine which acts as a 7th axis enabling close proximity bending and maximizes the part swing envelope
  • The HG2204 is equipped with the 2-Axis BI-s to speed setup and control bend angle during processing
  • Unique hands and reposition device decrease processing times on large panels and complex channel shapes
  • The 6.0-meter stroke track provides ample room for loading and unloading the largest part

• Amada HM1003 110 Ton x 10’2”, 7-Axis CNC Press Brake, AMNC Graphic PC Based Control, 7.9” Stroke, 16.5” Throat Depth, 18.5” Open Height, 4-Axis Back Gauge, Hydraulic Proportional Valve, Amada One-Touch Upper Tool Holders, S/N: 1003 Mfg. Date: 2018

AMADA TOOLING AND TOOL CABINET:

• Amada (5) Draw Tool Cabinet with full complement of Amada tooling VIEW VIDEO

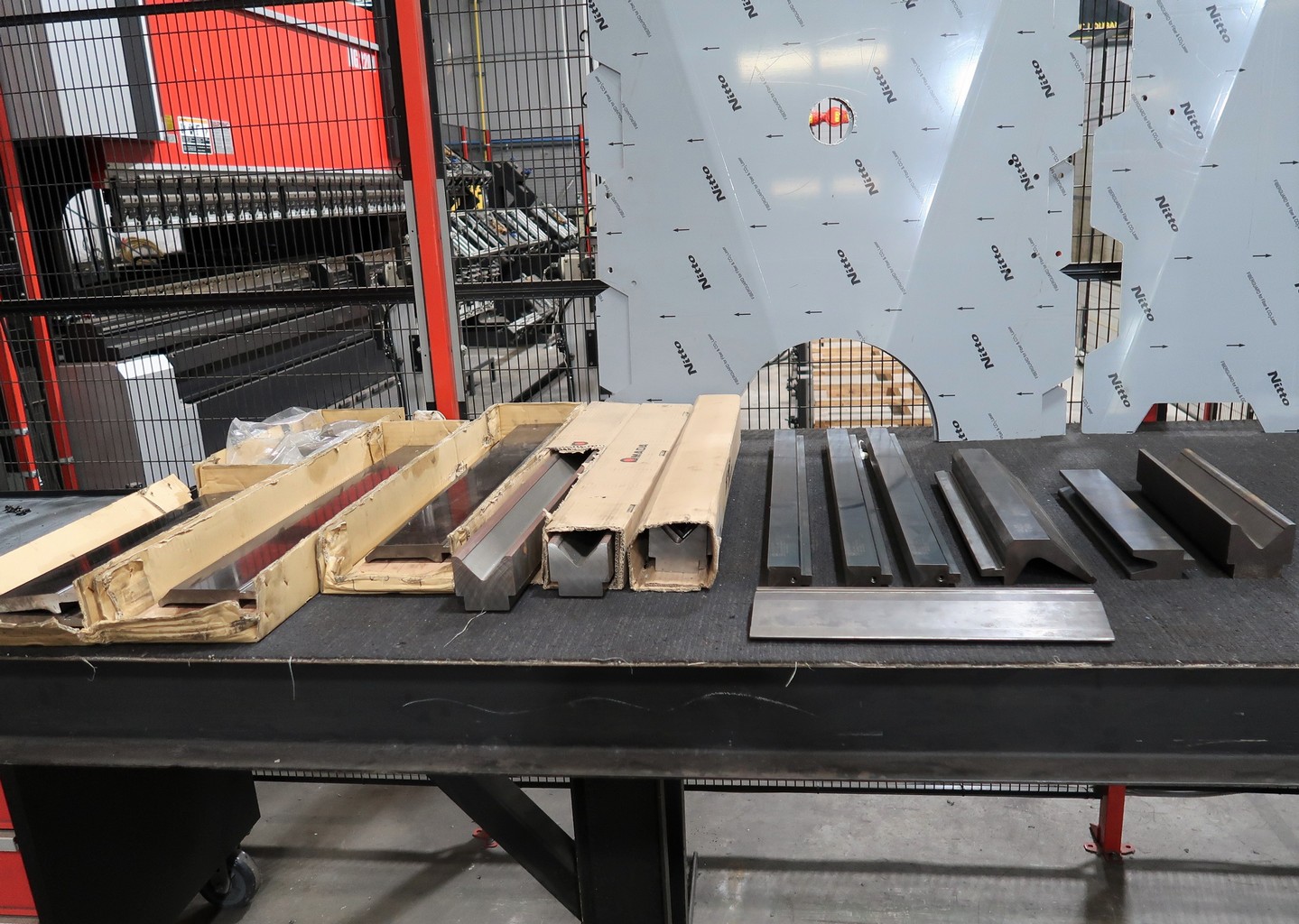

• Amada Tooling Package, (6) Upper Punches, (8) Lower Dies

AMADA MARVEL IRON WORKER & BAND SAW:

• 2020 Amada Marvel MSIW126D-Spartan Hydraulic Ironworker, 95 Ton, 14” Throat, 6” x ¾” Angle, 1-/38” Dia. Punch in 1”, 24” x 5/8” Shear Capacity, (5) Workstations, Dual Foot Controls, 23 Strokes/Minute, 6,550 Lbs., S/N: 270, 06/2020
• 2020 Amada Marvel S330HV Spartan Horizontal Mitering Band Saw, 1” Blade, 3 HP, 13” Round Capacity, 18” x 12” Rectangle, 12” x 12” at 45 Degrees, 60-330 FPM Blade Speed, 60 Deg. Miter Cutting, Hyd. Vise, S/N: S330HV-235, 06/2020

PLASMA CUTTING TABLE:

• 2017 Lincoln TMX-0614 6′ x 14′ Plasma Cutting Table, Accumove 3 PC Control, Dual Y-Axis Drive, Precision X-Axis Linear Drive, Flex-Cut 80 Amp. Plasma Cutting Power Supply, ¾” Max. Production Cut Capacity (Pierce Start), 1-1/4” Max. Edge Start, Full Cable Carrier 6’x 14’ Water Cutting Table, S/N: TMX17-236, 2017

BLAST BOOTH:

• 2018 Delong Abrasive Blast Booth, 18’ x 24’ Inside Dimensions,14’ Double Door, Clemco Blast Pot and Gun, Abrasive Reclaim System, Donaldson Torit DFE 4-16 (8) Cartridge Dust Collector, Air Holding Tank

PAINT BOOTH & PAINT MIX ROOM:

• 2018 Global Finishing Solutions Paint Booth, GPCDG-141024-NSB, 14’ x 24’ Inside Dimensions, 10’ Door Opening, Air Filtration, Interior Lighting, Double Doors, S/N: U88405-D
• 2018 Global Finishing Solutions Paint Mixing Room, 112” x 112” Overall Dimension, Interior Lighting, Personnel Door with Window, 4” Deep Containment Base, ½ HP TEFC Motor, Exhaust Plenum Fan

BATCH CURING OVENS (3) AVAILABLE:

• 2018 Global Finishing Solutions Batch Process Oven, GBO-121016-TM-Custom, Top Mount Air Makeup Unit, 12’ Wide x 15’ Deep x 10’ Height Inside Dimensions, S/N: U88405-B, 2018
• (2) Global Finishing Solutions Batch Process Ovens (Note: Located in Stuart Florida Facility)

(2) STRATUS HYDRAULIC CAR LIFTS:

• Stratus Model TP11KC-DX, 11,000 Lb. Capacity, 76” Lifting Height, S/N: GLNOV.2-0.0154, 2018, Note: Brand New, Never Used
• Stratus Model SAE-2PON14KDS, 14,000 Lbs. Capacity, 74” Lifting Height, S/N: SAE1803-09, 2018

(3) AIR COMPRESSORS:

• Industrial Air IH9919910, 10 HP, 175 Max. PSI, 120 Gallon Tank, 33.6 CFM @ 175 PSI, 230 Volt, 25 Amps, 3 Phase, S/N: SN1303108X2542752

• Quincy 2V41C60VC, 5 HP, 175 Max. PSI, 60 Gallon Tank, 15.2 ACFM @ 175 PSI, 230 Volt, 21 Amps, 1 Phase, S/N: UTY557694

• Ingersoll Rand up6-7.5tas-150psg, 7.5 HP, 150 Max. PSI, 120 Gallon, 23.1 CFM @ 150 PSI, 200 Volt, 3 Phase, S/N: CBV591081

HOT PRESSURE WASHER:

• Pressure Pro 3000 PSI Hot Pressure Washer, 5 GPM, Natural Gas

PLUS: Dake G75 Belt Sander, Drill Press, Welder, Assorted Raw Material, Cantilever Racking, Metal Worktables and More
