Vantage Machine Shop Ltd. – Large Capacity Precision CNC Machining Facility

Toshiba TUE-15 & TUE-20 CNC Vertical Boring Mills, Toshiba BP.110.R16 CNC Horizontal Boring Mill, Haas CNC Vertical Machining Centers, CNC & Manual Lathes, Shop Support, Tooling, Saws, Angle Plates, Inspection and More!
May 26, 2021
10:00AM ET
Mississauga, Ontario, Canada
View Brochure Share Print
Contact for Sale
Adam Herman
Email Me
(631) 249-5566
Inspection Date
By Appointment
In Conjunction With
Prestige Auctions
Sale Information

CLICK HERE TO VIEW FULL LOT CATALOG



FEATURED ASSETS:



CNC Vertical Boring Mills

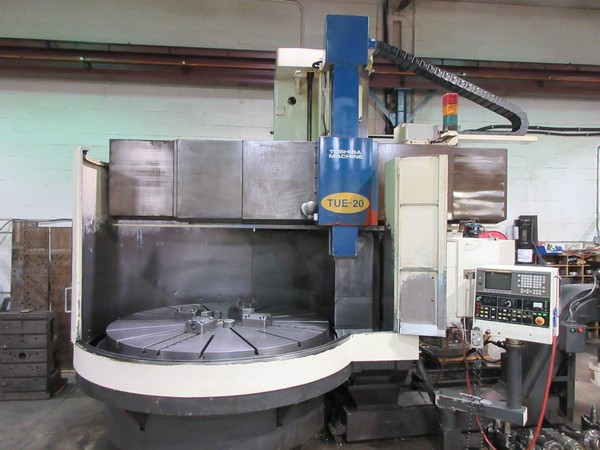

  • Toshiba TUE-20 CNC Vertical Boring Mill, Fanuc 18-T CNC Control, 78.7″ Table w/4-Chuck Jaws, 90.5” Max Swing, 59.05” Max Turning Height, 35.43” Vertical Ram Travel, Table Speeds 1-200 RPM, Table Capacity 33,000 Lbs., 12 ATC, Coolant, Chip Conveyor, S/N 440177 [2000] VIEW VIDEO
  • Toshiba TUE-15 CNC Vertical Boring Mill, Fanuc 0i-TC CNC Control, 59.05” Table w/4-Chuck Jaws, 70.86” Turning Diameter, 59.05” Turning Height, 35.43” Vertical Ram Travel, Table Speeds 2-250 RPM, Table Capacity 17,600 Lbs., 12ATC, Coolant, Chip Conveyor, S/N 440373 [2008] VIEW VIDEO

Horizontal Boring Mills:

  • Toshiba BTD-110.R16 CNC Table Type Horizontal Boring Mill, 4.33” Spindle Diameter, Tosnuc 888 CNC Control, X-98.42”, Y-59.05”, Z-19.68”, W-57.08”, 55” x 63” B-Axis Rotary Table, Spindle Speeds 5-3000 RPM, Table Capacity 22,000 Lbs., 60 ATC, Extended Travel (X-Axis) VIEW VIDEO
  • UNION BFT 90/3-1 Table Type Horizontal Boring Mill, 3.54” Spindle Diameter, X-62.99”, Y-49.21″, Z-Axis (Table In/Out)- 62.99” ,49” x 55″ Built In Rotary Table, Heidenhain 4-Axis Digital Readout, Universal Angle Head Attachment, S/N 19311-04 VIEW VIDEO

CNC Vertical Machining Centers

  • Haas VF-10/50 CNC Vertical Machining Center, Haas CNC Control, 120” x 28” Table, X-120”, Y-32”, Z-30”, Spindle Speeds 0- 7,500 RPM, Table Capacity 4000 Lbs., Spindle Nose to Table 5”-35”, 30 ATC, CAT 50, Coolant Thru Spindle, 4th Axis Capable, 30 HP, S/N 37833 [2004] VIEW VIDEO
  • Haas VF-4 CNC Vertical Machining Center, Haas CNC Control, 18” x 52” Table, X-50”, Y-20”, Z-25”, Table Capacity 3,500 Lbs., Spindle Nose to Table 4.2”- 29.2”, 24 ATC, 4th Axis Capable, 15 HP, S/N 4566 VIEW VIDEO
  • HAAS HRT-310 4th Axis Rotary Table w/ 10” 3-Jaw Chuck and Tailstock
  • MIYANO MSV-41 CNC Vertical Machining Center, Fanuc CNC Control, 20” x 40” Table, 30 ATC, CAT 40, S/N MSV41021 (Not In Service)

CNC & Manual Lathes

  • AMERICAN 32” x 120” Heavy Duty CNC Lathe, 32″ Swing,  120” Between Centers 18″ 4-Jaw Chuck, 4.5” Spindle Bore, Tool Post, Steady Rest, Fagor CNC Control, 4.5″ bore, Chip Conveyor, S/N 80880 VIEW VIDEO
  • Darbert WL580x2000 Gap Bed Engine Lathe, 24” Swing, 78” Between Centers, 28-1350 RPM, 10″ 3 jaw chuck, 3.2″ bore, Tailstock, follow, spare chucks, steady, 15 HP,  sn L128508-10
  • Shimada CN660 6-Spindle CNC Lathe, Fanuc O Mate CNC Control, 3000 RPM, (6) 4″ 3-Jaw Chucks, 7.8” Max Turning Length (Not In Service)

Vertical Milling Machines

  • Darbert Vertical Milling Machine, 12” x 54” Table, 70-3600 RPM, Power Drawbar, Heidenhain 2-Axis Digital Readout, 5 HP, S/N 11541
  • Darbert Vertical Milling Machine, 12” x 54” Table, 70-3600 RPM, Power Drawbar, Heidenhain 2-Axis Digital Readout, 5 HP, S/N 9933

Shop Support Equipment

  • Ikeda RMA-1300 Radial Drill, 4’ Arm, 12” Column, Box Table, 30-1500 RPM, 5 HP, S/N 85046
  • Miyoshi ML-80 Cold Header, S/N 479 60-3 (Not In Service)
  • COMPAIR Air Compressor
  • 8″x24″ Surface Grinder, wheel dresser
  • LINCOLN Idealarc 250 welder, 62″ x 140″ x 32″ Heavy Duty Weld Table, Disc Grinder, Parts Washer, Roll In Bandsaw

Material Handling

  • Clark EC500-80B 4,300 l.b Forklift, type E,  2 sm, 149″ lift height, sn E68500146176
  • (2) SOS 1/2 ton 20′ Jib Cranes (no upright) w Vulcan 500 kg elec hoist

Pickup Truck

  • 2011 FORD F150 XLT Pickup, super cab, 4×4, 5L, V8, 163″ wb, HD package, hitch, bed liner, 81,742 km indicated on 03/30, vin 1FTVX1EF2BKD50158

Additional Items Including: huge selection of heavy duty CAT 50 tooling, (12+) assorted heavy duty angle plates, precision inspection, tools, tooling cabinets, contents, machine attachments, racking, saws, grinders, surface grinder, materials, angle plates, cabinets, pallet jacks, mag lifts, office furniture.
