Worldwide Industrial Auctions & Liquidations

Onsite & Online

Surplus to the Ongoing Operations of Midstate Machine – Real Estate & Former Assets of McSwain Manufacturing

Late Model CNC Horizontal and Vertical Boring Mills, CNC Lathes, Horizontal Machining Centers and Cell, CMM, 46,000 Sq. Ft. Manufacturing Facility with Cranes & Offices and More
September 26, 2017
11:00AM EST
Cincinnati, OH
View Brochure Share Print
Contact for Sale
Adam Herman
Email Me
631-249-5566
Inspection Date
September 25, 2017
9:00AM - 4:00PM
In Conjunction With
Prestige Auctions
Sale Information

REAL ESTATE:

  • Minimum Opening Bid $1,000,000 • Minimum Deposit Required to Bid $25,000 • Subject to Seller Confirmation at the Time of Sale
  • +/-46,740 Square Feet Total • +/-4,040 SF Office • +/-42,700 SF Manufacturing Warehouse • 34′ – 37′ Clear Ceiling Height • T5 lighting • Heavy Power • Fully Air Conditioned • M-2 Industrial Zoning • New Carlisle Roof Completed in 2016 • West Chester (no earnings tax) • 2500 amp Service Switchgear Capacity inside the Building • 100 HP Air Compressor (distribution system in place, compressor purchase negotiable) VIEW BROCHURE
  • Site Survey VIEW
  • Phase I Environmental Site Assessment available upon request
  • HVAC Equipment: 10 Ton Trane Rooftop Unit for Offices • 25 Ton Trane Unit for Weld Shop • 60 Ton Trane Condensing Unit SW Corner w/ 937500 BTU King Air Handler + Gas Heat • 60 Ton Trane Condensing Unit NE Corner w/ 937500 BTU King Air Handler + Gas Heat
  • Overhead Cranes:
    • 15 Ton x 76’ Span Brehold
    • 10 Ton x 76’ Span Shaw Box
    • 15 Ton x 76’ Span Shaw Box
    • 25 ton x 49’ Span MPH

CNC HORIZONTAL BORING MILLS:

  • Toshiba BP150.R22 CNC Table Type Horizontal Boring Mill (New 2009), 5.9″ Spindle, X-160″, Y-100″, Z-28″, W-60″, 71″ x 86″ B-Axis Rotary Table, 360,000 Positions, 44,000 Lbs. Table Cap., 5-2500 RPM, 60 ATC, Tosnuc 888 CNC, Thru Spindle Coolant, Chip Conveyor, 50 HP, 2009, S/N 130385 VIEW VIDEO
  • Toshiba BP150.R22 CNC Table Type Horizontal Boring Mill (New 2008), 5.9″ Spindle, X-160″, Y-100″, Z-28″, W-60″, 71″ x 86″ B-Axis Rotary Table, 360,000 Positions, 44,000 Lbs. Table Cap., 5-2500 RPM, 60 ATC, Tosnuc 888 CNC, Thru Spindle Coolant, Chip Conveyor, 50 HP, 2008, S/N 130373 VIEW VIDEO

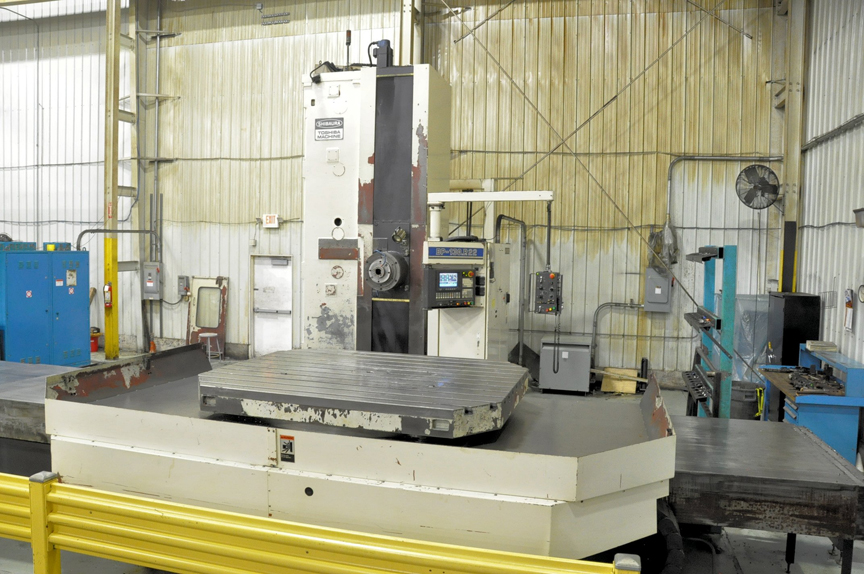

  • Toshiba BP130.R22 CNC Table Type Horizontal Boring Mill, 5.12″ Spindle, X-137″, Y-90″, Z-27.5″, W-63″, 70.8″ x 86.6″ B-Axis Rotary Table, 360,000 Positions, 44,000 Lbs. Table Cap., 5-2500 RPM, Tosnuc 888 CNC, Thru Spindle Coolant, Chip Conveyor, 40 HP, 1999, S/N 130308 VIEW VIDEO
  • Olympia HT 120 x 80 CNC Table Type Horizontal Boring Mill, GE FANUC 16i-M CNC, X-118″, Y-63″, Z-28″, W-39″, 49″ x 63″ B-Axis Rotary Table, 360,000 Positions, 22,000 Lbs. Table Cap. 6-3000 RPM, Thru Spindle Coolant, 2000, S/N 337-0E00 VIEW VIDEO
  • 92” Bullard Dyn-Au-Tape VTL, 92” Table, 4-Jaw Hydraulic Chuck, 150 RPM, 5-Position Turret, 75 HP Table Motor, Fanuc 16T CNC Control, Mechanically Rebuilt and Retrofit by Kentucky Rebuild Corporation, Retrofit 1998, S/N 32717 [NOTE: MACHINE WAS RECENTLY REMOVED FROM SERVICE AT MCSWAIN AND IS LOCATED AT LOCAL RIGGER’S WAREHOUSE. LOADING PRICE IS INCLUDED]
  • 92” Bullard Dyn-Au-Tape VTL, 92” Table, 4-Jaw Hydraulic Chuck, 150 RPM, 5-Position Turret, 75 HP Table Motor, Fanuc 16T CNC Control, Mechanically Rebuilt and Retrofit by Kentucky Rebuild Corporation, Retrofit 1997, S/N 32813 [NOTE: MACHINE WAS RECENTLY REMOVED FROM SERVICE AT MCSWAIN AND IS LOCATED AT LOCAL RIGGER’S WAREHOUSE. LOADING PRICE IS INCLUDED]

CNC VERTICAL BORING MILLS:

  • 66″ Olympia V60 CNC Vertical Boring Mill, 66″ Table Dia., 70″ Max. Swing, 62″ Max Height Under Rail, 33,000 Lbs. Table Cap., 1-350 RPM, 12 ATC, Fanuc 21i-M CNC Control, 75 HP, 1999, S/N OE-99-329 VIEW VIDEO
  • 118″ Titan CNC Vertical Boring Mill, Model S298-8046, 118″ Table Dia., 137″ Max Swing, 78″ Max Height Under Rail (1) Ram, Retrofit with GE Fanuc 21i-T CNC Control, Fanuc Red Cap Motors, Flush Floor, Chip Conveyor, 73 HP Table Motor, S/N 356822
  • 144″ Gray CNC Vertical Boring Mill, 144″ Table Dia., 152″ Max Swing, 120″ Max Height Under Rail, (2) Rams, Ram Swivel 45 Degrees, Table Speeds 0.6-54 RPM, Fanuc 0-T CNC Control, Retrofit 2002, 125 HP Table Motor, S/N 9510 VIEW VIDEO
  • 60″ Gray CNC Vertical Turret Lathe, 5-Station Turret, 60″ 4-Jaw Chuck, GE Fanuc 0-T CNC Control, Retrofit by Kentucky Rebuild Corporation [Not Running]

CNC LATHES:

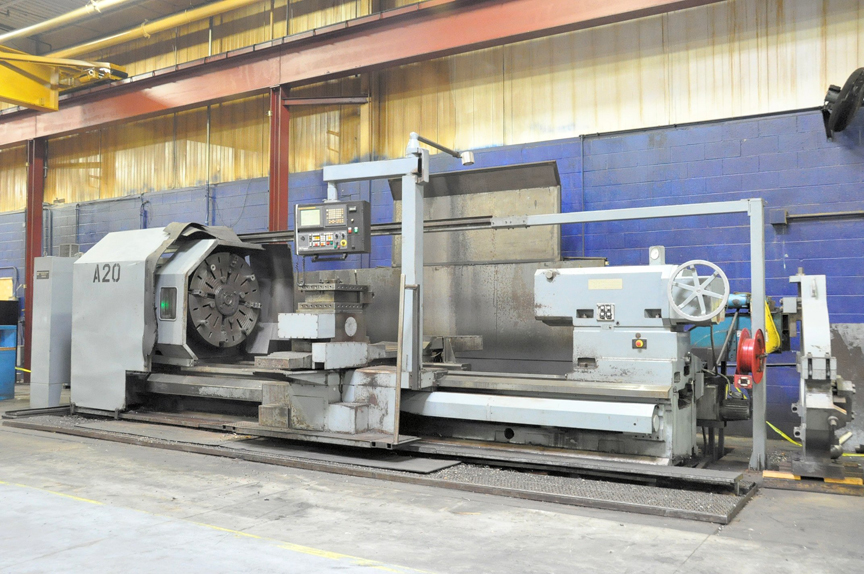

  • 63” x 157” Dainichi Model H/NC 160×400 CNC Heavy Duty Lathe, 63” Swing, 157.5” Between Centers, 48” 4-Jaw Chuck, 44,000 Lbs. Capacity Between Centers, 500 RPM, 4.09” Spindle Bore, Fanuc 21i-T CNC Control, Tailstock, Steady Rest, Retrofit 2008 by Machine Tool Solutions Unlimited, 73 HP, S/N 18752 VIEW VIDEO
  • 63″ x 177″ Heylingstaedt Model NDKB-1000/III CNC Heavy Duty Lathe, 63″ Swing Over Bed, 177.16″ Between Centers, 48″ 4-Jaw Chuck, 4-Position Turret, 2.8 – 560 RPM, 35,200 Lbs. Max. Capacity Between Centers (No Steady Rests), Fagor CNC Control, Retrofit 2009, 3-Way Bed, 9.84″ Tailstock Quill Dia., 7.87″ Quill Stroke, (2) Steady Rests, Chip Conveyor, 100 HP, S/N 000 932 34

CNC HORIZONTAL MACHINING CENTERS:

  • Giddings & Lewis HMC 410 4-Axis CNC Horizontal Machining Center, Siemens 840D CNC Control, X-129.9″, Y-82.6″, Z-78.7″, (2) 62.99″ x 49.21″ Pallets, 360,000 Positions, 10-10,000 RPM, 60 ATC, 61.5 HP, 2000, S/N 495-002
  • Mazak Palletech Manufacturing Cell, Including:
    • (1) Mazak HV800 5-Axis CNC Horizontal Machining Center, 31.5″ x 31.5″ Pallets, B-Axis 360 Degrees, Table Capacity 4850 Lbs., X-49.2″, Y-39.4″, Z-45.2″, Full A-Axis Articulating Spindle Head, Coolant Thru Spindle, Mazatrol M-Plus CNC Control, 6000 RPM, 120 ATC, CAT 50, Chip Conveyor, 1999, S/N 143188 VIEW VIDEO
    • (1) Mazak FH880 4-AXIS CNC Horizontal Machining Center, 31.5″ x 31.5″ Pallets, Table Capacity 4850 Lbs., X-51.1″, Y-43.3″, Z-39.3″, B-Axis 360 Degrees, Coolant Thru Spindle, Mazatrol M-Plus CNC Control, 7000 RPM, Mazak Tool Hive 237 ATC, CAT 50, 50 HP, Chip Conveyor, 1998
    • Mazak Palletech System with (8) Pallets, (1) Load/Unload Station [USED WITH MAZAK HV800 & MAZAK FH880] VIEW VIDEO

COORDINATE MEASURING MACHINE:

  • Sheffield RS 150 Coordinate Measuring Machine, 50″ x 85″ Table, X-48″, Y-80″, Z-40″, 54″ Between Columns, 42″ Under Rail, Renishaw PH10M Probe, S/N A-0030 VIEW VIDEO

FORKLIFT:

  • 30,000 Lbs. Taylor TC-300S Forklift, with Hydraulic Fork Adjustment, Side Shift, S/N S-D729186
Auction Location
382 Circle Freeway Drive, Cincinnati, OH 45246 Get Directions
