Worldwide Industrial Auctions & Liquidations
Live Webcast
Surplus to Primetals Technologies – Large Capacity CNC Turning, Machining, Grinding & Gear Equipment
Featuring 84” Gray CNC Vertical Boring Mill, Mazak Integrex 50YR-2500U CNC Turning & Milling Center, 50” x 204” American Engine Lathe w/ Taper Attachment, Gleason Pfauter P800 CNC Gear Hobber, (4) Bullard CNC Vertical Boring Mills 36” – 66”, (3) Giddings & Lewis CNC Vertical Boring Mills, Fellows 36 GS Gear Shaper, 60” Blanchard Rotary Surface Grinder, Cincinnati Cylindrical Grinder, Giddings & Lewis CNC Horizontal Boring Mill, Cranes, Tooling, Shop Support, Forklifts & More!
October 29, 2020
1:00PM ET
Worcester, Massachusetts
Share Print
Contact for Sale
Dan McDonald
Email Me
631-249-5566
Inspection Date
By Appointment
In Conjunction With
Prestige Auctions
Sale Information

CNC Vertical Boring Mills

  • Gray 100 Series 84″ CNC Vertical Boring Mill, Fanuc O-TT  CNC Control, (2) Rams, 84″ 4-Jaw Chuck, 90″ Swing, 80″ Under Rail, 60″ Ram Stroke, Table  Speeds 3.2-191 RPM, 80,000 Lbs. Table  Capacity, 75 HP Table Motor, 480V/3ph/60Hz, S/N 9888

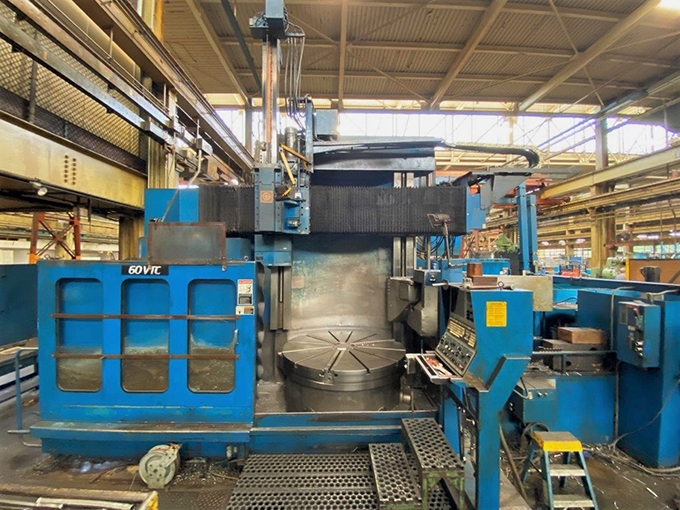

  • Giddings & Lewis VTC-60 CNC Vertical Boring Mill, Fanuc 160i-T CNC Control, Ram, 12-ATC,  66″ 3-Jaw Chuck, 72″ Swing, 60″ Under Rail,  50″ Ram Stroke, Table Speeds 4-320 RPM, 75 HP Table Motor, Chip Conveyor, S/N 513-90-82
  • Bullard 66″ CNC Vertical Boring Mill, Fanuc 15-TT CNC Control, Ram & Side Head, 66” 4-Jaw Chuck, 55″ Under Rail, 45” Ram Stroke, Table Speeds 4.55-167 RPM, 75 HP Table Motor, S/N 32321 VIEW VIDEO
  • (2) Bullard 56” CNC Vertical Boring Mills, Fanuc 15-TT CNC Controls, Ram & Side Head, S/N 31190 & 31222 (CNC Retrofit by ESTEC) VIEW VIDEO 1 / VIEW VIDEO 2
  • Bullard 36″ CNC Vertical Boring Mill, Fanuc 15-TT CNC Controls (CNC Retrofit By ESTEC)
  • Giddings & Lewis VTC-60 CNC Vertical Boring Mill, G&L 8000 CNC Control, Ram & Side Head, 30 ATC (LH Ram), 24 ATC (Side Head), 66″ 3-Jaw Hydraulic Chuck, 72″ Swing, 72” Under Rail, 4.5-280 RPM, 100 HP Table Motor, S/N 513-135-89
  • Giddings & Lewis VTC-48 CNC Vertical Boring Mill, G&L 8000 CNC Control, 12 ATC, 48″ 4-Jaw Chuck, 60″ Under Rail, 50” Ram Stroke, Table Speeds 4-320 RPM, Threading, 75 HP Table Motor, S/N 512-267-88

Gear Machines

  • Gleason Pfauter P800 CNC Gear Hobber, 31.5″ Table Dia., 27.55″ Face, Tailstock,  Siemens 840 CNC,  Siemens MPG Remote Control, Chiller, NSM Magnetic Chip Conveyor, 460V/3ph/60Hz, S/N 28680 VIEW VIDEO
  • Fellows 36 GS Gear Shaper, 40″ Max Pitch External Dia., 36″ Max Pitch Internal Dia., 6″ Max Face Width, 6″ Stroke Length, 10-300 SPM, Change Gears, S/N 31986, Rebuilt 1994
  • Cross No. 55 Universal Gear Chamfering Machine, 18″ Max Gear Dia., 10-80 Teeth, 1-1/2″ Pitch, 16 Module, Internal & External Gears, 14″ Gear Face

Rotary Surface Grinder

  • Blanchard 60″ Rotary Surface Grinder, Electro-Matic 60″ Dia. Magnetic Chuck w/ Neutrofier III Controls, 72″ Swing, 30″ Under Wheel, 32″ Segmented Wheel, Trabon Lube, Splash Guards, 100 HP Motor, Motor Rebuilt 08/2019 , S/N 11765 VIEW VIDEO

Cylindrical Grinder

  • Cincinnati 18″ x 72″ Cylindrical Grinder, 18” Swing, 72” Between Centers, 30″ Wheel, 1380 RPM Max Wheel Speed, Headstock Speeds 20-72 RPM, Taper, Auto Wheel Balance, Shoulder Grinding Attachment, S/N 5-67-2338

Lathes, CNC & Manual

  • Mazak Integrex 50YR-2500U CNC Turning & Milling Center, 27.95″ Swing, 100″ Between Centers, X-25.39″, Y-8.27″, Z-103.62″, 3.14″ Hole, C-Axis, .001  Indexing, Spindle Speeds 2-3000 RPM, Live Milling Speeds 18-3000 RPM, 60-ATC (30 VDI & 30 50-Taper positions), Steady Rest, Mazatrol 640 MT PC-Fusion, Chip Conveyor, S/N 144666
  • American 50″ x 204″ Engine Lathe, 48″ Face Plate w/ 4-Top Jaws, 50″ Swing, 35.5″ Over Carriage, 204″ Between Centers, 2.25-196 RPM, 2.6″ Hole, Taper Attachment, (2) Steady Rests, Inch Threading, S/N 70769-48 VIEW VIDEO
  • Okuma Cadet L1420 CNC Lathe, 24.4″ Swing, 18.9″ Over Carriage, 25.6″ Between Centers, 3.1″ Spindle Bore, 3500 RPM, 12″ 3-Jaw Chuck, 12-Station  Turret, Tailstock, Chip Conveyor, OSP-U10L , S/N 1007 0761

CNC Table Type Boring Mill

  • Giddings & Lewis G60-TX CNC Table Type Horizontal Boring Mill, 120″ x 60″ Table, X-120″, Y-91″, W-50″,  Z-36″, Spindle Speeds 12-2500 RPM, G&L 8000 CNC Control, 100 ATC,  #50 Taper, 40 HP Spindle Motor, S/N 450-179-88

CNC Vertical Machining Center

  • Giddings & Lewis 40-VF Traveling Column CNC Vertical Machining Center, 80 ATC, X-192″, Y-72″, Z-50″, 15-2200 RPM, Coolant Thru Spindle,  G&L 360P 66″ CNC Rotary T-Slotted Table with 4-Jaw Chuck, Additional 66″ Dia. T-Slotted Table on Stand, 5′ x 18′ x 10″ T-Slotted Floor Plate, G&L 8000 CNC Control, 25 HP Spindle Motor, S/N 926-1-90

Additional Equipment

Bendix Cordax Coordinate Measuring Machine, Rockford Shaper, Maag HSS-60BC Gear Grinder, Kapp AST-203 Hob Grinder, Landis 55 Bolt Threader, Complete G&L 8000 CNC Control, CNC Rotary Tables, Universal Angle Heads, Angle Plates, CAT Diesel Generator, 40 & 50 Taper Tooling, Bridge, Gantry and Jib Cranes, Vidmar Cabinets, Forklifts & More
