Late Model Toshiba CNC Horizontal & Vertical Boring Mills

UNPRECEDENTED OFFERING BY ORDER OF SECURED PARTY: (2012) 4.3" TOSHIBA BTD-200QH CNC Table Type HBM, (2012) 4.3" TOSHIBA BTH-110R18 CNC Table Type HBM, (2012) 78" TOSHIBA TUE-200 CNC VBM, (2012) 5.9" TOSHIBA BP-150-R22 CNC Table Type HBM, (2008) 5.9” Toshiba BP-150.P45 CNC Table Type HBM
July 28, 2016
2:00PM EST
Tipp City, OH
Share Print
Contact for Sale
Adam Herman
Email Me
631-249-5566
Inspection Date
By Appointment
Sale Information

2012 TOSHIBA BTD-200QH 4.3″ CNC TABLE TYPE HORIZONTAL BORING MILL

FEATURES:
Tosnuc 999 CNC Control
60 Position Automatic Tool Changer

CAPACITY:
Spindle Diameter …………………. 4.33″
Taper In Spindle …………………. #50
Vertical Head Travel, Y-Axis ………. 47.24″
Table Cross Travel, X-Axis ………… 59.05″
Spindle Travel, Z-Axis ……………. 15.74″
Saddle Travel, W-Axis …………….. 27.55″
Table Size, Built-In Rotary ……….. 47.24″ x 39.37″
Table Indexing …………………… 0.0001 Degree
Feed Rates ………………………. 1-236 IPM
Rapid Traverse: X,Y, & Z Axes ……… 472 IPM
Rapid Traverse: W-Axis ……………. 196 IPM
Rapid Traverse: B-Axis ……………. 1080 Degrees/Minute
Table Load Capacity ………………. 8,800 LBS
Spindle Speeds …………………… 6-4000 RPM
Floor Space, L x W x H ……………. 173″ x 174″ X 126″
Machine Weight …………………… 39,600 lbs.

EQUIPPED WITH:
Tosnuc 999 CNC Controls
Full B-Axis Rotary Table
60 Position Automatic Tool Changer
Thru Spindle Coolant
Chip Conveyor
Flood Coolant
40 HP Spindle Motor

2012 TOSHIBA BTH-110.R18 4.3″ CNC TABLE TYPE HORIZONTAL BORING MILL

FEATURES:
Tosnuc 999 CNC Control
32 Position Automatic Tool Changer

CAPACITY:
Spindle Diameter …………………. 4.33″
Taper In Spindle …………………. #50
Vertical Head Travel, Y-Axis ………. 78.74″
Table Cross Travel, X-Axis ………… 98.42″
Spindle Travel, Z-Axis ……………. 19.68″
Saddle Travel, W-Axis …………….. 59.05″
Table Size, Built-In Rotary ……….. 55.11″ x 70.86″
Table Indexing …………………… 0.0001 Degree
Feed Rates ………………………. 0.04-393 IPM
Rapid Traverse: X,Y, & Z Axes ……… 708 IPM
Rapid Traverse: W-Axis ……………. 236 IPM
Rapid Traverse: B-Axis ……………. 720 Degrees/Minute
Table Load Capacity ………………. 22,000 Lbs.
Spindle Speeds …………………… 6-4000 RPM
Floor Space, L x W x H ……………. 240″ x 240″ X 181″
Machine Weight …………………… 66,000 lbs.

EQUIPPED WITH:
Tosnuc 999 CNC Controls
Full B-Axis Rotary Table
32 Position Automatic Tool Changer
Thru Spindle Coolant
Chip Conveyor
Flood Coolant
40 HP Spindle Motor

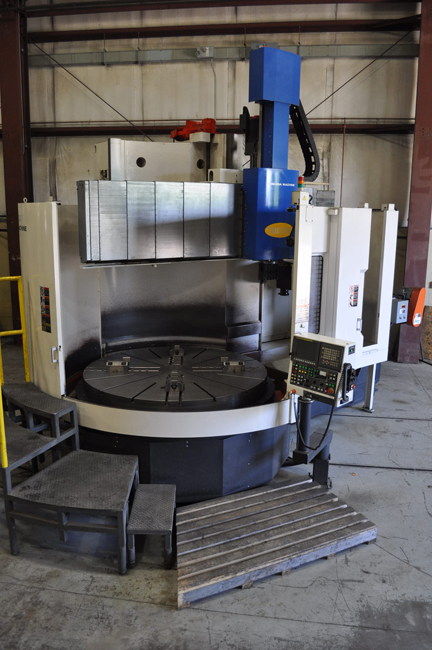

2012 TOSHIBA TUE-200 78″ CNC VERTICAL BORING MILL

FEATURES:
Fanuc 0i-TD CNC Control
Ram with Automatic Tool Changer

CAPACITY:
Table Diameter …………………… 78.74″
Maximum Swing ……………………. 94.49″
Maximum Height (Ram to Table Top) ….. 67.72
Maximum Cutting Height ……………. 61.02″
Vertical Travel of Ram ……………. 35.43″
Vertical Travel Of Cross Rail ……… 39.38″
Rapid Traverse of Rail Head ……….. 393.7 IPM
Table Speeds: Inf Variable, 2-Speed … 2-400 RPM
Table Load Capacity ………………. 33,070 LBS
Rapid Traverse, X-Axis ……………. 590.55 IPM
Rapid Traverse, Z-Axis ……………. 472.44 IPM
Machine Height …………………… 218″
Floor Space, L x W ……………….. 220″ x 173″
Machine Weight …………………… 47,840 Lbs.

EQUIPPED WITH:
Fanuc 0i-TD CNC Control
12 Position Automatic Tool Changer
78.74″ Diameter Table
Chip Guards & Chip Conveyor
Telescopic Steel Way Covers on Cross Rail
60 HP Table Drive Motor

2012 TOSHIBA BP-150.R22 5.90″ CNC TABLE TYPE HORIZONTAL BORING MILL

FEATURES:
Tosnuc 999 CNC Control
60 Tool Automatic Tool Changer
20 Ton Table Weight Capacity

SPECIFICATIONS:
Spindle Diameter ………………… 5.9″
Taper In Spindle ………………… #50
Vertical Travel, Y-Axis ………….. 120″
Cross Travel, X-Axis …………….. 160″
Spindle Travel, Z-Axis …………… 28″
Column Travel, W-Axis ……………. 60″
Table Size (Built In B-Axis) ……… 70.9″ X 86.6″
Table Load Capacity ……………… 44,000 LBS
Table Indexing B-Axis ……………. .001 Degrees
Spindle Speeds (3-Ranges) ………… 5-2500 RPM
Feeds ………………………….. .04-157.4 IPM
Rapid Traverse X,Y & Z …………… 393.70 IPM
Machine Footprint ……………….. 300″ x 402″
Machine Height ………………….. 223.5″
Machine Weight ………………….. 96,800 lbs

EQUIPPED WITH:
Tosnuc 999 4-Axis CNC Control
10″ Color TFT Liquid Crystal Display
60-Station Automatic Tool Changer
Thru-Spindle Coolant
Built-In Full B-Axis Rotary Table
Chip Conveyor
Steel Sliding Way Covers
50/40 HP Spindle Motor

NOTE:
Inspect IN Plant Under Power!

2008 TOSHIBA BP-150.P45 6″ CNC TABLE TYPE HORIZONTAL BORING MILL

FEATURES:
Tosnuc 999 CNC Control
60 Tool Automatic Tool Changer
20 Ton Table Weight Capacity

SPECIFICATIONS:
Spindle Diameter ………………… 5.9″
Taper In Spindle ………………… #50
Vertical Travel, Y-Axis ………….. 120″
Cross Travel, X-Axis …………….. 160″
Spindle Travel, Z-Axis …………… 28″
Column Travel, W-Axis ……………. 60″
Table Size (Built In B-Axis) ……… 70.9″ X 86.6″
Table Load Capacity ……………… 44,000 LBS
Table Indexing B-Axis ……………. .001 Degrees
Spindle Speeds (3-Ranges) ………… 5-2500 RPM
Feeds ………………………….. .04-157.4 IPM
Rapid Traverse X,Y & Z …………… 393.70 IPM
Machine Footprint ……………….. 300″ x 402″
Machine Height ………………….. 223.5″
Machine Weight ………………….. 96,800 lbs

EQUIPPED WITH:
Tosnuc 999 4-Axis CNC Control
10″ Color TFT Liquid Crystal Display
60-Station Automatic Tool Changer
Thru-Spindle Coolant
Built-In Full B-Axis Rotary Table
Chip Conveyor
Steel Sliding Way Covers
50/40 HP Spindle Motor

NOTE:
Inspect IN Plant Under Power!
