Worldwide Industrial Auctions & Liquidations

Online Auction

Karel Manufacturing Inc. – Late Model Amada Precision Fabrication Shop

2012 & 2007 Amada EMK-3610NT Servo-Electric Turret Punches, (7) Amada Press Brakes, Huge Quantity of Amada Punch and Brake Tooling, Amada 12’ Shear, 2007 RAS Folder, Late Model Mig and Tig Welders, (4) Fork Lifts, (2) Flat-Bed Trucks, Raw Material, Pallet Racking and More!!
September 29, 2021
11:00AM ET
San Antonio, Texas
Enter Auction View Brochure Share Print
Contact for Sale
Frank DiSalvo
Email Me
631-249-5566
Inspection Date
September 27 & 28, 2021 or By Appointment
In Conjunction With
Prestige Auctions
Sale Information

**  PRE-AUCTION OFFERS INVITED ON MAJOR ASSETS **

Contact: Frank DiSalvo, 631-249-5566, [email protected]



FEATURED ASSETS:



AMADA ELECTRO-SERVO CNC TURRET PUNCH PRESSES:

  • 2012 Amada EMK3610, 33 Ton, 60” x 100” Servo Electric Turret Punch, 60” x 98.4” Travel, .187” Max. Sheet Thickness, Fanuc AMNC PC Based CNC Control, 58 Station, (4) Auto Index, Brush Table, Serial Number: 36102299, Mfg. Date: 2012 VIEW VIDEO
  • 2007 Amada EMK3610, 33 Ton, 60” x 100” Servo Electric Turret Punch, 60” x 98.4” Travel, .187” Max. Sheet Thickness, Fanuc AMNC PC Based CNC Control, 58 Station, (4) Auto Index, Brush Table, Serial Number: 36102120, Mfg. Date: 4/2007 VIEW VIDEO



AMADA FMS PUNCH CELL W/6 SHELF TOWER:

  • Amada Vipros 368 King II, CNC Turret Punch Press, 33 Ton, 60” x 78.74” Travel, Brush Table, Fanuc 18P CNC Control, (4) Auto Index Stations, PHNC Hydraulic Control, Serial Number: 36840047, Mfg. Date: 1999, Amada ASR510-CR (6) Shelf Material Storage Tower with Load/Unload, 1525mm x 3048mm x 3.2mm Maximum Sheet Size, Serial Number: 51000039

AMADA PUNCH LASER:

  • Amada 357V Apelio II Punch Laser, Amadan OSPLA CNC, 50” x 72” Travel, Fanuc C1500 Watt Laser, 58 Station, (2) Auto Index Stations

AMADA TOOL SHARPENER:

  • Amada-Togu III Punch and Die Sharpeners, 6.30” Max. Tool Size, 2 HP Motor, 9.45” Axis Travel, 3000 RPM Max., Variable Feed, Coolant, (2) Available, Serial Number: 30230839, Mfg. Date: 2007

LARGE QUANTITY OF AMADA PUNCH TOOLING:

  • Huge selection of Amada punch tooling, Amada Tool Holders, Amada Tool Cabinets, Amada Tool Carts

HARDWARE INSERTION PRESS:

  • Autocert AS-7.5 Insertion Press, 20” Throat, 6” Stroke, Automatic Bowl Feeder, Electric Foot Switch, Tooling

AMADA CNC FLYING OPTIC LASER:

  • Amada FOMII 3015NT, 4000 Watt, Y-Axis 61” x X-Axis 121” Travel x Z-Axis 7.8”, AMNC-F PC Based CNC, Fanuc AF4000i-B Laser Resonator, Dual Pallet Shuttle Tables, Ball Transfers, (8) Station Automatic Nozzle Changer, Chiller, Dust Collector, Laser Hours: 16,639 hrs., Serial Number: 47512387, Mfg. Date: 3/2012SOLD

CNC PRESS BRAKES:

  • Amada HFE220-4S, 240 Ton x 14’, 8-Axis CNC Press Brake, 14” Overall Bed Length, 12’4” Between Housings, 7.9” Stroke, 18.5” Open Height, 16.5” Throat Depth, 6-Axis Back Gauge, CNC Crowning, Amada Operateur 8 Axis CNC Control, Amada One Touch Tool Holders, Serial Number: SN07003, Mfg. Date: 2007
  • Amada 2504, 275 Ton x 161.4”, Up-Acting CNC Press Brake, 129.9” Between Housings, 15.75” Throat Depth, 9.84” Stroke, 18.50” Open Height, Amada NC9-EX Control, Serial Number: 2540023, Mfg. Date: 1986

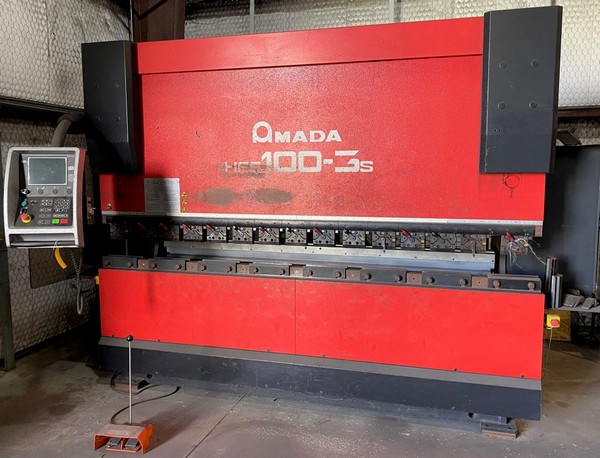

  • Amada HFE100-3S, 110 Ton x 10’, 8-Axis CNC Press Brake, 120” Overall Bed Length, 103” Between Housings, 7.9” Stroke, 18.5” Open Height, 16.5” Throat Depth, 6-Axis Back Gauge, CNC Crowning, Amada Operateur 8 Axis CNC Control, Amada One Touch Tool Holders, Serial Number: SV060416, Mfg. Date: 12/2006
  • Amada FBD-1030 NT 110 Ton x 10’ 7-Axis CNC Press Brake, 118” Overall Bending Length, 106” Between Housings, 5.9” Stroke, 16.5” Open Height, 15.75” Throat Depth, 5-Axis Back Gauge, Amada AMNC PC Control, Bed Crowing Control, Electric Foot Switch and Full-Length Treadle Control, Serial Number: 10300069, Mfg. Date: 2000
  • Amada FBD-8025E, 88 Ton x 8’ CNC Press Brake, NC9EX-II 3-Axis CNC Control, 98.6” Overall Bed Length, 86.6” Between Housings, 3.94” Stroke, 15.75” Throat, Amada One Touch Tool Holders, Serial Numbers: 8500832, Mfg. Date: 1995
  • Amada RG-8024 LD, 88 Ton x 8’ CNC Press Brake, Amada LD 2-Axis CNC Control, 98.6” Overall Bed Length, 80.7” Between Housings, 3.94” Stroke, 15.75” Throat, Amada Tool Holders, Two Available, Serial Numbers: 80240022 & 80240028, Mfg. Date: 1999

AMADA MECHANICAL SQUARING SHEARS:

  • Amada M-4065, ¼” x 161.42” Mechanical Squaring Shear, Amada CNC Shear Control, 40” Back Gauge Range, 12’ Right Hand Squaring Arm, (4) 32” Front Support Arms, Pneumatic Rear Sheet Supports, Electric Foot Switch, 52 Strokes Per Minute, Serial Number: 40650166, Mfg. Date: 1997
  • Amada M-2545, .177” x 98.47” Mechanical Squaring Shear, Amada CNC Shear Control, 40” Back Gauge Range, 120” Right Hand Squaring Arm, Pneumatic Rear Sheet Supports, (2) 36” Front Support Arms, 60 Strokes Per Minute, Serial Number: 25452856, Mfg. Date: 1986

CNC FOLDING MACHINE:

  • RAS FLEXIbend 73.30, 11-Gauge x 126” CNC Folding Machine, System 6000 Touch Screen CNC Control, 11.81” Clamp Beam Stroke, 3.15” Folding Beam Stroke, J-Shape Back Gauge, (2) Dual Foot Switches Front and Back, Tooling Package, Serial Number: 55/5, Mfg. Date: 2008

PLATE BENDING ROLL:

  • CarellA314-15/6.5, Initial Pinch Plate Roll,  ¼” x 5’, 6.7” Roll Dia., 8.5 HP Motor, Serial Number: 2997, Mfg. Date: 2006

WELDERS:

  • Miller Deltaweld 451 w/ Wire Feed
  • (2) Miller Synchrowave 250 DX Tig
  • Miller Synchrowave 351 CC/AC/DC
  • Miller CP 302 w/ Wire Feed
  • Lincoln DC 400 w/ Wire Feed
  • Miller CP 250 TS w/ Wire Feed
  • Lincoln 275 Precision Tig
  • Lincoln Square Wave Tig 355
  • (2) Lincoln Square Wave Tig’s
  • Miller 250

MISCELLANEOUS MACHINES & PLANT SUPPORT EQUIPMENT:

  • Marvel Mark II w/ Infeed And Outfeed Conveyor * Grindingmaster Type MSB-900, 36” Wide Belt, S/N TE-1573-02 * Large Qty. Amada Press Brake Dies and Assorted Tooling * Fans * Worktables * Metal Racks * Portable Stairs * Port – A – Cool 2000 * (5) Self Dumping Hoppers * (17) Cantilever Racks * Metal Sawhorses * Double Grinders * Oxy/Acy Rig * Horizontal Band Saw * Dollies * Drill Presses * Welding Tables * Acorn Tables * Vidmar Tool Cabinets * (10) Heavy Duty Metal Stock Racks * and more

AIR COMPRESSORS:

  • Atlas Copco GA30+FF
  • Atlas Copco GA37
  • Heat Sink Air Dryer
  • Air Holding Tank

FORK LIFTS AND TRUCKS:

  • Mitsubishi FG30N-LP 5,500 Lbs. Forklift, 3-Stage, Side Shift, 186” Max. Fork Height, Solid Tire, 28 x 9 x 15 Front Tire, 6.50 x 10 Rear Tire Size, Serial Number: AF13F10376
  • Mitsubishi FG30N-LP 5,400 Lbs. Forklift, 3-Stage, Side Shift, 186” Max. Fork Height, Solid Tire, 28 x 9 x 15 Front Tire, 6.50 x 10 Rear Tire Size, Serial Number: AF13F20212
  • Mitsubishi FG25N-LP 4,500 Lbs. Forklift, 3-Stage, Side Shift, 188” Max. Fork Height, Solid Tire, 28 x 9 x 15 Front Tire, 6.50 x 10 Rear Tire Size, Serial Number: AF17D41303
  • Crown Forklift, 6,000 Lbs. Fork Lift, 3-Stage, Side Shift, Propane, Serial Number: 9A198695
  • International Flat Bed Truck, 20’ Flatbed, Side Toolbox
  • Mitsubishi Flat Bed Truck



RIGGERS:

DFW Movers, Sandy Wentrcek, 210-294-4010

Metro Riggers, Gary Hass, 972-345-8118

Able Machinery Movers, Daniel Davis, 214-518-4031

MEI Rigging, Babet Motes, 210-569-2607
