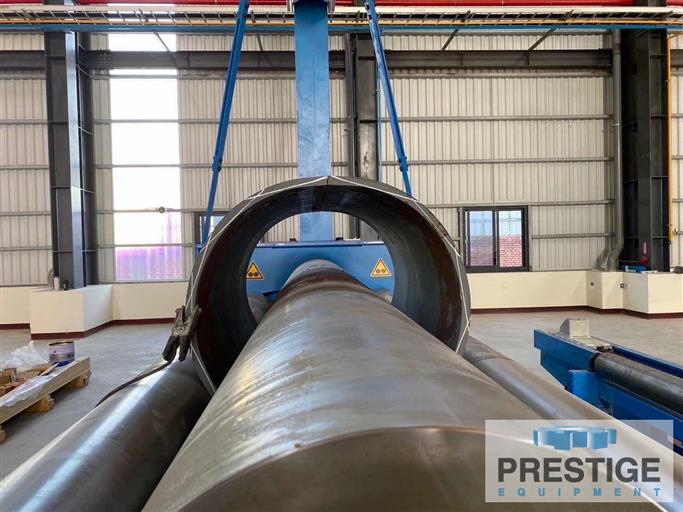

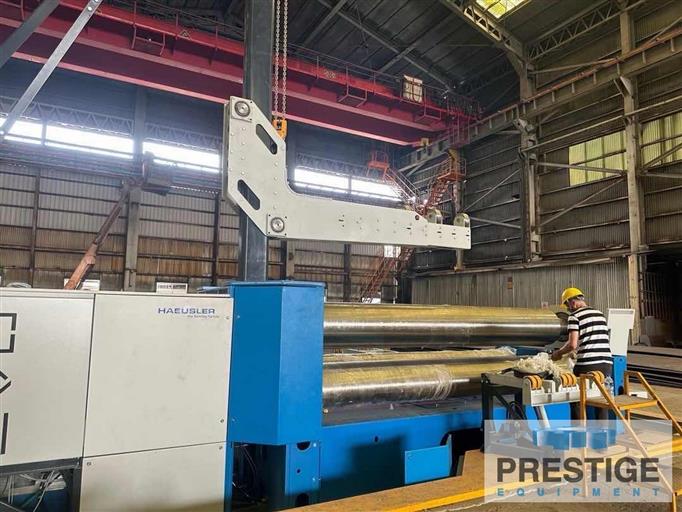

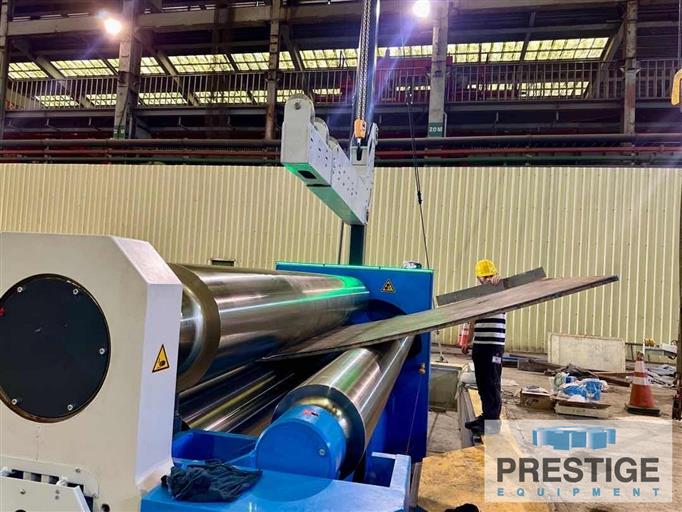

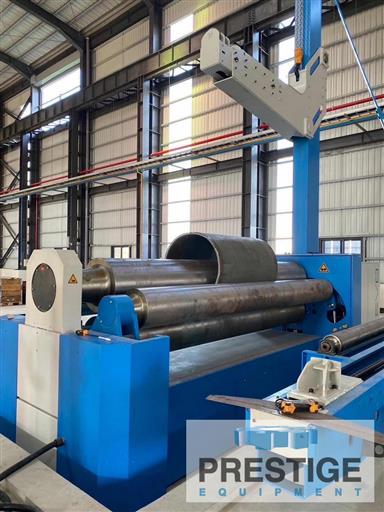

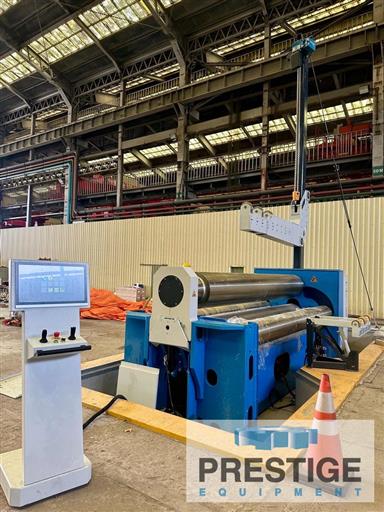

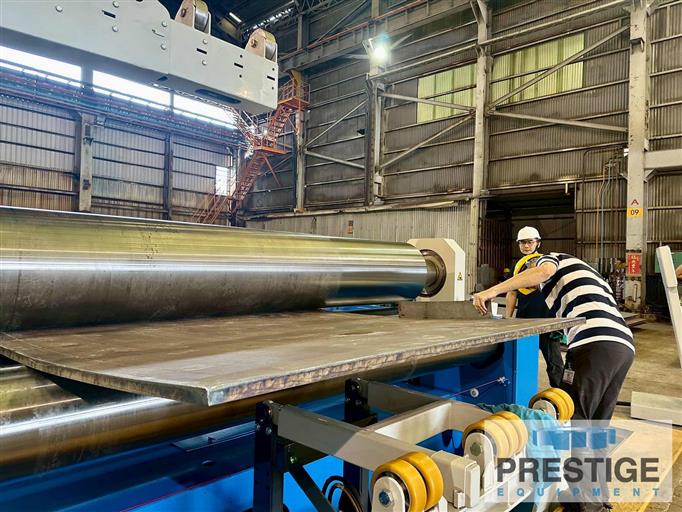

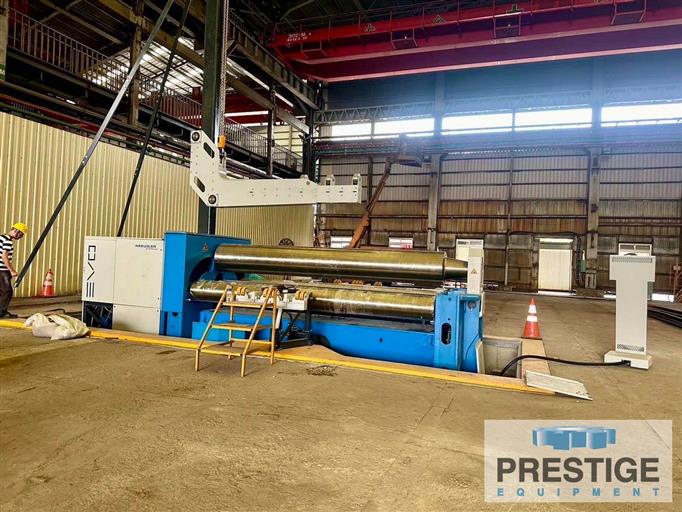

Haeusler EVO 42196 1.49" x 165" 4-Roll Plate Bending Machine
Model:
EVO 42196
Age:
2024
Ref#:
44507
Prestige Equipment is the world's leading provider of Haeusler EVO 42196 1.49" x 165" 4-Roll Plate Bending Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used Plate Bending Rolls for sale.
Product Specifications
Features:
✓

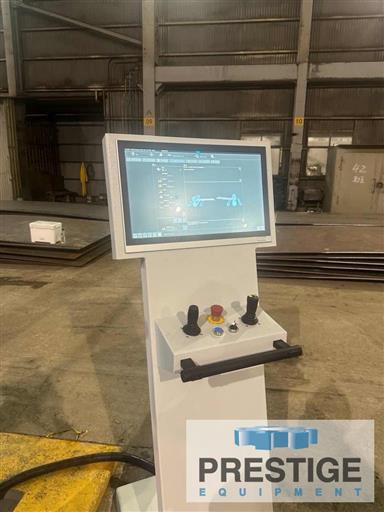

BENDtronic CNC Control with 21.5" Touch Screen Display
✓
Autonomous Bending Package
✓
Installed Remote Access Service for Online Diagnosis
✓
VSA Technology (Allows Bending of Thicker Plates and Samller Diameters)
✓
Automatic Pressure Compensation Between Top and Bottom Roll
✓
Automatic Protection of Hydraulic System against Overload
✓
Tilting of Bottom and Both Side Rolls for Cone Bending
✓
Upper Plate Supporting Device
✓
Lateral Side Supporting Device
✓
Plate Table Infeed
Product Specifications
SPECIFICATIONS:
Pre-Bending Capacity
1.33"
Rounding Capacity
1.49"
Surface Length of Rolls
165.35"
Top Roll Diameter
21.25"
Bottom Roll Diameter
19.68"
Side Roll Diameter
14.37"
Min. Bending Dia. (Top Roll 21.25")
23.42"
Min. Bending Dia. (Top Roll 14.5")
16.14"
Operating Speed
0-314 IPM
Main Drive Motor
73.75 HP
Overall Dimensions (LxWxH)
294" x 82" x 95"
Approximate Shipping Weight
77,200 Lbs
Equipped With:
BENDtronic CNC Control with 21.5" Touch Screen Display
Autonomous Bending Package
Installed Remote Access Service for Online Diagnosis
VSA Technology (Allows Bending of Thicker Plates and Samller Diameters)
Automatic Pressure Compensation Between Top and Bottom Roll
Electro-Mechanical Holding System for Rotation of Top Roll
Automatic Protection of Hydraulic System against Overload
Continuous Pressure Adjustment for Bottom Roll
Tilting of Bottom and Both Side Rolls for Cone Bending
Upper Plate Supporting Device
Lateral Side Supporting Device
Plate Table Infeed
4-Roll Machine Design
NOTE:
Brand New, Customer Lost Job
