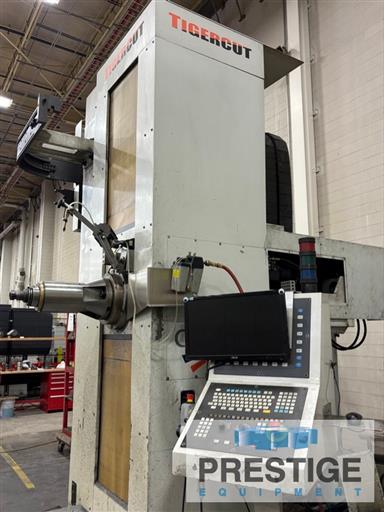

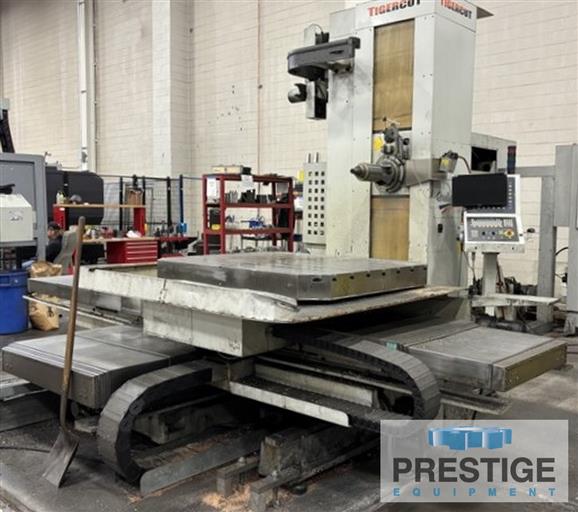

Tigercut 4.3" CNC Table Type Horizontal Boring Mill
Model:
HBM-4
Age:
2007
Ref#:
44992
Prestige Equipment is the world's leading provider of Tigercut 4.3" CNC Table Type Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓
FAGOR CNC Control
✓
Built-In Rotary Table
✓
60 Position Automatic Tool Changer
Product Specifications
CAPACITY:
Spindle Diameter...................... 4.3"
4.3"
Spindle Taper......................... ISO #50
ISO #50
Vertical Head Travel, y............... 63"
63"
Table Travel, x....................... 86.6"
86.6"
Spindle Travel, w..................... 21.65"
21.65"
Saddle Travel, z...................... 63"
63"
Distance Spindle To Table Center...... 0-63"
0-63"
Built in Rotary Table................. 47.2" x 59"
47.2" x 59"
Table Index........................... 1 Degree
1 Degree
Rapid Traverse: x,y,z Axis............ 472.5 IPM
472.5 IPM
Feed Rates: x,y,z Axis................ .04-196.6 IPM
.04-196.6 IPM
Table Load Capacity................... 11,000 LBS
11,000 LBS
Spindle Speeds (2 Ranges)............. 35-3000 RPM
35-3000 RPM
Tool Change Time (Tool to Tool)....... 9 Seconds
9 Seconds
Maximum Tool Weight in Tool Changer... 55 LBS
55 LBS
Approximate Dimensions
308" x 197" x 146"
Approximate Machine Weight
49,600 Lbs.
Equipped With:
FAGOR CNC Control
Built-In Rotary Table
60 Position Automatic Tool Changer
Steel Telescoping Way Covers
Auto Power Off
Auto Lubrication System
Auger Style Chip Conveyor
25 HP Spindle Drive Motor
Features:
✓
FAGOR CNC Control
✓
Built-In Rotary Table
✓
60 Position Automatic Tool Changer
