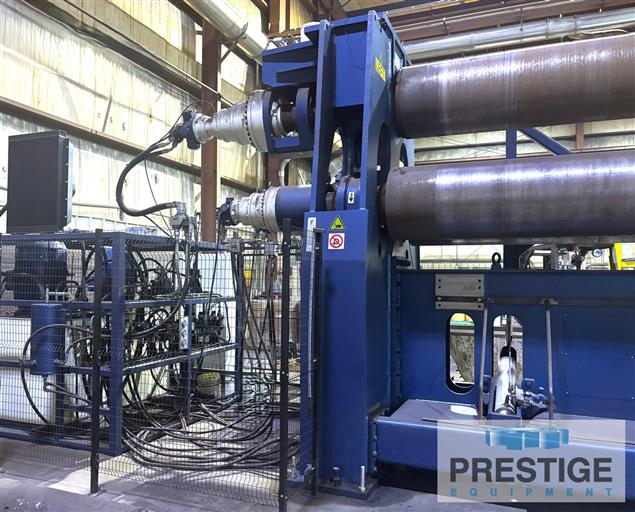

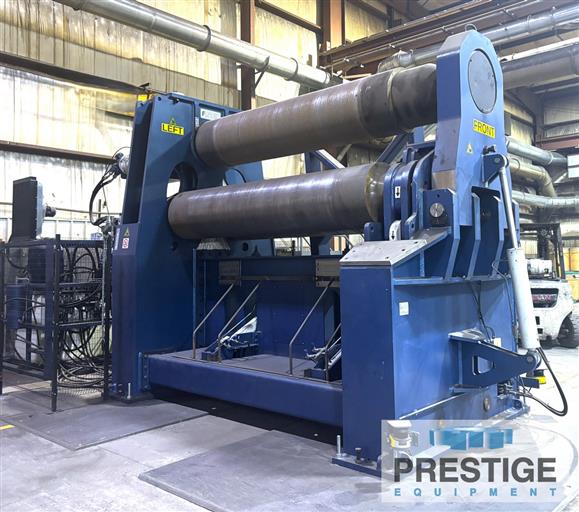

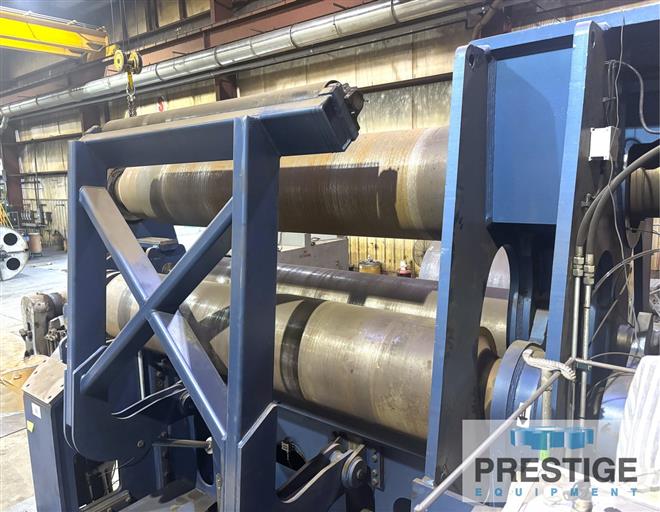

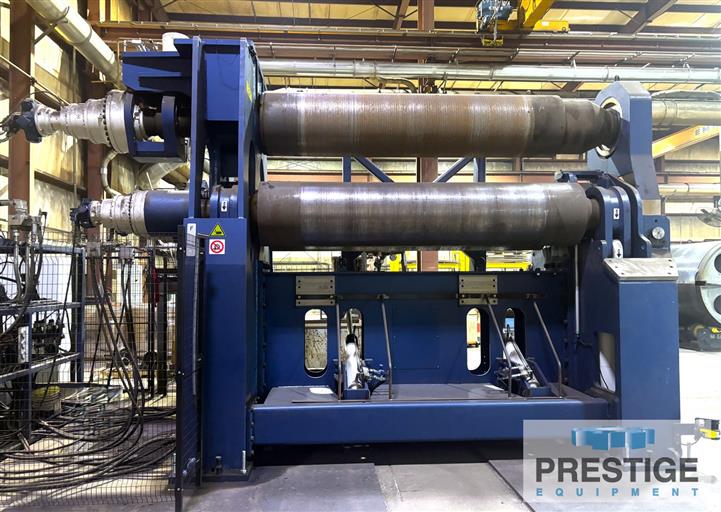

Faccin 3HEP-SX210 3-Roll Planetary Design Plate Bending Roll
Model:
3HEP-SX210
Age:
2025
Ref#:
45042
Prestige Equipment is the world's leading provider of Faccin 3HEP-SX210 3-Roll Planetary Design Plate Bending Roll & machine tools & fabricating equipment. Take a look at our wide selection of new and used Plate Bending Rolls for sale.
Product Specifications
Features:
✓
3-Roll Planetary Design
✓
Operators Control Console
✓
Electronic Digital Roll Position Readouts
✓
Special Alloyed Rolls
✓
Independently motorized Rolls
Product Specifications
CAPACITY:
Max. Plate Width
120"
Top Roll Diameter
26"
Side Rolls (2) Diameter
24.8"
Max. Rolling Speed
20 FPM
Main Drive Motor
175 HP
BENDING CAPACITIES, MATERIAL YIELD STRENGTH 37.7 KSI:
Max. Plate Thickness @130" ID
3" x 120"
Max. Plate Thickness @34" ID
2.5" x 120"
Max. Plate Thickness @130" ID
3.75" x 60"
PRE-BEND CAPACITIES, MATERIAL YIELD STRENGTH 37.7 KSI:
Max. Plate Thickness @130" ID
2.5" x 120"
Max. Plate Thickness @34" ID
2" x 120"
Max. Plate Thickness @130" ID
3.13" x 60"
BENDING CAPACITIES, MATERIAL YIELD STRENGTH 52.2 KSI:
Max. Plate Thickness @130" ID
2.5" x 120"
Max. Plate Thickness @34" ID
2.18" x 120"
Max. Plate Thickness @130" ID
3.13" x 60"
PRE-BEND CAPACITIES, MATERIAL YIELD STRENGTH 52.2 KSI:
Max. Plate Thickness @130" ID
2" x 120"
Max. Plate Thickness @34" ID
1.75" x 120"
Max. Plate Thickness @130" ID
2.5" x 60"
Equipped With:

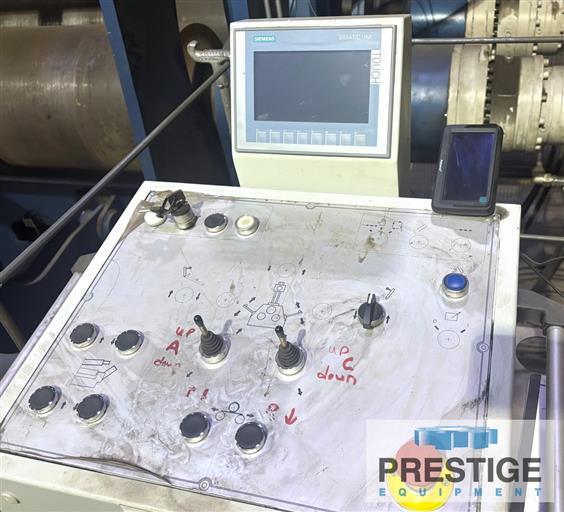

Operators Control Console On Wheels
(2) Electronic Digital Roll Position Readouts
Special Alloyed Rolls for high surface hardness plate processing.

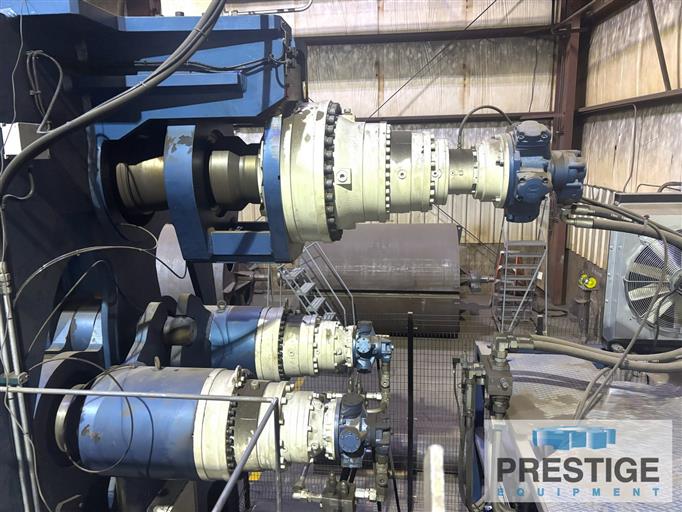

(3) Rolls independently motorized for maximum torque
Planetary system for side rolls movement
Electronic balancing system for the synchronization of rolls movement
Extra-large double shaft drop end
NOTE:
Inspect In Plant Under Power
