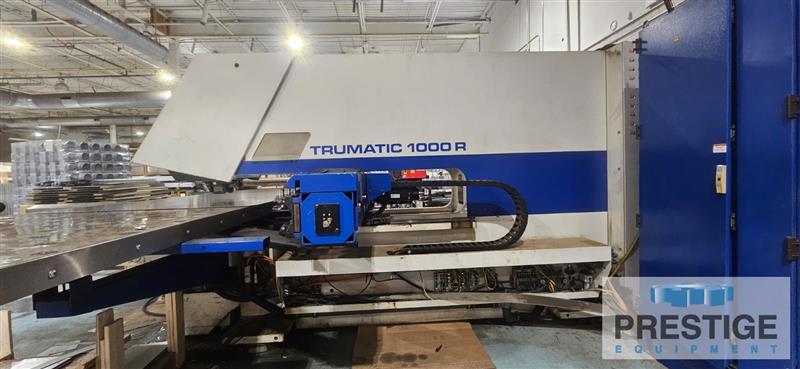

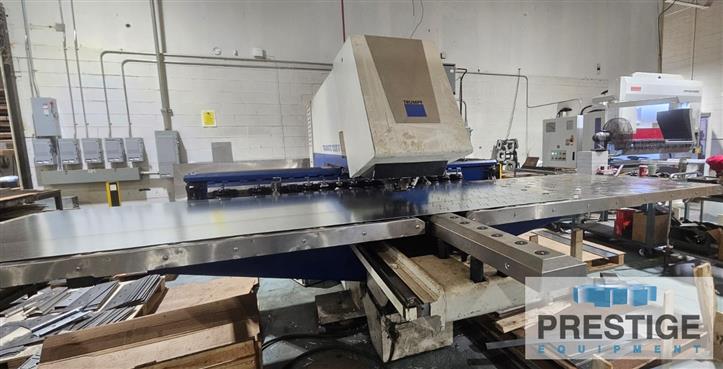

TRUMPF Trumatic 1000 R 18 Ton CNC Punch & Contouring Machine
Model:
Trumatic 1000R
Age:
2006
Ref#:
44232
Prestige Equipment is the world's leading provider of TRUMPF Trumatic 1000 R 18 Ton CNC Punch & Contouring Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used Punch Laser Combination Turret Punches for sale.
Product Specifications
Features:
✓
Bosch PNC-P CNC Control
✓
15 Tool Linear Magazine With (2) Work Clamps
✓
Programmable Tool Rotation
✓
Multi-Tool Option
✓
Ball Table Design
✓
Approx. (9) Cartridges
Product Specifications
SPECIFICATIONS:
Maximum Tonnage Capacity
18 Ton
X-Axis Working Range
81.49"
Y-Axis Working Range
50.93"
Working Range With Repositioning
98.42" x 50.93"
Maximum Sheet Thickness
1/4"
Maximum Work Piece Weight
330 Lbs
Maximum Punch Diameter
3"
Axis Speed, Simultaneous (X & Y)
3818 IPM
Maximum Stroke Rate Punching
600 RPM
Maximum Stroke Rate Marking
1300 RPM
C-Axis Rotation Speed
180 RPM
Rotation Of All Tools
360 degrees
Approximate Floor Space Required
236" L x 229" W
Approximate Height
84.84"
Equipped With:
Bosch PNC-P CNC Control
15 Tool Linear Magazine With (2) Work Clamps
Programmable Tool Rotation
Multi-Tool Option
Ball Table Design
Approx. (9) Cartridges
Features:
✓
Bosch PNC-P CNC Control
✓
15 Tool Linear Magazine With (2) Work Clamps
✓
Programmable Tool Rotation
✓
Multi-Tool Option
✓
Ball Table Design
✓
Approx. (9) Cartridges
