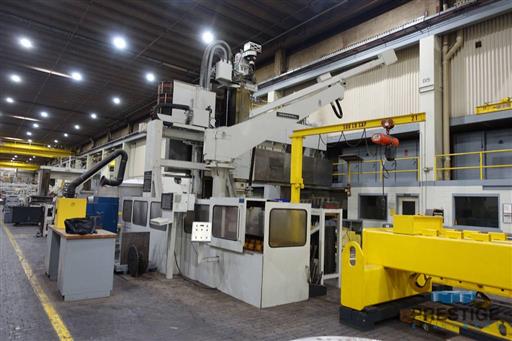

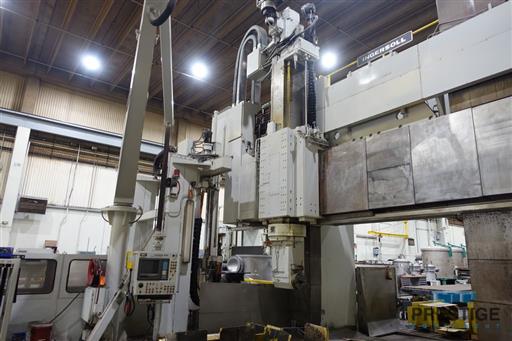

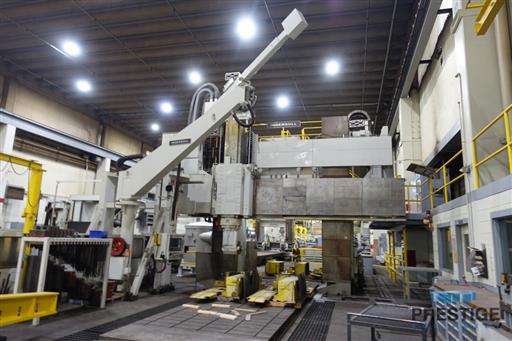

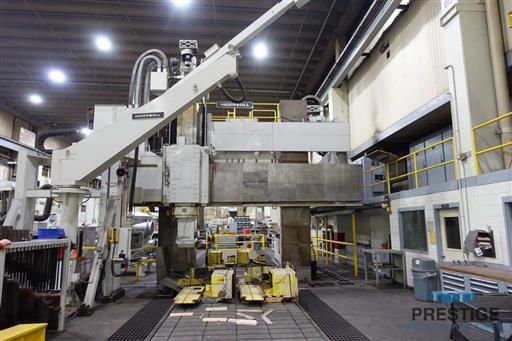

Ingersoll Masterhead 5-Axis CNC Planer Mill 118" x 551" Split Table

Model:
Masterhead
Age:
1992
Ref#:
31513
Prestige Equipment is the world's leading provider of Ingersoll Masterhead 5-Axis CNC Planer Mill 118" x 551" Split Table & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
Double Housing
Adjustable Rail

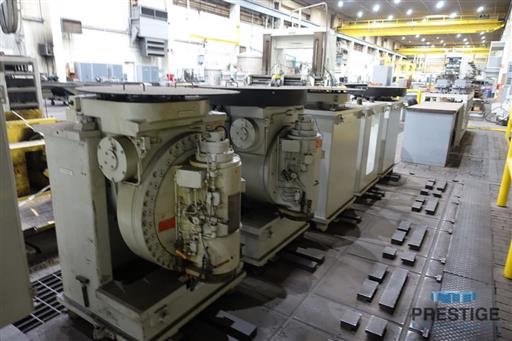

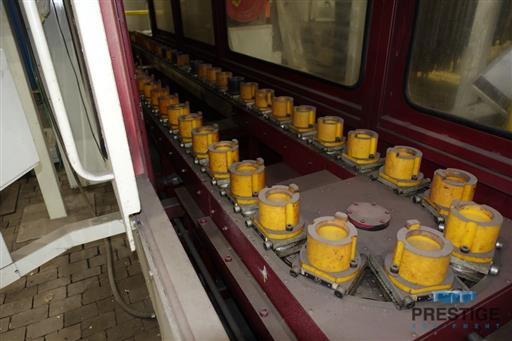

72 Station Automatic Attachment Changer
Automatic Tool Changer
2-Axis Head Attachment
5-Spindle Units
FANUC 150-M 5-Axis CNC Control
Product Specifications
TRAVELS:
X-Axis, Table Travel
511.81"
Y-Axis, Horizontal Head Travel
163.38"
Z-Axis, Ram Stroke
59.1"
W-Axis, Cross Rail Vertical Travel
98.42"
A-Axis, Head Rotation, 360 Degree
360,000 Positions
B-Axis, Head Swivel, 180 Degree
360,000 Positions
SPECIFICATIONS:

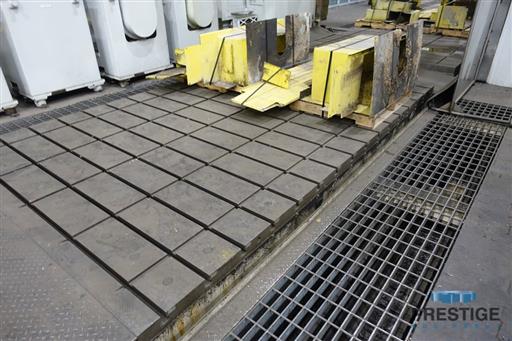

Table Size, Joined
98" x 511.86"
Table Size, Un-Coupled Front
98" x 314.9"
Table Size, Un-Coupled Back
98" x 157.5"
Table Weight Per Table Meter Length
44,000 LBS/Meter
Distance Between Table Sections
39.37"
Distance Between Columns
118.11"
Distance Between Columns w/o Way Covers 124"

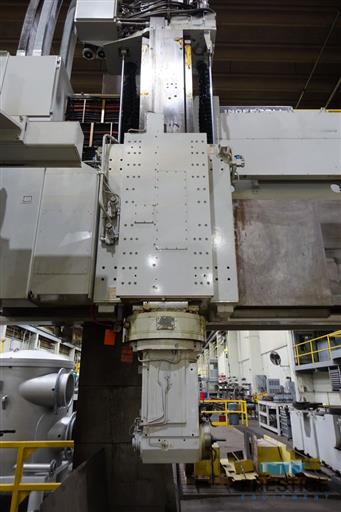

Ram Cross Section
23.62" x 23.62"
Maximum Height Table to Ram Face
127.95"
Maximum Machining Height w/8" Tool
100"
Spindle Taper
Cat V-50
Speeds
2-2500 RPM
Table Weight Capacity Joined
139,480 Lbs
VERTICAL SPINDLE UNIT (A1):
Coolant
External & Thru-Spindle
Maximum Speed
1500 RPM
C-Axis Movement
360 Degree
Tool Load
Automatic
N/C SWIVEL UNIT (A3):
Power
50 HP
Coolant
External
Maximum Speed
1500 RPM
C-Axis Movement
360 Degree
B-Axis Movement
180 Degree
Tool Load
Automatic

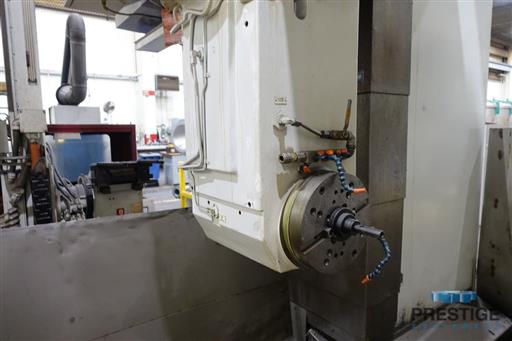

90 DEGREE SPINDLE UNIT (A2):
Power.................................. 100 HP
100 HP
Coolant
External
Maximum Speed
1500 RPM
C-Axis Movement
360 Degree
Tool Load
Automatic
90 DEGREE SPINDLE UNIT (A5):
Power
50 HP
Coolant
External
Maximum Speed
1750 RPM
C-Axis Movement
360 Degree
Tool Load
Manual
BIG SHEPPARD SPINDLE SPEEDER:
Speed Rate
3 to 1
Maximum RPM............................ 8,000 RPM
8,000 RPM
Maximum Diameter
1.25"
Maximum HP
10 HP
Coolant
Thru-Spindle
Equipped With:

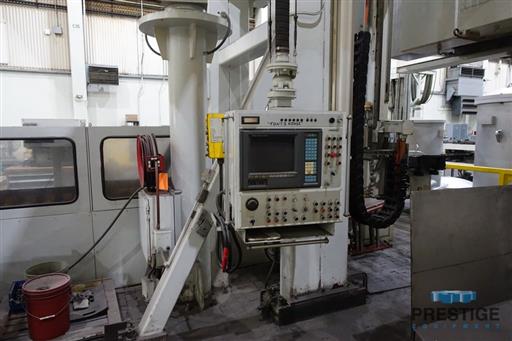

Fanuc 150-M 5-Axis CNC Control

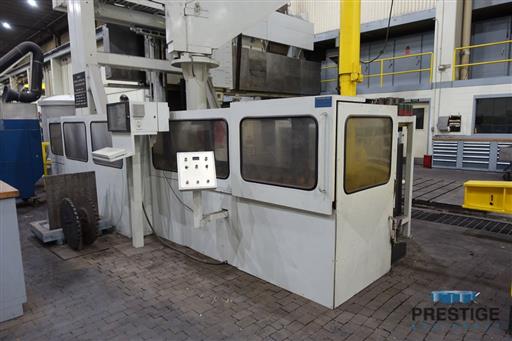

Adjustable Pendant Controls
Thru-Spindle Coolant
5-Spindle Units
Straight Milling Heads
2-Axis Articulating Head for 5-Axis Machining
Right Angle Head for 5-Face Milling
Telescoping Steel Way Covers on all X, Y & W Axes
Chip Conveyor
125 HP Spindle Motor
NOTES:
Mechanically Rebuilt Hydraulics, Ways Re-Ground, New Non-Metalic Surfaces, Rebuilt Ram,
Features:
Double Housing
Adjustable Rail
72 Station Automatic Attachment Changer
Automatic Tool Changer
2-Axis Head Attachment
5-Spindle Units
FANUC 150-M 5-Axis CNC Control
