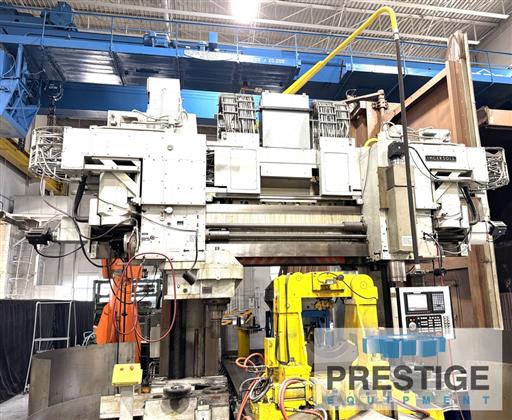

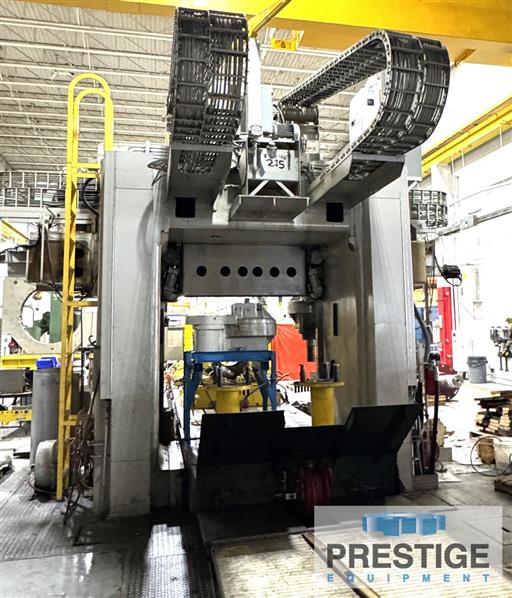

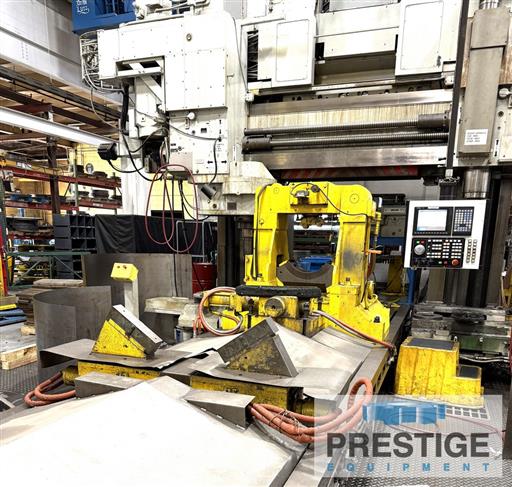

Ingersoll 72" x 72" x 480" Planer Mill
Model:
CNC Double Housing
Age:
2010 ®
Ref#:
44265
Prestige Equipment is the world's leading provider of Ingersoll 72" x 72" x 480" Planer Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓

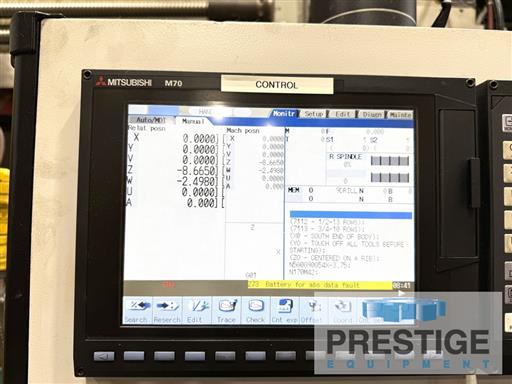

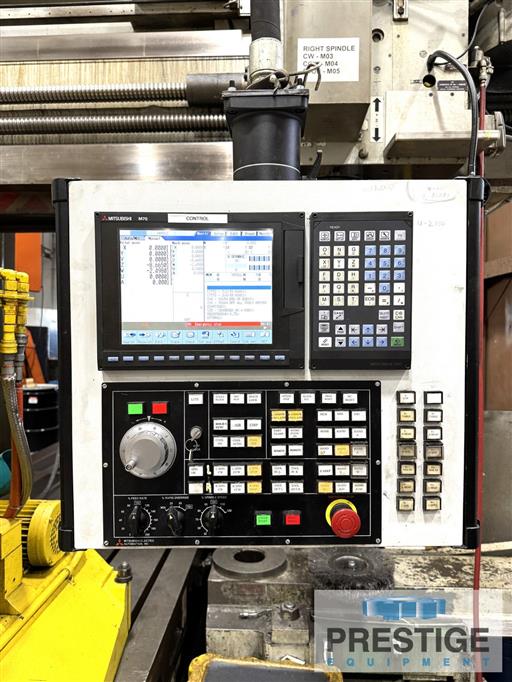

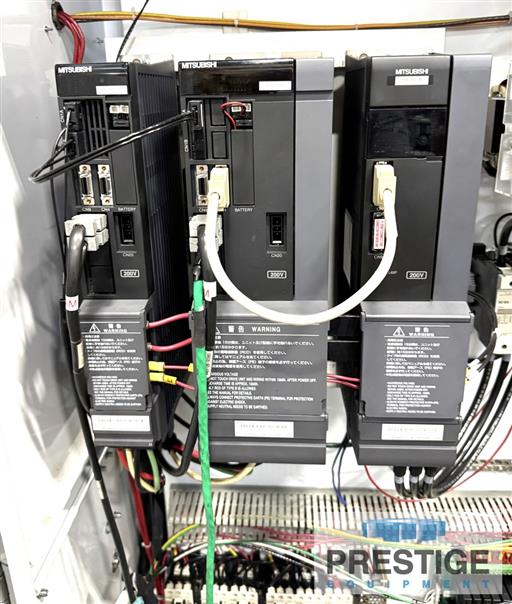

Mitsubishi M70 CNC Controls
✓

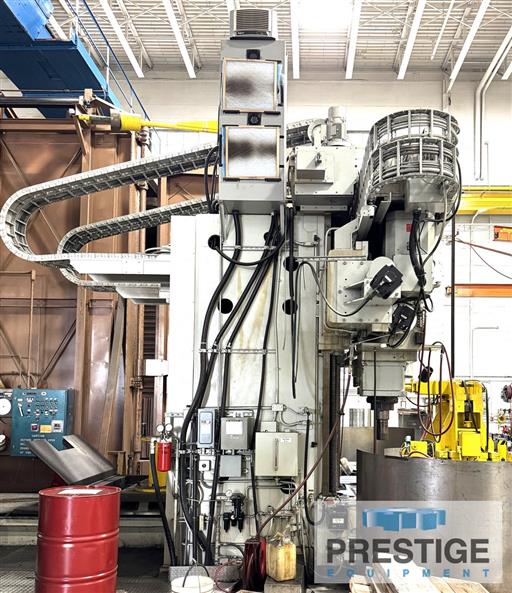

(2) 50 HP Vertical Milling Head
✓
(2) Slotting Attachments
✓
(2) Angle Heads
✓
(2) Speed Increaser Heads
✓

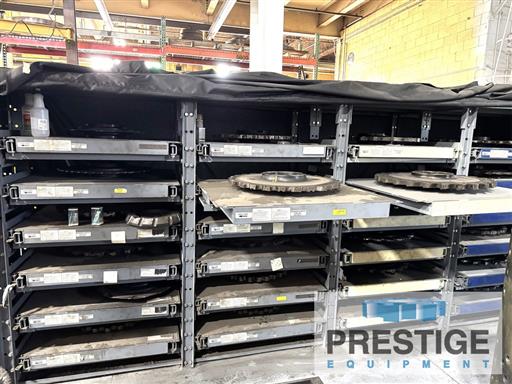

Miscellaneous Tooling & Rotary Slotting Cutters
✓
Ball Screws on Y-Axis
✓
Steel Roll Up Way Covers on X-Axis
Product Specifications
Serial Number
22681
CAPACITY:
Distance Between Housings
72"
Height Under Cross Rail
72"
Table Travel
480"
Table Size
480" x 64"
Milling Head Quill Diameter
10"
Milling Head Quill Travel
12"
Spindle Speeds, Max
320 RPM
Spindle Motors
50 HP

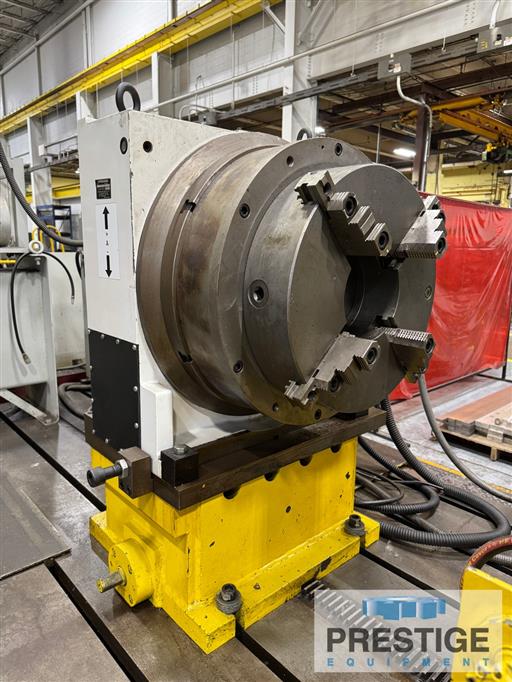

Rotary Indexer Table Dia.
24.6"
Rotary Indexer Center Line
29.99"
Table Feeds, Variable
300 IPM
Maximum Table Weight Capacity
60,000 LBS.
Machine Length & Width, Approx.
1,110" x 320"
Machine Height, Approx.
230"
Equipped With:
Mitsubishi M70 CNC Controls
(2) 50 HP Vertical Milling Heads
(2) Slotting Attachments
(2) Angle Heads
(2) Speed Increaser Heads
Miscellaneous Tooling & Rotary Slotting Cutters
Ball Screws on Y-Axis
Steel Roll Up Way Covers on X-Axis
NOTE:

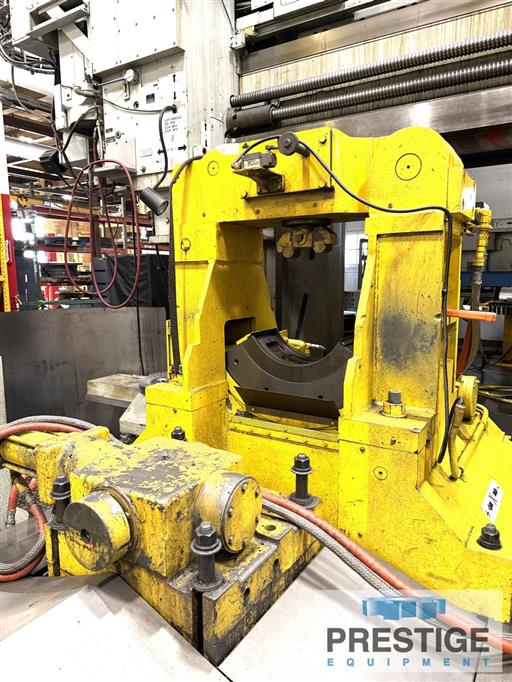

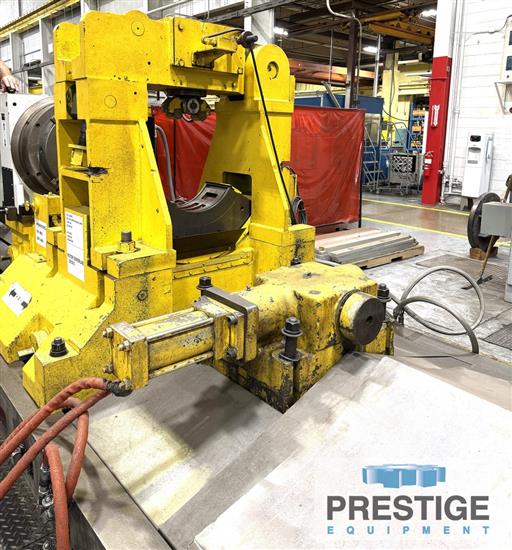

Machine In Use for Milling & Slotting of Turbine Shafts
Features:
✓
Mitsubishi M70 CNC Controls
✓
(2) 50 HP Vertical Milling Head
✓
(2) Slotting Attachments
✓
(2) Angle Heads
✓
(2) Speed Increaser Heads
✓
Miscellaneous Tooling & Rotary Slotting Cutters
✓
Ball Screws on Y-Axis
✓
Steel Roll Up Way Covers on X-Axis
