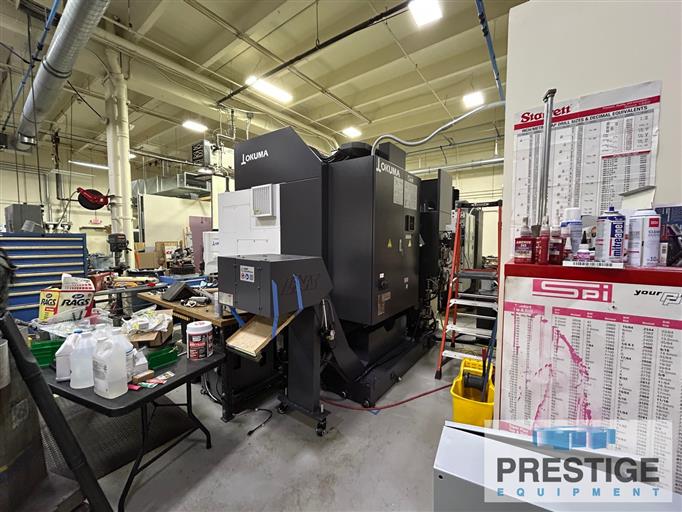

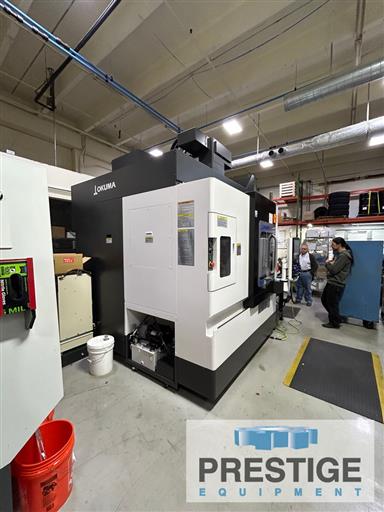

Okuma Genos M460V- 5-Axis CNC Vertical Machining Center
Model:
Genos M460V-5AX
Age:
2024
Ref#:
44505
Prestige Equipment is the world's leading provider of Okuma Genos M460V- 5-Axis CNC Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓

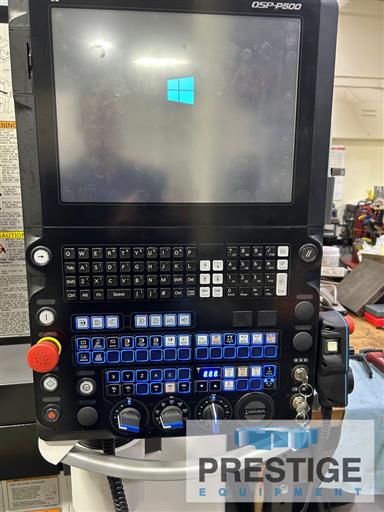

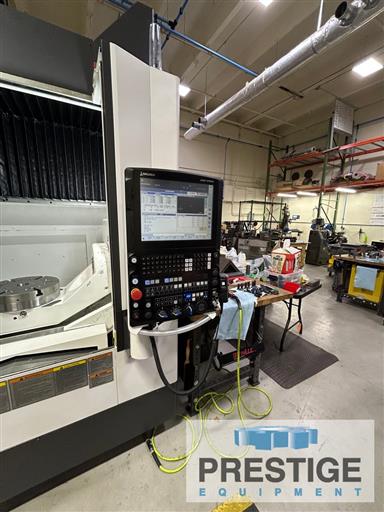

OSP-P500M-H 5-Axis CNC Control with Pulse Handle
✓

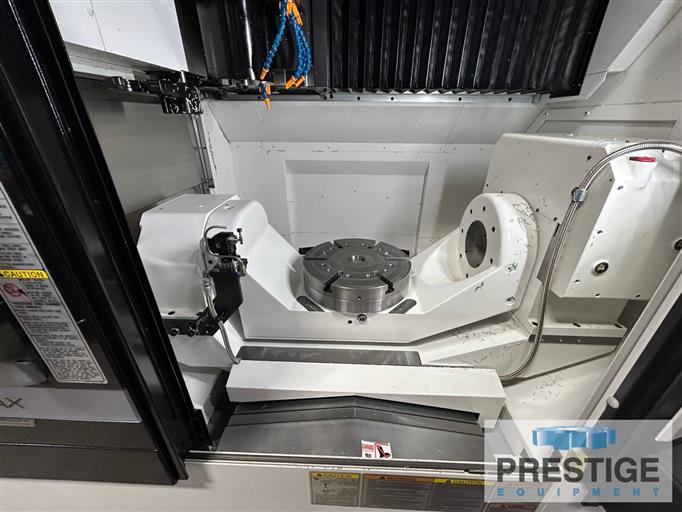

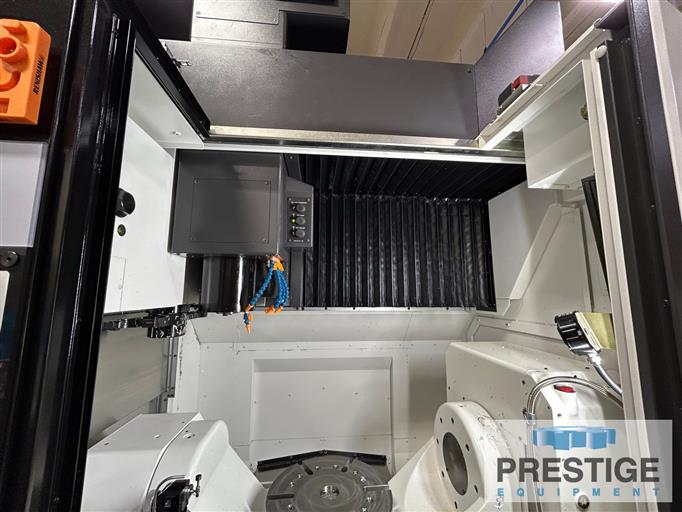

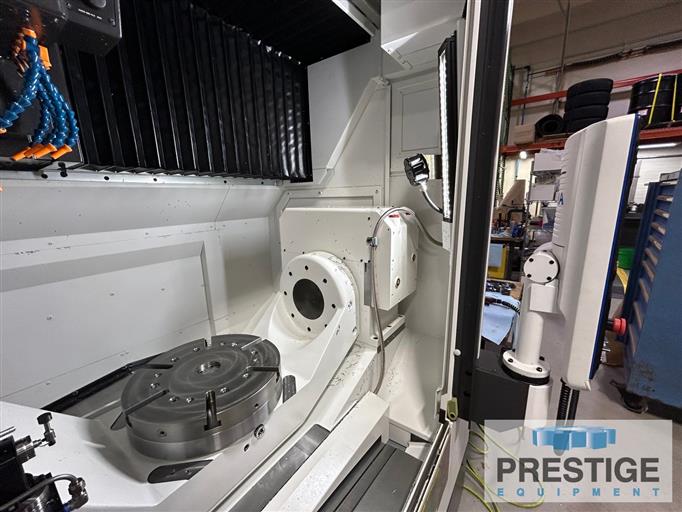

Full NC A-Axis (Trunnion) C-Axis 15.75" Table
✓
48-Position Automatic Tool Changer
✓
Renishaw Working & Tool Probing
✓

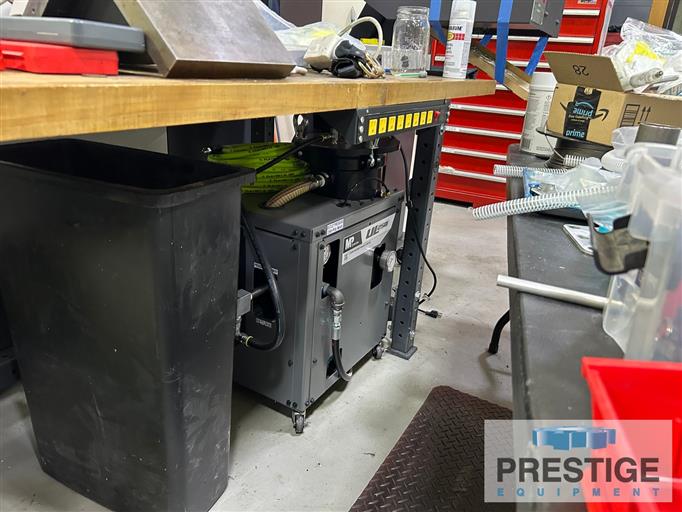

MP Systems UL250 250 PSI High Pressure Coolant System
✓
Active/Passive Thermal Compensation
✓
LNS Chip Conveyor
Product Specifications
CAPACITIES:
X-Axis Travel
30.00"
Y-Axis Travel
18.11"
Z-Axis Travel
18.11"
A-Axis Swivel
+20/-110 Degrees
C-Axis Rotation
360 Degrees
Table Surface to Spindle Nose
3.94"-22.05"
TABLE:
Rotary Table Diameter
15.75"
Max Work Size
23.62" x 15.75"
Floor To Table Top
41.34"
Max. Work Weight
660 Lbs.
SPINDLE:
Spindle Speed
50-15,000 RPM
No. Of Spindle Ranges
Infinitely Variable
Spindle Taper
CAT 40 Big Plus
Spindle Motor
30 HP/25 HP
FEEDS:
Rapid Traverse, X & Y Axes
1574 IPM
Rapid Traverse, Z-Axis
1259 IPM
Rapid Traverse, A-Axis
14,400 Deg. Per Minute
Rapid Traverse, C-Axis
18,000 Deg. Per Minute
Cutting Feedrate
1260 IPM
TOOL CHANGER:
Tool Capacity
48 ATC
Max. Tool Dia., Adjacent Full/Empty
3.54"/4.92"
Max. Tool Length
9.45"
Max. Tool Weight
18 Lbs.
MACHINE SIZE:
Floor Space
85" x 111"
Machine Height
115.98"
Approx. Weight
16,675 Lbs.
Equipped With:
OSP-P500M-H 5-Axis CNC Control with Pulse Handle
10MB Program Select Capacity
Full NC A-Axis (Trunnion) C-Axis 15.75" Table
48-Position Automatic Tool Changer
Renishaw Working & Tool Probing
MP Systems UL250 250 PSI High Pressure Coolant System
Active/Passive Thermal Compensation
ABSO Scales for X,Y,Z Axes
Thermo Active Stabilization

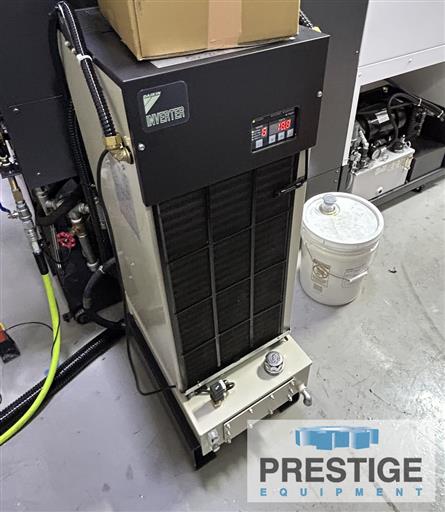

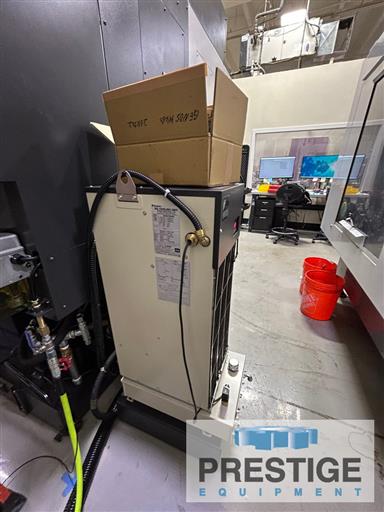

Spindle Temperature Regulator
LNS Chip Conveyor
NOTE:
Like New,Only Demo Hours on Machine
Features:
✓
OSP-P500M-H 5-Axis CNC Control with Pulse Handle
✓
Full NC A-Axis (Trunnion) C-Axis 15.75" Table
✓
48-Position Automatic Tool Changer
✓
Renishaw Working & Tool Probing
✓
MP Systems UL250 250 PSI High Pressure Coolant System
✓
Active/Passive Thermal Compensation
✓
LNS Chip Conveyor
