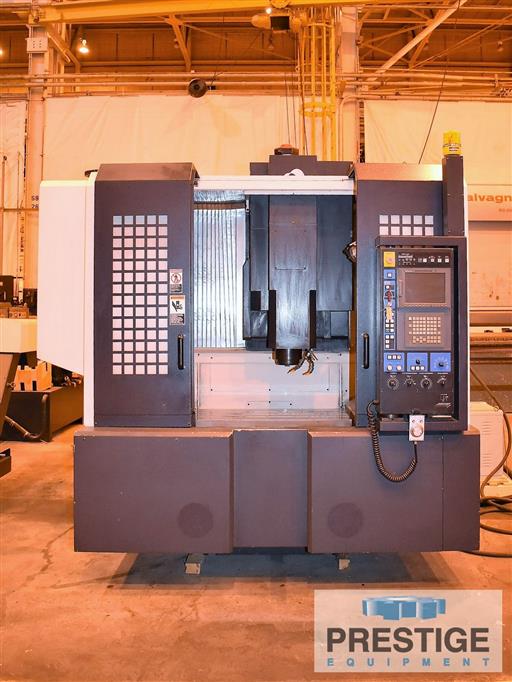

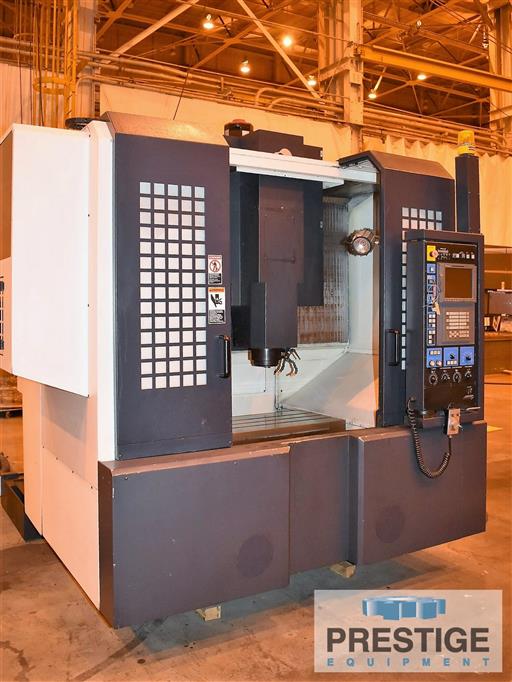

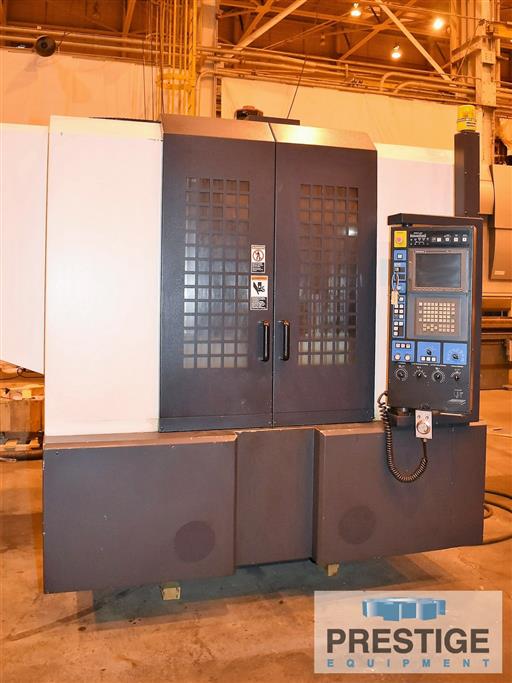

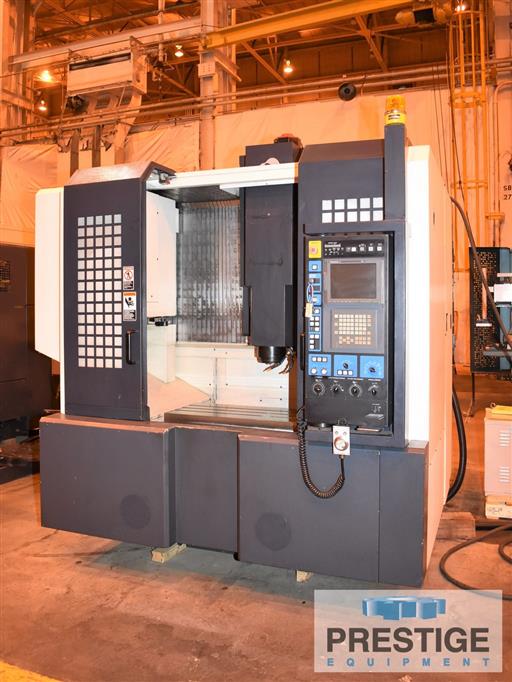

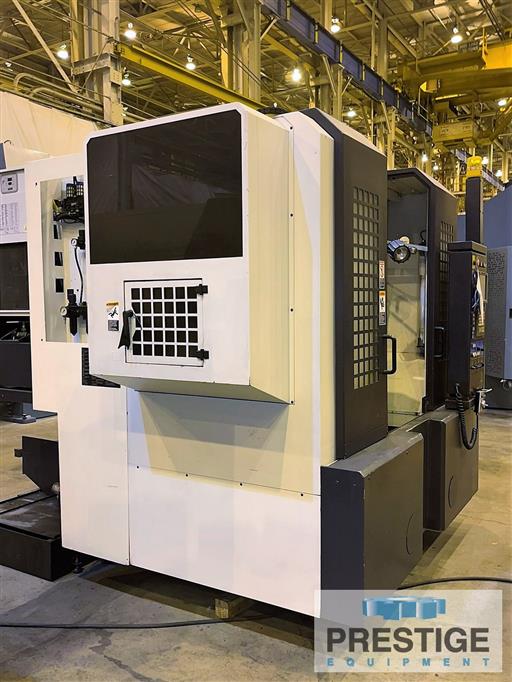

Makino S33 CNC High Speed Vertical Machining Center
Model:
S33
Age:
2002
Ref#:
31741
Prestige Equipment is the world's leading provider of Makino S33 CNC High Speed Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
Makino Pro-3 (Fanuc 16iM) CNC
✓
20 ATC
✓
13,000 RPM
✓
Full Enclosures
Product Specifications

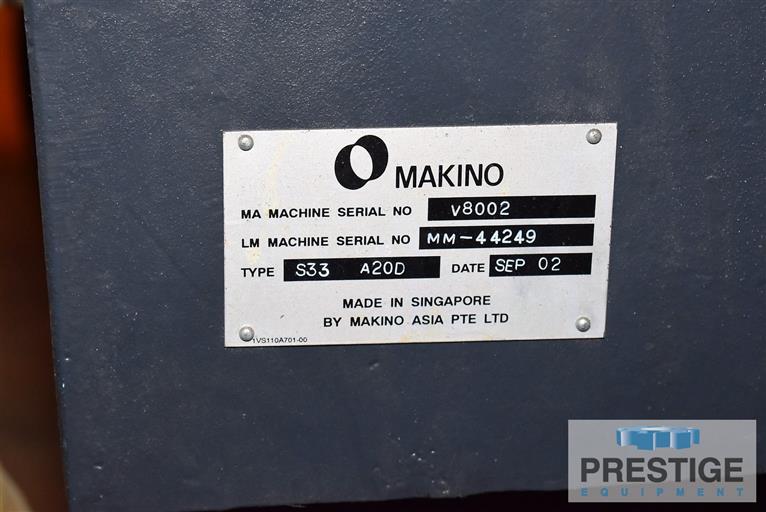

Serial Number
V8002
SPECIFICATIONS:
X-Axis Travel
25.59"
Y-Axis Travel
17.72"
Z-Axis Travel
17.72"
Table Size
23.6" x 15.7"
Table Load Capacity
880 Lbs
Table Top to Spindle Face
5.9"- 21.65"
Spindle Speed Range
130-13,000 RPM
Spindle Taper
CAT 40
Spindle Drive Motor
29.5 HP
Rapid Traverse
1575 IPM
Cutting Feedrate
944 IPM
Tool Changer
20 ATC
Tool to Tool
1.3 Seconds
Chip to Chip
3.4 Seconds
Maximum Tool Size (Dia. x Length)
4.49" x 12"
Maximum Tool Weight
17.6"
Floor Space
132" x 92"
Machine Height
110.5"
Approx. Machine Weight
16,094 Lbs
Equipped With:

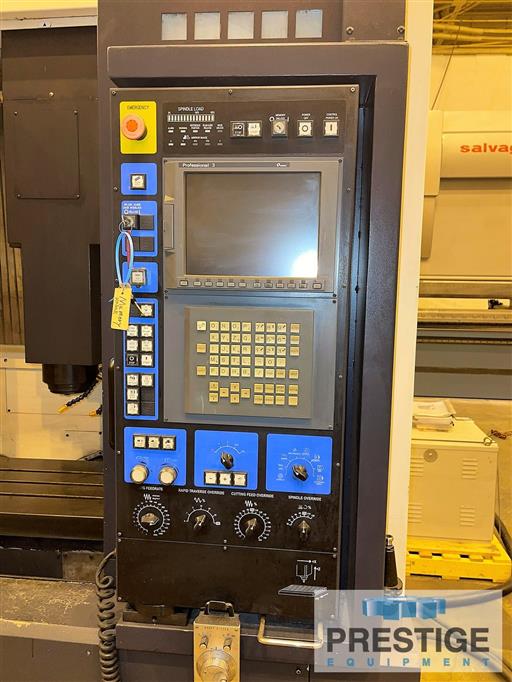

Makino Pro-3 (Fanuc 16iM) CNC Control

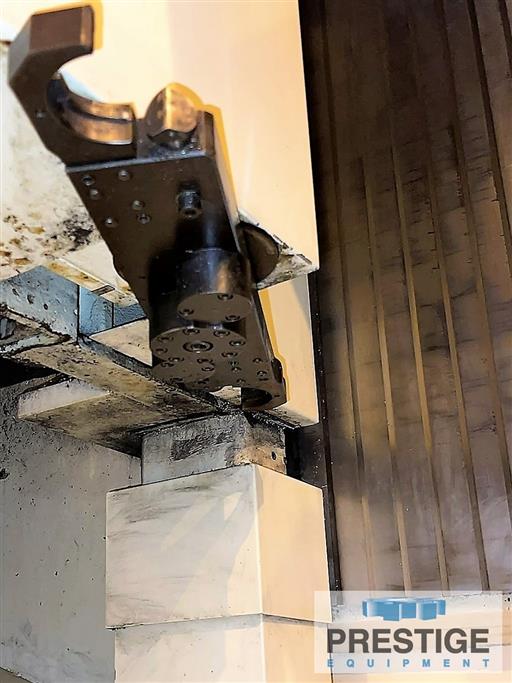

20-Position Side-Mounted Automatic Tool Changer
Shower Coolant
Air Blow
Full Enclosure
Machine Manuals

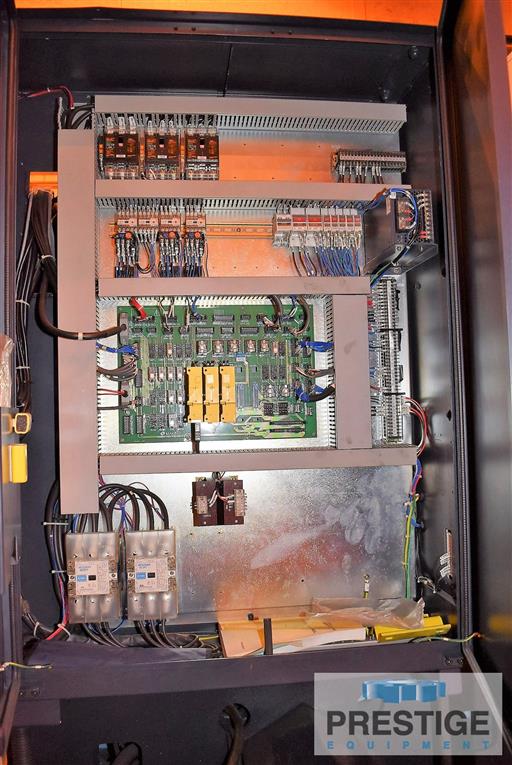

220/3/60 Electrics
HOURS:
9740 Cutting Time
10,196 Operating Time
LOCATION:
Philadelphia, PA
Features:
✓
Makino Pro-3 (Fanuc 16iM) CNC
✓
20 ATC
✓
13,000 RPM
✓
Full Enclosures
