Zimmerman FZ37 CNC Gantry Mill
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Model:
FZ37
Age:
2014
Ref#:
44394
Prestige Equipment is the world's leading provider of Zimmerman FZ37 CNC Gantry Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Bridge Type Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
HEIDENHAIN iTNC 530 CNC Controls
✓
2-Axis Nutating VH20 Milling Head
✓
High Speed Gantry Style
✓
High Speed Gantry Style
✓
High Pressure Through Spindle Coolant System
✓
Full Enclosure, Closed Cabin
✓
Workpiece Sensor
✓
Central Lubrication System
Product Specifications
SPECIFICATIONS:
Gantry Travel, X-Axis
314.9"
Head Travel, y-axis
137.79"
Ram Stroke Z-axis
98.42"
Table Size
118.11" x 391.7"
Max. table load
11,000 lbs. Per Square Meter
swiveling axis A
110° +/-
turning axis C
360° +/-
Spindle Speeds
25000 RPM
Spindle Taper
HSK A63
Spindel Motor ve power
60 HP / 45 kW
Rapids X,Y & Z
2,362 IPM

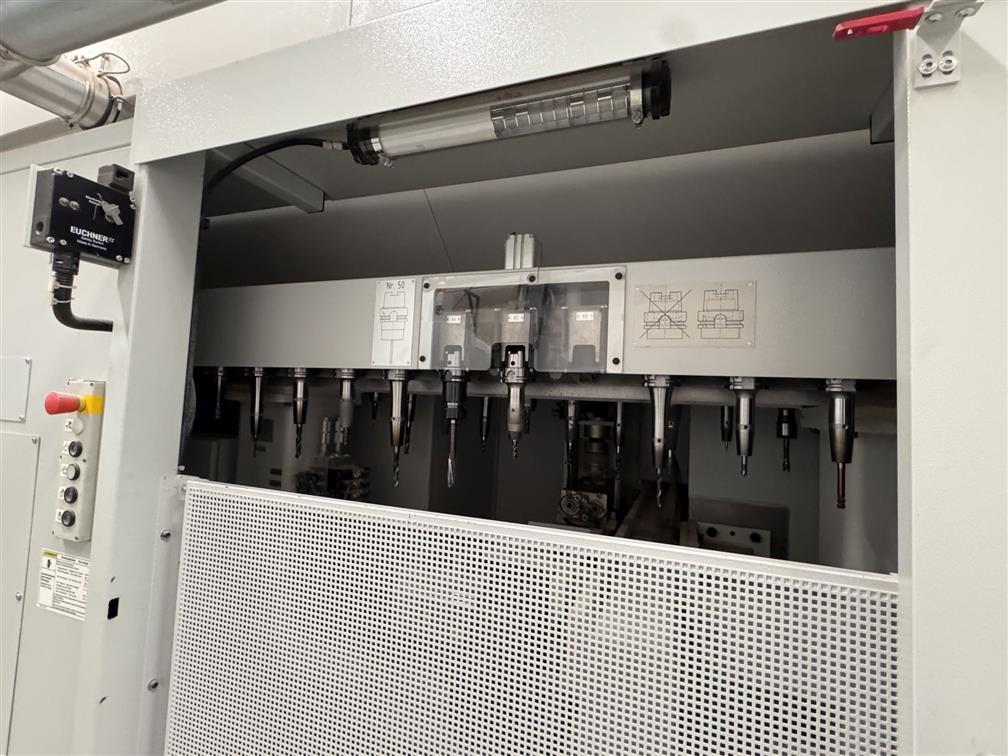

Automatic Tool Changer
50
tool diameter max.
4.92"
tool length max.
11.81"
tool weight max.
17.6 lbs
Equipped With:

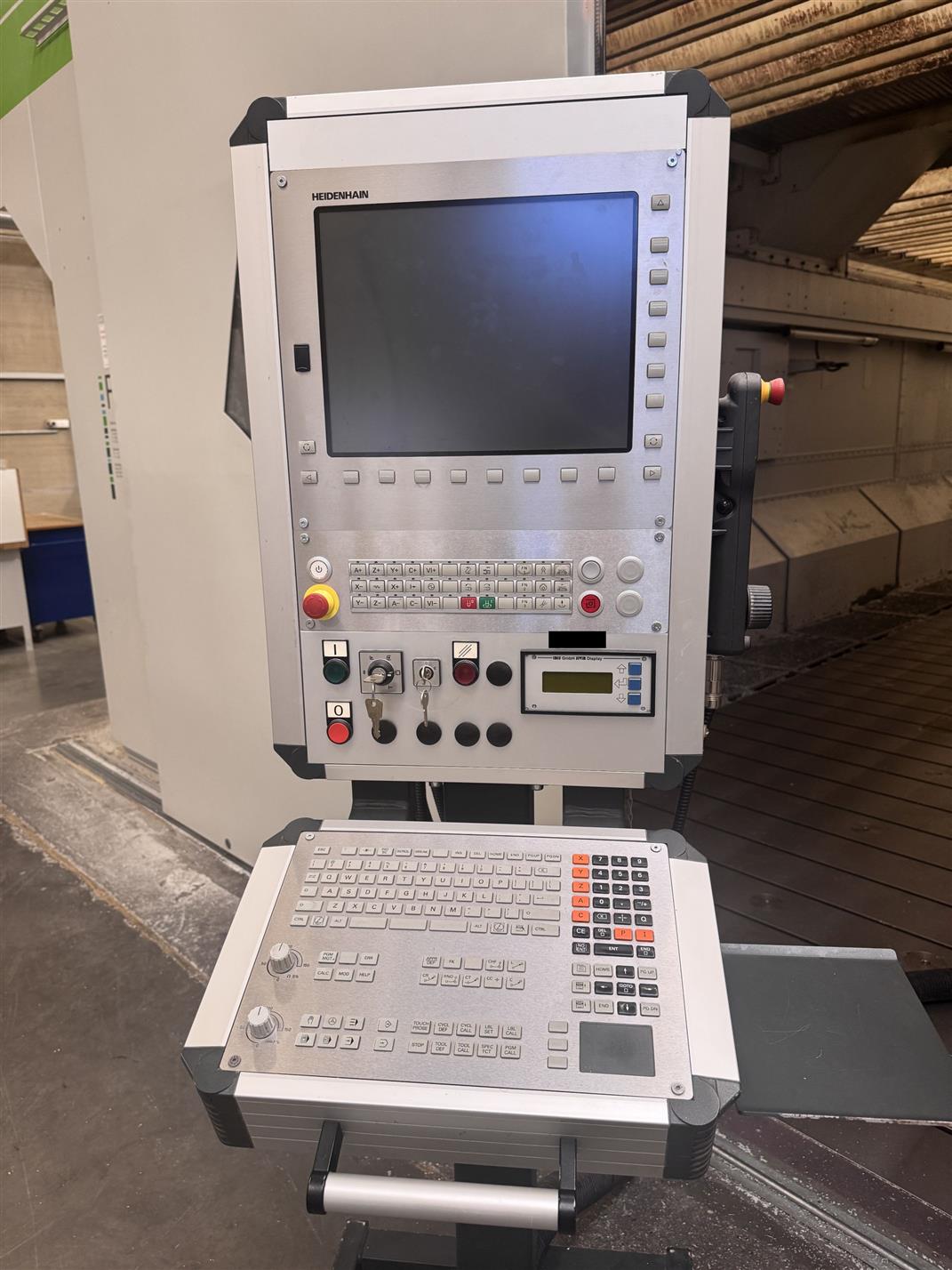

HEIDENHAIN iTNC 530 CNC Controls
High Speed Gantry Style
2-Axis Nutating VH20 Milling Head
High Pressure Through Spindle Coolant System
Full Enclosure, Closed Cabin
Workpiece Sensor
Central Lubrication System
SIEMENS WEISS watercooled
Vibration Sensor
Dynamic Colission Warning
Infrared Measuring Renishaw RMP 60
Toolsetter
BLUM Control NT-Micro
NOTE:
Machine hours 84.951
Spindle change in 2024
Features:
✓
HEIDENHAIN iTNC 530 CNC Controls
✓
2-Axis Nutating VH20 Milling Head
✓
High Speed Gantry Style
✓
High Speed Gantry Style
✓
High Pressure Through Spindle Coolant System
✓
Full Enclosure, Closed Cabin
✓
Workpiece Sensor
✓
Central Lubrication System
