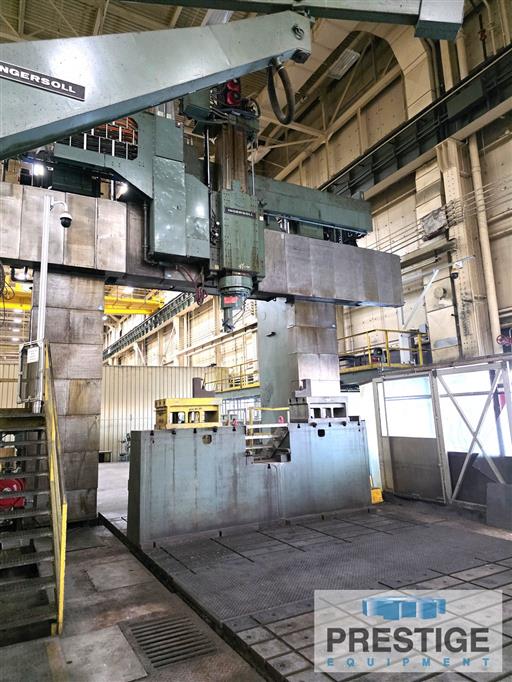

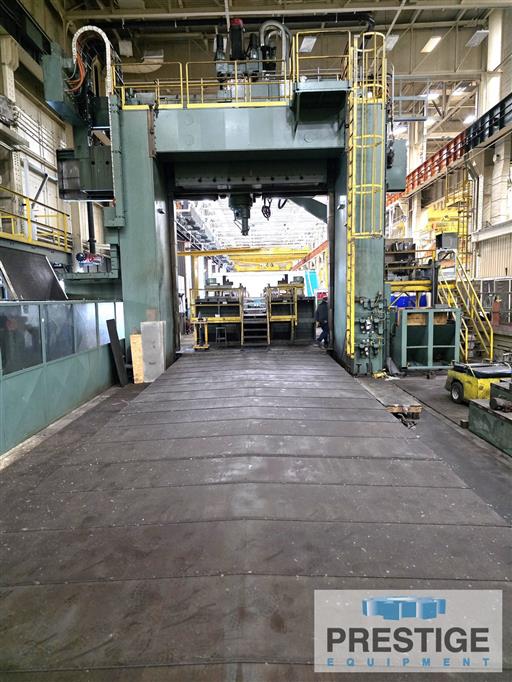

Ingersoll Double Column Adjustable Rail CNC Bridge Mill
Model:
Double Column
Age:
2007 ®
Ref#:
44730
Prestige Equipment is the world's leading provider of Ingersoll Double Column Adjustable Rail CNC Bridge Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Bridge & Planer Type Mills for sale.
Product Specifications
Features:
✓
FANUC 30i 5-Axis CNC Control
✓
Double Housing
✓
Adjustable Rail
✓
Automatic Attachment Changer
✓
Dual Chip Conveyors
Product Specifications
TRAVELS:
Table Travel, X-Axis
511.81"
Head Travel, Y-Axis
268.7"
Ram Stroke, Z-Axis
59.05"
Rail Travel, W-Axis
145.66"
B-Axis, Spindle Swivel, +/- 90 Deg.
1 Degree Increments
C-Axis, Head Rotation Cont & Rev
360 Degrees
SPECIFICATIONS:
Table Size, Joined
168" x 500"
Table Size, Un-Coupled Front
168" x 309"
Table Size, Un-Coupled Back
168" x 152"
Distance Between Table Sections
39"
Distance Between Columns
177"
Ram Cross Section
23.62" x 23.62"
Maximum Height Table to Ram Face
177.16"
Spindle Motor
125 HP
Spindle Speeds
0-2000 RPM
Pallet Load Capacity
44,000 Lbs / Meter
Equipped With:

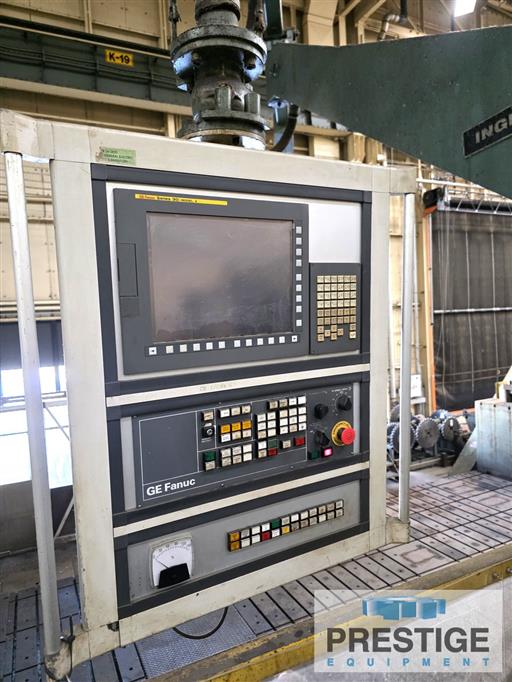

Fanuc 30i-A 5-Axis CNC Control
Adjustable Pendant Controls

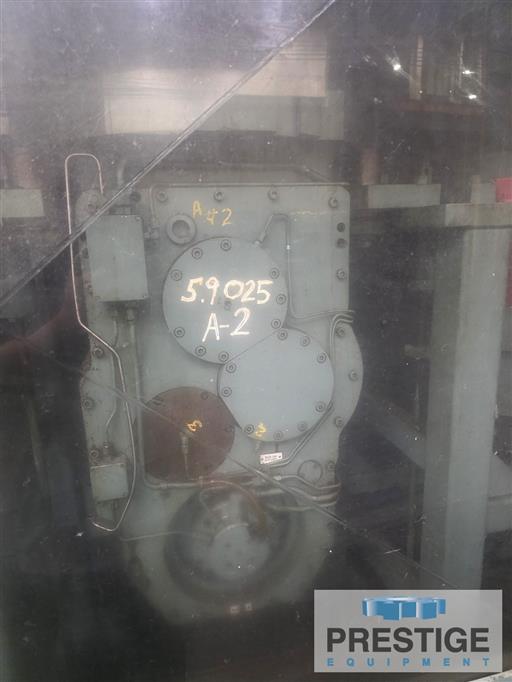

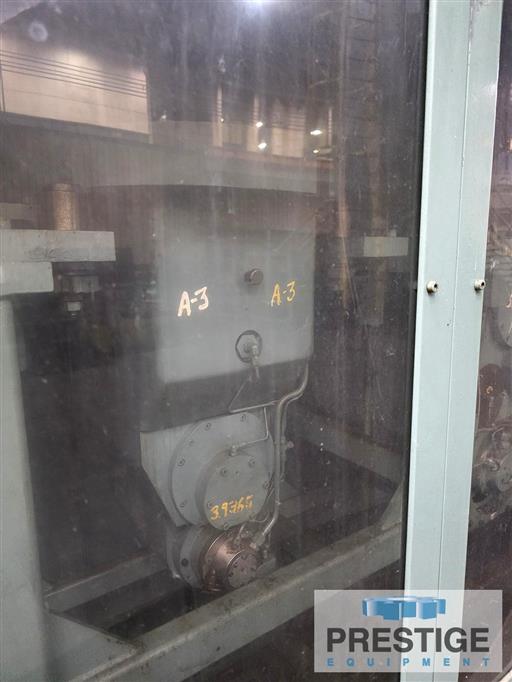

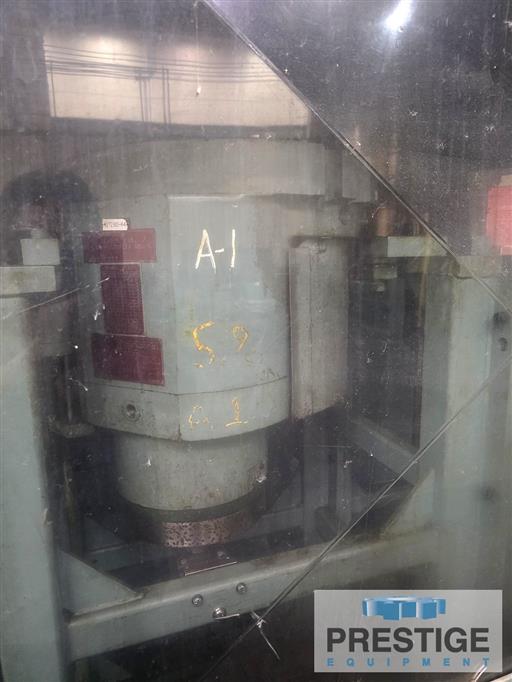

Automatic Attachment Changer
Telescoping Steel Way Covers

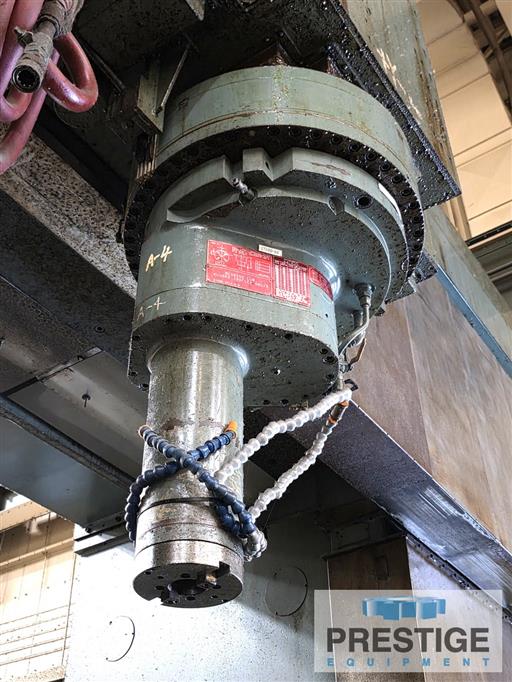

1 - Straight Milling Head, 6:1 Ratio
1 - Right Angle Milling Head, 6:1 Ratio
1 - Right Angle Milling Head, 1:1 Ratio
1 - Straight Milling Head, 2:1 Ratio
1 - Straight Milling Head, 3:1 Ratio
2 - 168" x 62" Workpiece Holders
Split Table

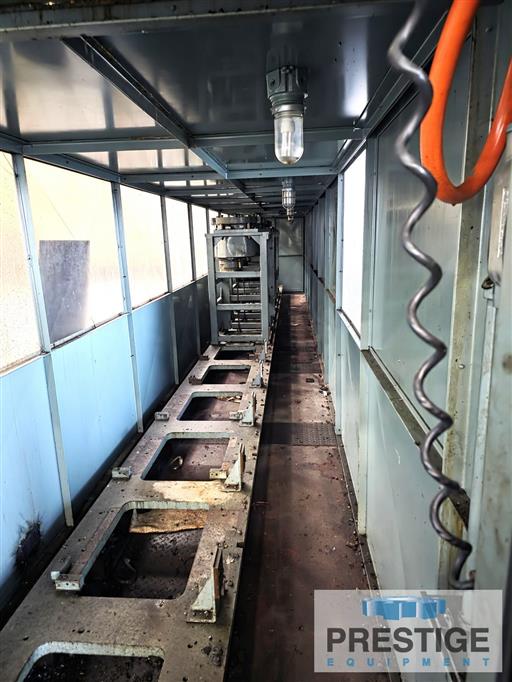

Dual Chip Conveyor
Features:
✓
FANUC 30i 5-Axis CNC Control
✓
Double Housing
✓
Adjustable Rail
✓
Automatic Attachment Changer
✓
Dual Chip Conveyors
