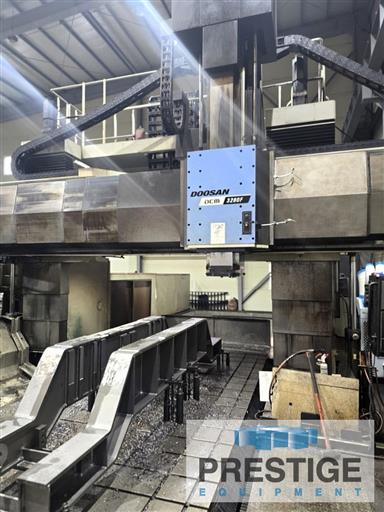

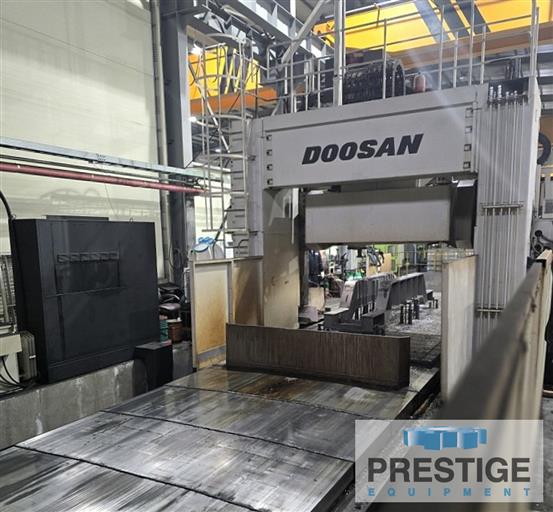

Doosan DCM-3280 CNC Double Column Vertical Machining Center
Model:
DCM-3280
Age:
2016
Ref#:
44586
Prestige Equipment is the world's leading provider of Doosan DCM-3280 CNC Double Column Vertical Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Bridge Type Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓

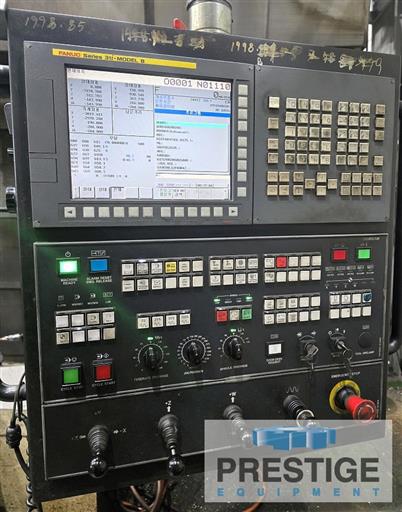

Fanuc 31iB CNC Control
✓
90° Milling Head Attachment
✓

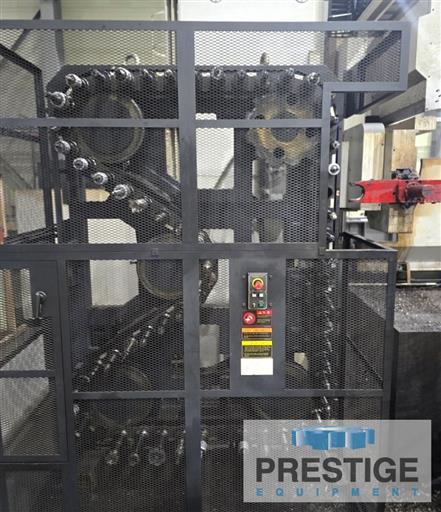

60-Station Automatic Tool Changer
✓
Automatic Attachment Changer
✓
Linear Scales on All Axes
Product Specifications
SPECIFICATIONS:
Table Dimensions
106.29" x 314.96"
X-Axis Travel
324.80"
Y-Axis Travel
145.66"
Z-Axis Travel
39.37"
Distance Between Columns
125.98"
Table Weight Capacity
88,000 Lbs
Distance Spindle Nose - Table
78.74"
Ram Dimensions
14.96" x 14.96"
Spindle Speed
4,000 RPM
Spindle Taper
BT-50
Spindle Motor
49 HP
Equipped With:
Fanuc 31iB CNC Control
90° Milling Head Attachment
60-Station Automatic Tool Changer
Automatic Attachment Changer
Linear Scales on All Axes
13.77" Extended Height
Chip Conveyor
Features:
✓
Fanuc 31iB CNC Control
✓
90° Milling Head Attachment
✓
60-Station Automatic Tool Changer
✓
Automatic Attachment Changer
✓
Linear Scales on All Axes
