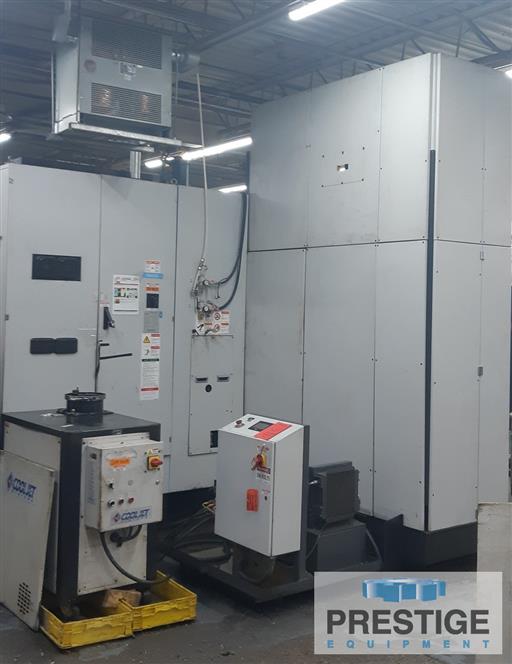

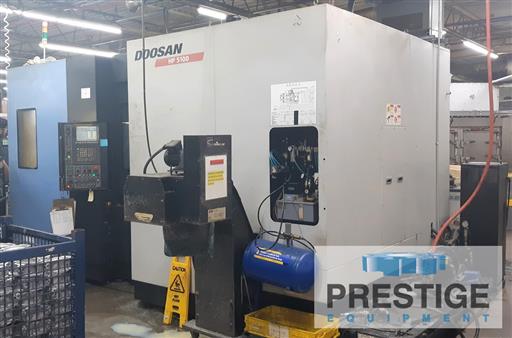

Doosan HP-5100 Horizontal CNC Machining Center
Model:
HP-5100
Age:
2013
Ref#:
44173
Prestige Equipment is the world's leading provider of Doosan HP-5100 Horizontal CNC Machining Center & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Horizontal Machining Centers (HMC) for sale.
Product Specifications
Features:
✓

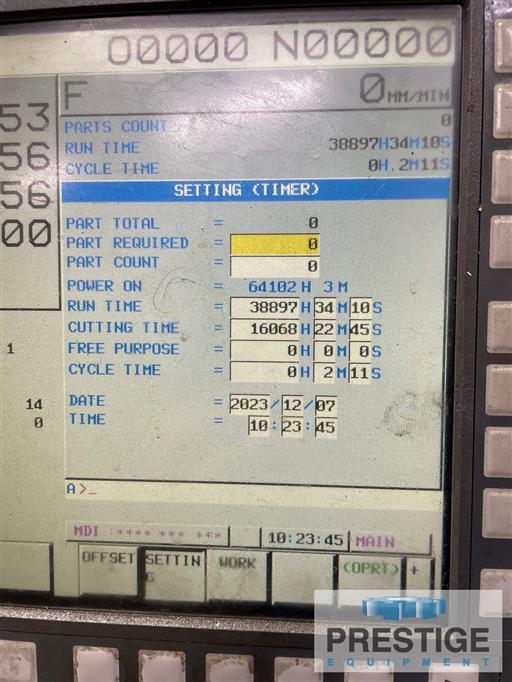

FANUC 31iA CNC CONTROL, 264 MM Color LCD
✓
PC/MCIA Interface
✓
Number of Tool Offsets 200 Pairs
✓
Helical Interpolation
✓
Rigid Tapping
✓
Coolant Thru Spindle 2.0 MPA
✓
Tool Life Management
✓
Spindle Chiller Unit
✓
Manual Pulse Generator
Product Specifications
Specification:

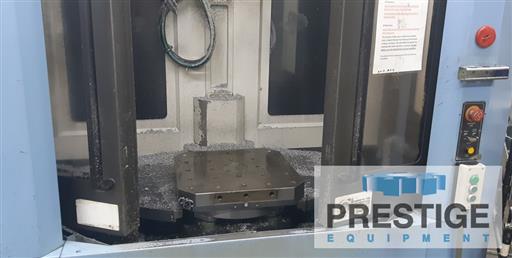

Pallet Size
500 MM x 500 MM
Number of Pallets
2
X-Axis
851 MM
Y-Axis
701 MM
Z-Axis
749 MM
Pallet Index
1 Degree
Spindle Speed
14,000 R/Min
Spindle Taper
Big Plus, CAT-40 DIN 15
Spindle Motor
22/18.5 KW
Spindle Torque
68.7 ft. lbs.
Spindle Center to Tabletop
51 MM - 749 MM
Spindle Nose to Table Center
150 MM - 899 MM
Tool Storage Capacity
170
Pallet Change Time
7.5 Seconds
Pallet Load Capacity
500 KG .
Max Workpiece Size (Dia / Height)
800 MM / 930 MM
Max Tool Diameter
76 MM / 140 MM
Max Tool Length
399 MM
Max Tool Weight
10 KG .
Power Source
3 Ph, AC 220V, 60 Hz
Machine Dimensions (L x W x H)
4928 MM x 2743 MM x 3023 MM
Machine Weight
15000 KG .
Equipped With:
FANUC 31iA CNC CONTROL, 264 MM Color LCD
PC/MCIA Interface
Number of Tool Offsets 200 Pairs
Helical Interpolation
Rigid Tapping
Coolant Thru Spindle 2.0 MPA
Tool Life Management
Spindle Chiller Unit
Manual Pulse Generator
Features:
✓
FANUC 31iA CNC CONTROL, 264 MM Color LCD
✓
PC/MCIA Interface
✓
Number of Tool Offsets 200 Pairs
✓
Helical Interpolation
✓
Rigid Tapping
✓
Coolant Thru Spindle 2.0 MPA
✓
Tool Life Management
✓
Spindle Chiller Unit
✓
Manual Pulse Generator
