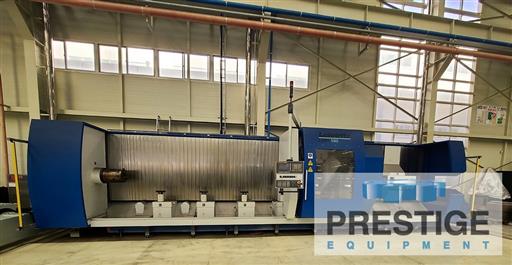

Prestige Equipment is the world's leading provider of Hankook Hanturn-75 x 6000 CNC Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Features:
✓
Fanuc 32i-TA CNC Control
✓
(2) Steady Rests
✓
Auto Square Tool Post
Product Specifications
CAPACITIES:
Swing Over Bed
750 MM
Swing Over Carriage
480 MM
Max. Turning Diameter
750 MM
Distance Between Centers
6011 MM
Loading Capacity Between Centers
3992 KG .
Maximum Spindle Speed
1,250 RPM
Spindle Nose
A2-11
Spindle Bore
105 MM
Spindle Drive Motor
18 KW
X-Axis Travel
425 MM
Z-Axis Travel
6380 MM
Tailstock Quill Diameter
112 MM
Tailstock Spindle Taper
MT-6
Tailstock Quill Travel
200 MM
Approximate Machine Weight
28,600
Equipped With:
Fanuc 32i-TA CNC Control
457 MM 3-Chuck Manual Chuck
Automatic Square Tool Post
(2) Steady Rests
Tailstock
Chip Conveyor
Features:
✓
Fanuc 32i-TA CNC Control
✓
(2) Steady Rests
✓
Auto Square Tool Post
