Haas ST 30Y CNC Lathe
Model:
ST 30Y
Age:
2018
Ref#:
44678
Prestige Equipment is the world's leading provider of Haas ST 30Y CNC Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Lathes for sale.
Product Specifications
Features:
✓

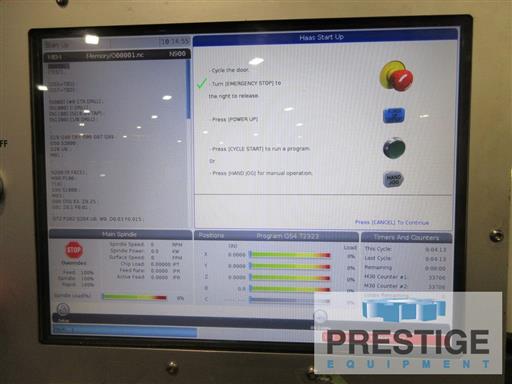

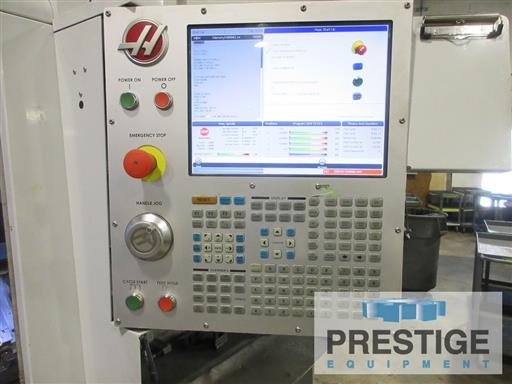

Haas CNC Control with 15" Color LCD Monitor
✓
10" 3-Jaw Hydraulic Chuck
✓
Live Tooling
✓
Servo Driven C-Axis
✓

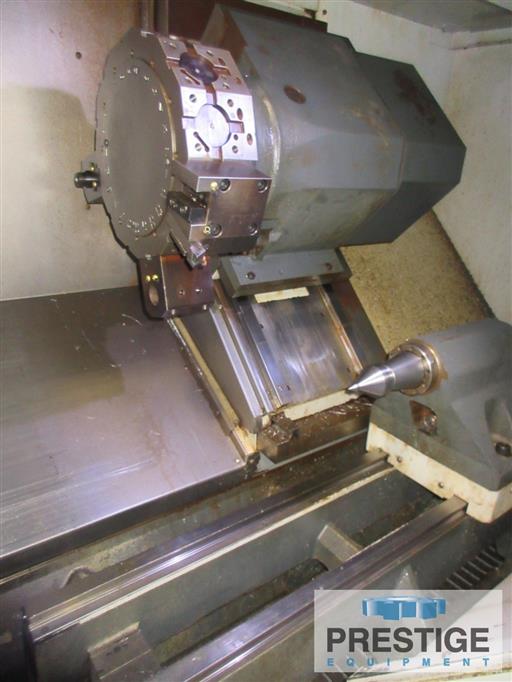

24-Station Turret
✓
Spindle Orientation
✓
Rigid Tapping
✓
Automatic Tool Pre-Setter
✓
Tailstock
✓

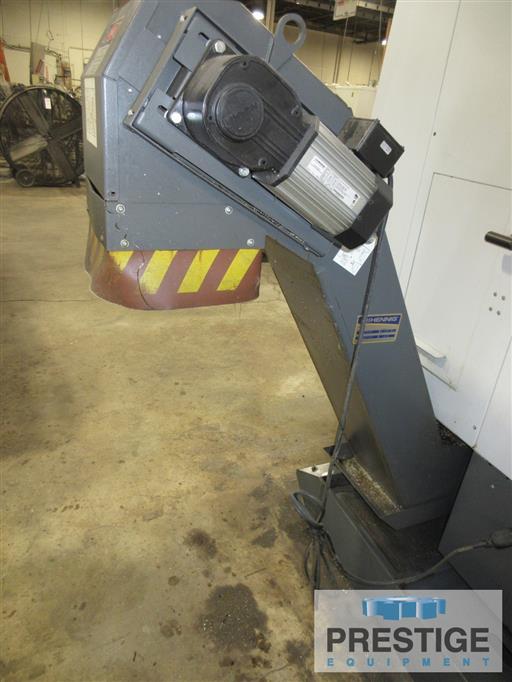

Belt Type Chip Conveyor
✓

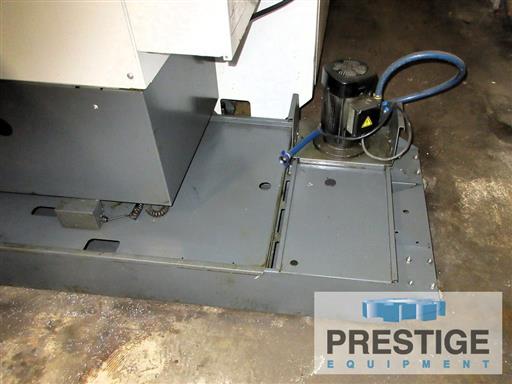

Coolant Tank Oil Skimmer
Product Specifications
CAPACITY:
Maximum Part Swing
21"
Maximum Cutting Diameter
13.75"
Maximum Cutting Length
32.5"
Spindle Speeds
3,400 RPM
Spindle Motor
30 HP
Spindle Nose
A2-6
Spindle Bore
3.5"
Bar Capacity
3"
X-Axis Travel
9.4"
Y-Axis Travel
+/- 2"
Z-Axis Travel
32.5"
C-Axis Positioning
0.01 Deg.
Live Milling Speed
4,000 RPM
Rapids(X/Y Axis)
472 IPM
Rapids(Z-Axis)
945 IPM
Equipped With:
Haas CNC Control with 15" Color LCD Monitor
10" 3-Jaw Hydraulic Chuck
Live Tooling
Servo Driven C-Axis
24-Station Turret
Spindle Orientation
Rigid Tapping
Automatic Tool Pre-Setter
Tailstock
Belt Type Chip Conveyor
Coolant Tank Oil Skimmer
NOTE:
Inspect In Plant Under power
Auction Message:
Machine will be auctioneed off March 5th at the Convertech Auction
View The Auction
Features:
✓
Haas CNC Control with 15" Color LCD Monitor
✓
10" 3-Jaw Hydraulic Chuck
✓
Live Tooling
✓
Servo Driven C-Axis
✓
24-Station Turret
✓
Spindle Orientation
✓
Rigid Tapping
✓
Automatic Tool Pre-Setter
✓
Tailstock
✓
Belt Type Chip Conveyor
✓
Coolant Tank Oil Skimmer
