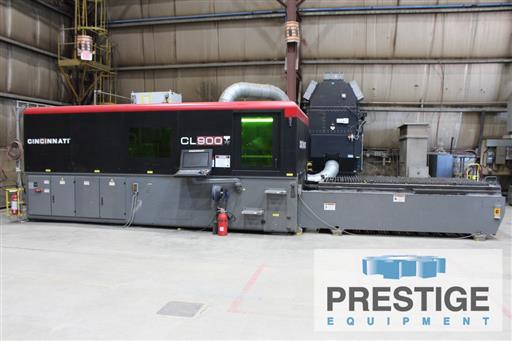

Cincinnati CL960 6KW Fiber Laser
Model:
CL960
Age:
2018
Ref#:
44646
Prestige Equipment is the world's leading provider of Cincinnati CL960 6KW Fiber Laser & machine tools & fabricating equipment. Take a look at our wide selection of new and used Tube CO2 Fiber Lasers for sale.
Product Specifications
Features:
✓
Cincinnati HMI CNC W/High Resolution 15" LCD Color Touch Screen Monitor
✓
IPG 6000 Watt Solid State Fiber Laser
✓

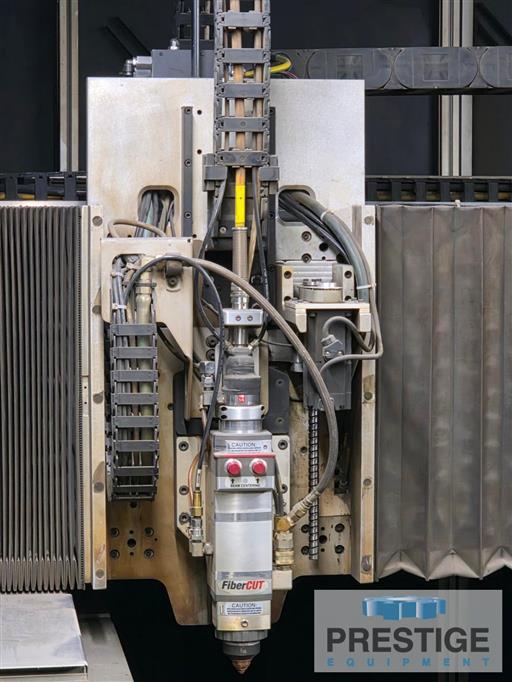

Breakaway Non-Contact Auto-focus Laser
✓
A/C Brushless Permanent-Magnet Linear Servo Motors
✓

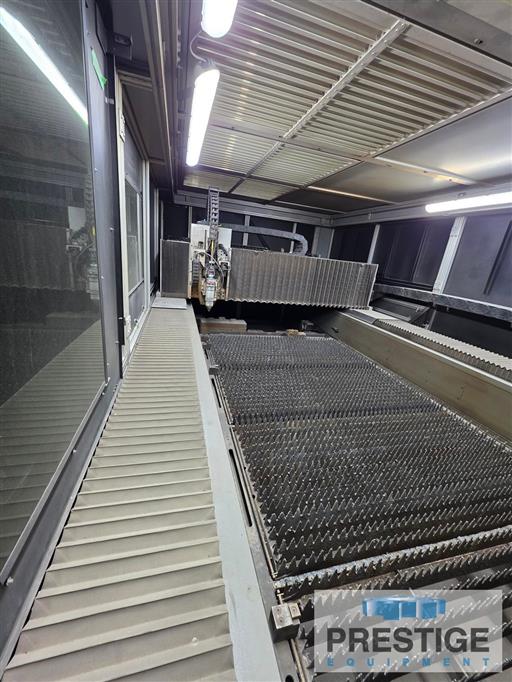

Dual Pallet Cutting Tables with Ball Transfers
✓

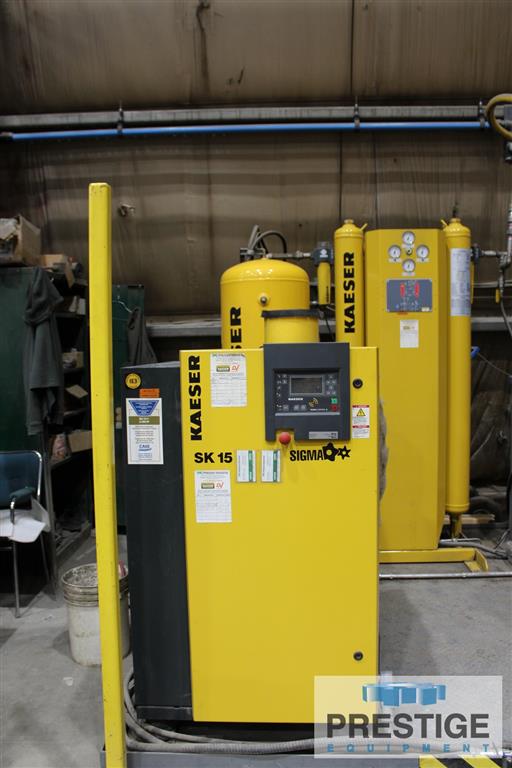

15 HP Kaeser Compressor
✓

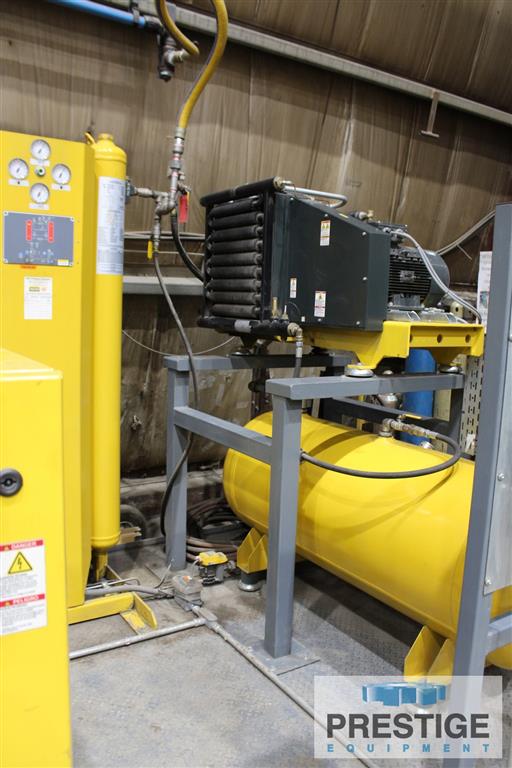

Dryer & Booster for High Pressure Air Assist Cutting
Product Specifications
CAPACITY:
Power Output
6,000 Watt
Y-Axis Travel
61"
X-Axis Travel
121"
Z-Axis Travel
10"
Table Load Capacity
3,949 Lbs
Simultaneous X & Y Axis Speed
12,020 IPM
Rapid Traverse, X/Y Axes
8,500 IPM
Rapid Traverse, Z-Axis
1,700 IPM
Electrical Requirements
460V / 3PH/ 60HZ
Approx. Machine Footprint
412" x 183" x 105" High
Approx. Machine Weight
36,750 Lbs .
Equipped With:
Cincinnati HMI CNC W/High Resolution 15" LCD Color Touch Screen Monitor
IPG 6000 Watt Solid State Fiber Laser
Breakaway Non-Contact Auto-focus Laser
A/C Brushless Permanent-Magnet Linear Servo Motors
Dual Pallet Cutting Tables with Ball Transfers
15 HP Kaeser Compressor
Dryer & Booster for High Pressure Air Assist Cutting

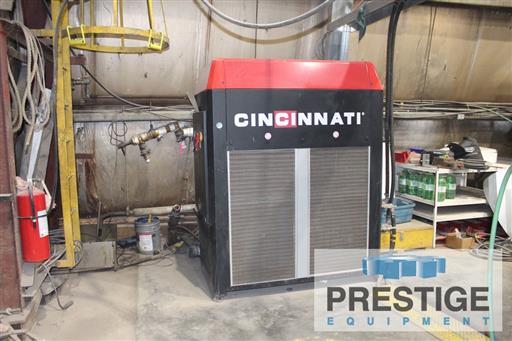

Industrial Chiller

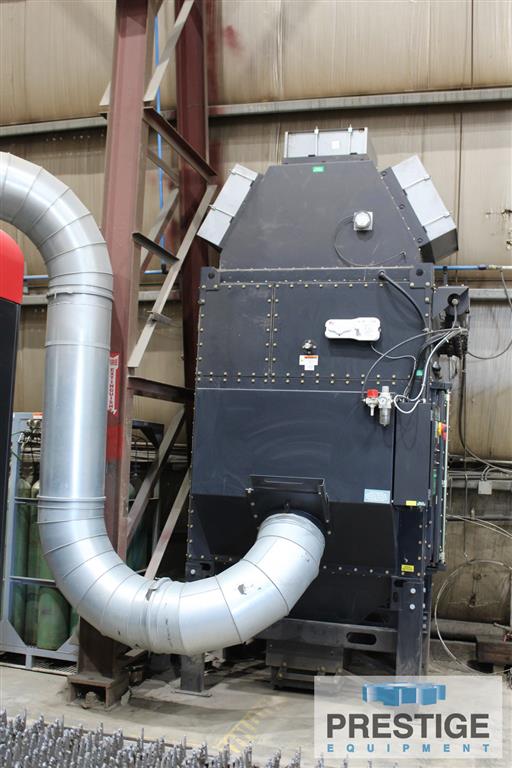

Camfil Dust Collector
HOURS:
On Time Hours: 12,960
Beam On Time: 1,239
NOTE:
Machine has been on Cincinnati Pro Plan Since New
All PM's and Repairs completed by Licensed Cincinnati Tech
Inspect In Plant Under Power
Features:
✓
Cincinnati HMI CNC W/High Resolution 15" LCD Color Touch Screen Monitor
✓
IPG 6000 Watt Solid State Fiber Laser
✓
Breakaway Non-Contact Auto-focus Laser
✓
A/C Brushless Permanent-Magnet Linear Servo Motors
✓
Dual Pallet Cutting Tables with Ball Transfers
✓
15 HP Kaeser Compressor
✓
Dryer & Booster for High Pressure Air Assist Cutting
