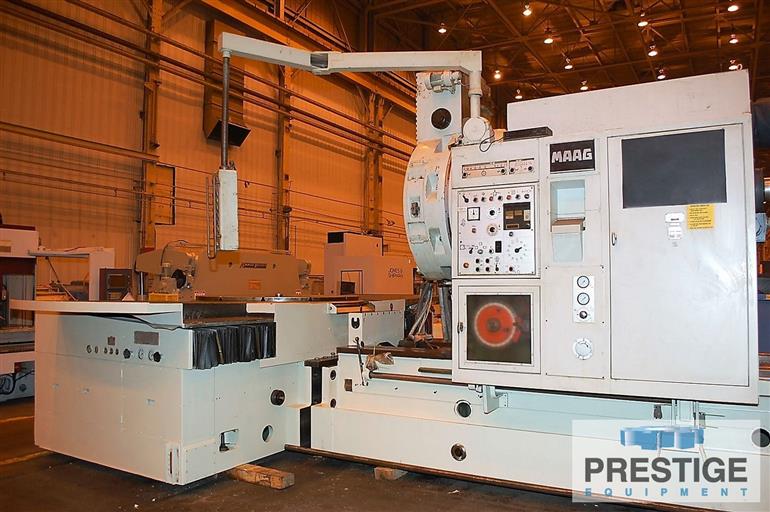

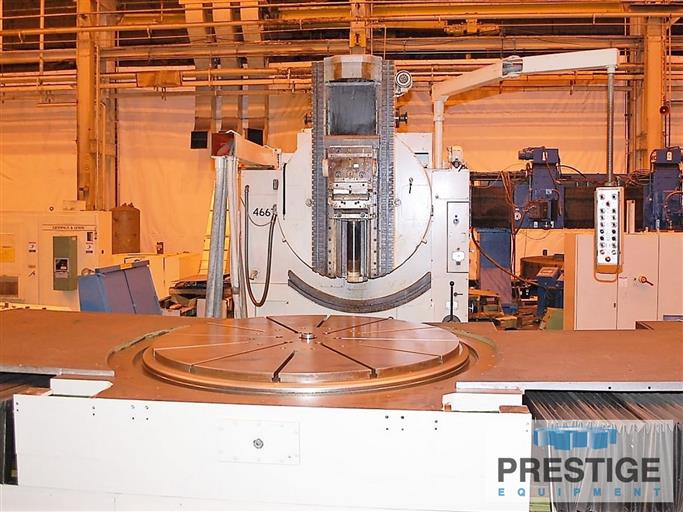

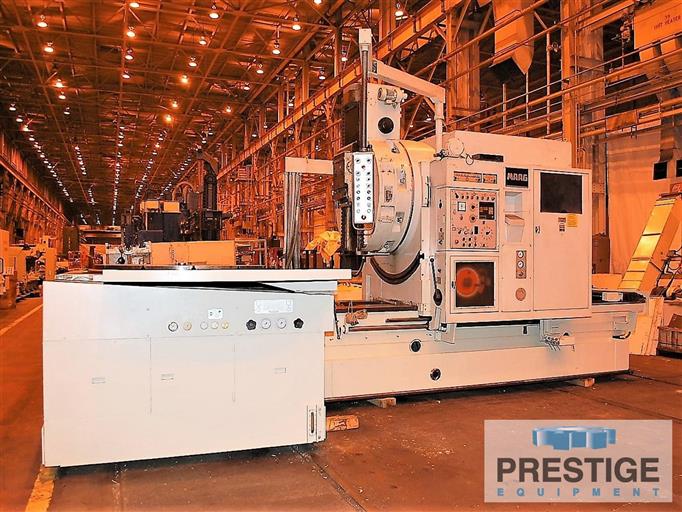

MAAG SH450/500S Large Capacity Gear Shaper
Model:
SH 450/500S
Age:
1977
Ref#:
20852
Prestige Equipment is the world's leading provider of MAAG SH450/500S Large Capacity Gear Shaper & machine tools & fabricating equipment. Take a look at our wide selection of new and used Gear Shapers for sale.
Product Specifications
Features:
✓

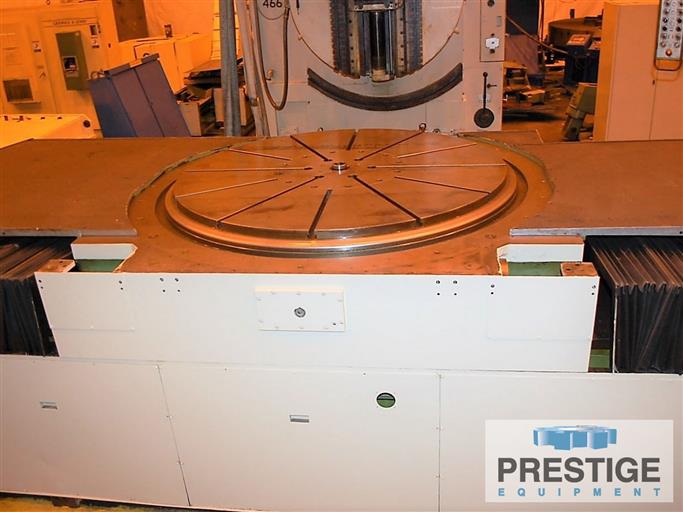

69" Dia. Built-In Rotary Table
✓

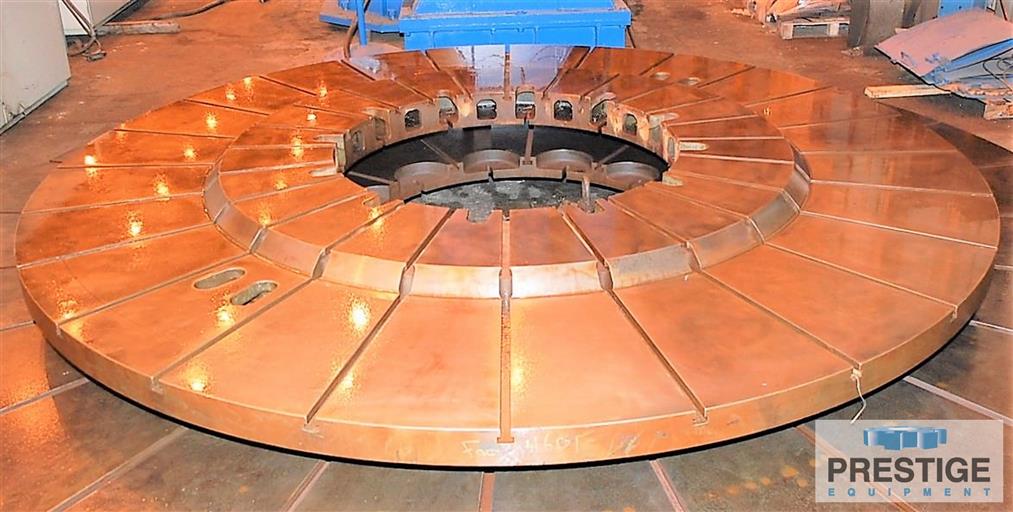

138" Dia. Additional Table / Sub Plate
✓
186" Dia. Additional Table / Sub Plate
✓

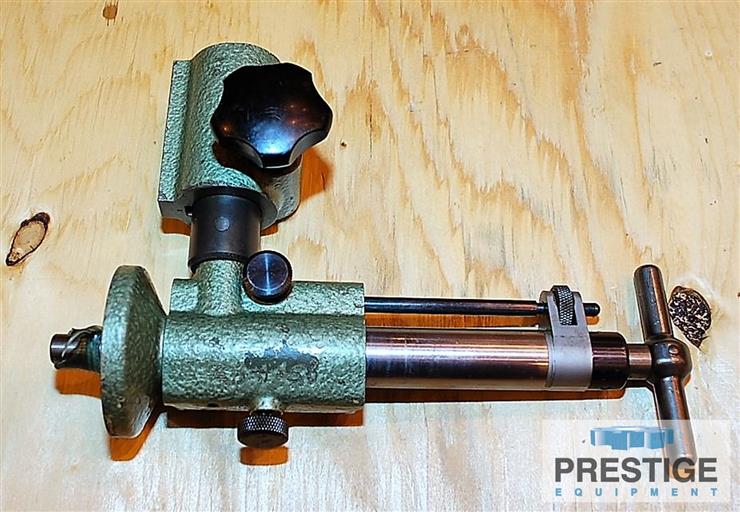

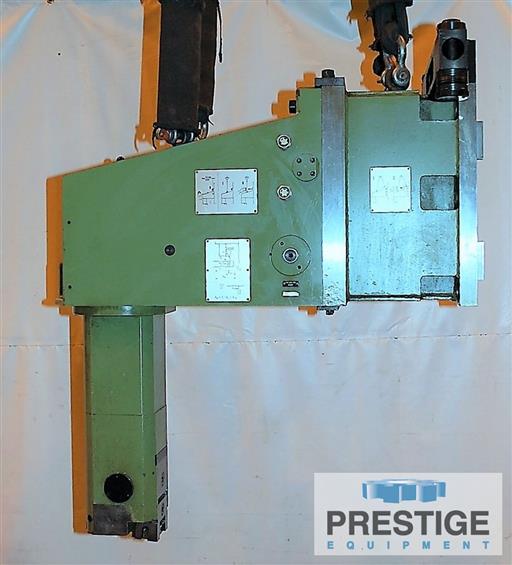

JVE Internal Attachment
✓
Chip Conveyer
✓
Change Gears
✓
Coolant
Product Specifications
Serial Number
7588
SPECIFICATIONS:
Max. Tip Circle Diameter (Spur Gear)
206.55"
Min. Tip Circle Diameter (Spur Gear)
20.8"
Table Diameter
69"
Module Min Pitch w/Rack-Type Cutter
.0875 DP (30)
Module Max Pitch w/Rack-Type Cutter
12.7 DP (2)
Module Max w/ Single-Tooth Cutter
.5 DP (50)
Min. Number of Teeth
12
Max. Number of Teeth
1000
Helix Angle
Infinite
Max. Face Width (Spur Gear)
26"
Max. Table Load
77000 lbs.
Max Ram Stroke
27"
Min Ram Stroke
2.75"
Diameter of Work Table Bore
23.6"
Work Table Bore Length
51.2"
Machine Footprint (L X W)
344" x 246"
Machine Height
135"
Machine Weight
110,000 Lbs.
Equipped With:
69" Dia. Built-In Rotary Table
138" Dia. Additional Table / Sub Plate
186" Dia. Additional Table / Sub Plate
JVE Internal Attachment
Cutting Coolant System
Chip Conveyer
Set of Change Gears
LOCATION:
Philadelphia, Pennsylvania
Features:
✓
69" Dia. Built-In Rotary Table
✓
138" Dia. Additional Table / Sub Plate
✓
186" Dia. Additional Table / Sub Plate
✓
JVE Internal Attachment
✓
Chip Conveyer
✓
Change Gears
✓
Coolant
