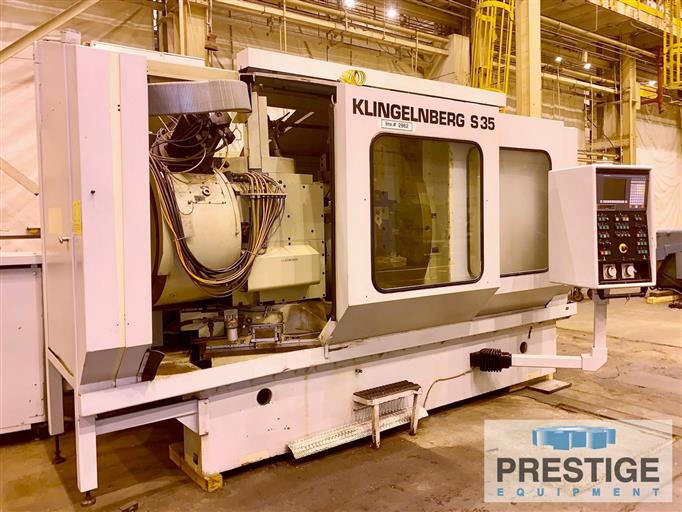

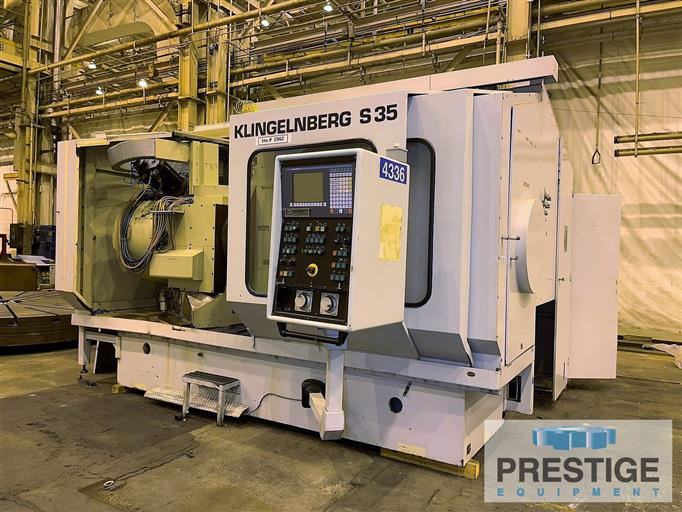

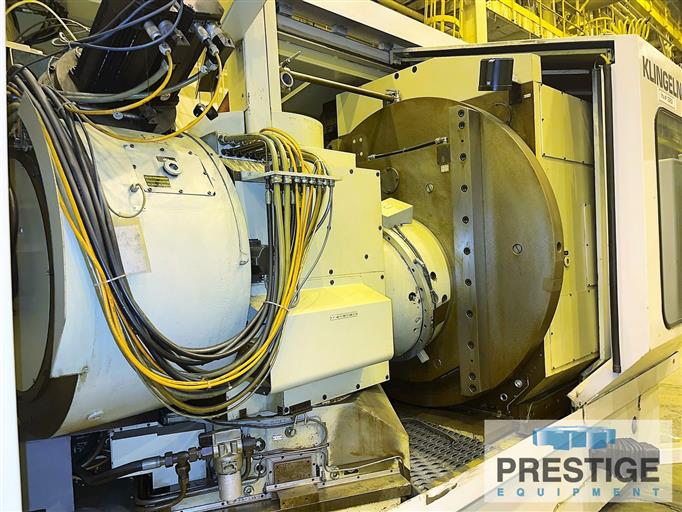

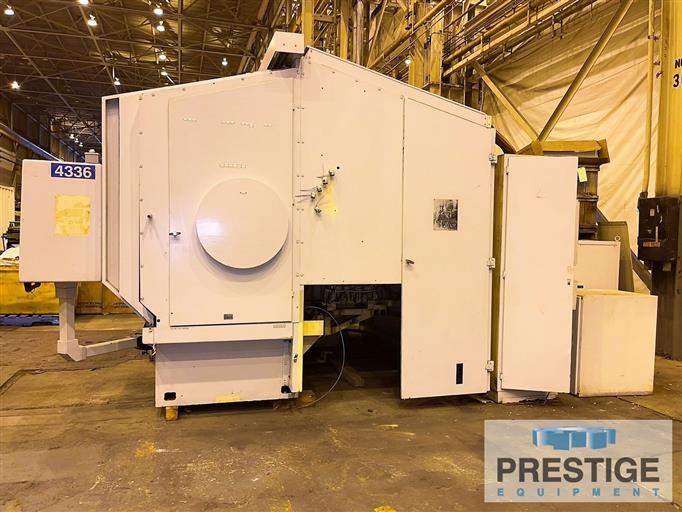

Klingelnberg 10-Axis CNC Gear Cutting Machine

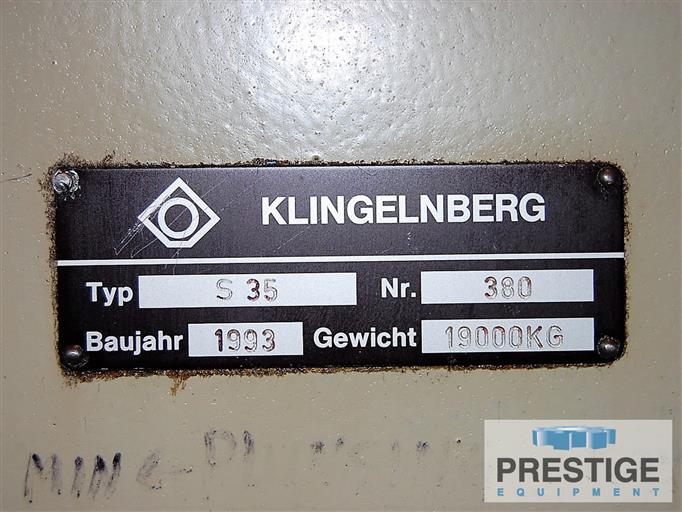

Model:
S35 10-Axis
Age:
1993
Ref#:
16326
View Video
Prestige Equipment is the world's leading provider of Klingelnberg 10-Axis CNC Gear Cutting Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hypoid Spiral Bevel Gear Generators for sale.
Product Specifications
Features:
10-Axis CNC Control
Suited For Medium & Large Spiral Bevel & Hypoid Gears
23.6" Maximum Workpiece Diameter
Designed High Dependability & Precision
Continuous & Single Indexing Operations
Product Specifications
SPECIFICATIONS:
Maximum Workpiece Diameter
23.6"
Smallest Normal Module
0.137"
Largest Normal Module
0.393"
Max Tooth Width
3.93"
Smallest Transmission Ratio
1:1
Largest Transmission Ratio
1:10
Spiral Angle (Degrees)
0-60
CUTTER HEAD SPINDLE:
Oerlikon Short Taper 1:4
0-5.118"
Spindle Speeds (Inf. Var.)
30-350 min-1
Spindle Tilt (Degrees)
0-35
Eccentricity
0-10.82"
Cutter Head Radius
3.46"-7.12"
WORKPIECE SPINDLE
Oerlikon Outside Taper 1:4
0-8.85"
Inside Taper No. 39, 1:19,692
6"
Max Spindle Speed
0-160 min-1
Bore
0-6.29"
Axial Offset
+/-2.36"
Swivel Range (Degrees)
-7 up to 90
FEEDS:
Generating Feed (Inf. Var.)
40 Deg./Second
Equipped With:

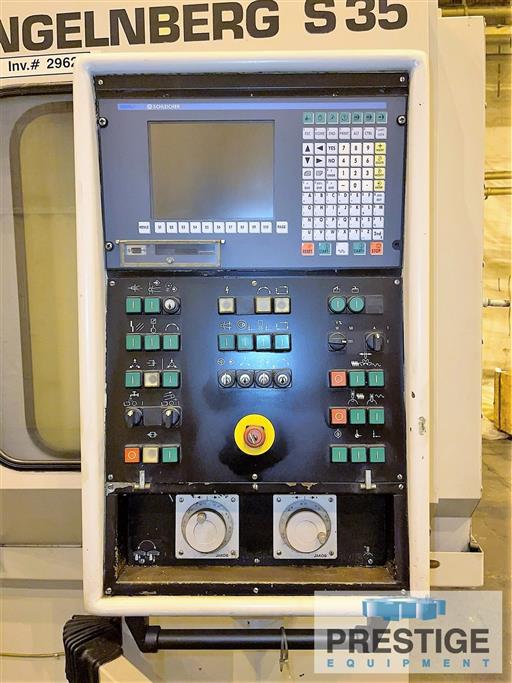

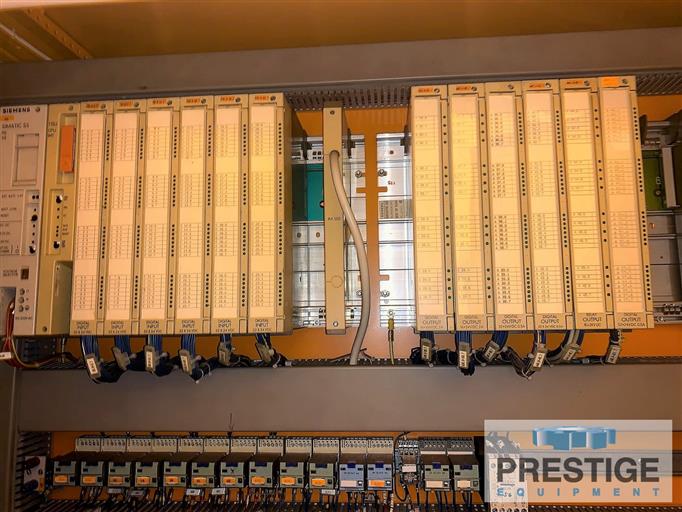

Schleicher (Siemens) 10-Axis CNC w/ RS-232

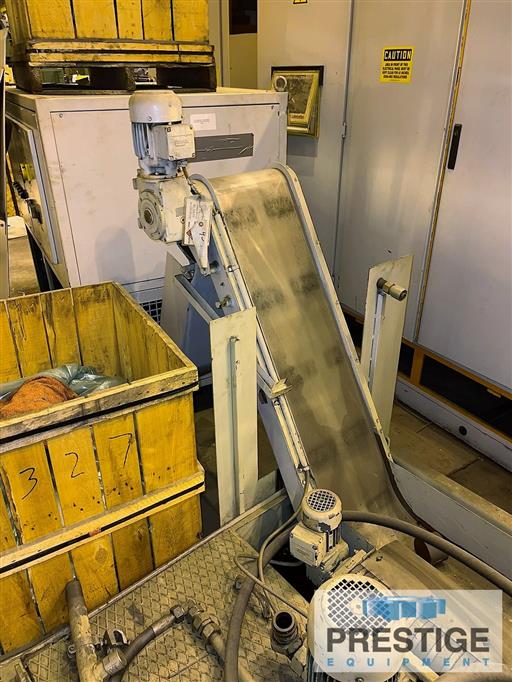

11" Magnetic Chip Conveyor

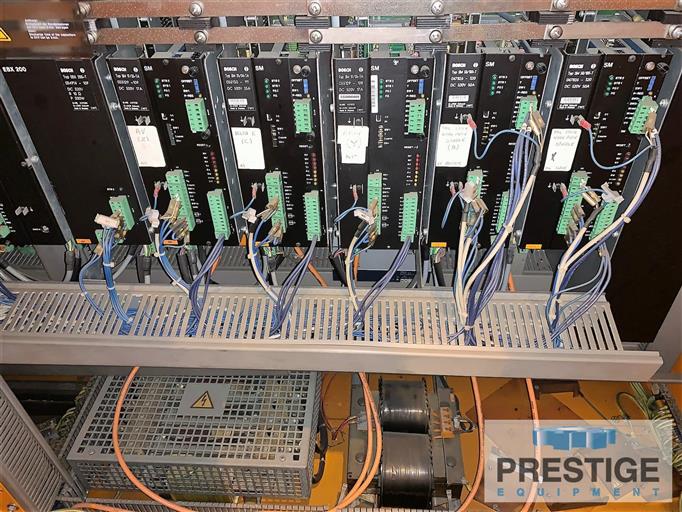

Bosch Drives
Continuous & Single Indexing Methods

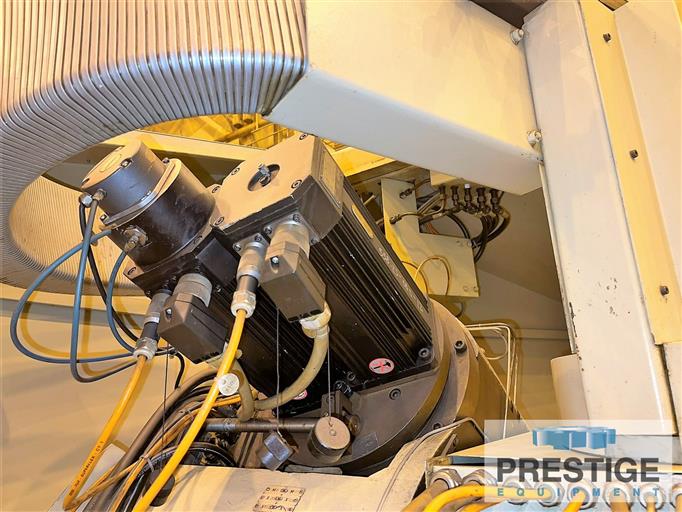

AC Motors & Controls

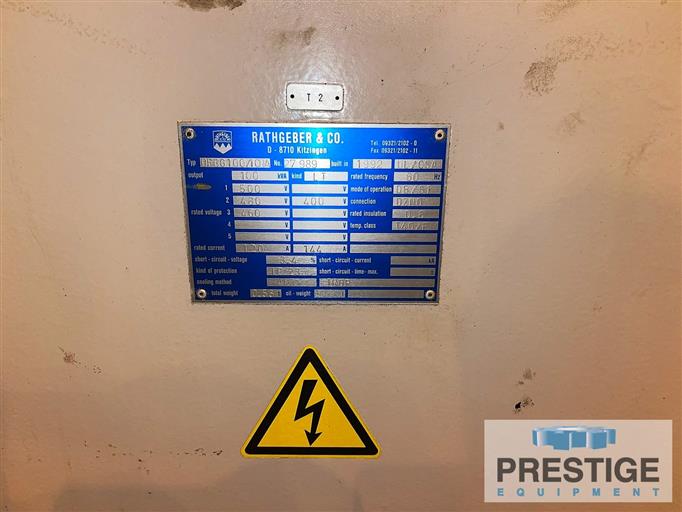

100 KVA Transformer
Chiller
Mist Collector
McLean Air Conditioner Unit
LOCATION:
Philadelphia, PA
Features:
10-Axis CNC Control
Suited For Medium & Large Spiral Bevel & Hypoid Gears
23.6" Maximum Workpiece Diameter
Designed High Dependability & Precision
Continuous & Single Indexing Operations
