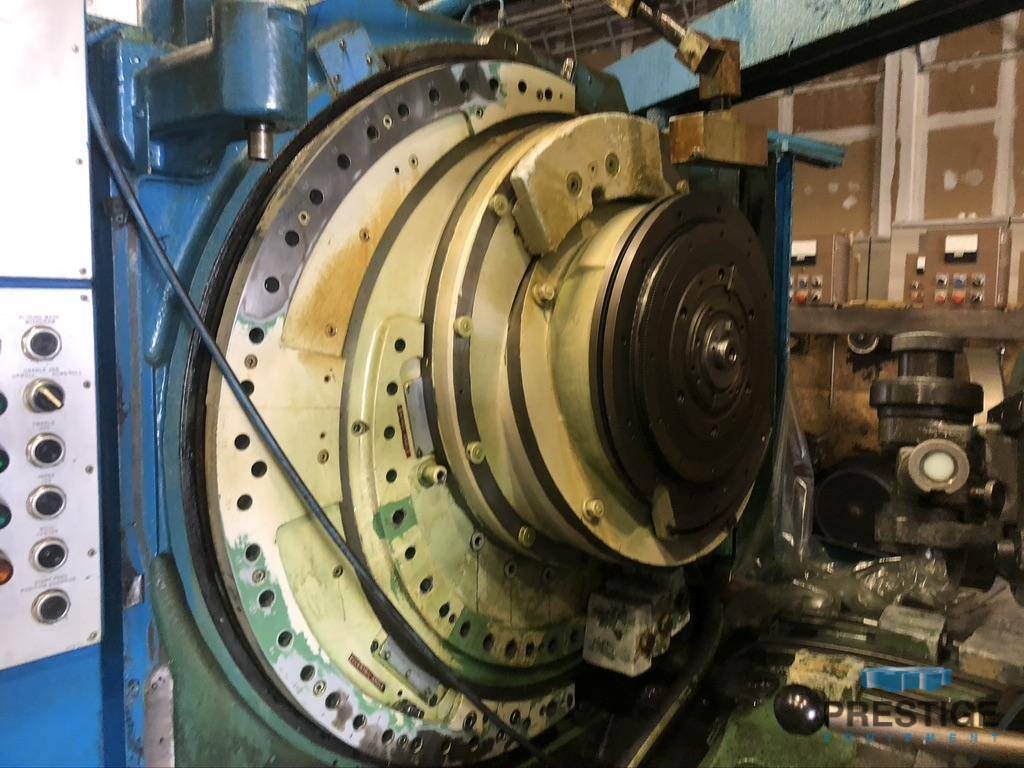

Gleason Model 645 Hypoid Gear Generator
Model:
645
Age:
1980
Ref#:
31071
Prestige Equipment is the world's leading provider of Gleason Model 645 Hypoid Gear Generator & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hypoid Spiral Bevel Gear Generators for sale.
Product Specifications
Product Specifications
SPECIFICATIONS:
Outer Core
14.22", 14.05", 14.88"
Spiral Angle
29.75", 30 Deg, 35 Deg.
Cutter Diameter
12", 16", 18"
Extreme Ratio
10:1
Root Angle Range
-8/+90 Degree
Maximum Radial Setting
10.50"
Coarsest Pitch
1.5 DP
Full Depth
1.25"
Face Width Max.
4.60"
Index Range
5-80 Inclusive
Work Spindle, Dia. Of Taper Hole
6" At Large End
Taper/Ft
3/4"
Taper/Depth
6"
Hole Through Spindle
5"
Cutter Diameter
9", 12", 16", 18"
Work Head Offset Above Center
4.5"
Work Head Offset Below Center
4.5"
Machine Center To Spindle Nose
23.5"
Cutter Speeds/Feeds
19-167 RPM
Electrics
460V
Weight
55,000 Lbs.
Equipped With:
Stock Divider
Chip Auger
Hydraulic System
Coolant
LOCATION:
Bridgeport, CT
