World's Leading Provider of Used Machinery

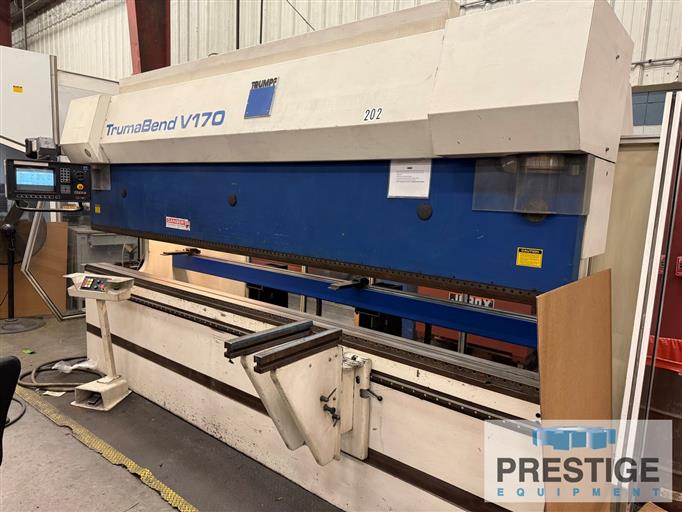

187 Ton Trumpf Trumabend V170 6-Axis CNC Press Brake
Model:
V170
Age:
2000
Ref#:
44529
Prestige Equipment is the world's leading provider of 187 Ton Trumpf Trumabend V170 6-Axis CNC Press Brake & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Product Specifications
CAPACITY:
Tonnage Capacity
187 Tons
Maximum Bending Length
160"
Distance Between Housings
145"
Stroke Length
8.46"
Open Height
15"
Throat Depth
16"
Travel In X-Axis
24"
Travel In R-Axis
9.8"
Operating Speed in X-Axis
1200 IPM
Operating Speed in Y-Axis
2-26 IPM
Drive Motor
30 H.P.
Approximate Shipping Weight
36,272 Lbs.
Equipped With:

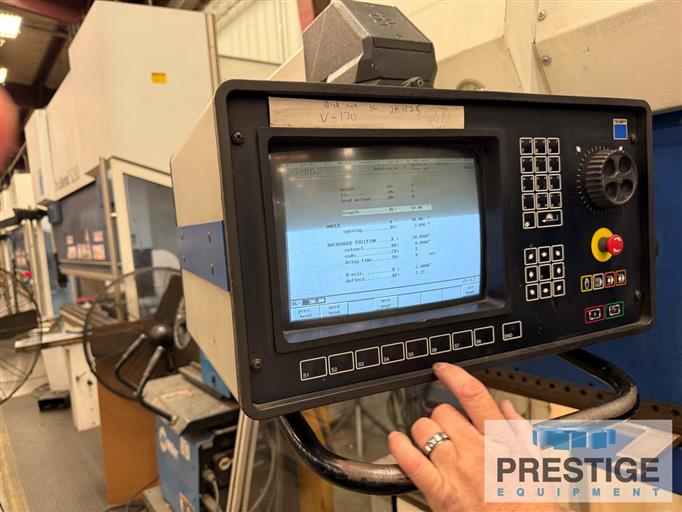

Delem 6-Axis CNC Control
4-Axis CNC Back Gauge
(2)From Support Arms

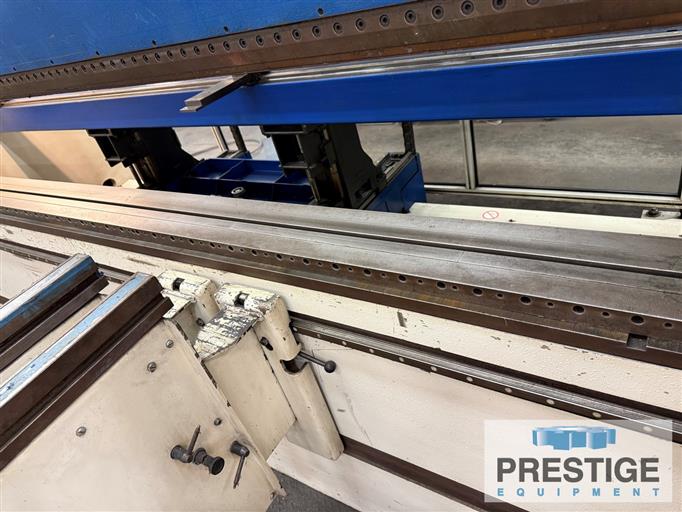

Power Punch And Die Clamping
CNC Programming Crowning
CNC Programmable Die Shift
Electric Foot Switch Controls
Pedestal Mounted Control Station
NOTE:
Inspect In Plant Under Power
