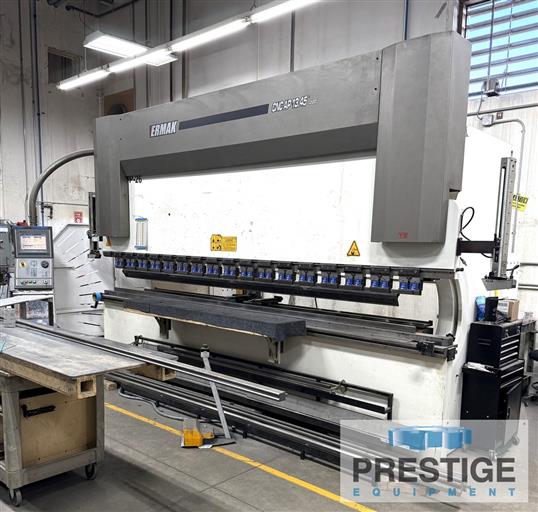

Ermak CNC AP 13.45x220 220 Ton x 3.96 M CNC Press Brake
Model:
CNC AP 13.45x220
Age:
2007
Ref#:
44425
Prestige Equipment is the world's leading provider of Ermak CNC AP 13.45x220 220 Ton x 3.96 M CNC Press Brake & machine tools & fabricating equipment. Take a look at our wide selection of new and used Hydraulic Press Brakes for sale.
Product Specifications
Features:
✓

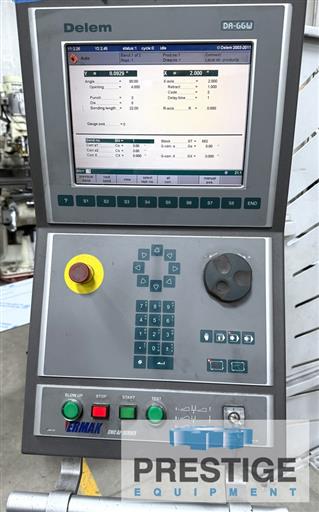

Delem DA-66W
✓
Programmable Ram Y-Axis
✓

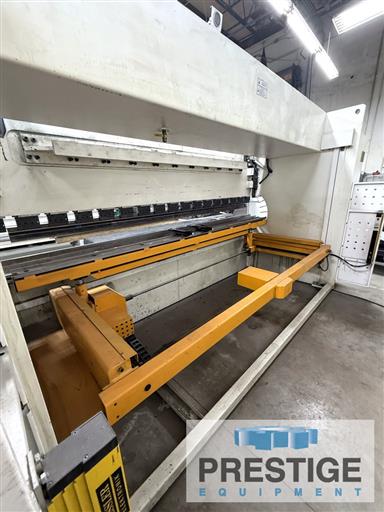

Programmable X-Axis Back gauge, Manual R-Axis
✓
Manual Lower Crowing
✓
Electric Foot Switch
✓
Safety Light Curtains
✓
(2) Bottom Dies ½” & 2” V-Opening
✓

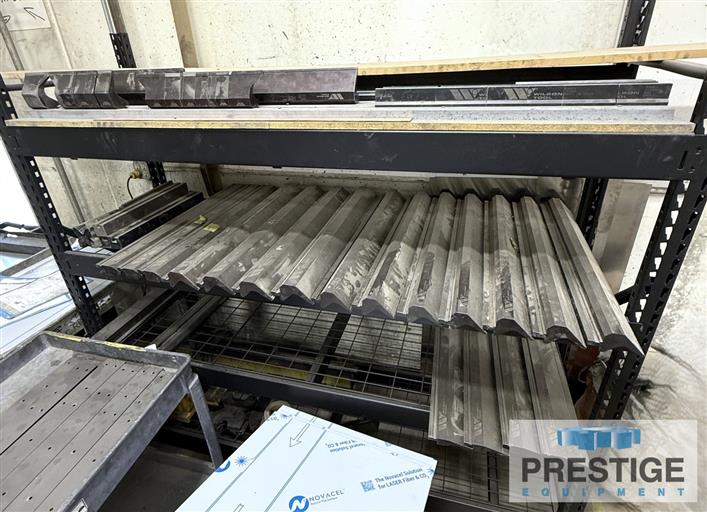

Quantity Of Wilson Tooling
✓
Flush Floor Mount Machine
Product Specifications
CAPACITY:
Tonnage Capacity
220 Tons
Bending Length
3962 MM
Distance Between Housings
3251 MM
Stroke Length
178 MM
Throat Clearance
400 MM
Open Height
429 MM
Shut Height
251 MM
Main Motor
15 KW
Approach Speed
5994 MM/MIN
Bending Speed
584 MM/MIN
Return Speed
100 MM IPS
Approx. Dimensions
5156 MM L X 2261 MM W X 3048 MM H
Approximate Shipping Weight
15003 KG
Equipped With:
Delem DA-66W
Programmable Ram Y-Axis
Programmable X-Axis Back gauge with Manual R-Axis
Manual Lower Crowing
Electric Foot Switch
Safety Light Curtains
(2) Bottom Dies ½” & 2” V-Opening
Quantity Of Wilson Tooling
Flush Floor Mounted Machine
NOTE:
Inspect In Plant Under Power
Features:
✓
Delem DA-66W
✓
Programmable Ram Y-Axis
✓
Programmable X-Axis Back gauge, Manual R-Axis
✓
Manual Lower Crowing
✓
Electric Foot Switch
✓
Safety Light Curtains
✓
(2) Bottom Dies ½” & 2” V-Opening
✓
Quantity Of Wilson Tooling
✓
Flush Floor Mount Machine
